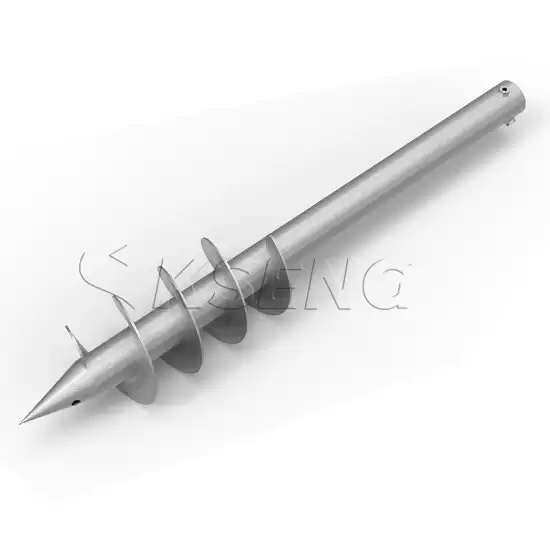

Flange Adjustable Hot Galvanized 4 Blades Ground Screw Anchor
the ground screws are not damaged then they can be used again. As such, ground screws leave behind the same green space that was there before the construction and they leave the ecosystem of the soil intact.
In comparison to concrete foundations, when using ground screws you avoid any unnecessary surface sealing of the soil. The soil ecosystem is not disturbed and it remains intact.

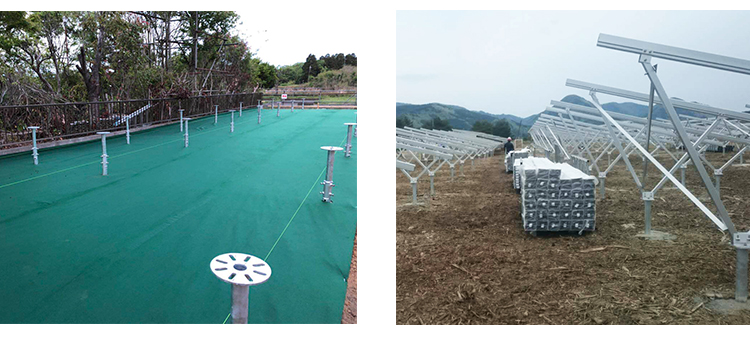

Ground Screw Anchor is the preferred foundation in many applications, such as solar power plants, fences, wooden houses, advertising and traffic systems, urban garden and landscape construction and so on.
Special situations call for special products Ground screws are always a good solution for special construction projects where conventional concrete foundations are no longer an economic selection.
|

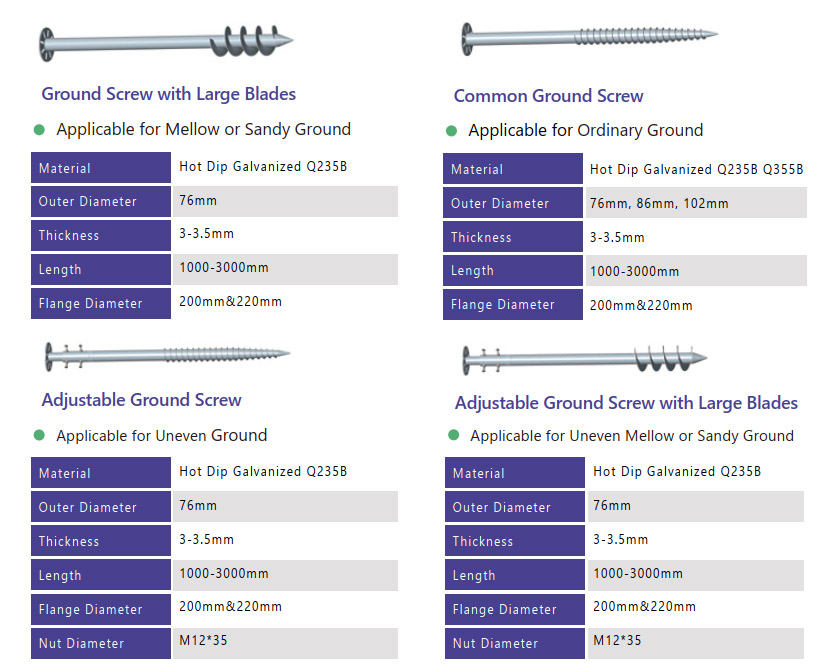

Product Name:
|
Ajustable Flang Ground Screw
|
|
Material:
|
Hot Dip Galvanizing Q235B
|
|
Outer Diameter:
|
76mm
|
|
Thickness:
|
3-3.5mm
|
|
Length:
|
1000-3000mm
|
|
Flange Diameter:
|
200mm&220mm
|
|
Nut Diameter:
|
M12*35
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Application:
|
Wooden Houses/Solar Mounting Foundation/Wooden Walkways
|
