Flange Cartridge Bearing Units UKFC2

UKFC+H  Standard duty,Tapered bore,Adapter sleeve locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

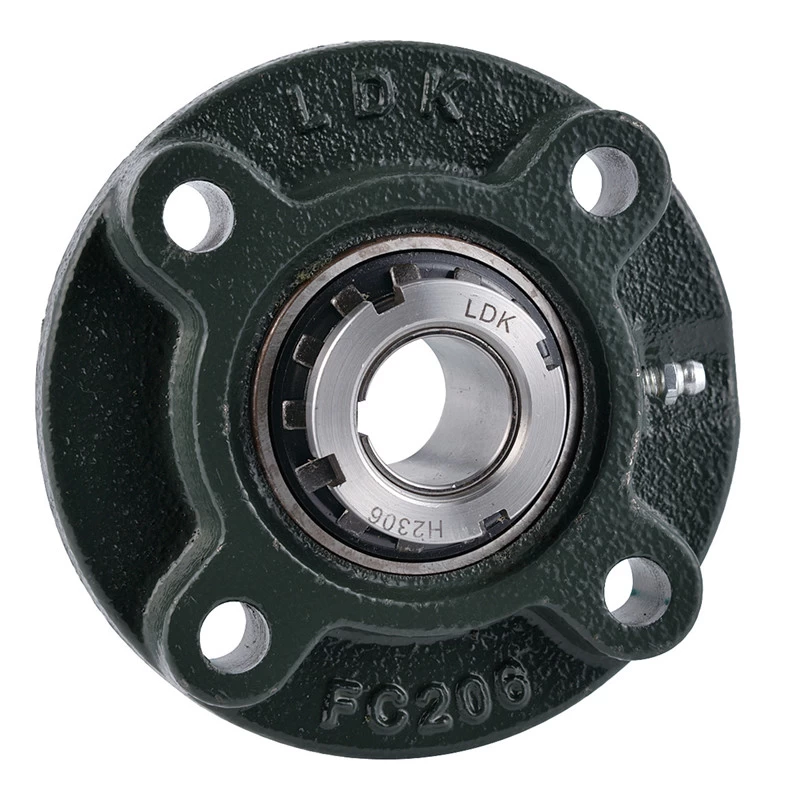

Flange Cartridge Bearing Housing UKFC211

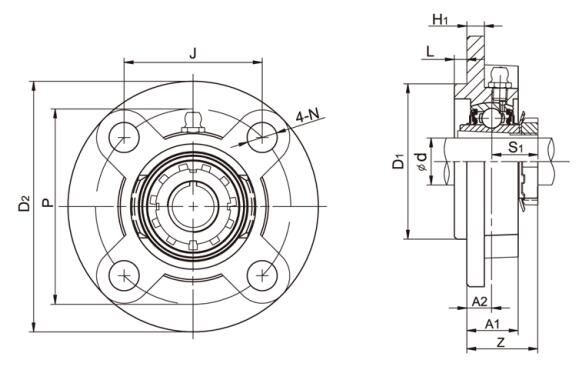

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d D2 P J A2 N L H1 A1 D1 S1 Z (kg)
(in) (mm)
UKFC205+H2305    20 115 90 63.6 10 12 6 7 21 70 18.5 28.5 M10 0.98
UKFC205+HE2305 3/4   115 90 63.6 10 12 6 7 21 70 18.5 28.5 M10 0.98
UKFC206+H2306   25 125 100 70.7 10 12 8 8 23 80 20.5 30.5 M10 1.2
UKFC206+HS2306  7/8    125 100 70.7 10 12 8 8 23 80 20.5 30.5 M10 1.2
UKFC206+HA2306 15/16   125 100 70.7 10 12 8 8 23 80 20.5 30.5 M10 1.2
UKFC206+HE2306 1   125 100 70.7 10 12 8 8 23 80 20.5 30.5 M10 1.2
UKFC207+H2307   30 135 110 77.8 11 14 8 9 26 90 22.5 33.5 M12 1.7
UKFC207+HS2307 1-1/8   135 110 77.8 11 14 8 9 26 90 22.5 33.5 M12 1.7
UKFC207+HA2307 1-3/16   135 110 77.8 11 14 8 9 26 90 22.5 33.5 M12 1.7
UKFC208+H2308   35 145 120 84.8 11 14 10 9 26 100 24.5 35.5 M12 2.0
UKFC208+HE2308 1-1/4   145 120 84.8 11 14 10 9 26 100 24.5 35.5 M12 2.0
UKFC208+HS2308 1-3/8   145 120 84.8 11 14 10 9 26 100 24.5 35.5 M12 2.0
UKFC209+H2309   40 160 132 93.3 10 16 12 10 26 105 26 36 M14 2.7
UKFC209+HA2309 1-7/16   160 132 93.3 10 16 12 10 26 105 26 36 M14 2.7
UKFC209+HE2309 1-1/2   160 132 93.3 10 16 12 10 26 105 26 36 M14 2.7
UKFC210+H2310   45 165 138 97.6 10 16 12 14 28 110 27.5 37.5 M14 3.0
UKFC210+HS2310  1-5/8    165 138 97.6 10 16 12 14 28 110 27.5 37.5 M14 3.0
UKFC210+HA2310 1-11/16   165 138 97.6 10 16 12 14 28 110 27.5 37.5 M14 3.0
UKFC210+HE2310 1-3/4   165 138 97.6 10 16 12 14 28 110 27.5 37.5 M14 3.0
UKFC211+H2311   50 185 150 106.1 13 19 12 15 30 125 28.5 41.5 M16 4.2
UKFC211+HS2311 1-7/8    185 150 106.1 13 19 12 15 30 125 28.5 41.5 M16 4.2
UKFC211+HA2311 1-15/16   185 150 106.1 13 19 12 15 30 125 28.5 41.5 M16 4.2
UKFC211+HE2311 2   185 150 106.1 13 19 12 15 30 125 28.5 41.5 M16 4.2
UKFC212+H2312    55 195 160 113.1 17 19 12 15 35 135 31 48 M16 4.9
UKFC212+HS2312 2-1/8   195 160 113.1 17 19 12 15 35 135 31 48 M16 4.9
UKFC213+H2313   60 205 170 120.2 16 19 14 15 36 145 32 48 M16 5.6
UKFC213+HA2313  2-3/16    205 170 120.2 16 19 14 15 36 145 32 48 M16 5.6
UKFC213+HE2313 2-1/4   205 170 120.2 16 19 14 15 36 145 32 48 M16 5.6
UKFC213+HS2313 2-3/8   205 170 120.2 16 19 14 15 36 145 32 48 M16 5.6
UKFC215+H2315   65 220 184 130.1 18 19 16 17 39 160 35.5 53.5 M16 7.5
UKFC215+HA2315 2-7/16   220 184 130.1 18 19 16 17 39 160 35.5 53.5 M16 7.5
UKFC215+HE2315 2-1/2   220 184 130.1 18 19 16 17 39 160 35.5 53.5 M16 7.5
UKFC216+H2316   70 240 200 141.4 18 23 16 18 42 170 39 57 M20 8.9
UKFC216+HA2316 2-11/16   240 200 141.4 18 23 16 18 42 170 39 57 M20 8.9
UKFC216+HE2316 2-3/4   240 200 141.4 18 23 16 18 42 170 39 57 M20 8.9
UKFC217+H2317   75 250 208 147.1 18 23 18 20 45 180 40 58 M20 10.4
UKFC217+HA2317 2-15/16   250 208 147.1 18 23 18 20 45 180 40 58 M20 10.4
UKFC217+HE2317 3   250 208 147.1 18 23 18 20 45 180 40 58 M20 10.4
UKFC218+H2318   80 265 220 155.5 22 23 18 20 50 190 42 64 M20 13.3
