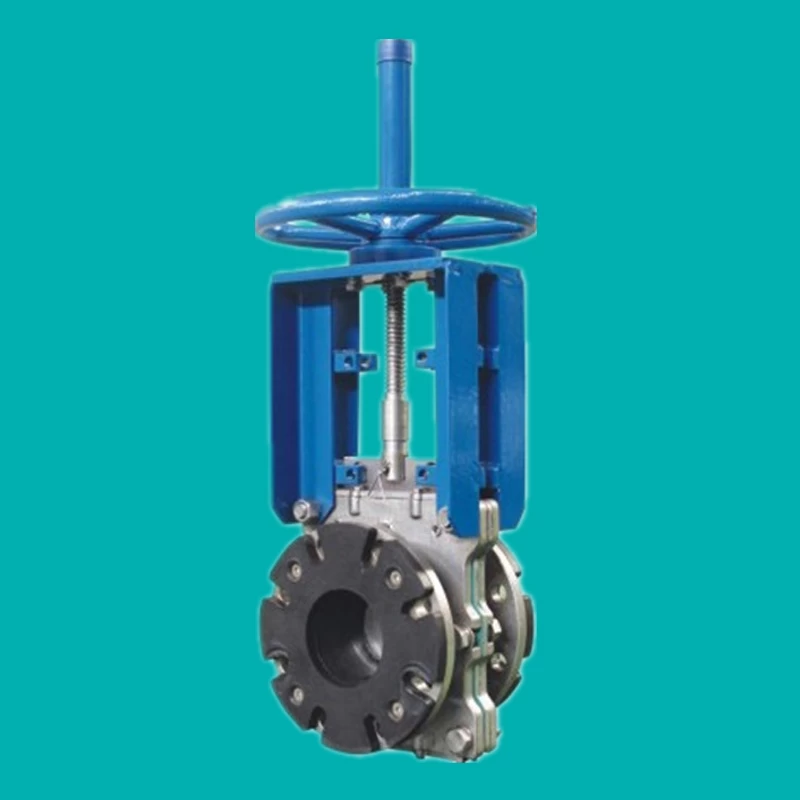

Flanged Type Heavy Duty Slurry Knife Gate Valves

YFL Flanged type heavy duty slurry knife gate valves are used for heavy duty mining slurry with harsh working conditions to solve abrasion problems in mining projects.


  • Leakage ClassZero leakage
  • Flange150LBS, PN10, Table D
  • OperationHandwheel, Gear operated, Pneumatic, Electric
  • BodyGGG40, CF8, CF8M
  • SeatNatural Rubber, EPDM
  • Pressure100PSI, 6.9bar
  • SizeDN50-DN300, 2''-12''
  • Knife304, 316, SS2205

YFL Flanged type heavy duty slurry knife gate valves are abrasion resistant duo to wear resistant seat made of high quality imported natural rubber with excellent abrasion resistance performance.

YFL Flanged type heavy duty slurry knife gate valves features:

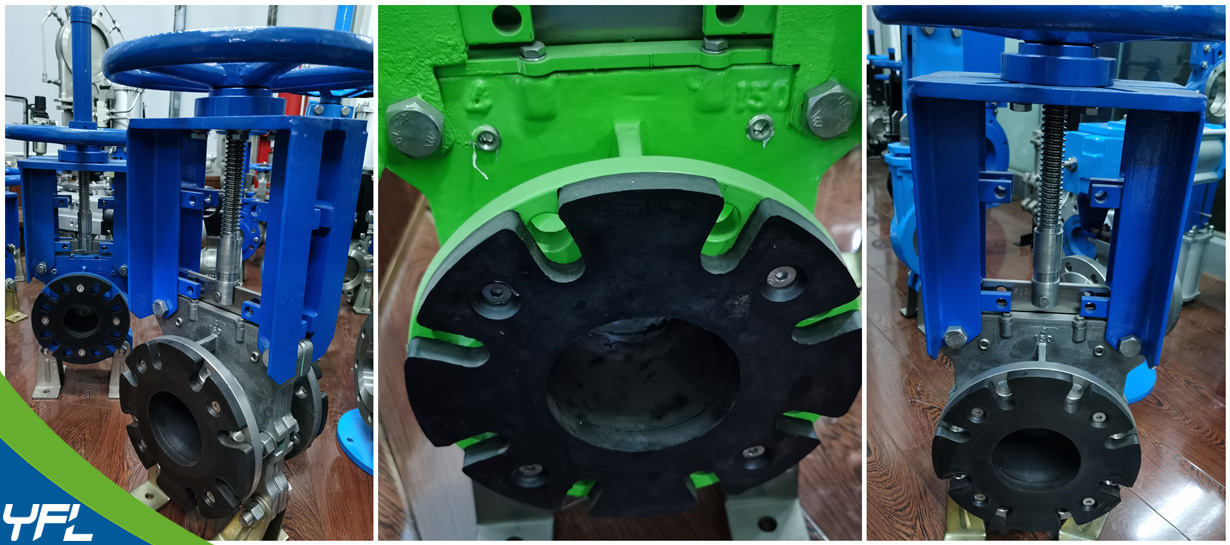

1. The body is fully lining with wear resistant rubber seats which can be replaced very easily
2. Self-seal rubber seats make the knife convenient for replacement in-line
3. Grease injection in-line realizes easy maintenance
4. The valve is locked when fully open or closed to avoid misoperation
5. Anti-abrasive epoxy fusion bonded coating

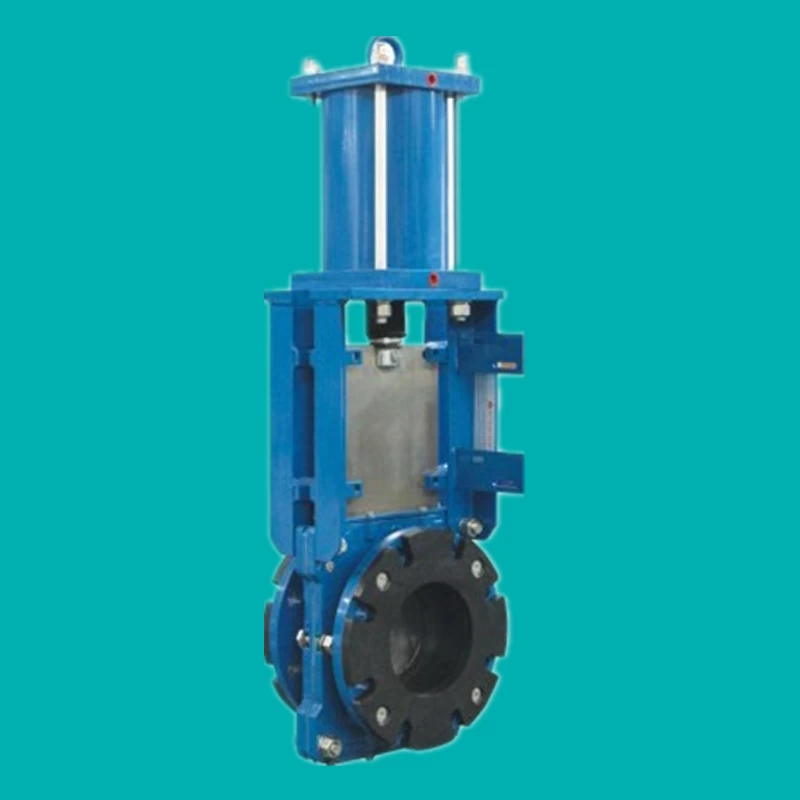

6. Various operation avaliable: Manual, pneumatic, electric, hydraulic

Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from ceramic raw materials production, ceramic parts machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time

Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and create values for your projects.

heavy duty mining slurry knife gate valves


Wear resistant slurry knife gate valves
