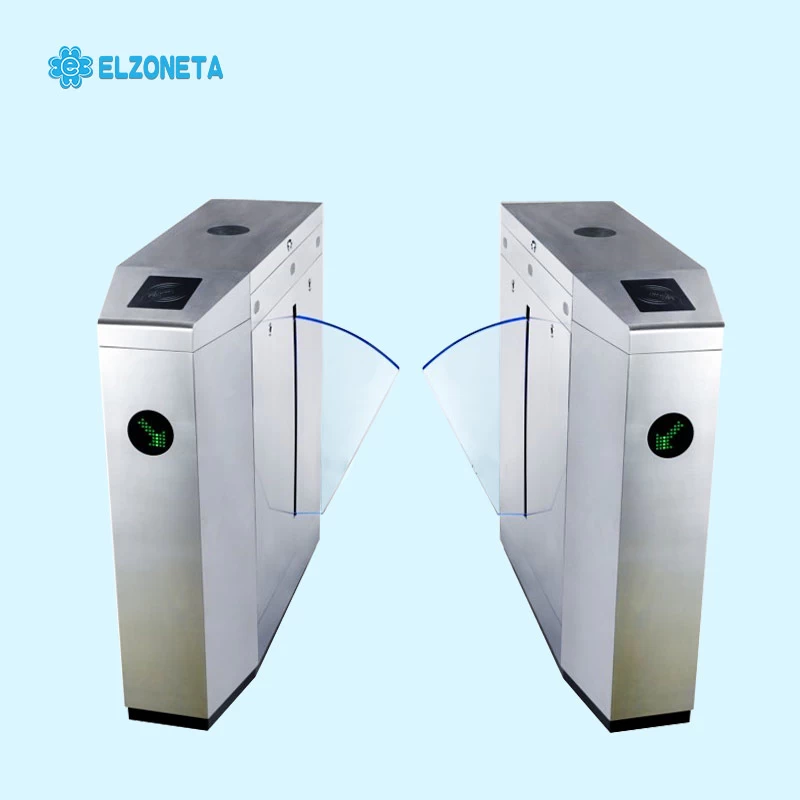

EC-ACS-FB01 Flap Barrier Speed Gate
Feature
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipment)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional)
14. Support infrared photocell for anti-pinch and reset function
Specifications
* Framework material: 304 stainless steel
* Dimension: L1200*W*300*H1000(mm)
* Length of the flap: 270mm
* Width of the channel: 550mm
* Working voltage: AC220 ±10% V/50 ±10% HZ
* Driving electromotor: DC brush electromotor 24V
* Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms , driving current: > 10mA
* Normal life-span: 3 million times
* Transit speed: 30-40 persons/min
* Card reader windows: 2
* Time for opening or closing: 1 second
* Starting time after power on: 3 seconds
* Automatic reset time after fault: 10 seconds
* Working environment: Indoor, outdoor( with a tent over)
Temperature: -10℃—50℃
Relative humidity: ≤90%, no condensation
