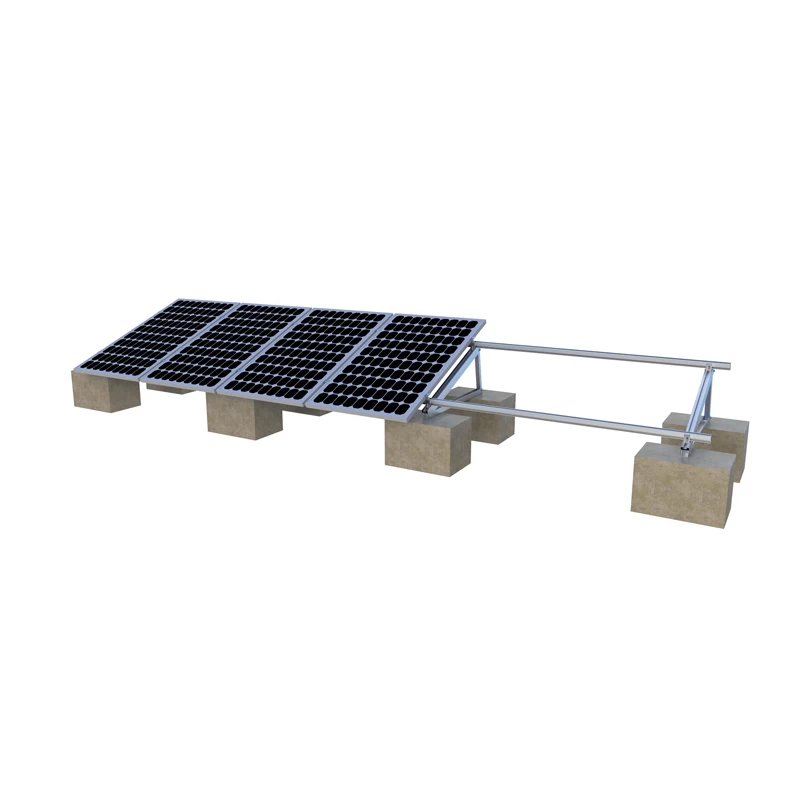

Product Name: Flat concrete roof mounting system
Product Description:
YANLGIN Flat Roof Mounting is made of high quality extruded Aluminum, the weight is light and it’s convenient. It’s easy to install and can work for any solar modules. Pre-assembled of solar mounting system components before delivery save your time and labor cost.
Brief Introduce:
Install Site: Flat concrete roof or open field
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.

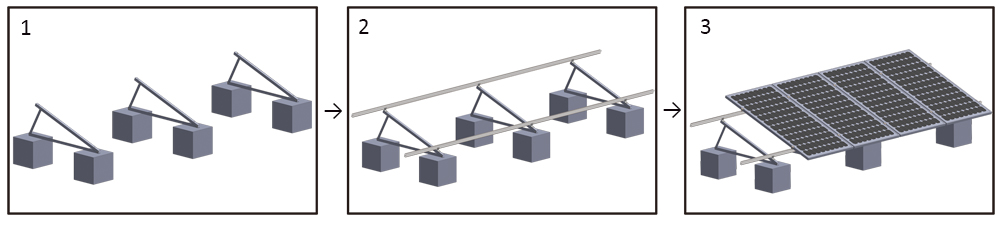

Installation Guide:
Step 1:Fix tripod bracket on concrete block or flat roof.
Step 2: Fix solar rail on tripod bracket and lock by rail clamp.
Step 3: Put solar panel on rail and fix with solar clamp until finished.
