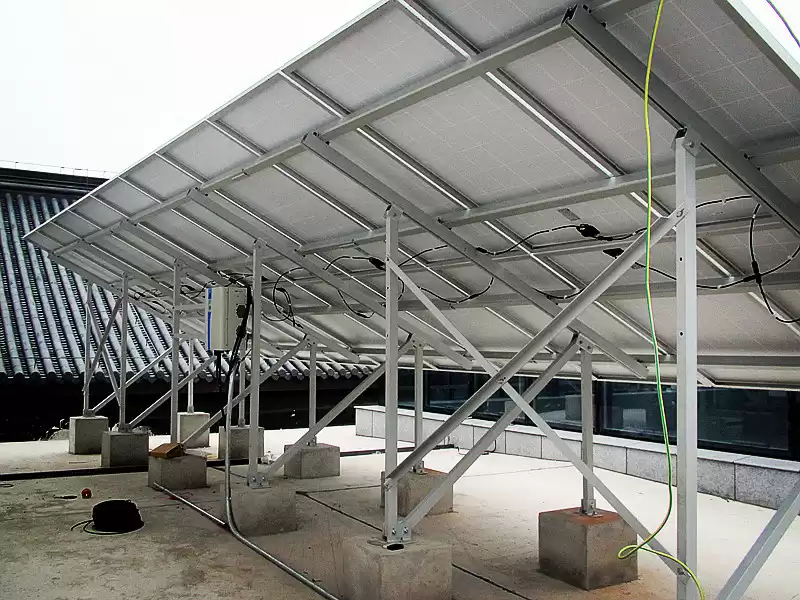

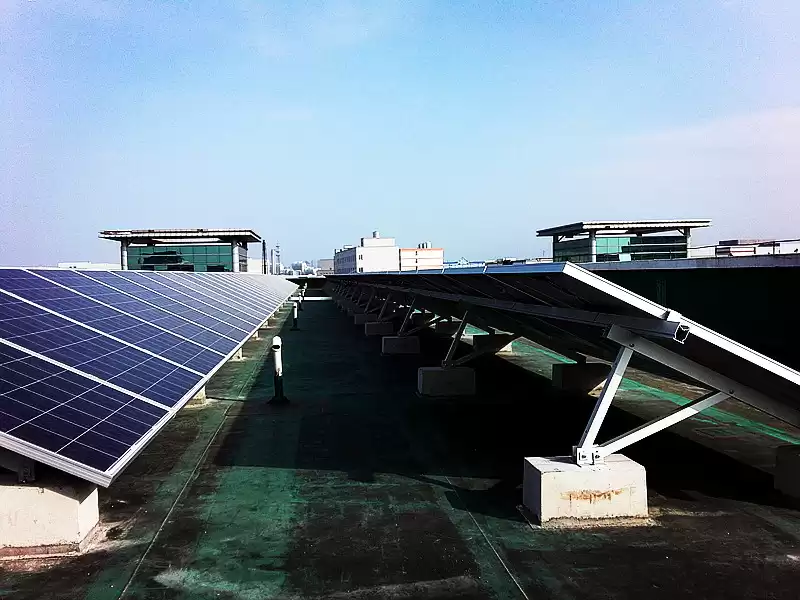

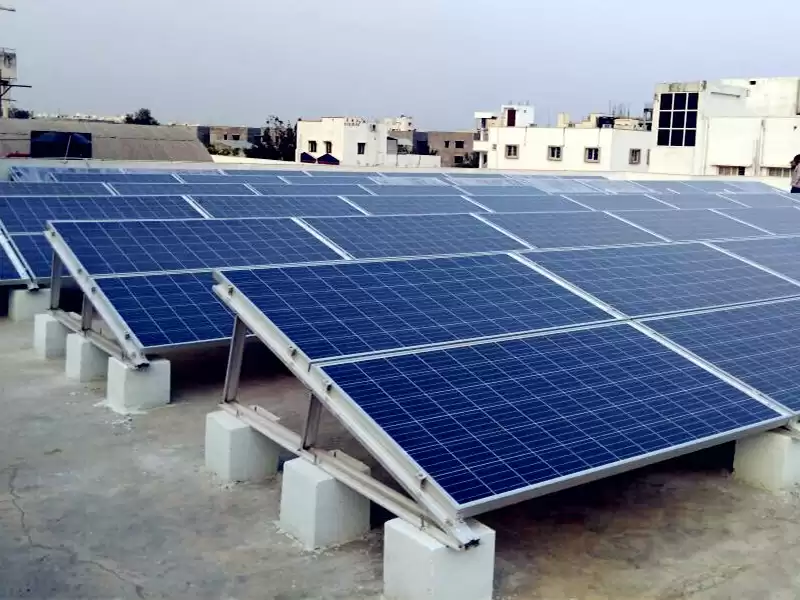

Flat roof ballast solar mounting bracket concrete foundation
Solar First ballast roof mounting bracket adopts foldable triangular to save cost both on installation
and transportation. It is a type of solar panel mounting structure that can be
expanded from one panel to any scale to maximize the use of rooftop. Solar
First experienced engineer will give you a technical suggestion for
the size and weight of ballasts for your solar project.
Specifications:
|
Mount Type
|
Ballast solar panel roof mount brackets
|
|
Installation site
|
Open ground and flat roof
|
|
Panels
|
Solar panel for any size
|
|
Component direction
|
Horizontal
|
|
Roof clearance
|
Around 50mm
|
|
Wind load
|
Up to130mph(60m/s)
|
|
Snow load
|
Up to 30psf (1.4KN/m2)
|
|
Material
|
Aluminum alloy and stainless
steel 304
|
|
Warranty
|
10years
|
Advantages:

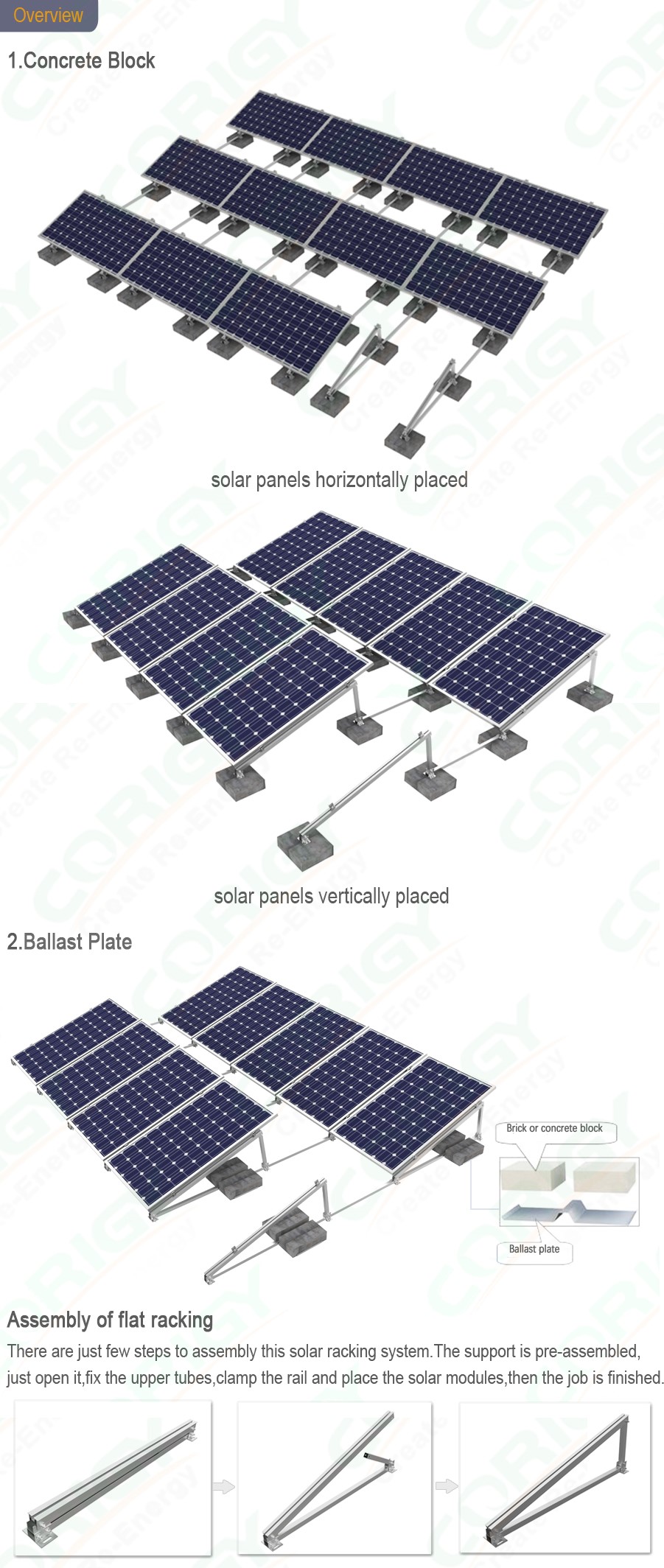

1.Fast Installation
---The support is pre-assembled, just
open it and fix the rail,four steps finish the installations. In addition,the
tilt-in module can be put into the extruded rail from the any location and can
be high pre-assembled with the clamp.All these minimizes the time and cost of
installation.
2.Long Lifespan
---All mounting structure
components are made of high class stainless steel and anodized aluminum
alloy,their high resistance to corrosion and they are designed for 25 year
service life and backed by 10 years warranty.
3.Installation
Flexibility
----These solar mounting systems
accommodate most of commercially available solar panes and diverse roof types,and
they can scale easily from small to large,multi-megawatt installations.
