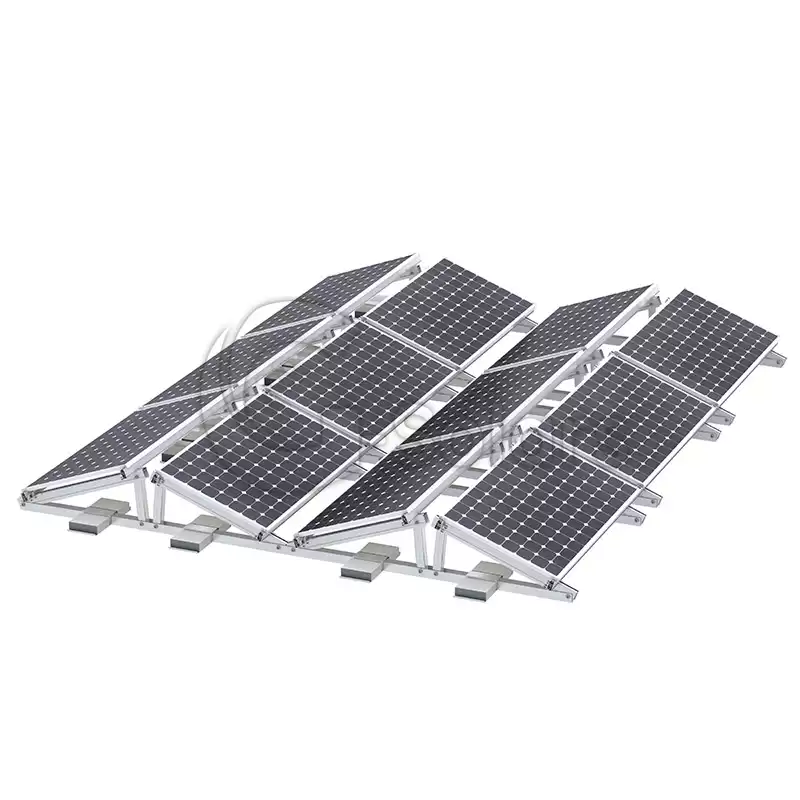

Flat Roof Ballasted Solar Mounting System

G-solars ballast roof mounting systems are typically used for non-penetrating flat roof installations of solar panels. Ballasted flat roof solar mounts can also be used on flat ground.


  • MaterialStainless steel 304, Al6005-T5
  • Tilt angle10° or 15°;
  • Service Life25 Years
  • Warranty10Years
  • Shipping PortXiamen China
  • PaymentT/T, L/C
  • Project SiteFalt Roof

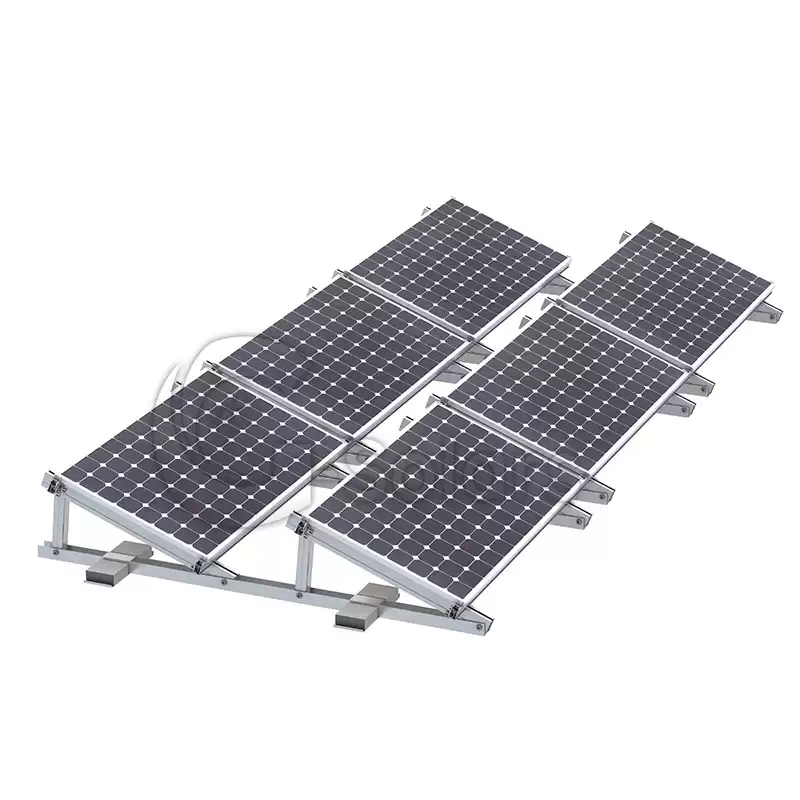

Flat Roof  Ballasted Solar Mounting System

G-solars ballast roof mounting systems are typically used for non-penetrating flat roof installations of solar panels. Ballasted flat roof solar mounts can also be used on flat ground. Ballast solar systems face east and west, or south. The system connects all panels and guide rails into a closed system, pressed down with concrete, forming a strong, reliable system that is highly resistant to wind loads. And installation is quick and easy.



Technical Data

Product Name

Flat Roof  Ballasted Solar Mounting System

Material Aluminum & Stainless Steel
Standard AS/NZS 1170, ASCE 7-10, JIS2017
Wind Load 60 m/s
Snow Load 1.4 Kn/m2
Applicable Module Framed or Frameless
Module Orientation Portrait or Landscape
Surface Treatment Anodized
Application Flat roof, metal roof, flat ground
Dimensions Customized
Color Natural or Black Anodizing



 Details

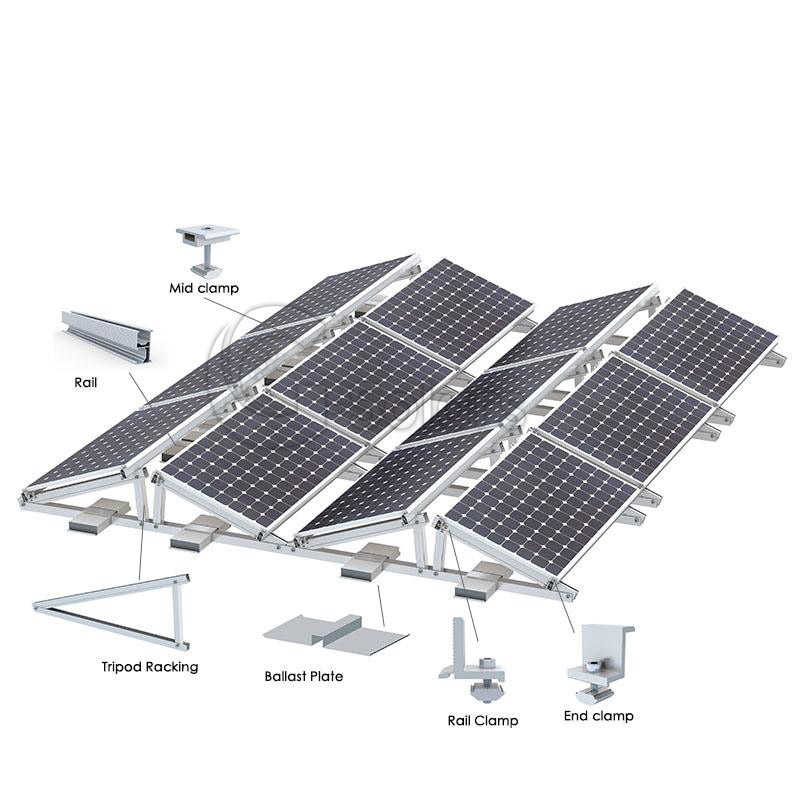

Components

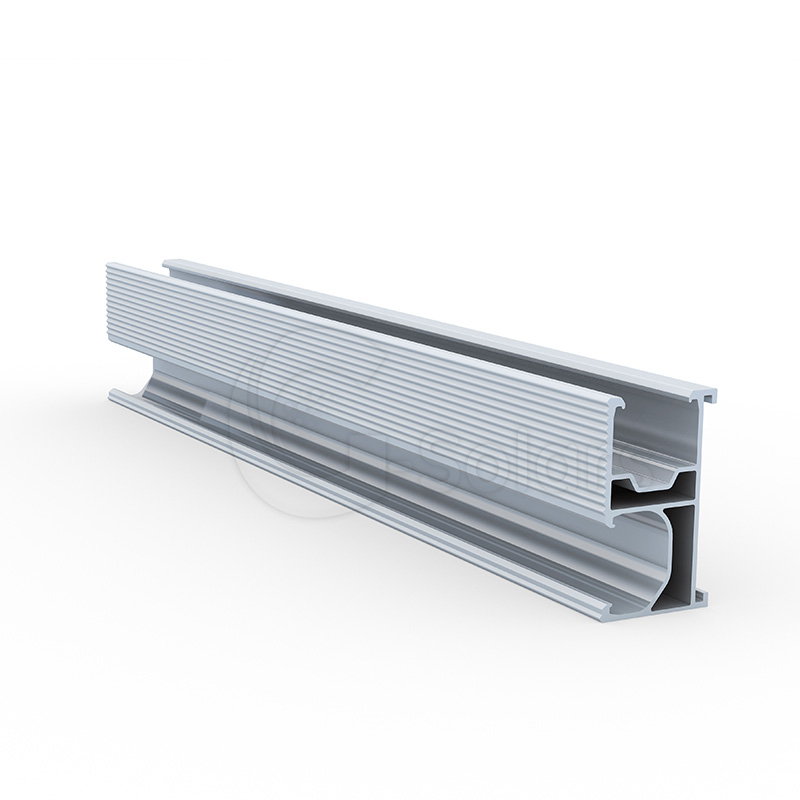

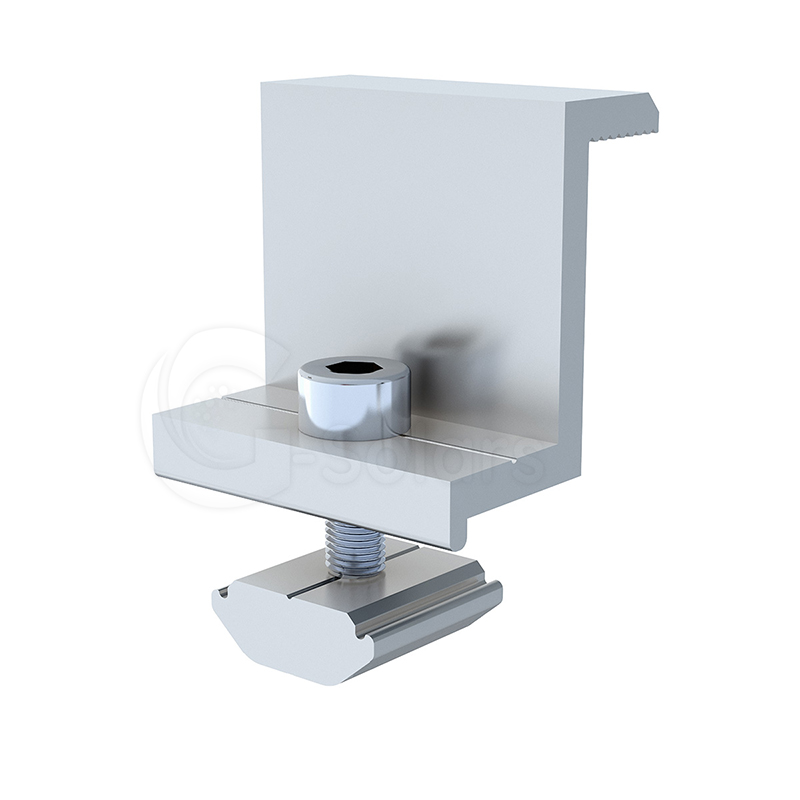

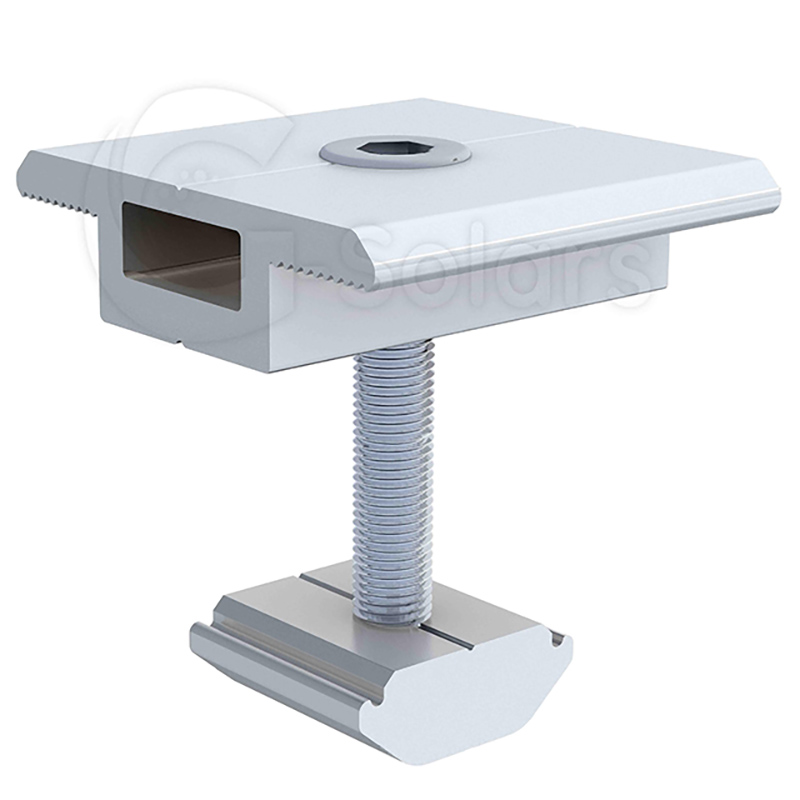

 Rail GS-Rail-01           Mid Clamp GS-MC-01      End Clamp GS-EC-01

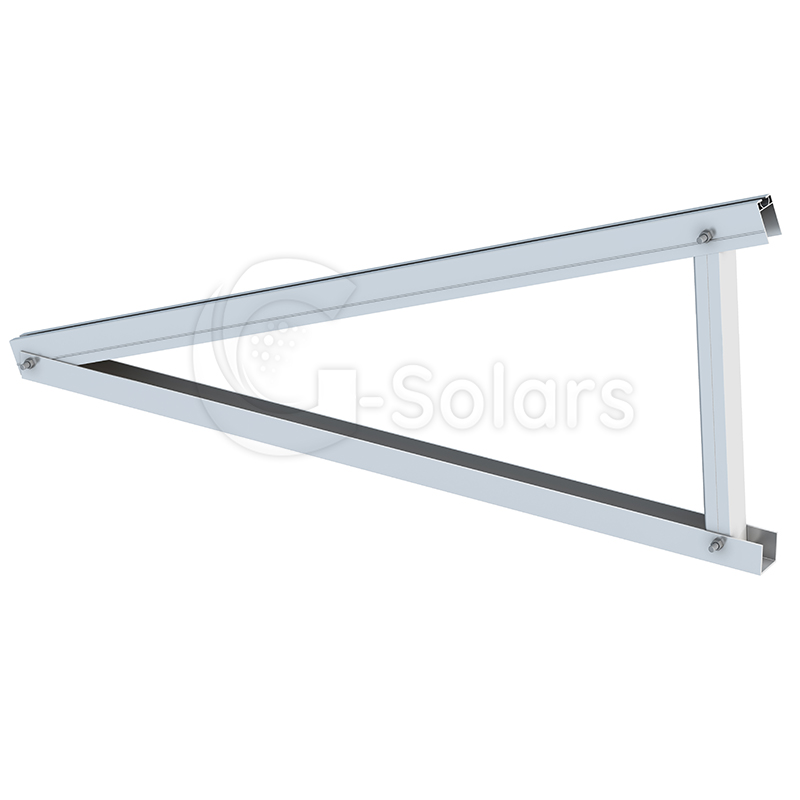

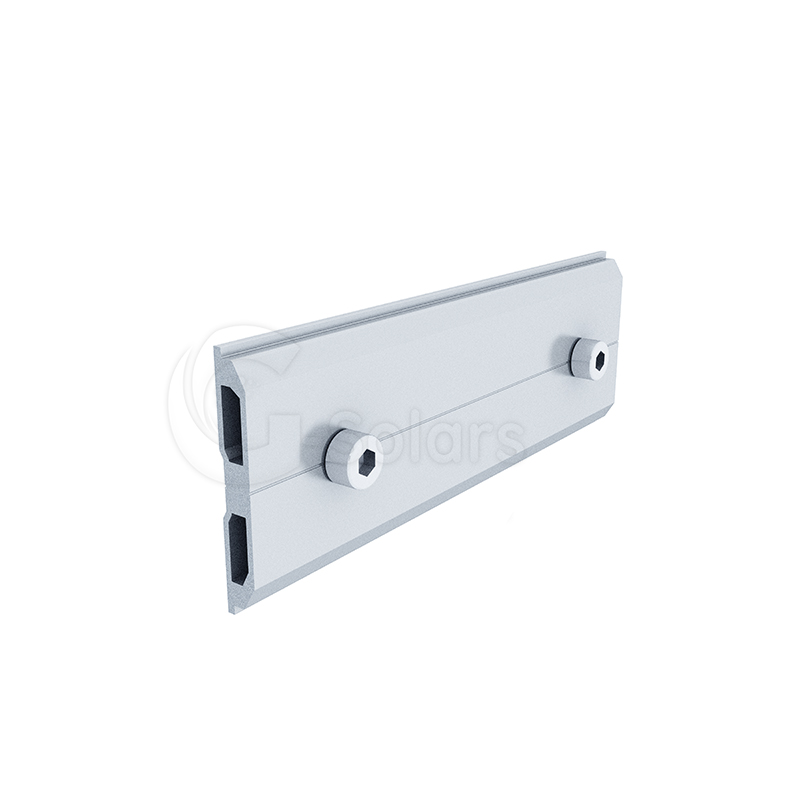

           Rail  GS-Rail-01                 Mid Clamp  GS-MC-01          End Clamp  GS-EC-01            Rail Connector GS-RC-01        Tripod Racking GS-TR-01

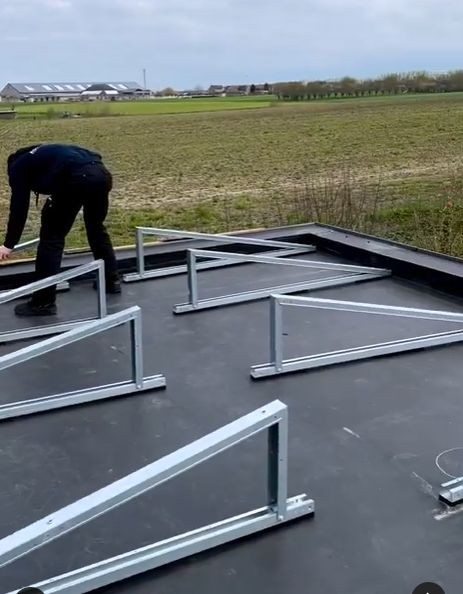

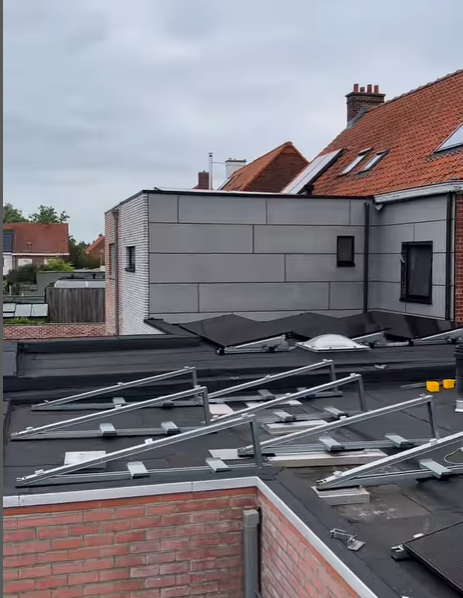

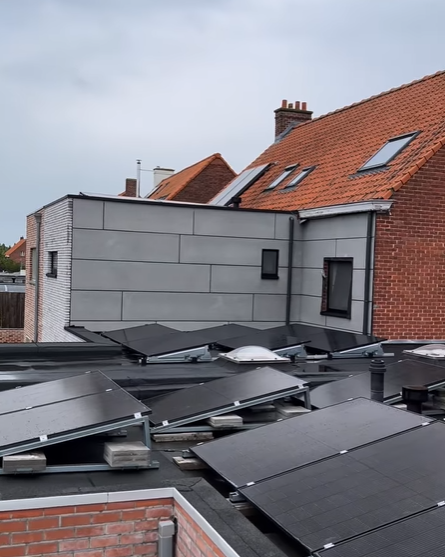

Project Cases







  Reasons to choose G-Solars?



1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.



2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.



3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.



4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
