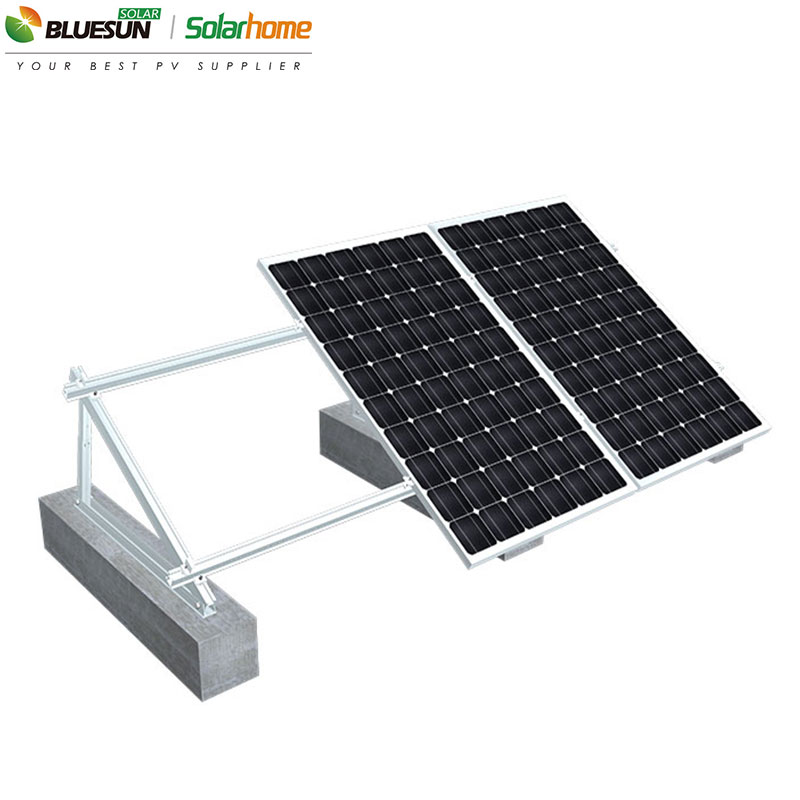

Flat Roof Mounting structure System

Solar Flat Roof Mounting Brackets Systems.

FLAT ROOF

SPECIFICATIONS

▶ Installation site                               Flat roof.

▶ Installation angle                           5°,10°

▶Wind speed                                        <45m/s.

▶Snow load                                           <1.2KN/m².

▶Build height                                       <20m.

▶Material                                                 AI 6063-T5 & SUS304.

▶Surface treatment                         Anodizing.

▶Refer to standard                          GB50009,DIN1055.

▶Warranty                                             15-year warranty , 25-year service life.

SOLAR MOUNTING HARDWARES

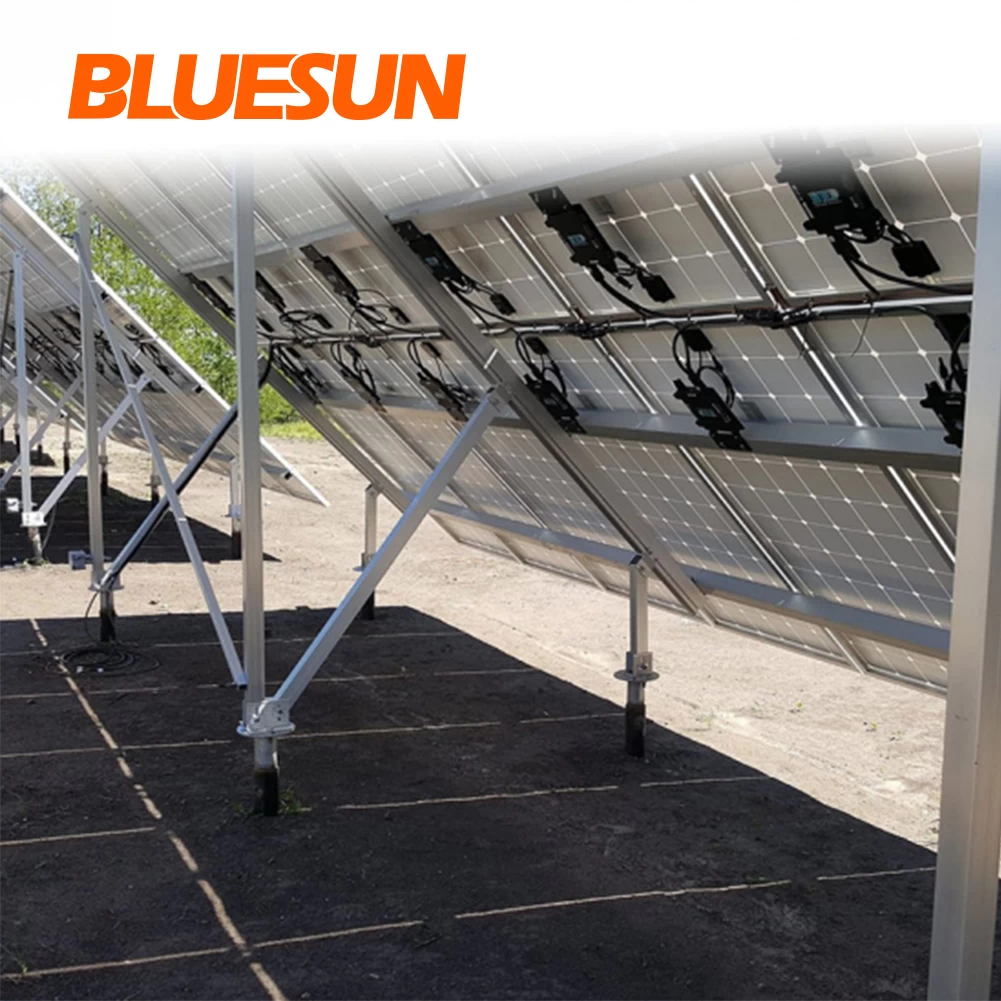

▶  Bluesun Solar Panel Tracking Mount hihgly engineered solution which can effectively reduce the influence of wind on the solar panel power system, with Q235B steel bracket as main body material,HDG surface treatment, service life is more than 25 years.

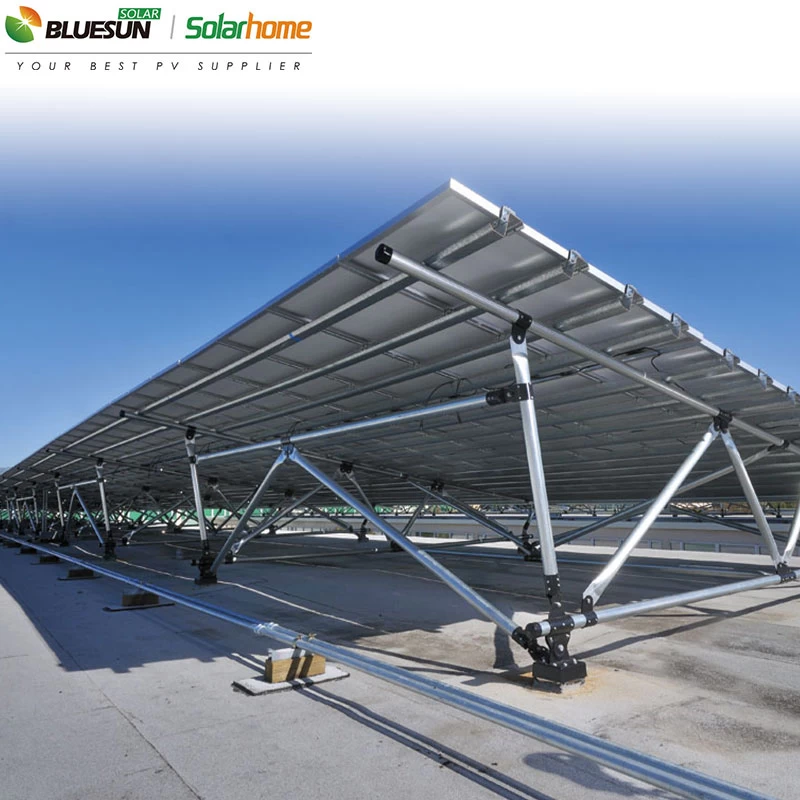

▶  Roof Adjustable Solar Panel Mounting Rack Bracket can secure the array without damaging the flat roof .Rail Mounting System is compatible with the usual framed modules and typically does not require roof penetrations.

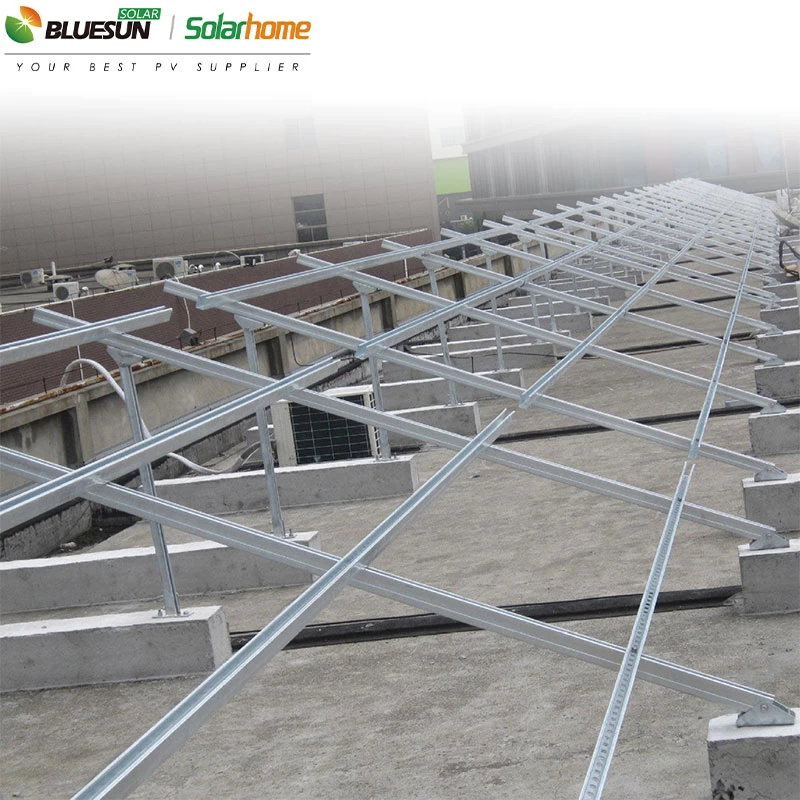

▶  Flat Roof Solar Panel Adjustable Mount designed according to the actual installation angle and no need to break the waterproof layer.

PACKING

TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?
