Flat Roof Solar Bracket

Flat Roof Solar Bracket is specially designed for RC Flat roof projects

  • Installation Sitework for all types.
  • HS Code76109000
  • Panel TypeFramed & Frameless
  • FoundationConcrete Base
  • Tilt Angle0°~60°
Facebook Twitter Pinterest LinkedIn 分享
Flat Roof Solar Bracket
Flat Roof Solar Bracket is specially designed for RC Flat roof projects



tripod base brackets

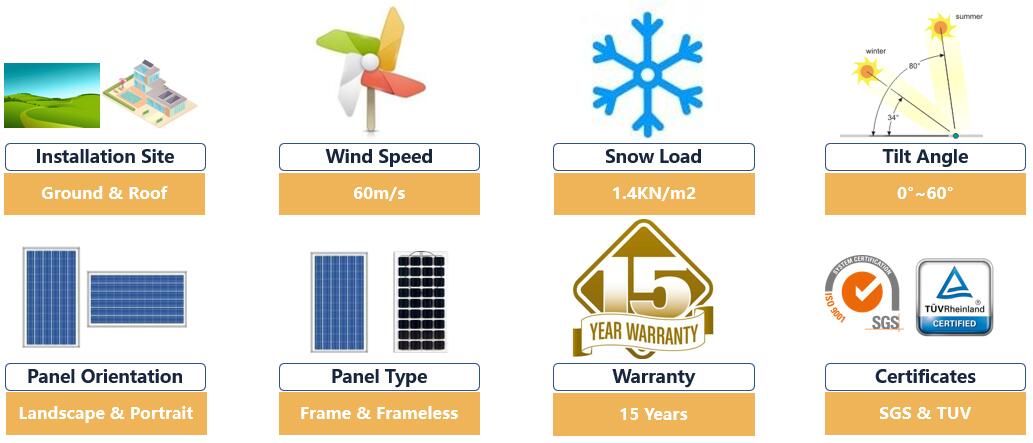

Material
    AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
    1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~60°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty



flat roof design






components for concrete roof solar system

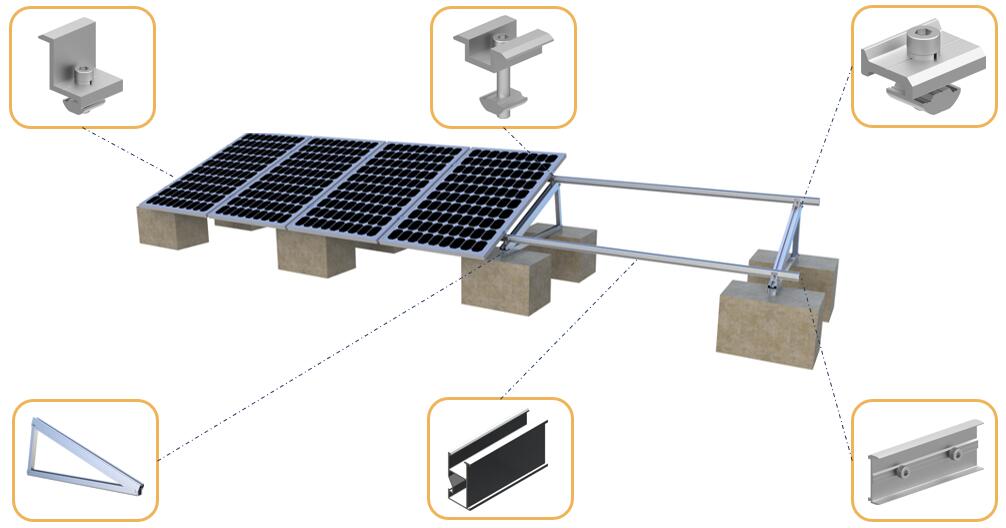

System Overview

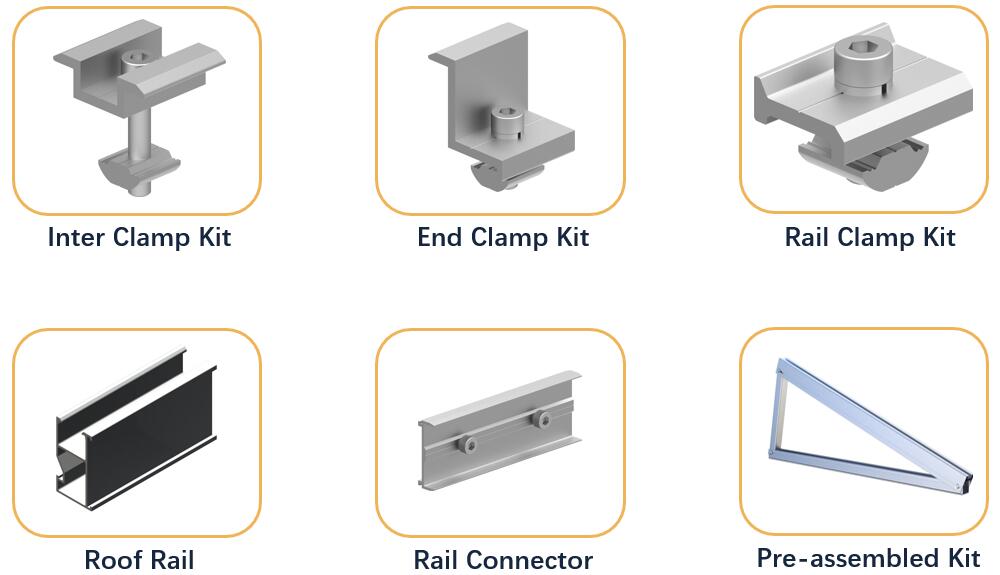

spare parts of solar system





Highly pre-assembled before shipment, save your onsite labor cost

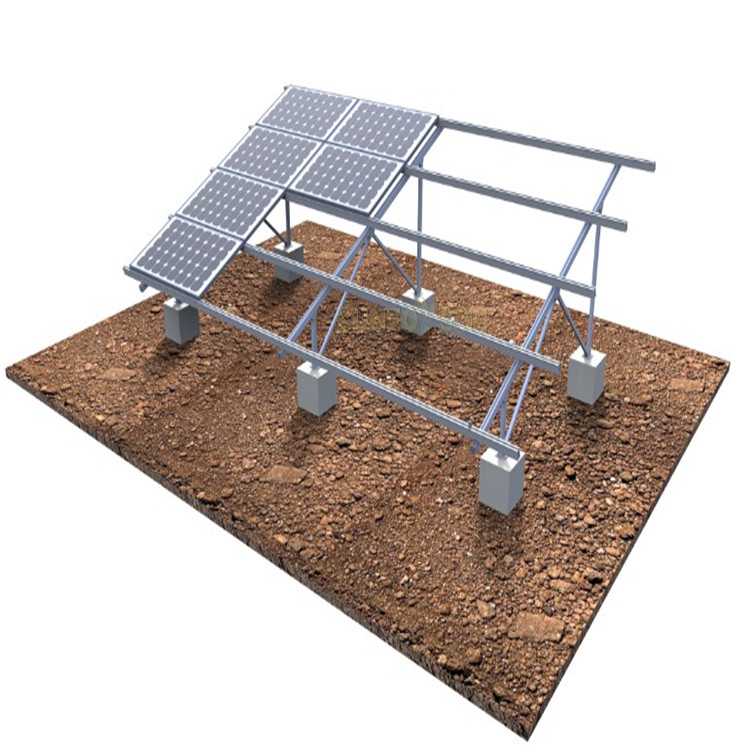

Can be well used on ground, flat roof and pitched roof


Check and test Structure strictly for the use in extreme weather and geographical conditions.


15 years' warranty, 25 years' life span

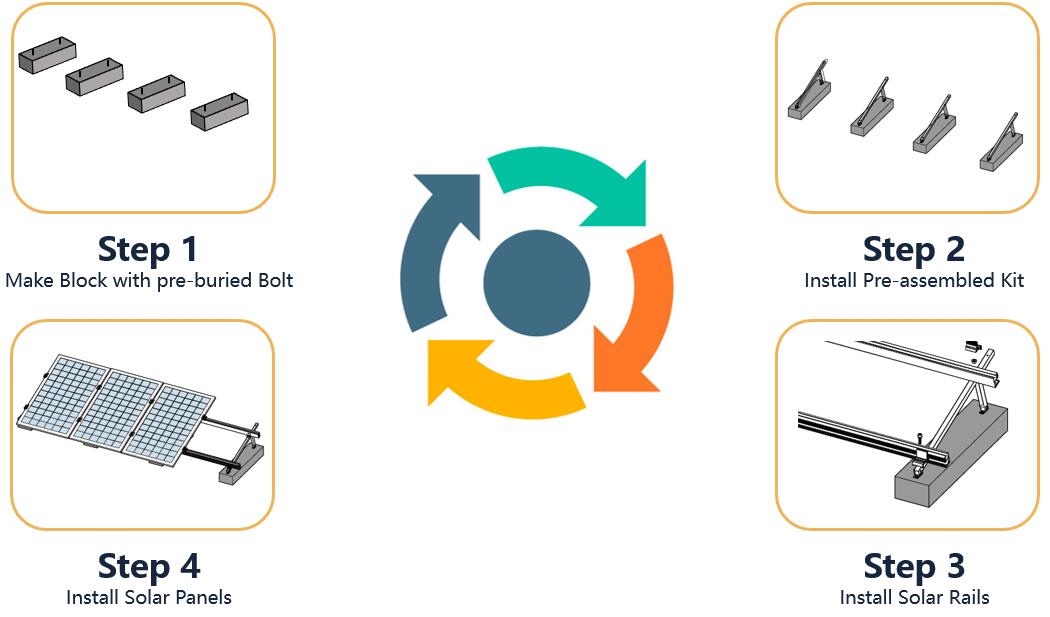

how to install solar racking
