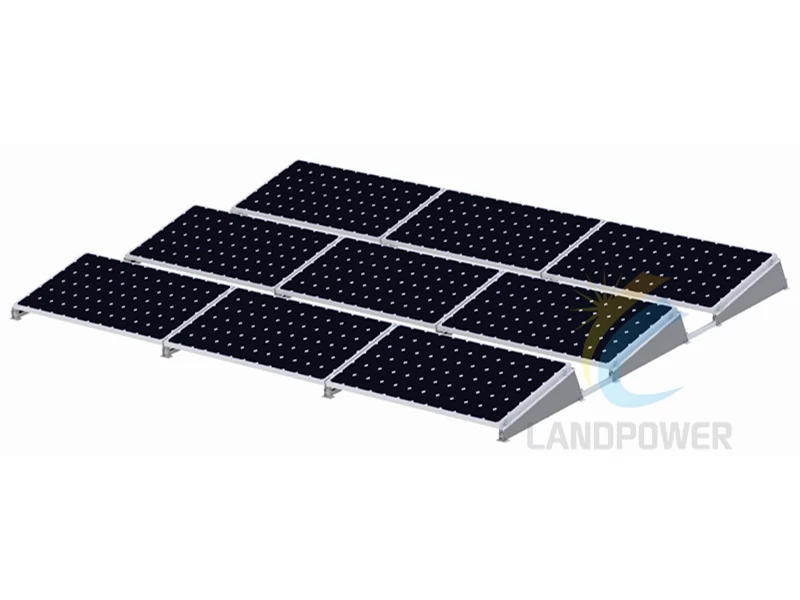

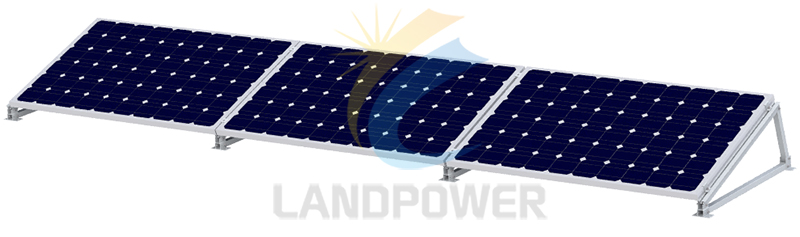

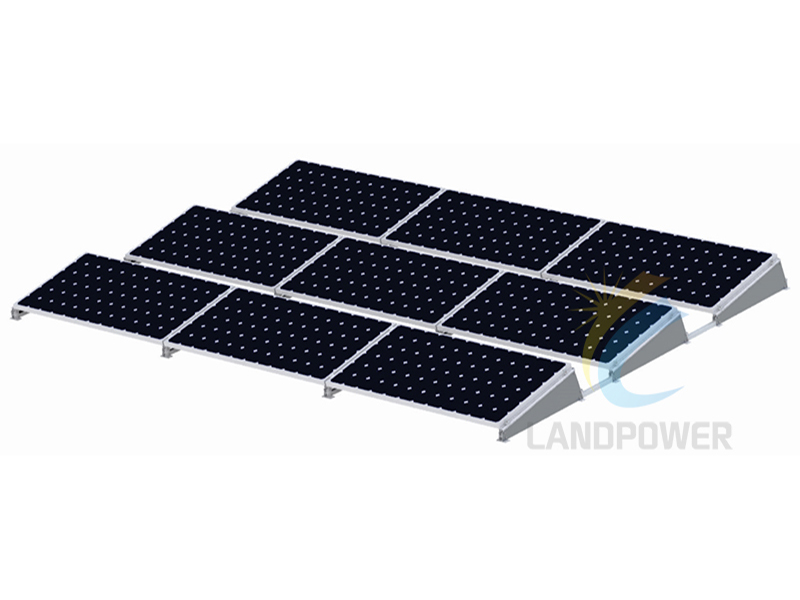

Flat Roof Solar Mounting Systems-Landscape

Landscape Flat Roof Solar Mounting Systems is designed for landscape solar pv installation both on commercial and residetial flat roof.



Landscape Flat Roof Solar Mounting Systems is designed for landscape solar pv installation both on commercial and residetial flat roof.It is a fast systms,just open the pre-assembled triangle,and place the panels on the triangle,fix the solar panel up, that is it. It allow tilt angle adjustable by adding extra parts. This flat roof system is also non-penetrating ballasted mounting systems,without damage to your roof.


TECHNICAL INFORMATION

Install site Flat  Roof

Tilt Angle Flushed with the roof 10~60 deg

Building HeightUp to 20 m

Max Wind Speed<60m/s

Snow Load<1.4KN/m2

Standard AS/NZS 1170 and other international Standard

Material High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty12 years warranty and twenty- year service life

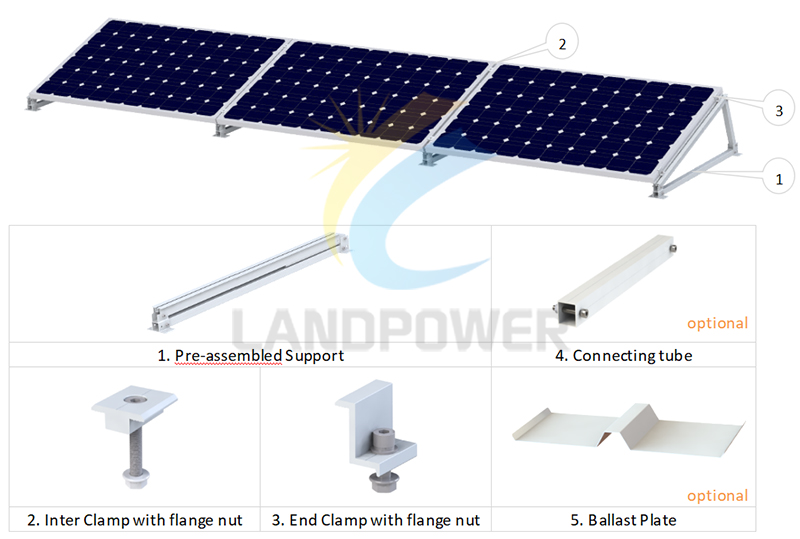

Ballasted Flat Roof Main Components:

Flat Roof Solar Mounting

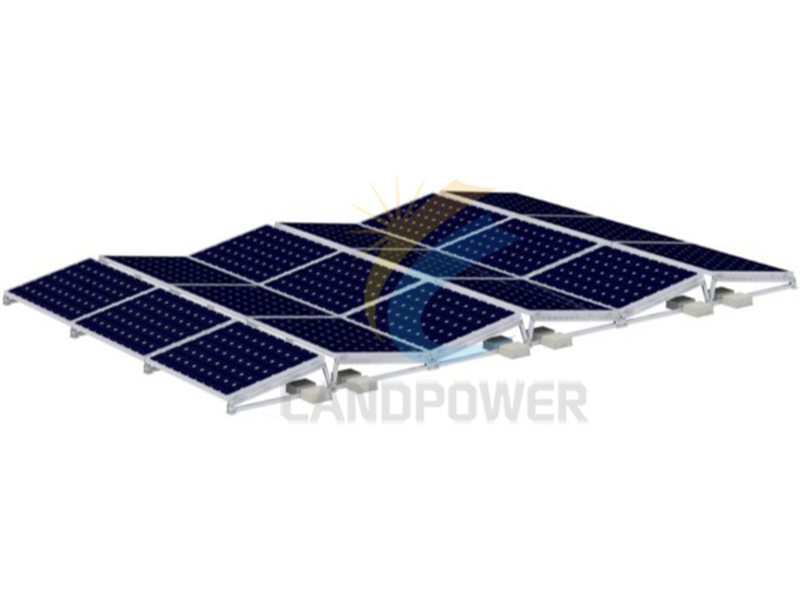

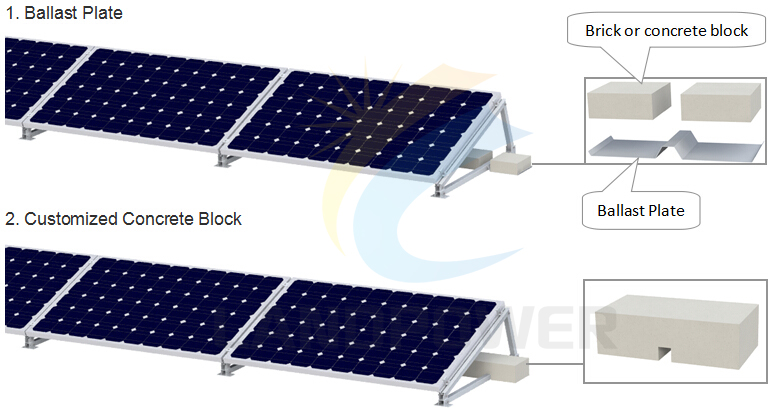

Foundation Options:

Flat Roof solar pv mounting

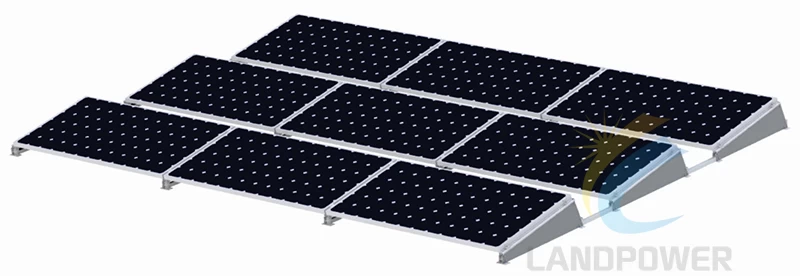

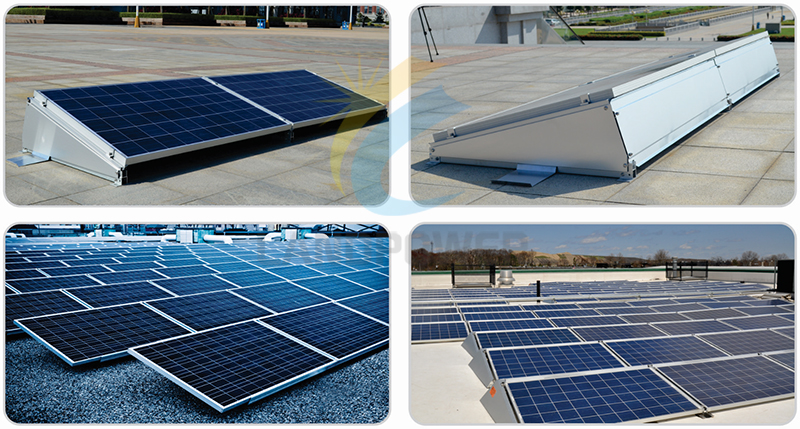

Flat Roof Solar Mounting Installation Demo:

Flat Roof Ballasted Solar Mounting


Landscape Flat Roof Installation Video Demo.:




We engineer and design various flat roof solar mounting solutions,please feel free to email us your projects details,we will design specific solutions for you.
