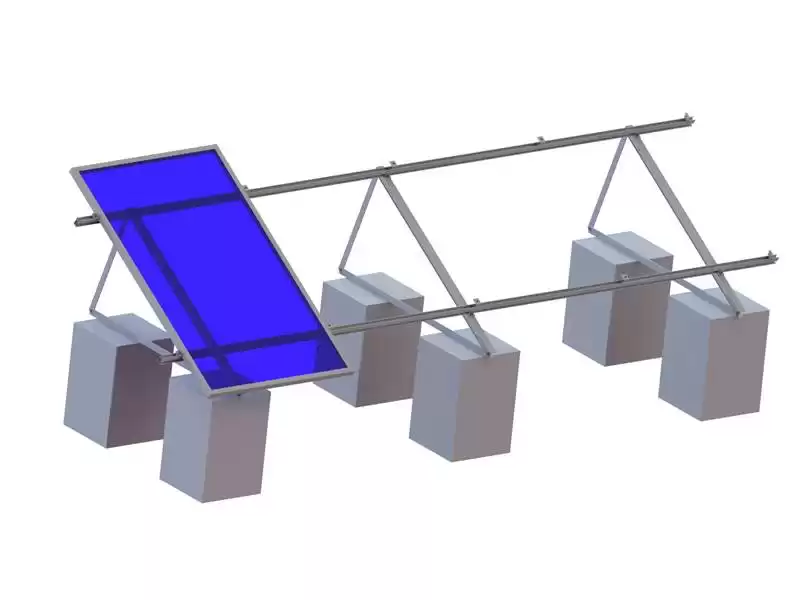

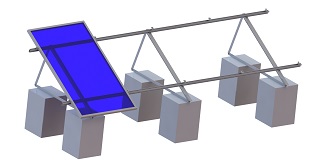

Flat roof tri-angle bracket solar mounting
The triangle flat roof mounting system with footing options for both ballasted solution and roof penetration. The innovative design and high pre-assembly eliminate the need for on-site cutting, welding and enables quick and easy field PV module installation.
Technical Data
| Install Site |
Flat roof |
| Max Wind Speed |
≤60m/s |
| Snow Load |
≤1.4KN/M2 |
| Tilt Angle |
Adjustable |
| Applicable Module |
Framed or frameless |
| Module Orientation |
Landscape, portrait |
| Standards |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material |
AL6005-T5, SUS304 |
| Anti-corrosive |
Anodized |
| Color |
Silver |
| Warranty |
12 years |
Key Features
- Triangle brackets for solar panel mounts are very easy and versatile for both flat roof / pitch tin roof / concrete roofing…
- Triangle structure design guarantees the stability while ensuring the fast and convenient installation.
- Strength analysis report can be rendered base on local climate standard.

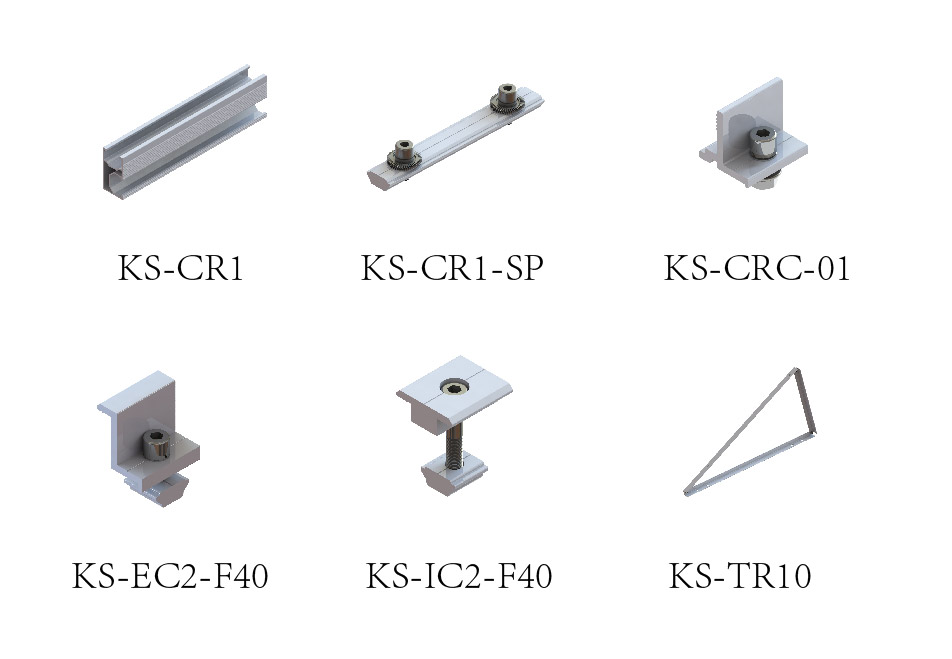

Components

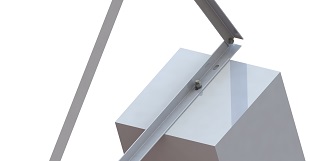

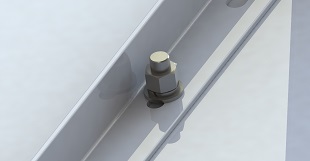

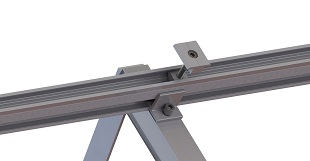

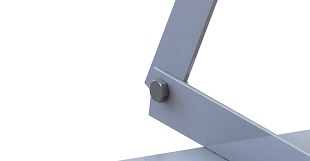

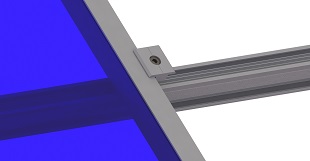

Details

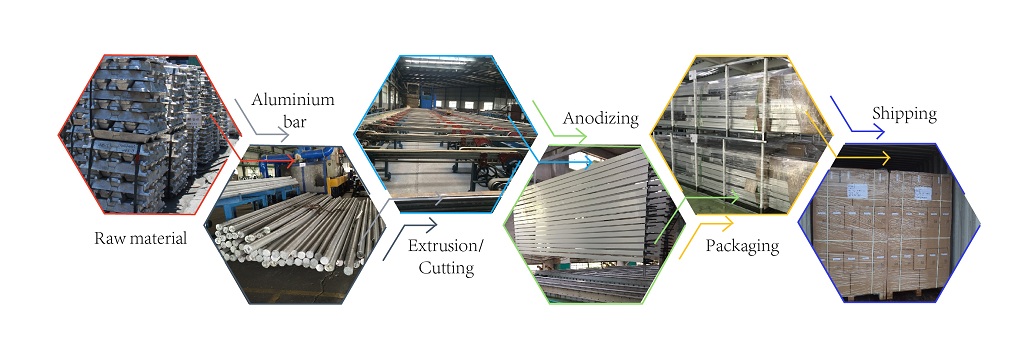

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
