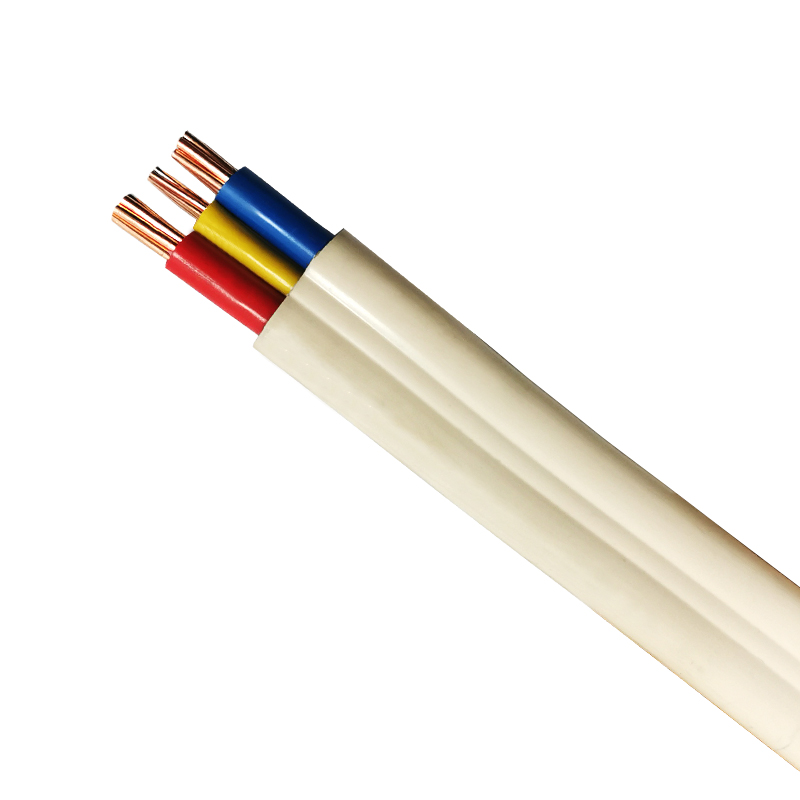

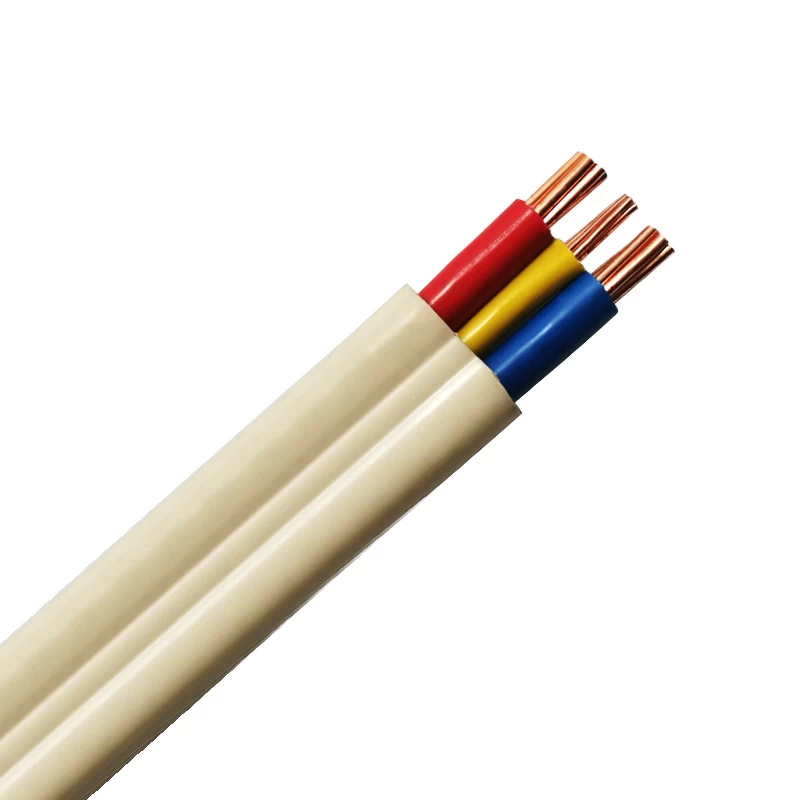

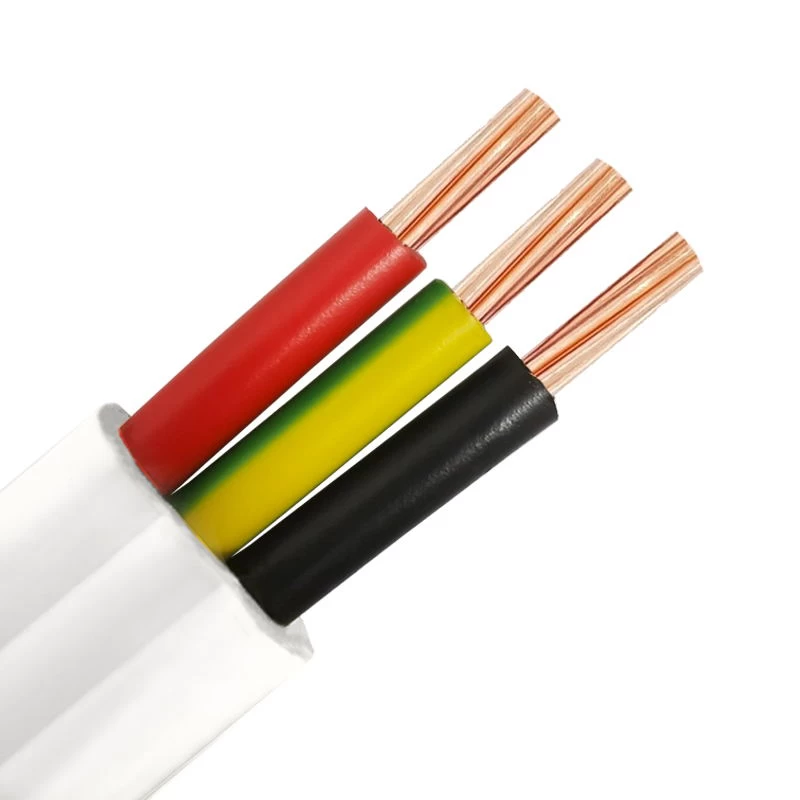

Flat TPS pvc insulated electrical cable

More than ten years of production experience, specializing in the manufacture of electric TPS cable, to provide you with better service




BVVB-flat-cable-_02

Product Description



  •  Product standard:
    The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
  • Main of cables features
    1,Uo/U is 450/750V,300/500,
    2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
  • Application:

          Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power



          plant, householdelectrical applance,insurment and telecommunication equipment.

Nominal section(mm²) Number of conductors Toplimit of overall diameter(mm) Maximum DC resistance(20℃)(Ω/km) Minimum insulation resistance(70℃)(MΩ.km) Recommended value of carrying capacity(A) Reference weight(kg/kmm)
2x0.75 1 4.6x7.1 24.5 0.012 13 42
2x1.0 1 4.8x7.4 18.1 0.011 16 49
2x1.5 1 5.3x8.5 12.1 0.011 20 65
2x2.5 1 6.2x10.1 7.41 0.010 27 97
2x4 1 6.7x11.1 4.61 0.0085 38 140
2x6 1 7.5x12.5 3.08 0.0070 50 192
2x10 2 9.5x16.2 1.83 0.0065 69 306
3x0.75 1 4.6x9.6 24.5 0.012 9.5 60
3x1.0 1 4.8x10.1 18.1 0.011 11 70
3x1.5 1 5.3x11.7 12.1 0.011 13 95
3x2.5 1 6.2x14.0 7.41 0.010 21 142
3x4 1 7.0x15.8 4.61 0.0085 27 213
3x6 1 7.5x17.5 3.08 0.0070 34 284
3x10 2 9.5x23.0 1.83 0.0065 55 457

FLAT cable (2)1234BVVB-flat-cable-_03


BVVB-flat-cable-_08



BVVB-flat-cable-_09BVVB-flat-cable-_10BVVB-flat-cable-_11BVVB-flat-cable-_12

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
