Flex Board FPC Die Tooling PCB Punching Machine ;

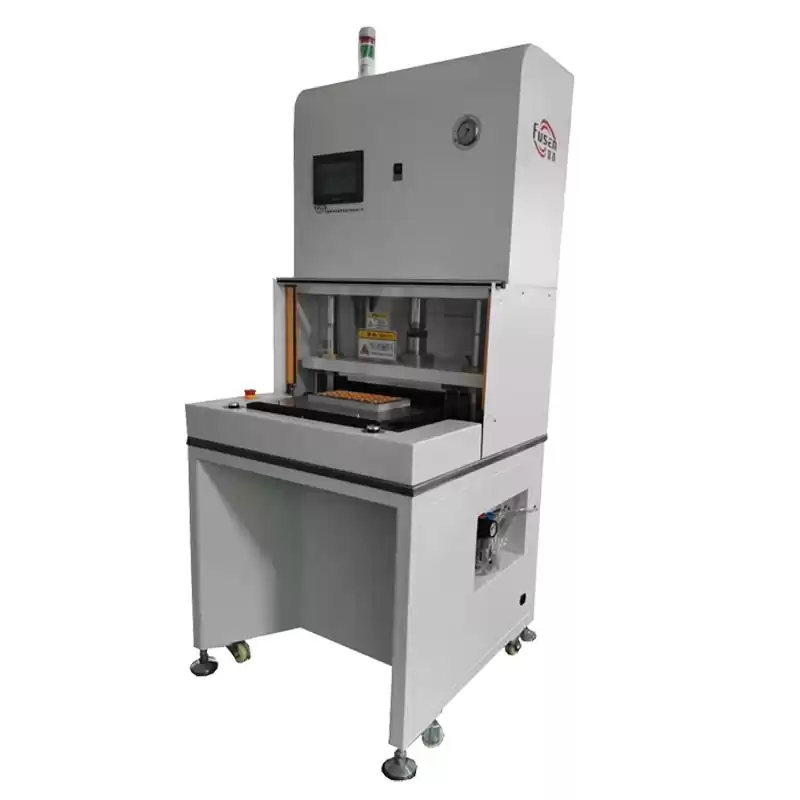

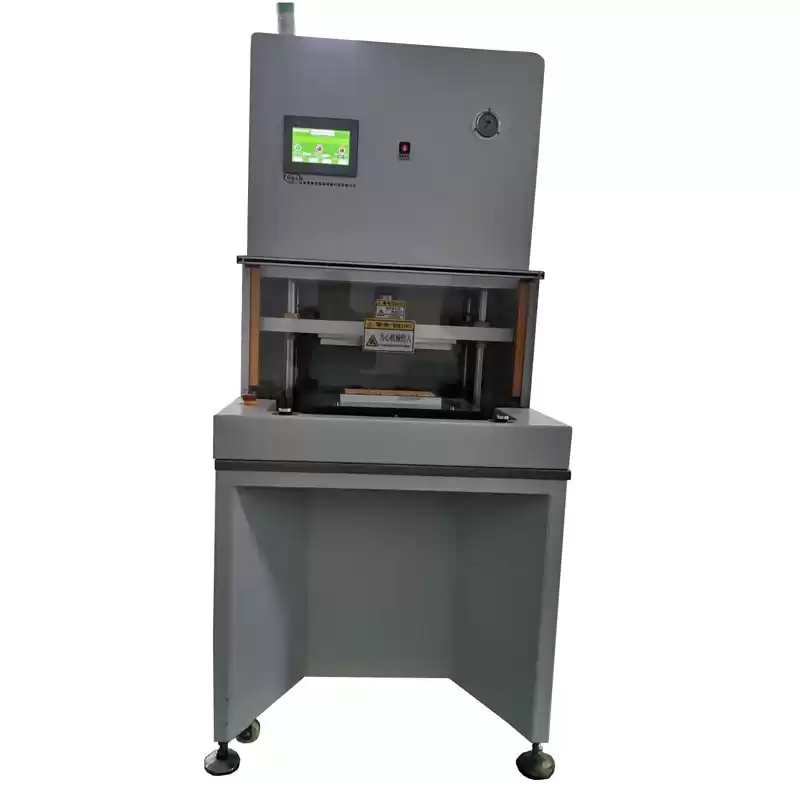

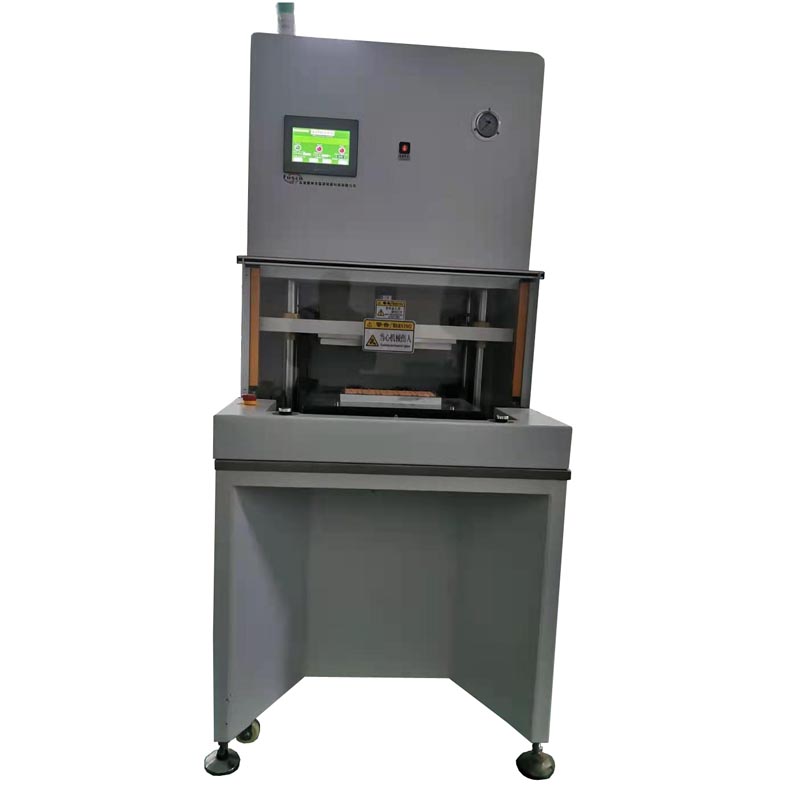

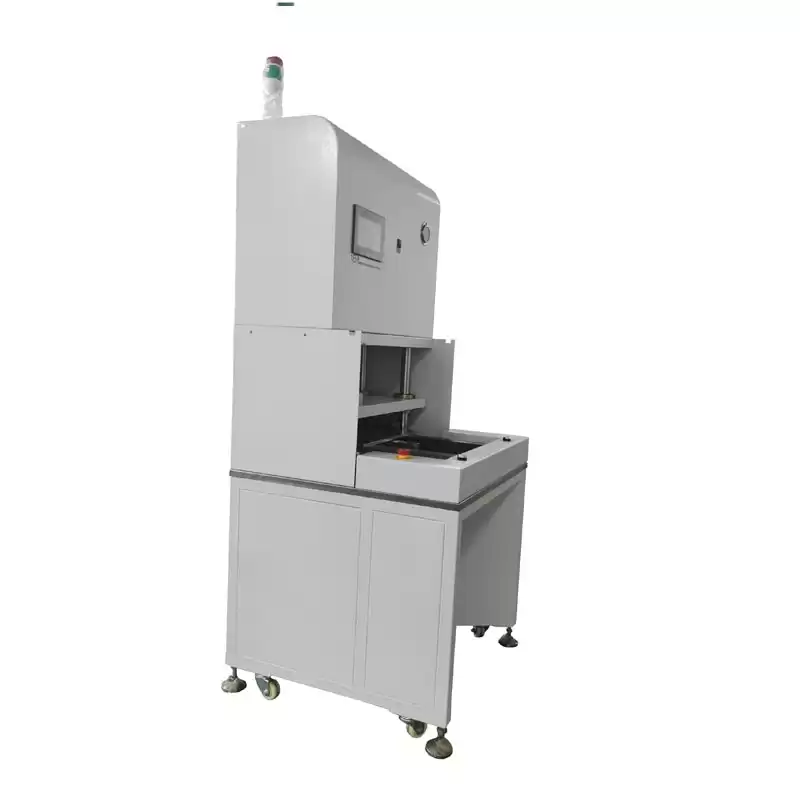

The flex PCB punching machine, compact and firm structure, pressure cylinder output,
environmental pollution free, large output, and simple operation. And the flex pcb punching machine adopts the latest gas-electric
lightweight design, can use all kinds of knife die. Cutting various effectively apply to cut Rigid pcb,
Flexible pcb(FPC), Rigid-Flexible pcb.
SPECS:
|
Working area
|
360x230mm
|
|
Working pressure
|
0.45-0.7MPa
|
|
Cutting precision
|
±0.05mm
|
|
Cycle time
|
7-15 seconds
|
|
Output
|
3/5/8T
|
|
PCB/FPC thickness
|
0.08-3.5mm
|
|
PCB/FPC material
|
FPC, FR1, FR4, CEM-1, CEM-3
|
|
Punching fixture
|
Die tooling
|
|
Operation language
|
English
|
|
Stoke
|
50mm
|
|
Mold height
|
170mm
|
|
Power
|
220VAC 50Hz
|
|
Fuse
|
3A
|
|
Machine dimension
|
800x750x1700mm
|
|
Machine weight
|
480kgs
|
FEATURES:
1. Depaneling PCB/FPC
by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching die
4. Loading and unloading PCBs is
convenient
5. Easy operation, has safe protection
system
6. Air cylinder driven
; ; ;
OPTIONS:
1. Custom die tooling ;
2. Custom tray handling design
3. Safety eclosure custom design
4. Contact us for more custom options
SPARE PARTS AVAILABLE:
1. Die tooling replacement
2. Punching bites replacement
APPLICATIONS:
It is a laser system used to de-board, separate and divide individual boards from an array of many boards on a large panel. The laser pcb cutting machine uses a high power beam to cut materials according to computer software control parameters.
OUR SERVICE:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
