Flexible Charging Stack - Multi-Outlet Split Charging Station

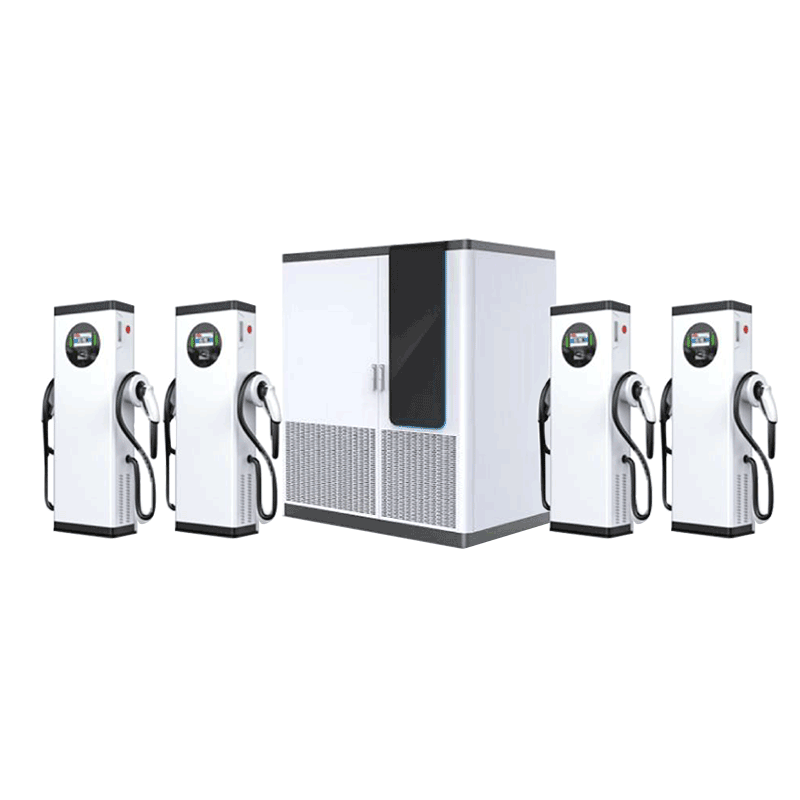

The Flexible Charging Stack is a versatile and dynamic charging system designed to optimize power output according to the real-time needs of electric vehicles. Featuring a master control unit and multiple split charging terminals, it allows for simultaneous charging of several EVs, making it an ideal solution for high-demand environments like commercial fleets, parking lots, and charging stations. The system enhances charging efficiency, supports scalable expansion, and ensures seamless integration with existing infrastructure.

Facebook Twitter Pinterest LinkedIn 分享









  • Multi-Outlet Split Charging Station Features
  • #
    Robust Connectivity
    Offers 4G, Ethernet, and Wi-Fi communication options with a dedicated management backend for operational oversight.
  • #
    User-Friendly Display
    A 7-inch touch screen and clear signal lights provide easy operation and status indication.
  • #
    Flexible Activation
    Supports various methods, including card swipe, app access, and VIN recognition.
  • #
    Comprehensive Safety
    Includes multiple protection mechanisms such as over-temperature, over-current, emergency stop, and insulation detection.
  • #
    High Efficiency
     Achieves over 95% efficiency with a constant power module and supports a wide voltage range of 200-1000V.













  • Specifications



Charging Host 240kW Flexible DC Charging Pile 360kW Flexible DC Charging Pile 480kW Flexible DC Charging Pile 720kW Flexible DC Charging Pile
Rated Input Voltage 380Vac ± 15% 380Vac ± 15% 380Vac ± 15% 380Vac ± 15%
DC Output Voltage 200~1000V 200~1000V 200~1000V 200~1000V
DC Output Current 800A max 1200A max 1600A max 2400A max
DC Output Power 240kW max 360kW max 480kW max 720kW max
Standby Power 40W
Charging Efficiency ≥ 93%
Voltage Regulation ≤ ±1%
Ripple Factor ≤ ±0.5%
Harmonic THD ≤ ±5%
Operating Temp. -20°C to 50°C
IP Rating IP54
Cooling Method Air-cooled
Cabinet Dimensions 1570*1000*1800mm

Charging Terminal Air-Cooling Dual-Gun Terminal Liquid-Cooling Single-Gun Terminal
DC Output Current 5m 3.5m
Cable Length 250A 600A

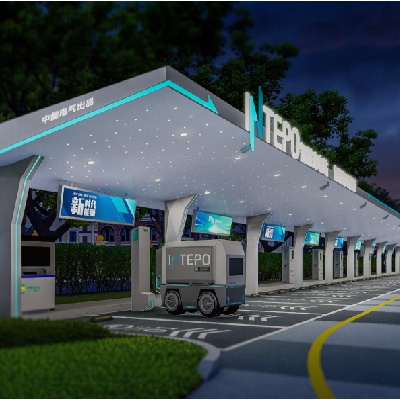

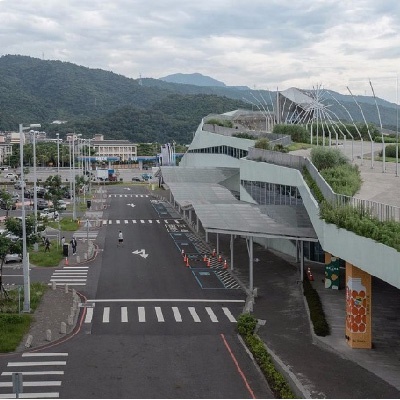

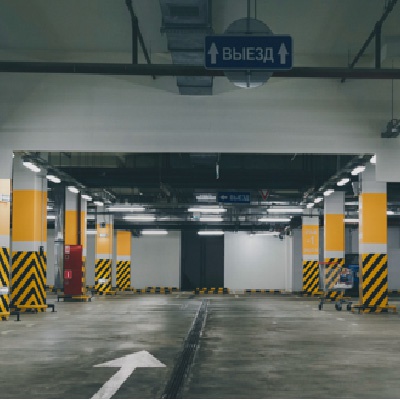

  • Application Scenarios
