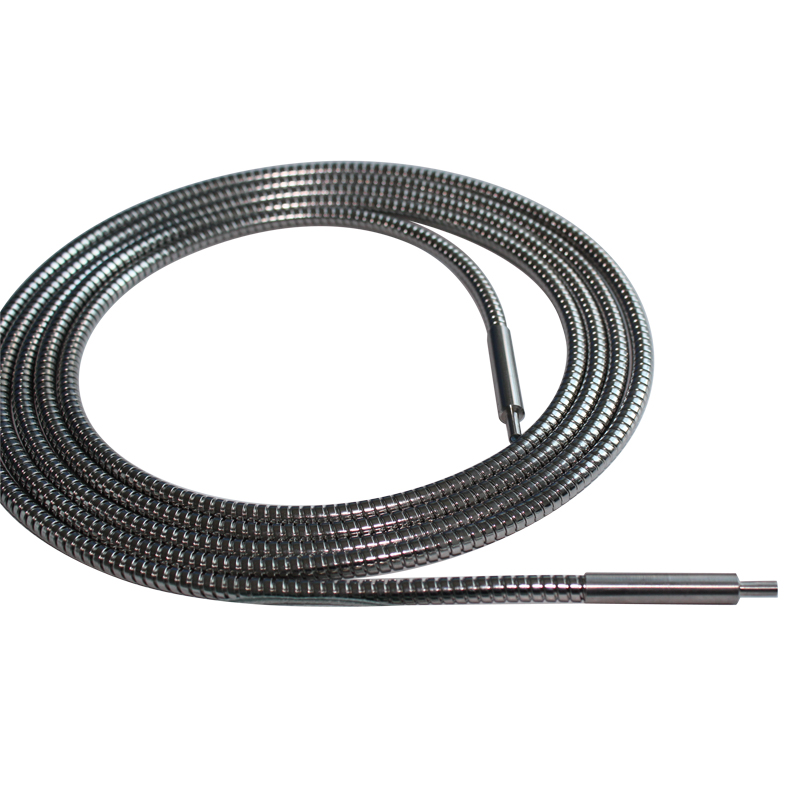

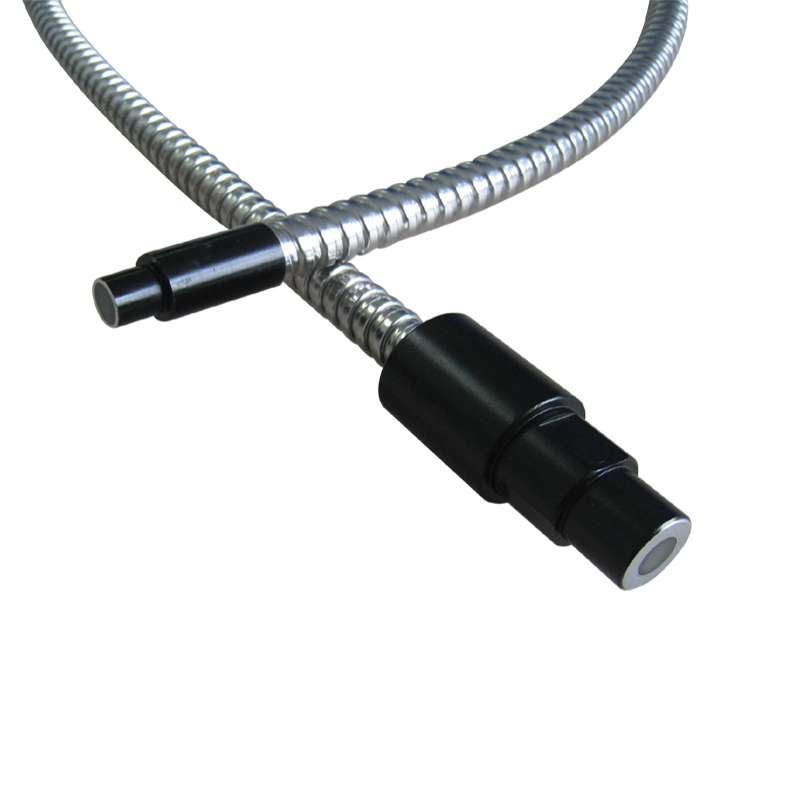

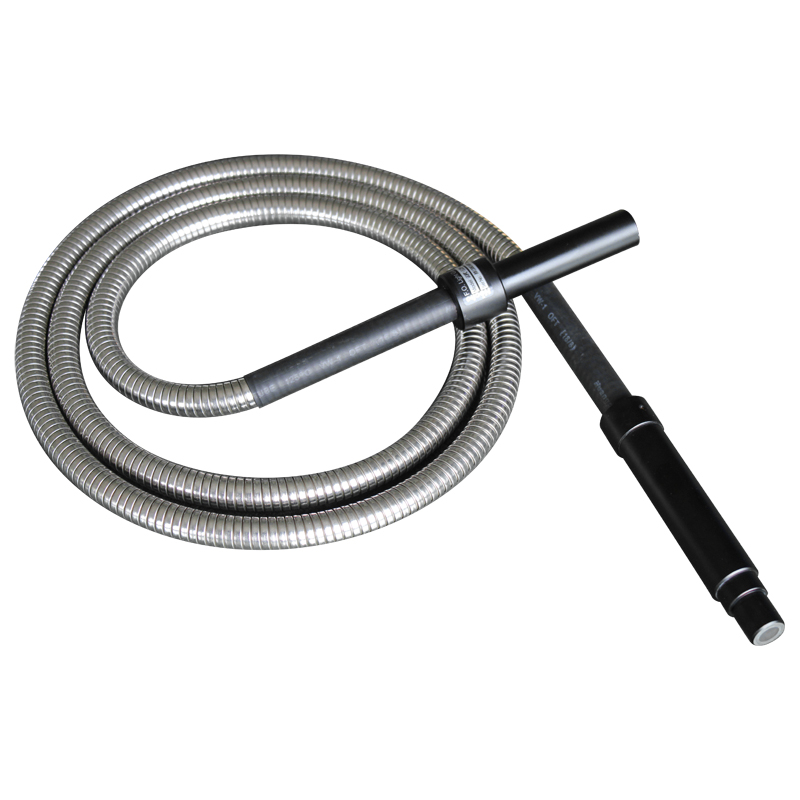

Product Item: Fiber Optic Flexible Light Guide
Model
|
Core Dia.
|
Fiber material
|
Length
|
Tubes
|
Spectral range
|
POFC-S4H-1000-F1
|
4mm
|
PMMA
|
1000mm
|
Flexible SUS
|
380 ~ 780nm
|
GOFC-S4H-1000-F1
|
4mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
POFC-S6H-1000-F1
|
6mm
|
PMMA
|
1000mm
|
Flexible SUS
|
380 ~ 780nm
|
GOFC-S6H-1000-F1
|
6mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
POFC-S8H-2000-F1
|
8mm
|
PMMA
|
2000mm
|
Flexible SUS
|
380 ~ 780nm
|
GOFC-S8H-2000-F1
|
8mm
|
GOF
|
2000mm
|
Flexible SUS
|
400 ~ 1400nm
|
POFC-S10H-2000-F1
|
10mm
|
PMMA
|
1000mm
|
Flexible SUS
|
380 ~ 780nm
|
GOFC-S10H-2000-F1
|
10mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
GOFC-S3H-1500-F1
|
3mm
|
GOF
|
1500mm
|
Flexible SUS
|
400 ~ 1400nm
|
SOFC-S3H-1500-F1
|
3mm
|
Silica fiber
|
1500mm
|
Flexible SUS
|
200 ~ 1200nm
|
GOFC-S2.5H-1000-F1H
|
2.5mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
Other dimensions can be customized.
* GOFC series Compatiable with HECHO Fiber Optic Illuminators: LED light source: S3000/S5000; Halogen light source: H-100/H-150/B5100/B5200
* POFC series Compatiable with Hecho Fiber Optic Illuminators: LED light source: S3000; Halogen light source: H-100/H-150/B5100/B5200.
