Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.

All products

Single Sided Flexible Printed Circuit (FPC) Single Layer PCB

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have.

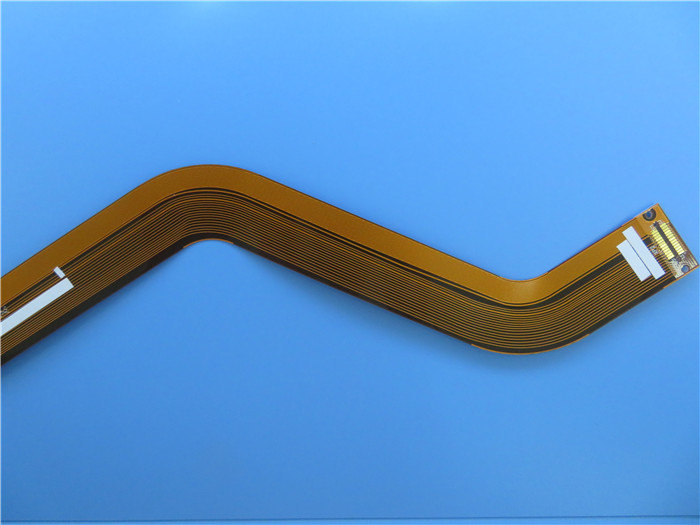

Double Sided Plated-Through Flexible Circuits 2-Layer PCB Dual Layer FPC

It’s a 2 layer flex board at 0.15mm thick. It contains yellow coverlay (solder mask) and without silkscreen on entire board, and immersion gold is applied on pads.

Flexible Printed Circuits (FPC) with FR-4 Stiffener PCB

This is a type of flexible printed circuit for the application of Surveillance System. It’s a single layer FPC at 0.15mm thick.

Flexible PCB with Polyimide Stiffener Flexible Printed Circuit (FPC) with PI Stiffener

This is a type of single layer flexible printed circuit for the application of Wireless Dongle, 0.2mm thick.

Flexible PCB With Stainless Steel Stiffener Flex with Stainless Steel Shim

It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Stainless steel as stiffener is applied on the two ends.

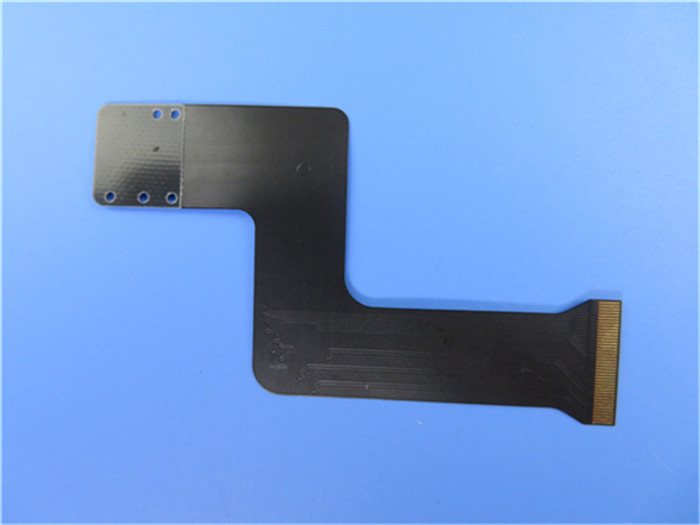

Flexible Printed Circuit (FPC) Flexible PCB On Polyimide With Black Solder Mask

This is a type of flexible printed circuit for the application of PLC Programing.

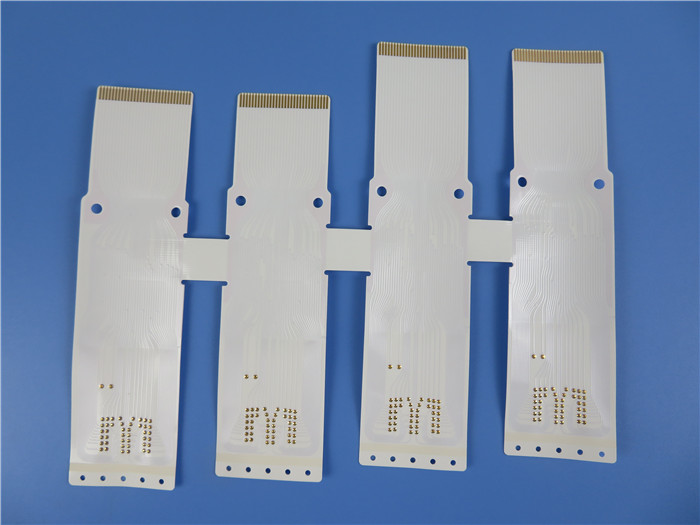

Flexible Printed Circuit FPC on PET with White Solder Mask

This is a type of dual layer flexible circuit built on PET substrate, 1oz copper weight on each layer.

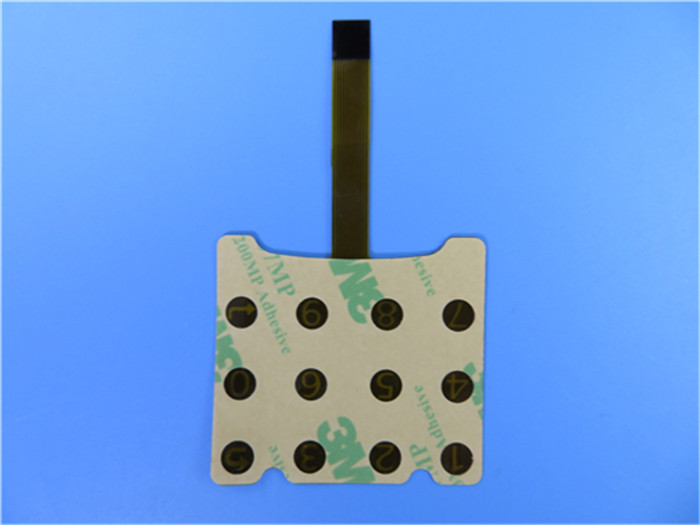

Single Sided Flexible PCBs FPC Polyimide Substrate 3M Tape Tesa Tape

This type of flexible printed circuit is for the application of calculator keypad. It’s a single layer FPC at 0.15mm thick.

Flexible Printed Circuit (FPC) Flexible PCB With Partial Green Solder Mask

This type of flexible printed circuit is on polyimide material for the application of gigabyte switch.

Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate

This type of flexible printed circuit is on polyimide material for the application of gigabyte switch.

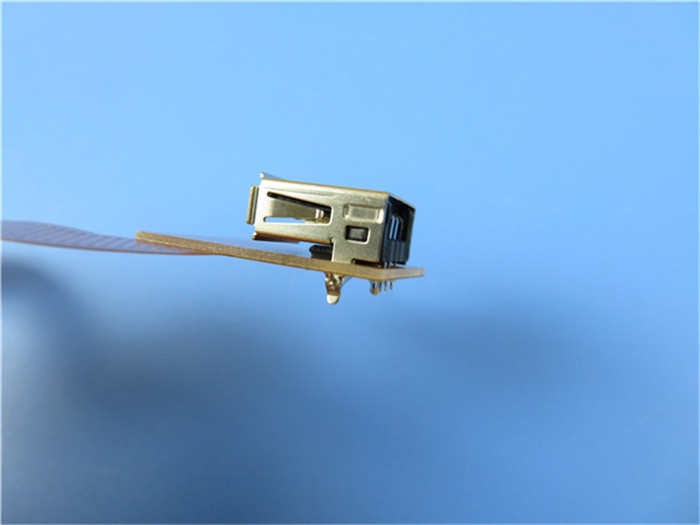

Double Layer Assembled Flexible Printed Circuit FPC Assembly

This is a type of flexible printed circuits built on polyimide substrate with connectors assembled for the application of USB wireless.

Flexible Printed Circuit FPC on Polyimide with 90ohm Impedance Controlled

This is a type of flexible PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled on 0.15mm/0.3mm track and gap for the application of USB Connector.

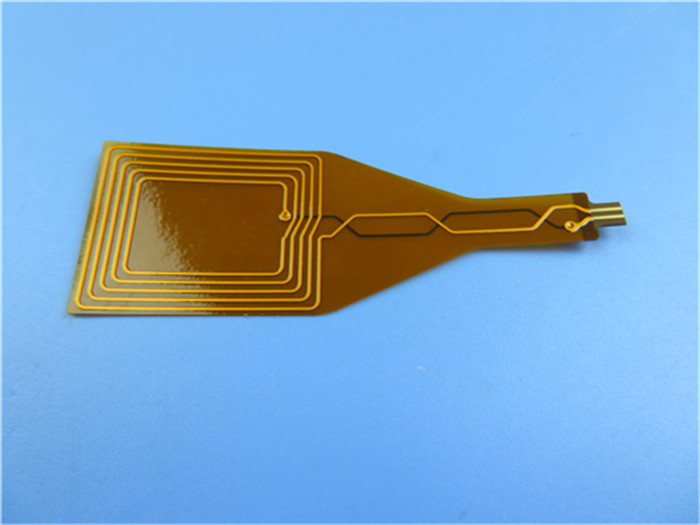

Large Flexible Circuits Fine Line FPC With Coil Design

This type of flexible PCB is build on polyimide with fine line coils for the application of GPS tracking systems.

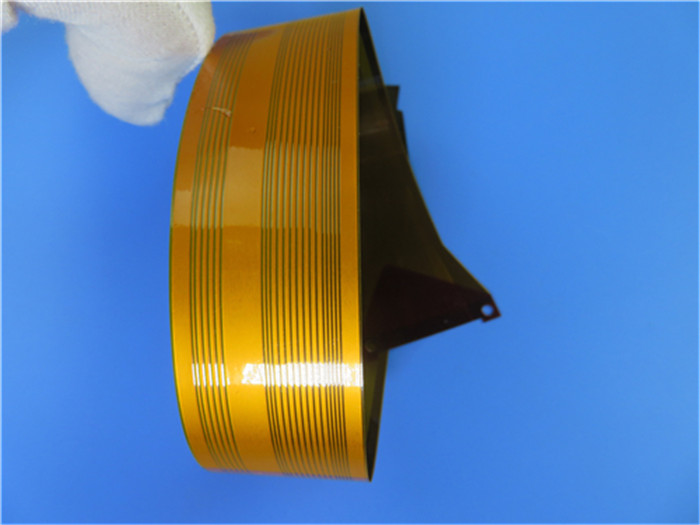

Flexible Printed Circuit FPC on Polyimide with 2 Meters Long

This FPC is a single sided strips with 2-meter long, 1oz copper with tesa tape on back side,

Multilayer Flexible Printed Circuit (FPC) Multi-layer Flexible PCB Board

This type of flexible circuit is 4-layer structure built on polyimide (PI) for the application of wireless router, 1oz copper each layer.

Heavy Copper Flexible PCB Built On Polyimide with 2 oz Copper

This type of flexible circuit is for the application of AC power systems.

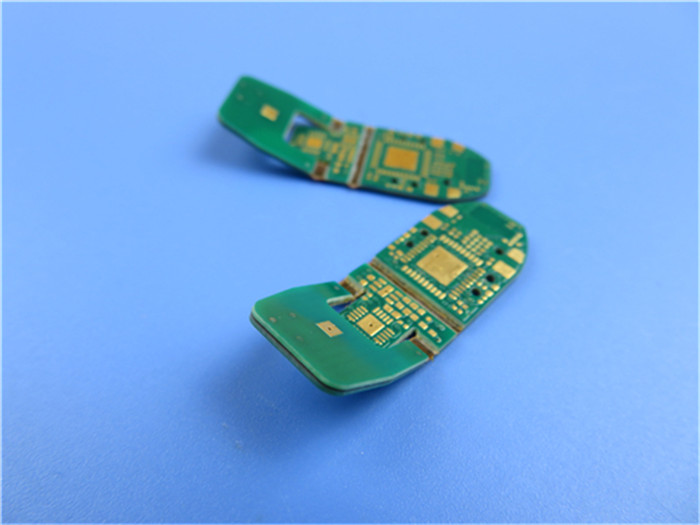

Rigid-Flex PCB Built on FR-4 Poyimide Immersion Gold 90ohm Impedance Control

This is a type of rigid-flex PCB for the application of car tracker GPS. It’s a 6-layer build-up with 1.4mm thick, half ounces on inner layers and 1 ounce on out layers.
