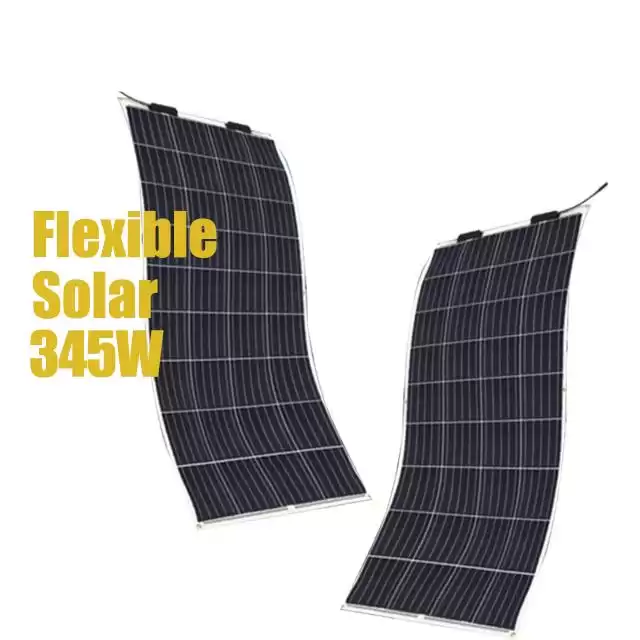

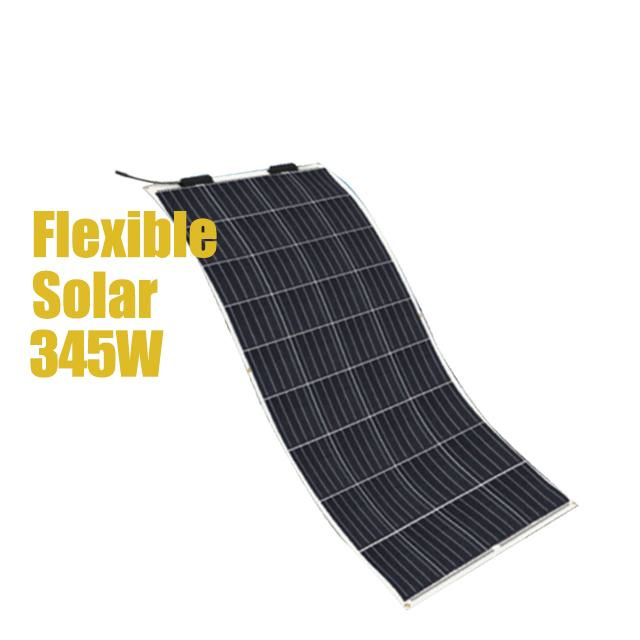

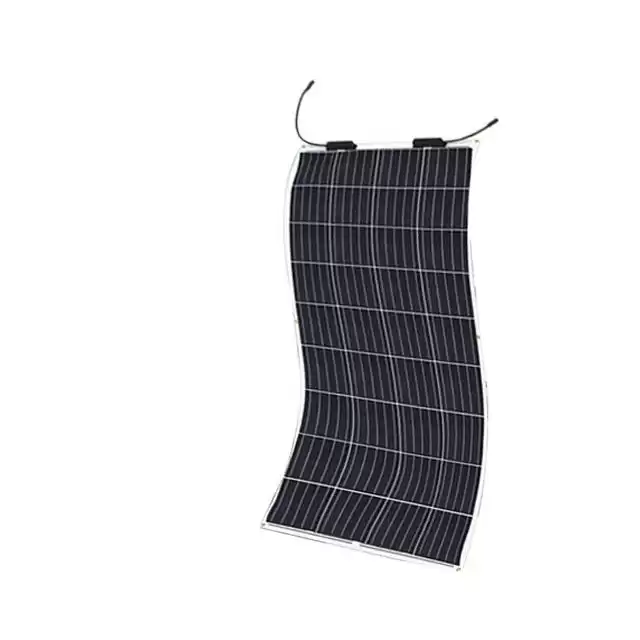

Flexible Waterproof Solar Panels 370W 375W for Boats
Flexible solar panels gathers many advantages, without glass, its weight is 70% lighter than conventional glass modules.
Plus, installed by "Quick-bonding", flexible panels requiries no penetration, and reduce mounting brackets as well.
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon(158.75mm)
|
|
No. of Cells
|
72 (6x12)
|
|
Dimensions
|
2031±2mm x 1029±2mm x 5.6±1mm
|
|
Weight
|
6.9kg±3%
|
|
Junction Box
|
IP68 Rated(3 by pass diodes)
|
|
Front Glass
|
3.2mm coated tempered glass
|
|
Frame
|
Black Anodized aluminum alloy
|
|
Output Cables
|
Photovoltaic technology cable 4.0mm², (+)150 / (-)450mm
|
|
Connectors
|
Mc4 compatible
|
|
ELECTRICAL PARAMETERS
|
GSP-F-370
|
GSP-F-375
|
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Rated Maximum Power (Pmax) [Wp]
|
370W
|
278W
|
375W
|
282W
|
|
Open Circuit Voltage (Voc) [V]
|
48.40
|
45.10
|
48.60
|
45.30
|
|
Short Circuit Current (Isc) [A]
|
9.81
|
8.00
|
9.86
|
8.07
|
|
Maximum Power Voltage (Vmp) [V]
|
39.90
|
36.80
|
40.20
|
37.00
|
|
Maximum Power Current (Imp) [A]
|
9.28
|
7.56
|
9.33
|
7.63
|
|
Module Efficiency [%]
|
17.70%
|
17.90%
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
1000 V DC(IEC)
|
|
Maximum Series Fuse Rating
|
20A
|
|
Application Class
|
Class A
|
|
Power Tolerance
|
0/+5W
|
|
STC
|
Irradiance 1000W/m², cell temperature 25°C, AM1.5G
|
|
NOCT
|
Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G
|
Product Details

|
|

|
|
-

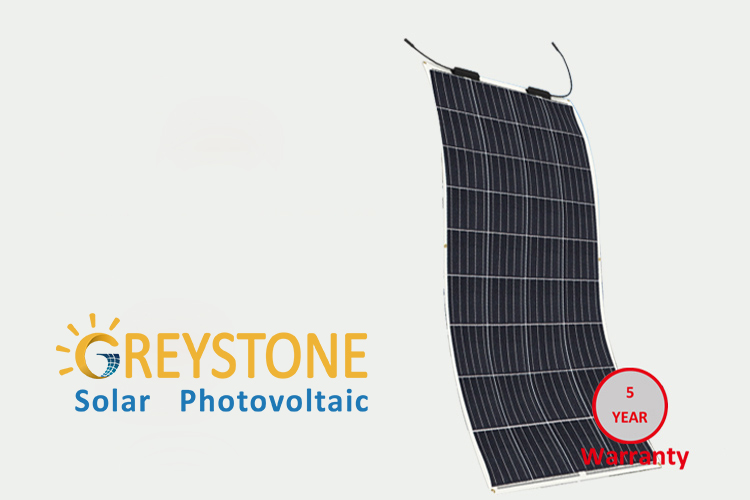

Greystone ultra-light PV modul is the world's first glassless solar module. An innovation combining proven crystalline silicon solar cells with patented composite material.
-

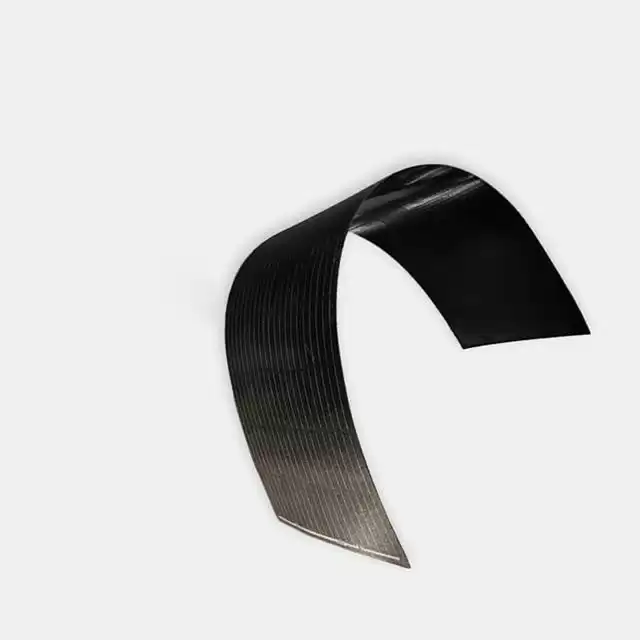

Greystone ultra-light PV modul has the same durability and robustness of conventional glass modules. However, unlike glass: Greystone ultra-light PV modul is akin to a flexible"solar skin", 70% lighter and up to 95% thinner.
-
Greystone ultra-light PV modul requires 0 penetration or mounting equipment during installation, cutting time-on-site by 40%.
-
Greystone ultra-light PV modul is easier to transport in bulk - up to 60% more kW per pallet. Greystone ultra-light PV modul targets a variety of applications glass modules cannot service.
|
Why Choose Us?
|
|

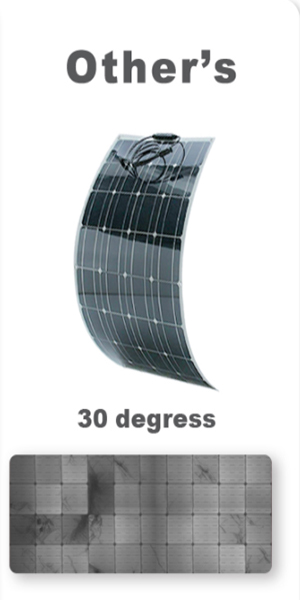

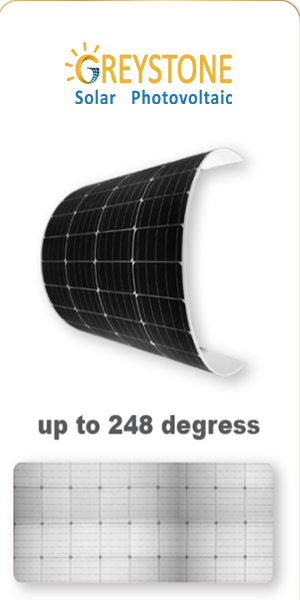

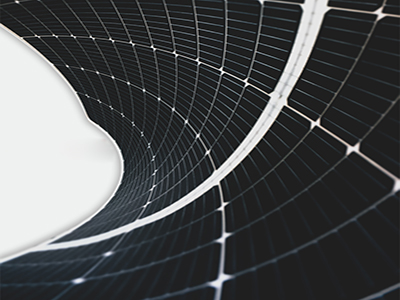

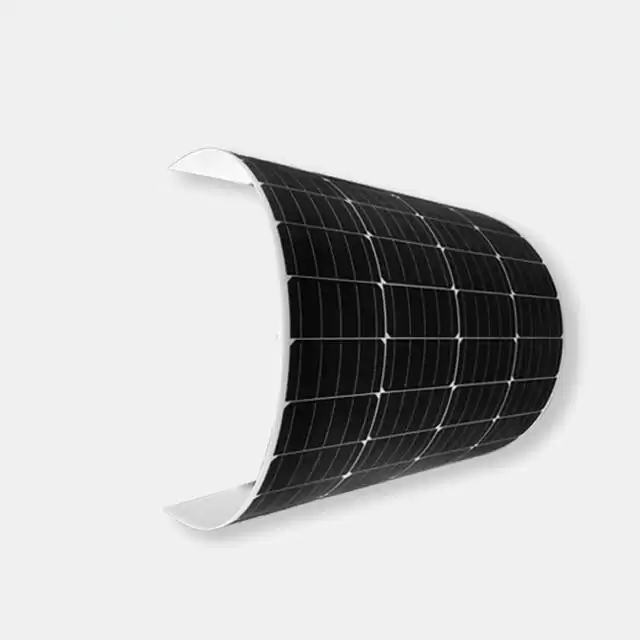

No-microcrack after bending test
|
Serious degradation
|

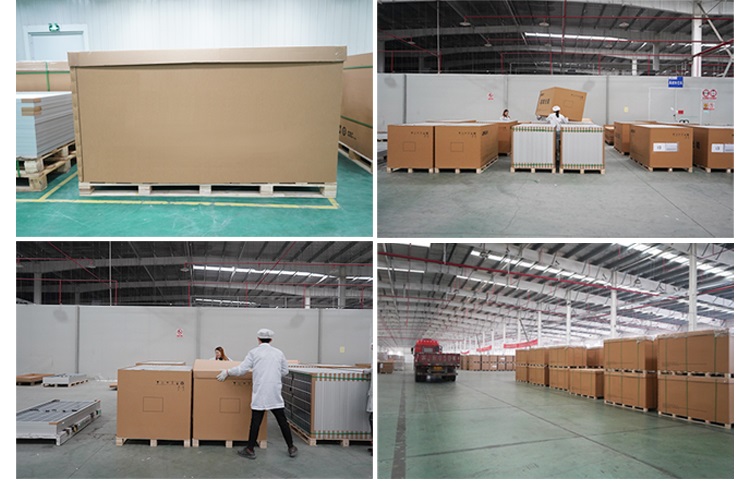

Package

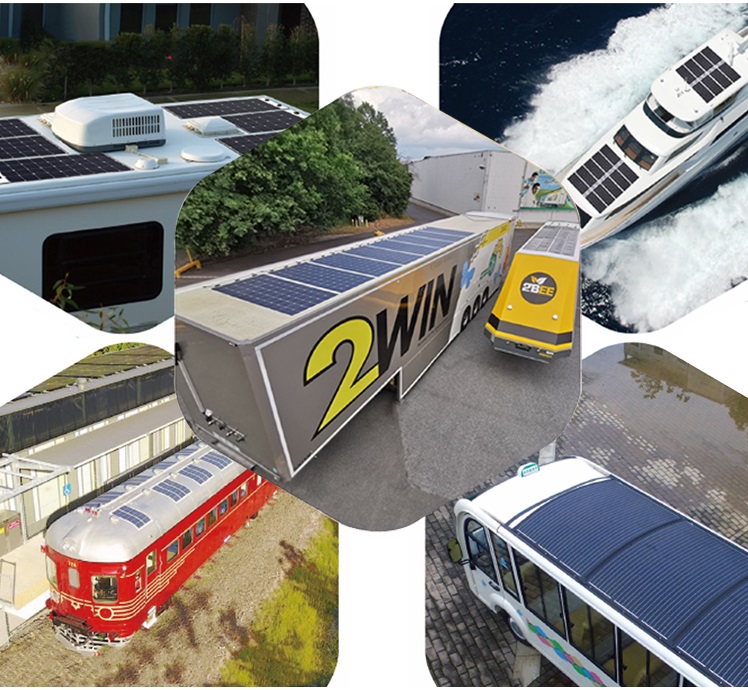

Projects
FAQ
Q1: How do you pack the products?
A1: We packed the solar panels by carton first, and then load in pallet. Stong and firm package will protect it safely after long-term sea shipment.
Q2：What's the trade term do you accept?
A2: We could accept FOB, CFR, CIF, DDU.
Q3: How do I pay?
A3: Both TT and LC are acceptable. TT will be more appreciated, 30% TT deposit before production, and 70% balanced before shipment.
Q4: What certificate do you offer?
A4: CE, IEC, CEC, ISO, INMETRO are available, if your country need other certificate, just feel free to let me know, we will support to apply for the relevant certificate for you.
Q5: What types of solar panel do you supply?
A5: There are mono-crystalline, poly-crystalline, bifacial dual glass, flexible, shingled type available for your choose.
