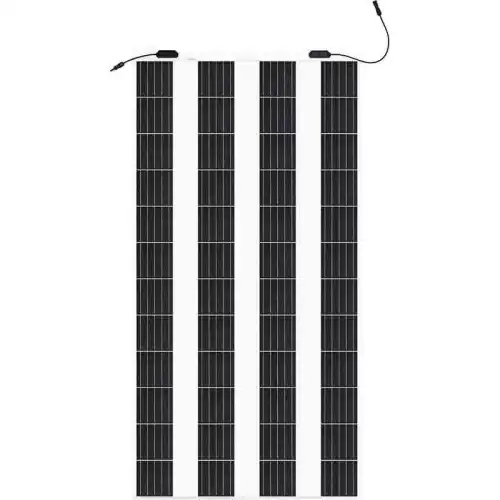

Flexible Waterproof Transparent Backboard Solar Panels

Transparent backboard flexible solar panel weight 2.8kg/m2,very light and thin, with good light transmittance.


  • CertificateTUV, CE, IEC
  • Warranty25 years linear warranty

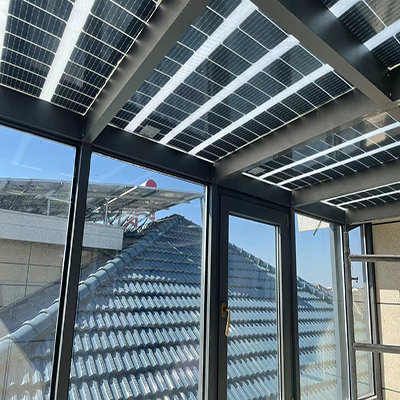

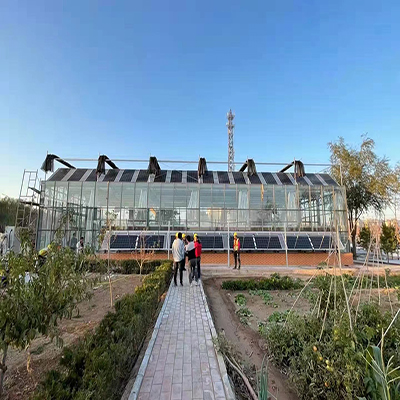

Flexible Transparent backboard Solar Panels For Greenhouse

  • Flexible solar panels gathers many advantages, without glass, its weight 2.8kg/m2
    lighter than conventional mono perc glass modules.
  • Plus, installed by "Quick-bonding", flexible panels requiries no penetration, and reduce mounting brackets as well.
  • It can adapt to hail weather.

Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon(158.75mm)

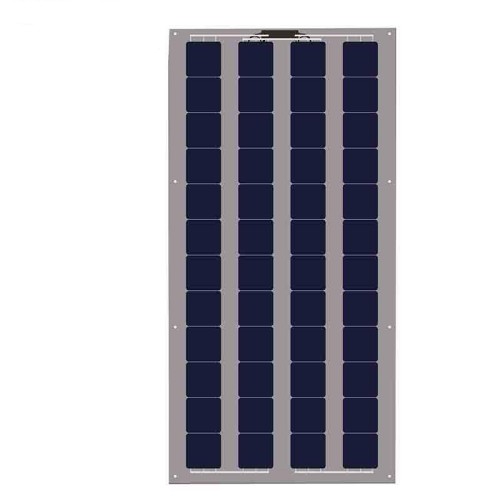

No. of Cells 48 (4x12)
Dimensions 2002x1000x2mm
Weight 5.5kg
Junction Box IP68 Rated(3 by pass diodes)
Output Cables Photovoltaic technology cable 4.0mm², (+)150 / (-)450mm
Connectors Mc4 compatible
ELECTRICAL PARAMETERS GSP-F-245 GSP-F-250
STC STC
Rated Maximum Power (Pmax) [Wp] 245 250
Open Circuit Voltage (Voc) [V] 31.9 32.1
Short Circuit Current (Isc) [A] 9.77 9.85
Maximum Power Voltage (Vmp) [V] 26.5  26.8
Maximum Power Current (Imp) [A] 9.25 9.33
Module Efficiency [%] 18.2% 18.6%
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage 1000 V DC(IEC)
Maximum Series Fuse Rating 20A
Application Class Class A
Power Tolerance 0/+5W
STC Irradiance 1000W/m², cell temperature 25°C, AM1.5G

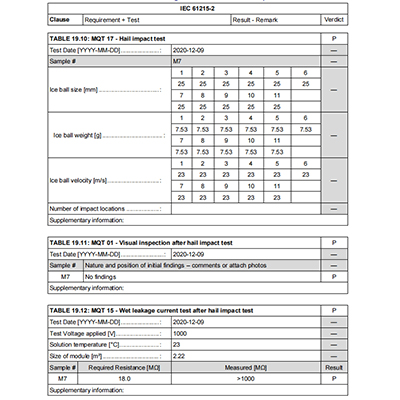

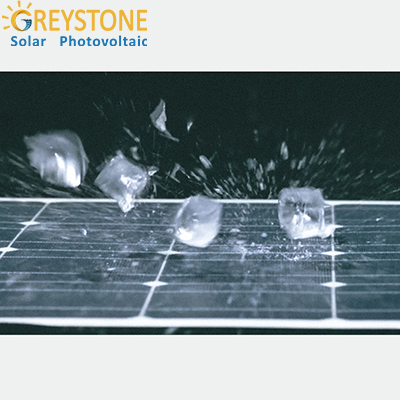

Hail Test



Diameter 25mm 23m/s speed, hail weight 7.53g

Why Choose Us?


300 watt flexible solar panel lightest solar panel

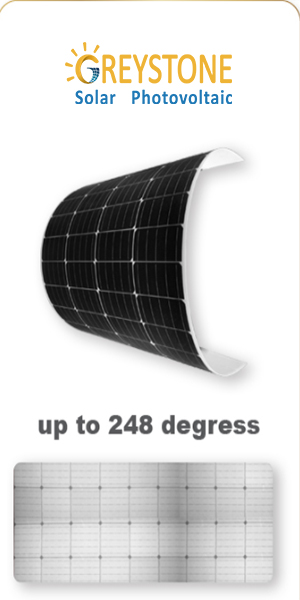

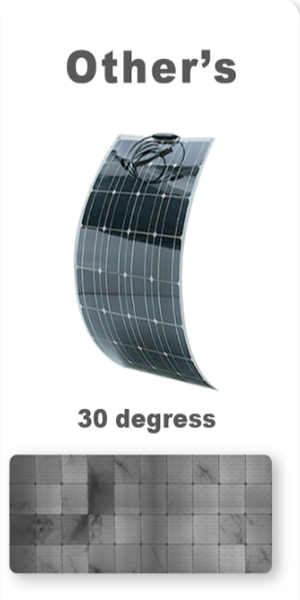

No-microcrack after bending test
 Serious degradation

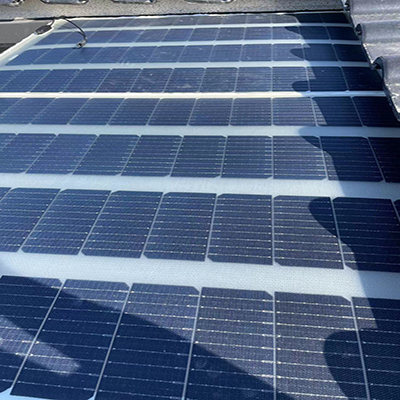

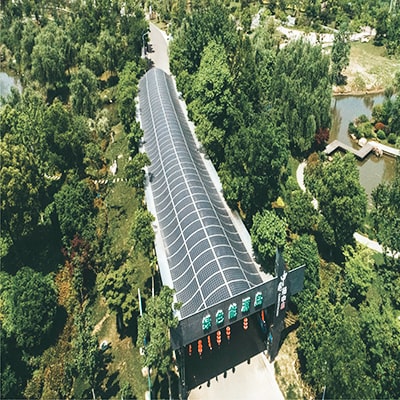

Projects






FAQ


Q:What is the MOQ?

A:One pallet.

Q:What is the lead time?
A:About one month. If we can get your order confirmation, then we can lock the soonest date for you.

Q:Why is your goods so much more expensive than others?

A:For those normal roofs that conventional panels can apply, we do not suggest you apply flexible ultralight solar panel to double your budget.

However, for those special roofs such as the glass roof, PVC roof, TPO roof, Curved Roof, etc, which conventional panel cannot be installed, then flexible solar panel will be your cost-effective solutions.
