Flexing Test Swivel Machine
Product details: Model ZLT-DW2:

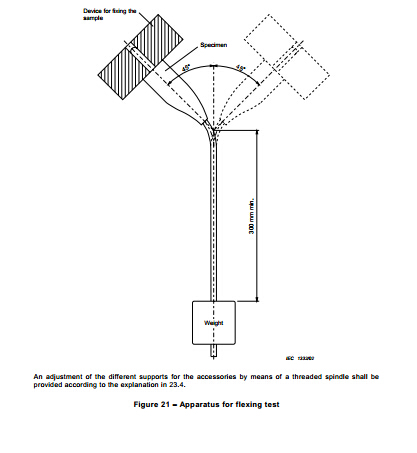

For continuous bending tests by swivelling movements to check 6 cables simultaneously fitted with plugs or entries from electric tools and from hand lamps, in accordance with IEC60884-1 figure 21 and VDE0620 figure 21.
Standard Outfit:
1 electric drive motor with reduction and swiveling gear,
1 output shaft, swiveling angle 45°or 90°on either side of the vertical,
6 sets of weights, 10N-20N-113g-284g,
1 speed adjustment, for swiveling frequency 10~60 rpm,
1 control unit with 6 digit predetermining counter to switch off the drive, 6 sets 5 digit counter to records the number of swiveling when the sample open circuit,
Power Supply: A.C.220V 50Hz, other voltages and frequencies on request.
