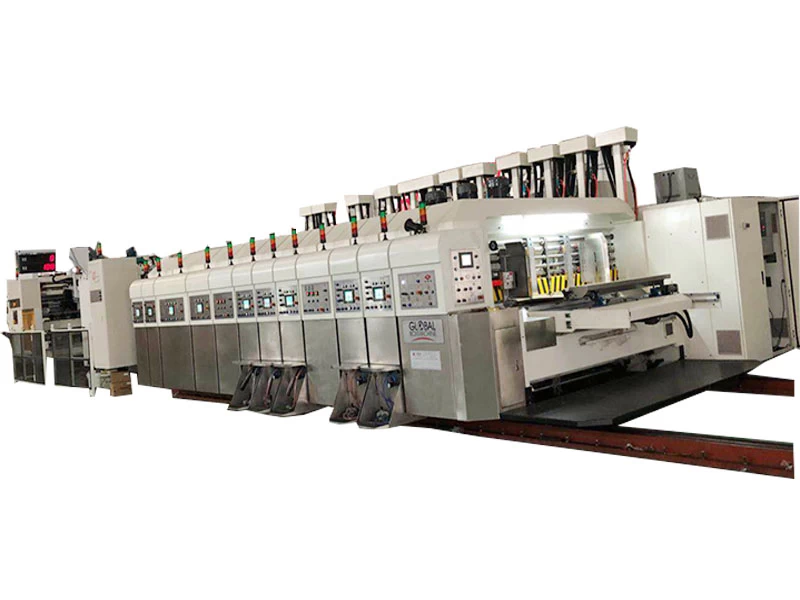

Flexo Carton Printing Slotting Die Cutting Machine

Printing die cutting slotting machine, combine Model K7 and flexo folder gluer machine together.



Flexo Carton Printing Slotting Die Cutting Machine


Corrugated Carton Flexo Printing Slotting Die-cutting Machine Features:

·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto   control and quick order shift.

·Computerized control,order setting in touch screen.

·The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding   quality.

·The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.

·The correction device in the Countering Section can conquer the fish-tail,makes the carton even.

·The quantity of bundle come out from the Counter Ejector can be set in touch screen.

·All electronic and pneumatic components are with European standards.


Flexo Cardboard Printing Slotting Die Cutter Specification:

Data/Model 900x2000
900x2400 1200x2000 1200x2400 1200x2800 1600x2800 1600x3200 1600x3600
Printing Speed(m/min) 200 200 200 200 200 200 200 160
Max Machine Speed(pcs/min) 350 300 250 250 220 200 150 120
Max Feeding Size(mm) 880x2000 880x2400 1180x2000 1180x2400 1180x2800 1540x2800 1570x3200 1570x3600
Min Feeding Size(mm) 280x640 280x640 320x700 320x700

320x700

420x760 420x760
420x760
Skip Feeding(mm) 1100x2000 1100x2400 1500x2000 1500x2400 1500x2800 1900x2800 1900x3200 1900x3600
Max Printing Area(mm) 800x2000 800x2400 1150x2000 1150x2400 1150x2800 1540x2800 1540x3200 1540x3600
Thickness of Printing Plate(mm) 7.2 7.2
7.2
7.2
7.2
7.2
7.2
7.2
Min Panel(mm) Slot Type L. 240x80x240x80 240x80x240x80
260x90x260x90 260x90x260x90
260x90x260x90
280x100x280x100 280x100x280x100
280x100x280x100
Max Slotting Depth(mm) 250 250 320 320 320 560 560 560
Min Folding Size(mm) 280x760 280x760
320x800 320x800
320x800
420x840 420x840
420x840
Max Thickness of Sheet(mm) 8 8 12 12 12
12
12
12

Dimension(LxWxH) T

F

T:18832×4750×2800

F:19552×4750×2800

T:18832×5150×2800

F:19550×5150×2800


T:20255×4870×2800

F:20975×4870×2800


T:20255×5270×2800

F:20975×5270×2800


T:20255×5670×2800

F:20975×5670×2800


T:23110×5690×3000

F:23830×5690×3000


T:23110×6090×3000

F:23830×6090×3000


T:23110×6490×3000

F:23830×6490×3000



FAQ:

Q1: What's the MOQ?

Re: The MOQ of machinery is 1 set.

Q2: What's delivery time?

Re: The general delivery time is 3~5 months after order confirmed, it depends on the order quantity.

Q3: Can you send the video to show how the machine works?

Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.

Q4: What's your payment terms?

Re: 30% in advance, and 70% before shipment.

Q5: What's the payment method?

Re: We accept T/T and L/C payment.
