Floating Solar Mounting System
Overview
The floating system on the water is suitable for water surface installation. The material is made of high-density polyethylene (HDPE) material, which meets the test standards of Hunt water absorption test (CN), anti-aging, anti-ultraviolet, etc., and can withstand tensile strength far exceeding similar products at home and abroad. The pontoon and the main floating body adopt a new model design, which realizes the arrangement of the same direction double row or symmetric double row, which increases the installed capacity and power, is simple and convenient to install, and reduces the project cost, and has a service life of 25 years.
Parameter
Item Illustration
Installation Site Lakes, reservoirs, water surface
Snow Load 1.0 KN/m2
Installation Direction Horizontal row, same direction double row, symmetric double row
Installation Angle 10-15 degree
Water Clearance 330-350mm
Panel with frame/ frame-less
Wind Load 50m/s
Color Gray or custom
Material HDPE
Bearing Weight Main floating body 70kg/m2, aisle 155kg/m2
-
Modular design, easy to install and splicing.
|
-
Increased floating body and stronger carrying capacity.
|
-
The floating block is made of high-density polyethylene material, environmentally friendly and pollution-free, and has a long service life.
|
-
Diversified arrangement, highly combinable.
|
-
Achieve symmetric arrangement, reduce footprint, maximize installed capacity and power generation.
|
-
High component compatibility and cost savings.
|
-
Excellent weather resistance, easy operation and maintenance.
|

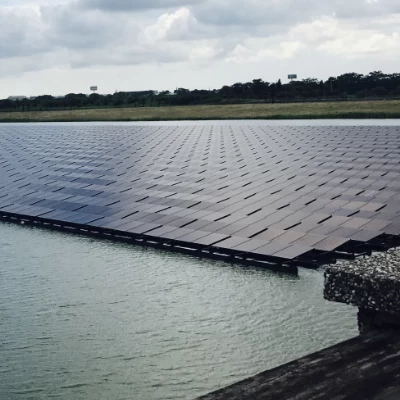

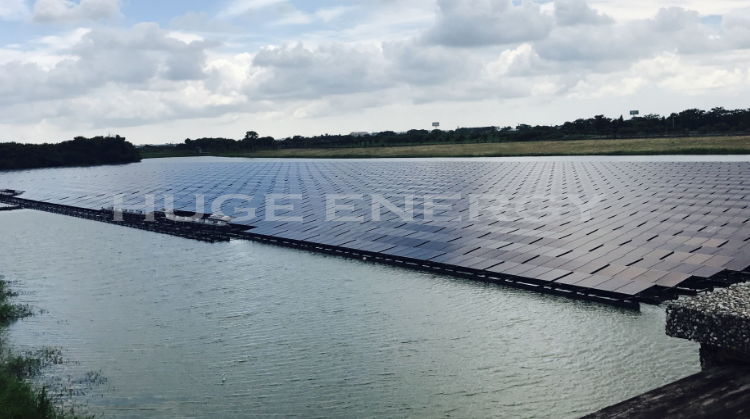

Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
