Overview
MRac Floating PV Mounting System G4S is applied to solar pv power plant
installation on the water. Adopting HDPE material, it has passed the Hunt
Water Absorption Test, Anti-Aging Test, Anti-UV Test etc. Moreover, it can
bear the pulling force that is much higher than other products. Adopting
new module design in floater and main floater, it can realize the array of
double row in the same facing or in symmetrical facing, which can increase
the efficiency of solar power generation and installation capacity, be easily
installed, and save the cost. and its lifetime has more than 25 years.
Features
Modular design, simple and convenient splice installation；
Increase the volume of floater to add the buoyant force of floater；
The floater is made of high density polyethylene, which ensures its long
service time；
Various array design, easier to combine；
Realize symmetrical facing array, increase the installation capacity, maximize
the efficiency of power generation；
Compatible with various solar module, save the cost；
Strong weather ability, easy to operation and maintenance.

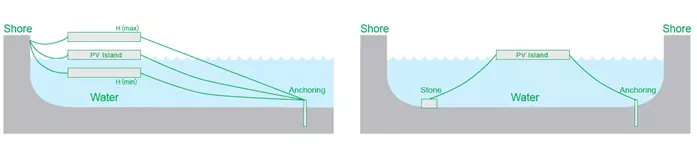

Anchoring System
MRac Floating mounting system will be fixed by anchoring system. Normally we choose the anchor point under the water, but also can choose the anchor point on the water front. The procedure of installing anchoring system will be designed in accordance with the condition of water area.
1. When water level variation less than 1 meter, adopt sunken anchor or stone with rope to fix it.
2. When water level variation less than 3 meters, adopt sunken anchor or stone with rope and add elastic spring to fix it.
3. When water level variation more than 3 meters, adopt sunken anchor or stone with capstan rope to fix it.
|
Technical Parameter
|
|
Solar PV Mounting System Name
|
MRac Floating PV Mounting System G4S
|
Design Standard
|
AS/NZS 1170,DIN 1055,JIS C8955:2017,
|
|
Installation Site
|
Lake, Reservoir
|
|
International Building Code IBC 2009,
|
|
Water Surface Clearance
|
330-350mm
|
|
California Building Code CBC 2010;
|
|
Tilt Angl
|
5°,10°,15°
|
Material
|
HDPE
|
|
Wind Load
|
51m/s
|
Fastener
|
Zinc-Nickle Alloy & HDPE & Q235B
|
|
Snow Load
|
1KN/m2
|
Small Components
|
AL6005-T5(Anodized)
|
|
Applicable Solar Module
|
Framed or Frameless
|
Color
|
Gray or Customized
|
|
Panel Orientation
|
Landscape, Double Row In The Same/ Symmetrical Facing
|
Warranty
|
10-Year Warranty +
|
|
Panel Type
|
Frame or Double Glass
|
Bearing Weight
|
Module Floater 70KG/m2,Walkway Floater 155KG/m2
|
|
Certified by TUV, SGS and qualified consultants in AU, JP
|

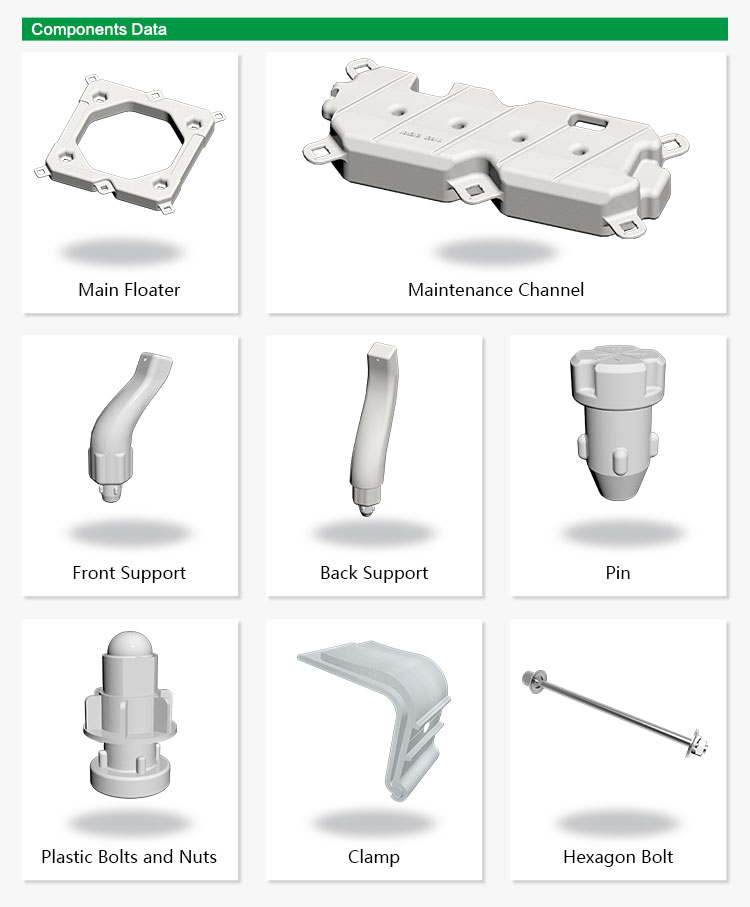

Solar PV Components Data

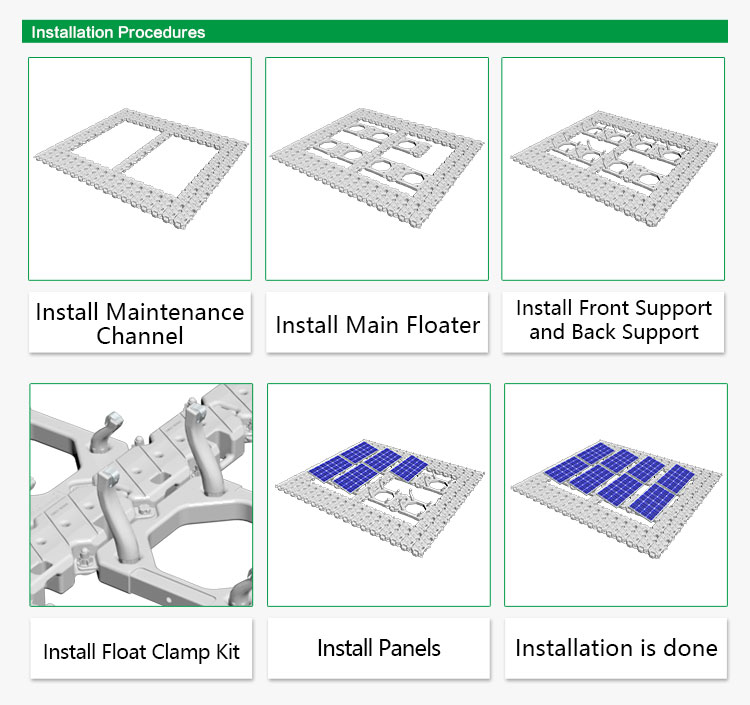

Installation Steps
Development History of Floating System
Technology Certification
