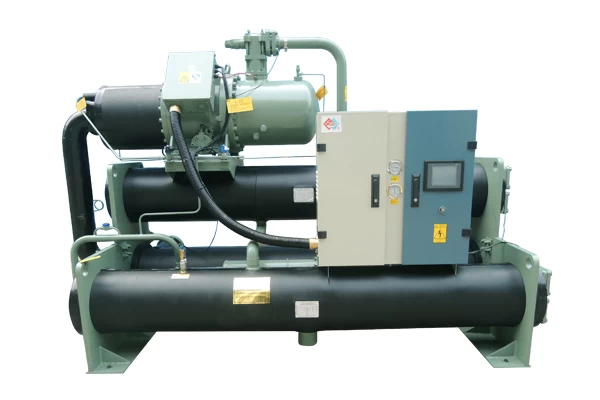

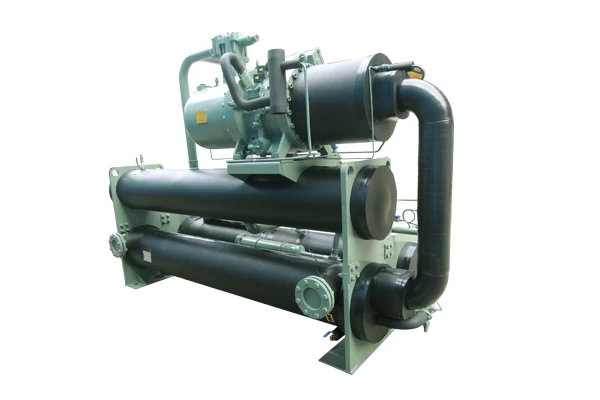

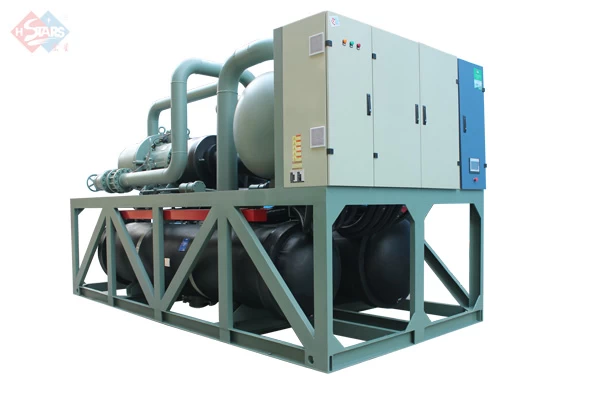

Flooded And Screw Type Water Source Heat Pump Unit
Profile
-
"H'Stars" 40STD series Flooded and screw type water source heat pump unit adopts high-efficiency twin-screw compressor, self-developed and manufactured high-efficiency Flooded type evaporator, R22, R134a refrigerant, energy efficiency up to 6.7. Hot water outlet temperature 50 °C . The heat recovery unit can be configured according to customer requirements. The unit has a total of 20 standard specifications.
-
Brand: H'Stars
-
Cooling range: 478kw ~ 3754kw; Heating range: 517kw ~ 4006kw
-
Application range: Large hot and cold demand places
Parameters
-
Cooling range 478kw ~ 3754kw Heating range /td> 517kw ~ 4006kw
-
Chilled water temperature adjustment 5~20°C Application area Larger hot and cold demand place
Advantage
(1) The reinforced heat pump compressor is used for stable operation, low noise and long service life.
(2) The Flooded and screw type water source heat pump unit adopts the self-developed high-efficiency Flooded type evaporator, the evaporation temperature can reach 5 °C, and COP reaches 6.7.
(3) High-efficiency oil separator using impact and interception oil separation technology. The oil separation effect is up to a thousand grades.
(4) Adopting evaporator ejector oil return technology, no moving parts, no energy consumption, stable and energy saving.
(5) The use of a well-known brand electronic expansion valve + orifice throttle device.
(6) Optional microcomputer control, PLC control; expandable network function, can provide remote monitoring and after-sales service.
(7) Optional independent research and development of patented heat recovery device to obtain free hot water.
