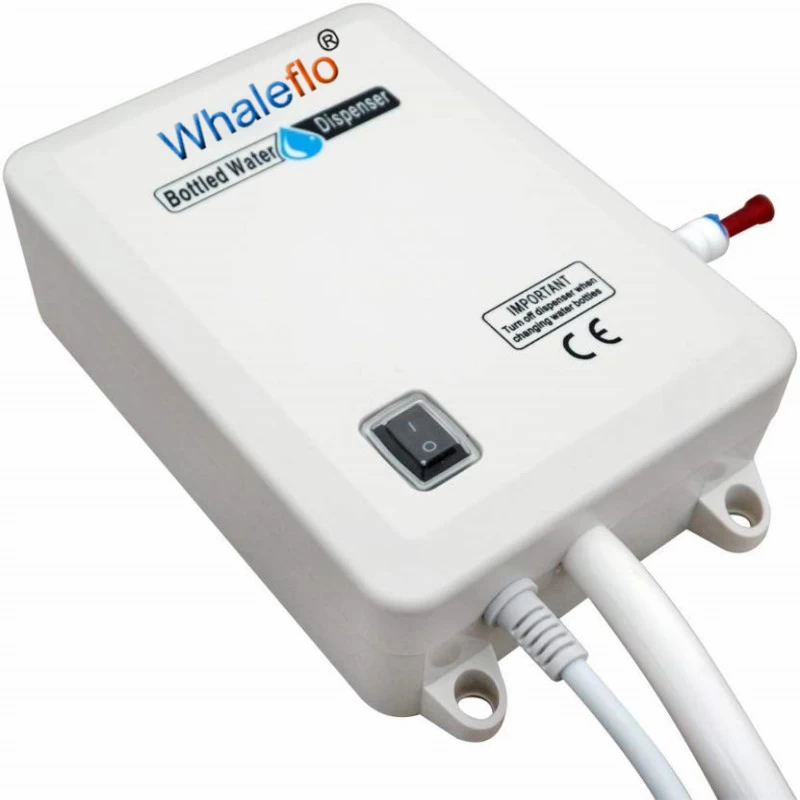

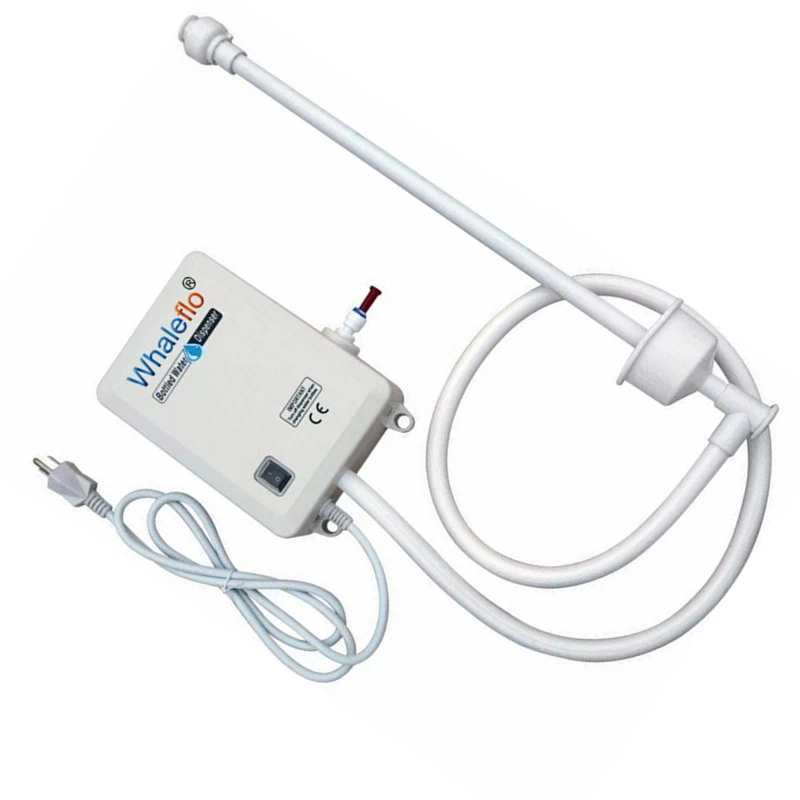

Food Grade AC 230V Bottled Water Dispensing System for Household Refrigerator and Coffee Machine
Description

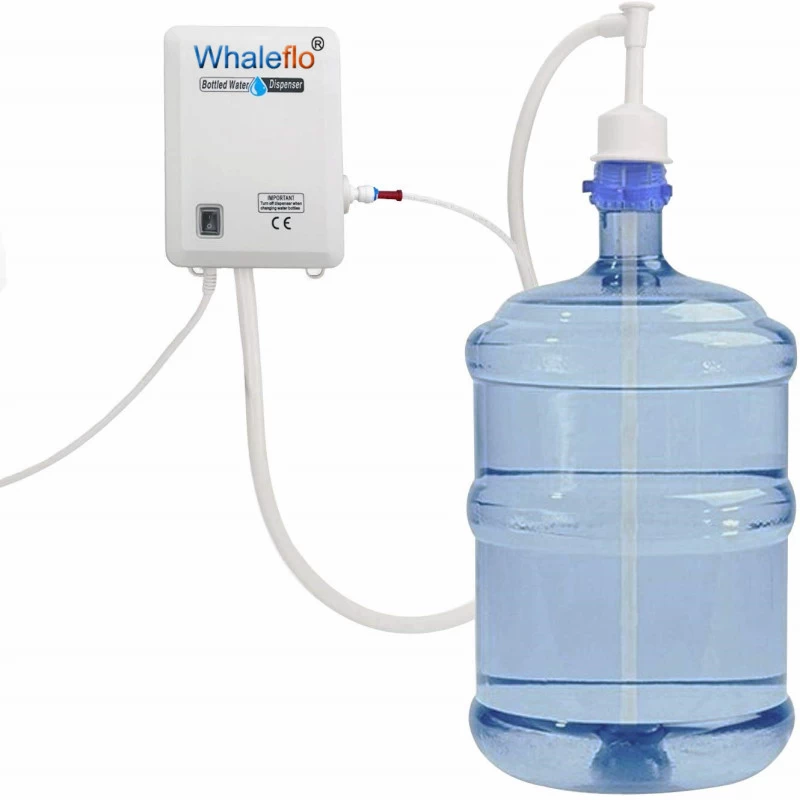

Whaleflo Bottle Water Dispensing System Design For Home And Commercial Applicances.

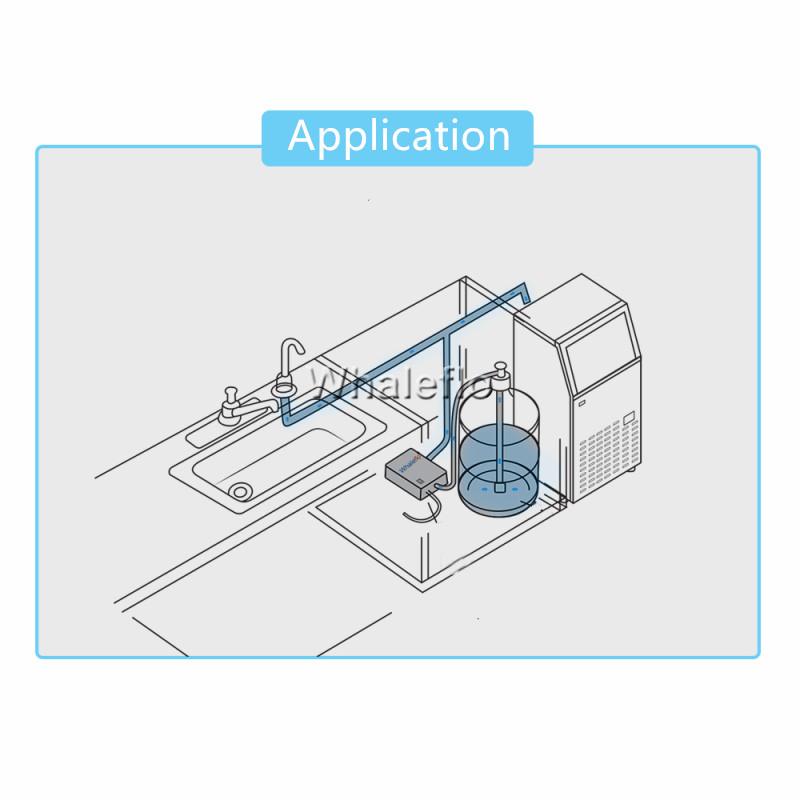

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/FDA/NSF,also with 12 months warranty.
Specification
|
Model
|
GPM
|
Max
PSI
|
Outlet
|
Tubing
|
Volts
|
Amps
|
Cycle
|
Cord
|
Dimensions
(H x W x D)
|
Wt
(kgs)
|
|
BW1000A
|
1.0
|
40
|
1/4"
|
20'
|
115
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW2000A
|
1.0
|
40
|
1/4''
|
20'
|
220
|
0.25
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW3000A
|
1.0
|
40
|
1/4''
|
20'
|
12
|
5
|
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW4003A
|
1.0
|
40
|
1/4''
|
20'
|
115-240
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.3
|
|
BW2020A
|
1.0
|
40
|
1/4"
|
20'
|
220V/115V
|
0.25
|
50/60
|
6'
|
3.0"x5.5"x 7.5"
|
3.5
|
TROUBLESHOOTING
System Will Not Dispense Water
-
Check on/off switch position
-
Check power to dispensing system
-
Check location of suction wand in bottle
-
Check for empty bottle
-
Check for air in system
Discharge Tube Leaks At Fitting
-
Push tube all the way into tube stop
-
Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
-
Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
-
Check the float switch
-
Check for leaks in discharge tube
System Will not Shut-Off
-
Check for leaks in tubing system
-
Check for leaks at bube fittings
-
Check for leaks at faucet,ice maker or refrigerator water valve
-
Check pressure switch by turning faucet off and on
-
Check float switch position in bottle
System Continually Turns Off and On While in Use
-
Check for restriction devise at appliance inlet.
-
Check for filter unit in line.
-
Check for internal filters in the refrigerator
