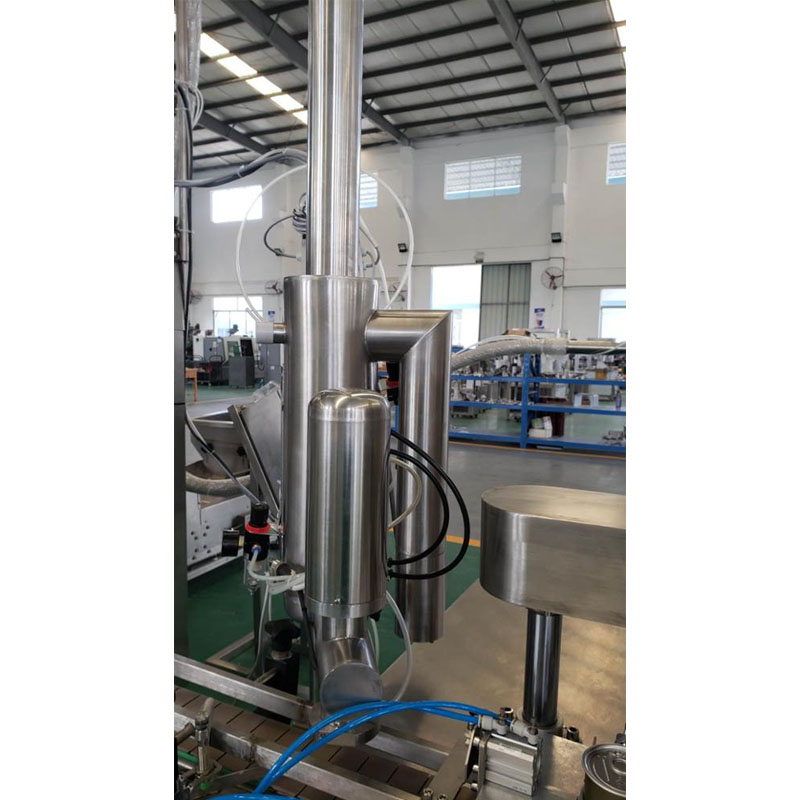

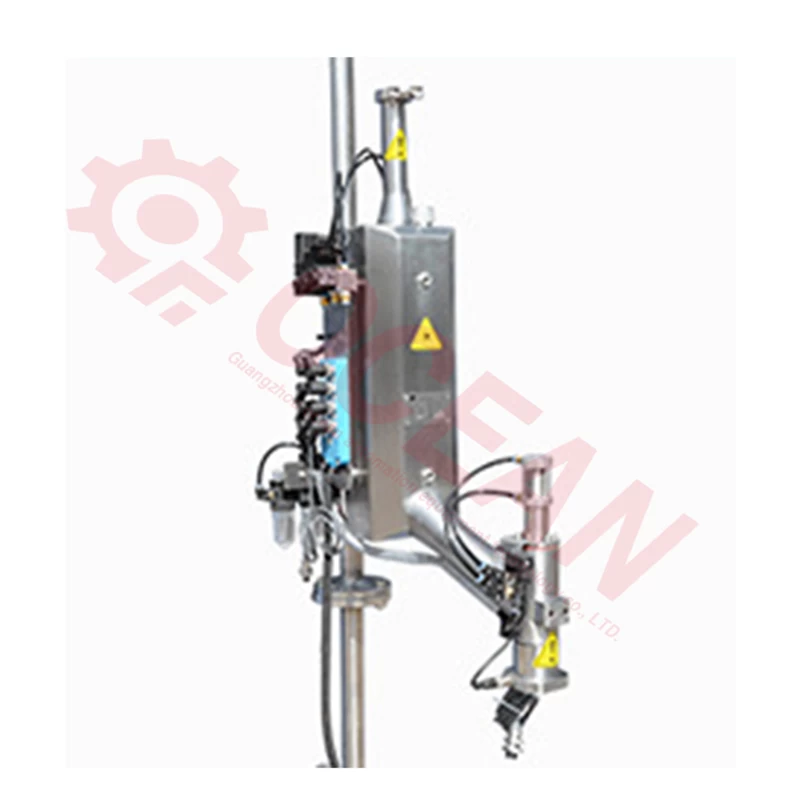

Food Grade Liquid Nitrogen Filling Machine / Liquid Nitrogen Dosing
Specification For Liquid Nitrogen Injection Machine
Material
|
Stainless Steel
|
Weight
|
38 lbs (17 kg)
|
Body Dimensions
|
28.5"H x 6"W (724 x 152 mm)
|
Dosing Head Dimensions
|
9.5"H x 2"W (241 x 50.8 mm)
|
|
Arm Reach
|
24" to 34" (609.6 to 863.6 mm)
|
Head Pressure
|
0.9 psi (0.06 bar)
|
Nozzles
|
Min. 0.020" - Max. 0.120" available
|
Ships
|
with 0.040" (installed),0.050", 0.060"
|
System Utilities
|
|

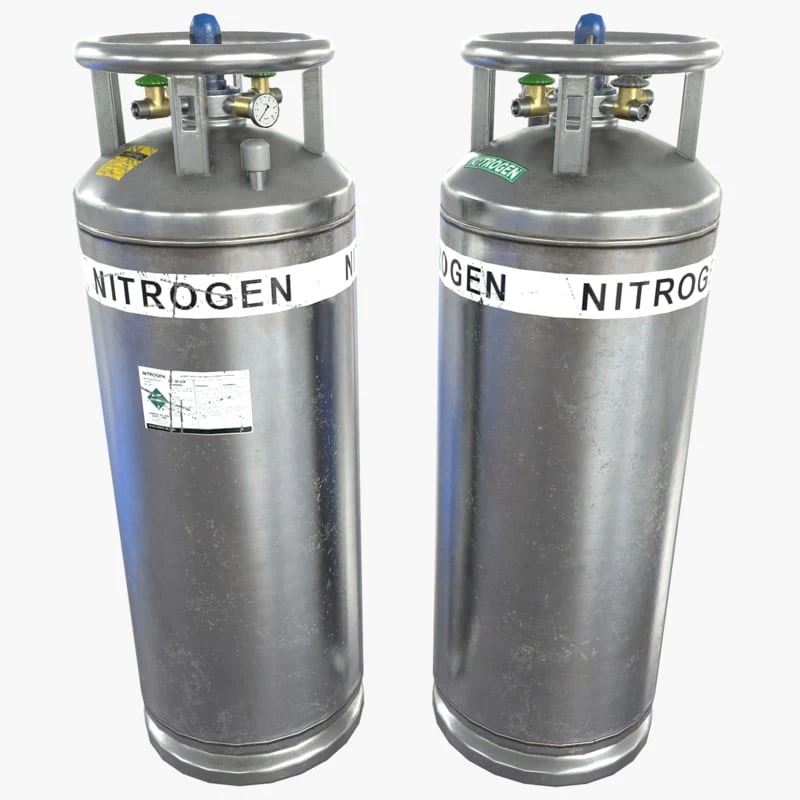

Liquid Nitrogen
|
3 - 22 psi (0.2 - 1.5 bar)
|
Gaseous Nitrogen
|
60 - 100 psi (4.1- 6.9 bar)
|
Electricity
|
AC 110 - 240V; 50/60Hz, 110W
|
Steady State Consumption
|
0.04 gal (0.15 liter) / hour
|
Product Feature For Liquid Nitrogen Dosing Machine

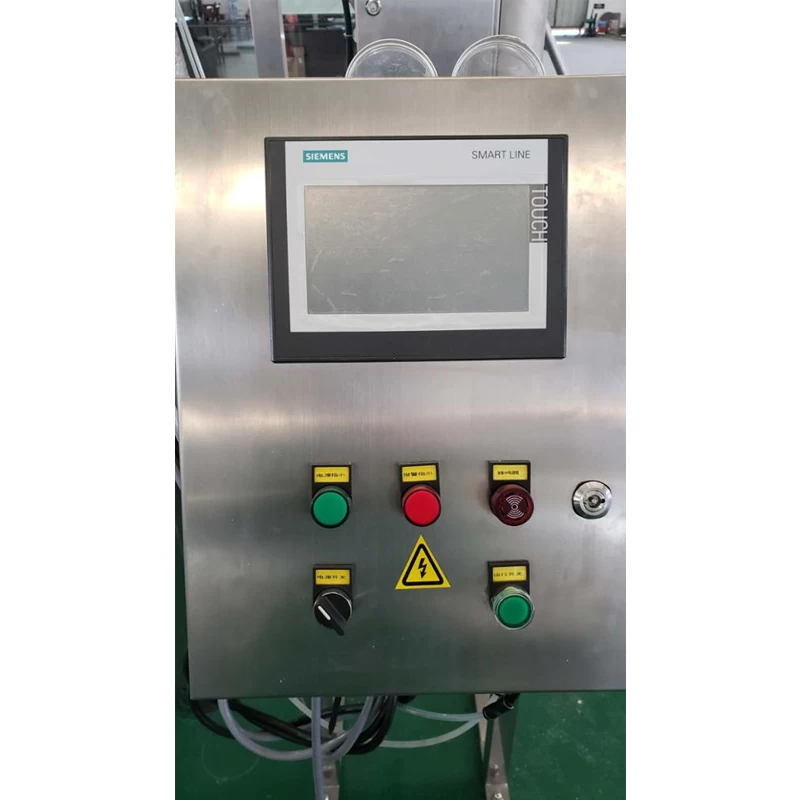

The liquid nitrogen (LN2) dosing system utilizing advanced cryogenic technology and PLC programming. Three sensors detecting line speed, timing, and bottle presence allow the system to detect all lines speeds, including high speeds, to dispense a precise dose of LN2 into every container every time. The LN2 gasifies and is either trapped in the container to add rigidity or escapes with oxygen to inert the headspace.
1. Flexible Dosing Arm- allows the dosing head to be installed at any angle
2. Quick Service Automatic Defrost-eliminates most freeze ups in less than ten minutes
3. Precise Dosing- delivers consistent, accurate dosing over all lines speeds
4. Discrete Dosing - up to 1200 containers per minute
5. Discrete or Continuous Dosing - change over defned by user
6. Vacuum Insulated Technology- the most effcient use of LN2
7. SoftDose Compatible brand proven technology for hot fill,and granular applications.

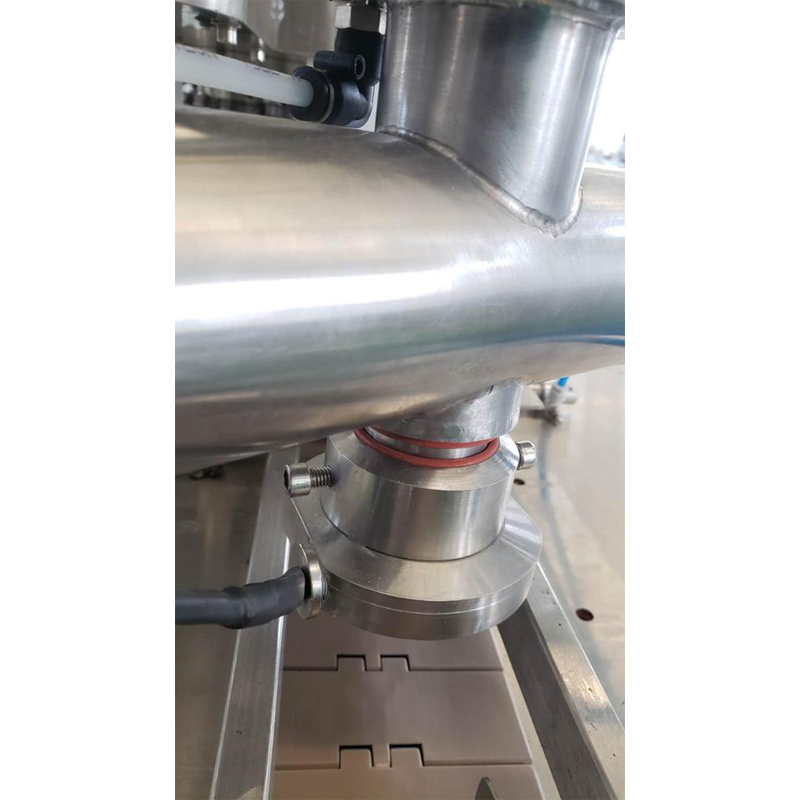

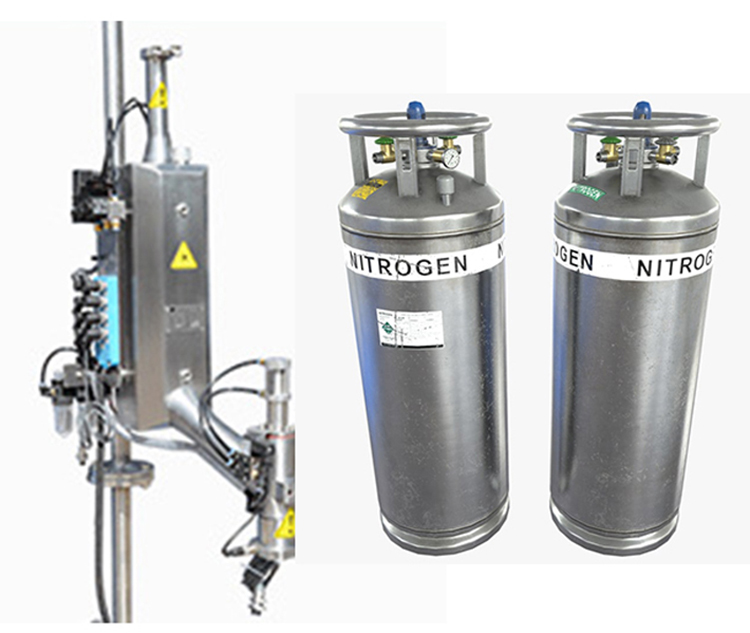

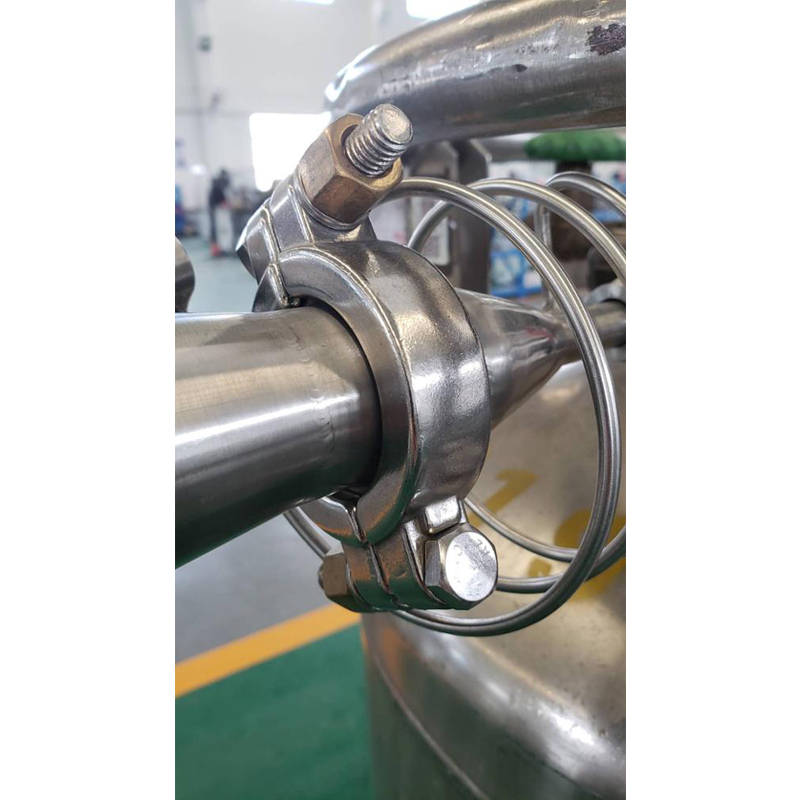

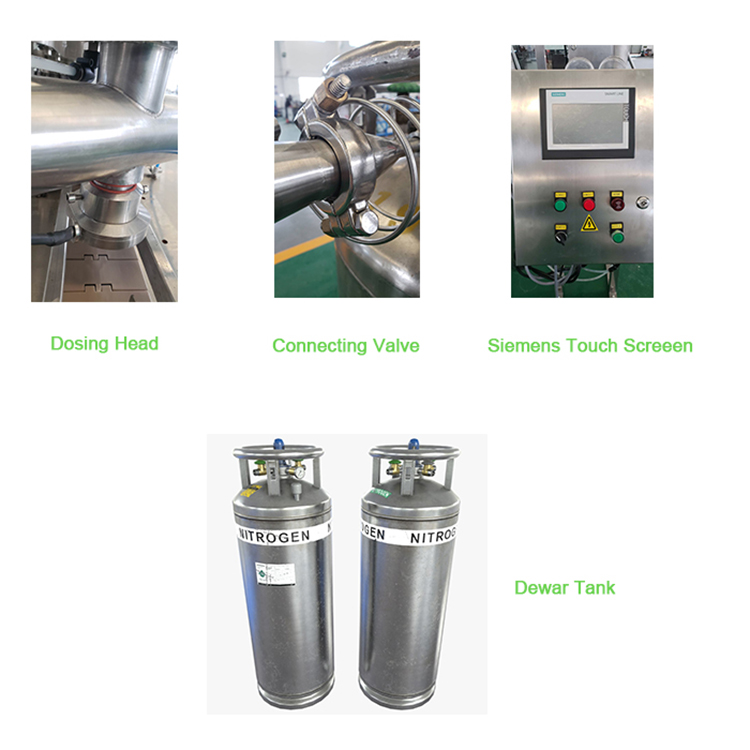

Details For Liquid Nitrogen Filler System
Key Benefits
Lightweight PET- reduce the weight of PET for cost and environmental savings
Glass to PET Transition - eliminate glass safety hazards and weight of containers
Bottle Rigidity - maintain bottle shape even with lighter weight containers
Eliminate Paneling- increase the internal pressure to offset paneling issues
Oxygen Reduction- create an inert environment to preserve product freshness
Extend Shelf Life - minimize oxygen levels
Ease of Labeling - consistent bottle rigidity creates an efficient labeling process
Reduce Nitrogen Consumption - measurable and repeatable liquid doses
Maximize Warehouse Storage Space- increasing product stackability utilizes less square footage
Stabilize Organic Products - extend shelf life without preservatives
High Speed Liquid Nitrogen Injector Applications
Contact Us
Production Procedure for Liquid Nitrogen Dosing System
Our Services on Liquid Nitrogen Dosing Machine
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
FAQ
|
1, What is your Installation Services for Food Grade Liquid Nitrogen Filling Machine / Liquid Nitrogen Dosing?
|
2, What about your Guarantee of quality?
|
User manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well
|
The Liquid Nitrogen Filling Inject Machine is 1 year warranty, all machine part can be replaced within 1 year if broken (not including man made)
|
3, If we have very special request for the production line,could you help me to do the design?
|
4, Can I visit your factory?
|
Experienced mechanical designer customized-design provided.
|
Yes, welcome please.
|
5, If we have samples of new products, can you help to analysis and design Liquid Nitrogen Injection system?
|
6, Do you have certificate?
|
Yes, Our technical department can help to analysis, design and test the new products you offered.
|
Yes, we have some, like CE / SGS.
|
