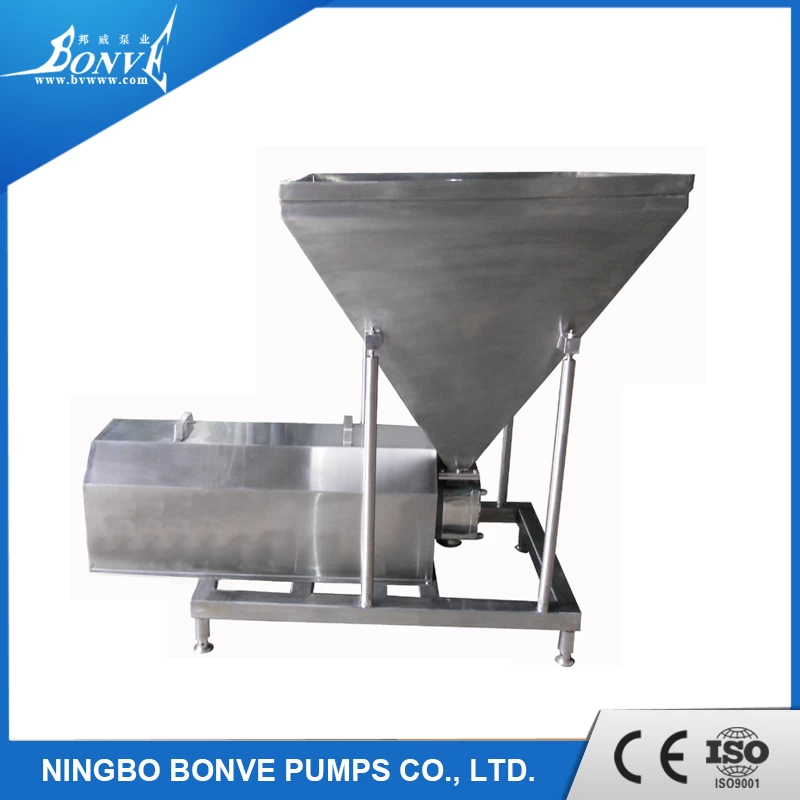

Bonve rotary lobe pump with enlarged rectangular inlet design, allows highly viscous products such as semi solid pastes or mixtures containing semi-solid pieces to be pumped.
Typical mediums to be transferred
Meat slurry, meat paste, fish paste, mashed potato, pumpkin or sweet potato mash,sausage etc.
With the
characteristics of low rotation speed and high output torque, Bonve rotary lobe
pump shows its talents to transfer high viscosity meat paste. Its unique
working principle works with a strong drive system, ensure that the pump can
output a strong driving torque at low speed, can guarantee continuous,
non-stagnant transferring.
Advantages of
Bonve Lobe Pumps
-
Gap is kept between the rotors to allow no friction,
thus to ensure long service life.
-
Simple installation and disassembling easy
maintenance and cleaning, strong resistance to wearing.
-
High efficiency and energy- saving, stable
transmission, low failure rate, good sealing and low noise.
-
A heat retaining device can be built in structure.
-
Suitable temperature: 1~250c degree.
How pump Bonve
Lobe pump works?
The even
rotation of the rotor pair creates a vacuum on the priming side of the pump,
which can be defined by the direction of rotation of the drive. This vacuum
draws the liquid into the pump chamber. With further rotation, the pumped
medium is conveyed past the pump wall into the pressure area. Up to six chamber
charges are displaced with each drive rotation– depending on the rotor
type. When the rotor is at a standstill, the pump seals off almost
completely.

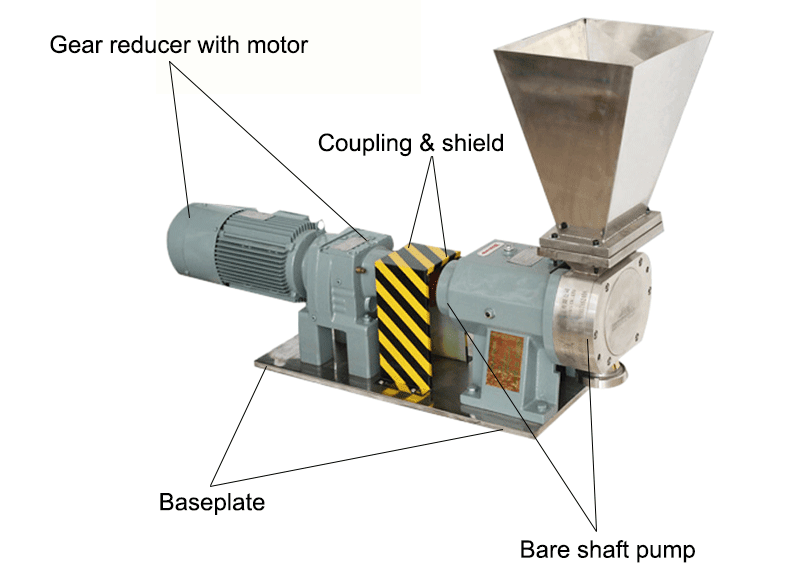

Pump main
structure
Pump structure
advantage
How to choose Bonve pump?
|
Liquid
information
|
|
Liquid
name:___________
|
|
Features: Sanitary[ ] Corrosive[ ] Poisonous[ ]
|
|
Viscosity:_______cp
Density:_______ Temperature:_____℃ PH value:________
|
|
Solid
content:_______ Max. size of
particle:_______
|
|
Using
condition
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge
pressure: Max. required__________Mpa
Working required__________ Mpa
|
|
Suction
pressure: Max. required__________Mpa
Working required____________ Mpa
|
|
Delivery
head required:____________
Vacuum:________ Mpa
|
|
Heating
jacket required: Yes[ ] No.[ ] Heating temp.:_____℃
|
|
Liquid
inlet/outlet direction: Horizontal[
] vertical[ ]
|
|
Pipe
size: Inlet___________ Outlet____________
|
|
Connection
type required: Flange[ ]
|
|
Installation
type: Fixed [ ] Movable[ ]
|
|
Operating
status: Continuous[ ] Interruption[ ]
|
|
Liquid
contact material:SS304[
] 316[ ] 316L[ ]
Others________
|
|
Special
request_____________________________________
|
|
Order
qty.
|
Thanks for
your interest into our lobe pump for high viscous paste transferring, hope we
can solve your pumping problem. Contact usfor a
pump solution.
