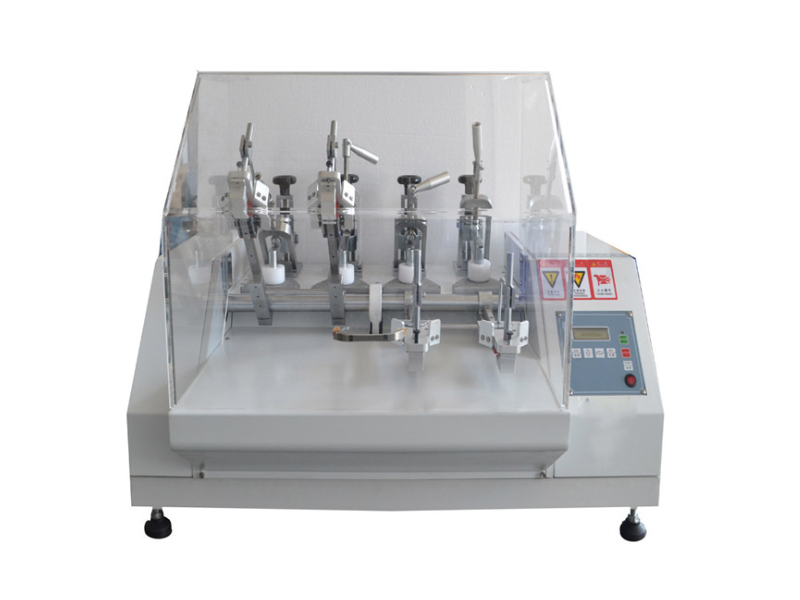

Footwear Flexing Tester

Footwear Flexing Tester

Footwear Flexing Tester is used to determine the flex resistance of finial shoes to repetitive flexing.

Test Standards

SATRA TM92

Parameters

Model No. AT-F3002
Specimen 4 pcs or 2 pcs optional
Shoe size: Children: 4~13, Men’s or Women’s: 1~12 (UK size)
Flexing angle 10°~ 90°(adjustable)  Normal: 30°, 45°, 60°, 90°
Test speed 50~150r/min (standard)
Speed and Angle comparison table
60~300r/m (Flexing angle 0°~15°)
60~200r/m(Flexing angle 0°~50°)
60~140r/m(Flexing angle 0°~60°)
60~100r/m(Flexing angle 0°~90°)
Specimen length/width Length: 150mm~400mm
Width: 150mm (max.)
Counter LCD display, 0~999,999
Motor DC 1/2 HP
