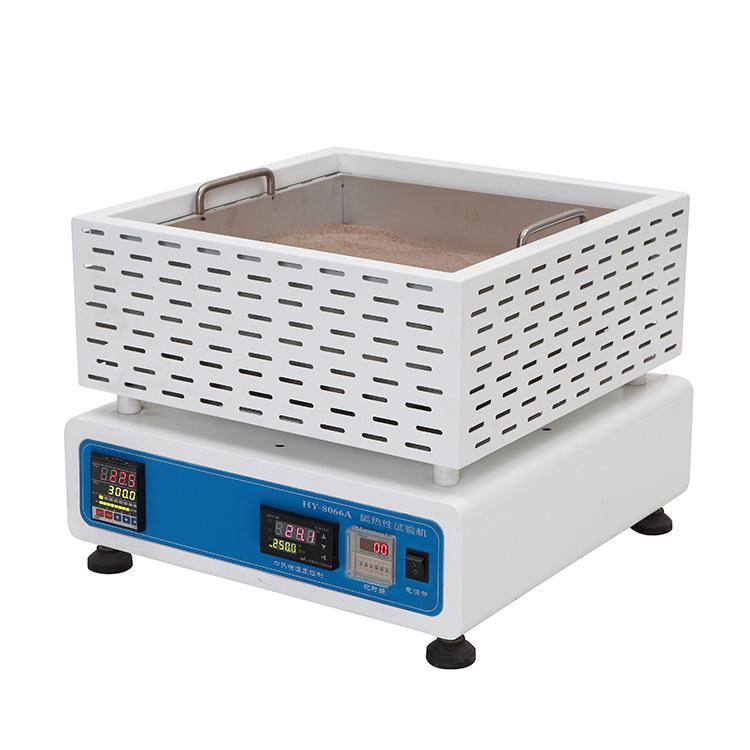

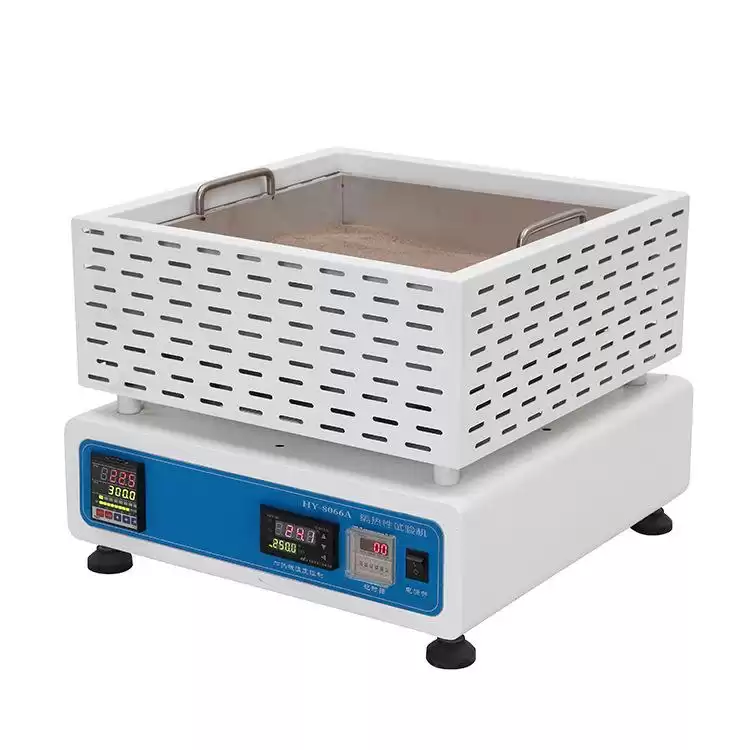

Footwear Heat Insulation Tester
Footwear Heat Insulation Tester is used to determine the insulation of the complete shoe against the heat.
Test Standards
ISO 20344 5.12, GB/T 20991 5.12, AS/NZS 2210.2 5.12
Parameters
Model AT-F3033
Sand bath dimension (40±2) ×(40±2)cm ,and the height at least 5cm
Sand granular size 0.3~1.0mm
Volume of sand 5000±250cm3
Test temperature 150±5）℃ or（250±5）℃
Power of heating system (2500±250)W
Thermal transfer medium Dia.5mm steel balls and a total mass of (4 000±40) g
Temperature probe Soldered to a copper disc 2mm thick and 15mm in dia., accuracy ±0.5°C
Temperature recording Single channel temperature recorder
Power supply 1 phase AC 220V or specified
