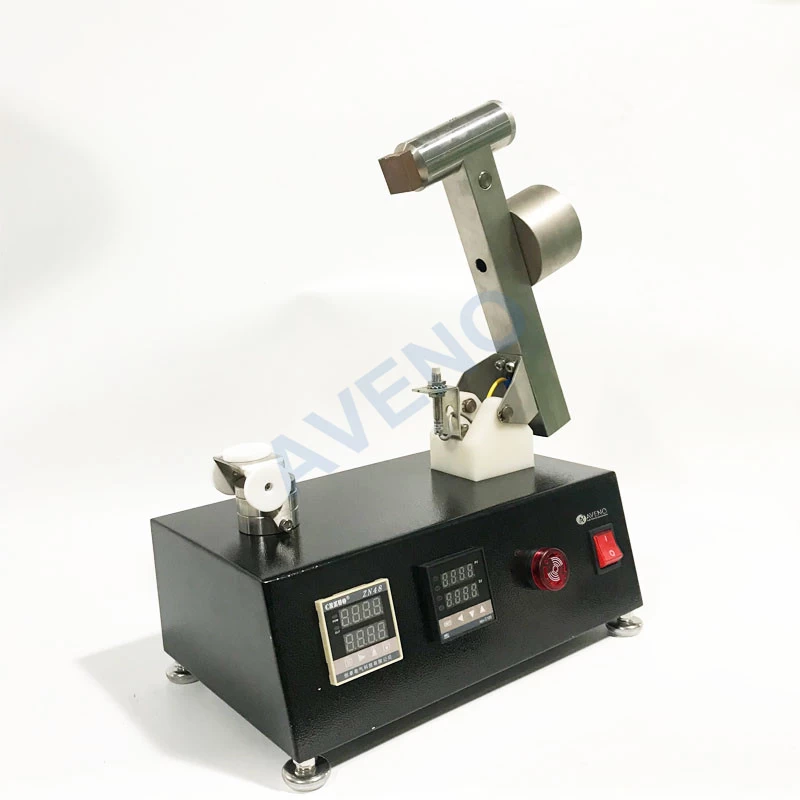

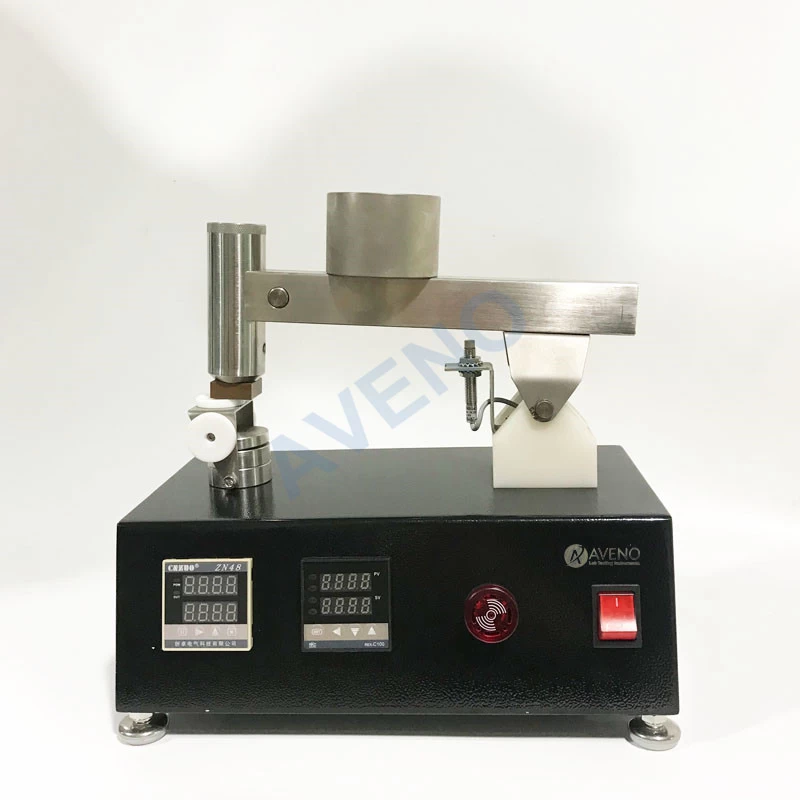

AF25 Footwear Heat Resistance
Contact Tester
Application Of Footwear
Heat Resistance Contact Tester
Footwear Heat Resistance Contact Tester is used to test the high temperature resistance ability of footwear.
Contact the heat source and the and sample under a certain load about 60s, then Observe the damage of sample surface such as the softening, melting, cracking degree, according to standards to determine if the sample is qualified.
Standards Of Footwear Heat Resistance
Contact Tester
SATRA TM49, EN 344, LD32, GB/T 20991, EN ISO 20344
Key Specification Of Footwear Heat Resistance Contact Tester
|
Model
|
AF25
Footwear Heat Resistance Contact Tester
|
|
Sample
size
|
70*30mm
|
|
Test
temperature
|
RT~400°
|
|
Self-adjust
table diameter
|
40mm
|
|
Pressure
|
20±2kpa
|
|
Power
supply
|
AC220V,
50/60HZ.
|
|
Dimension
|
40*30*43cm
|
|
Weight
|
25kg
|
