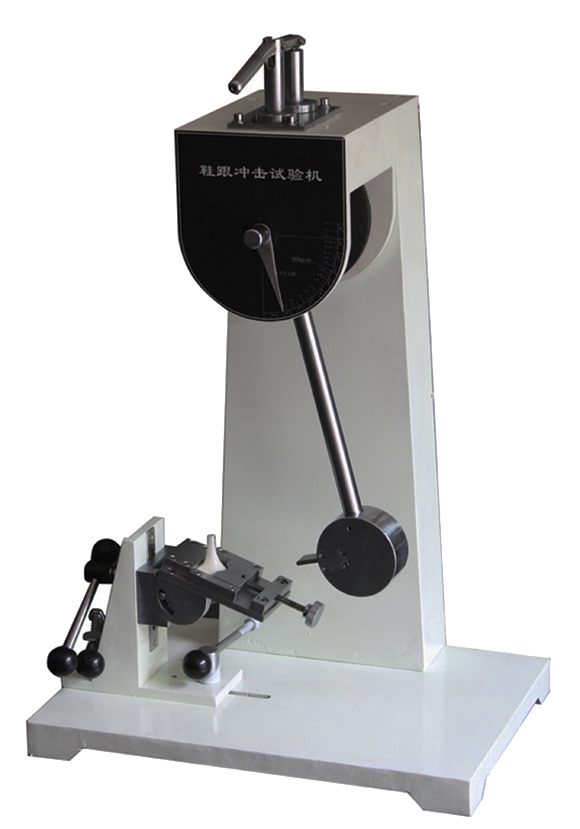

Footwear Heel Impact Tester

Footwear Heel Impact Tester is used to determine the impact strength of the heels of ladies’ shoes.

Test Standards

BS-5131 section 4.8, SATRA TM20, ISO 19953

Parameters

Model AT-F3011
Striker head L32mm X W25mm X T6mm   3mm(R)
Capacity For BS-5131-4.8 and ISO 19953: 0~18.3J(13.5ft-lb ), Mini. Reading 0.68J(0.5ft-lb )
For SATRA TM20: 0~19J, Mini reading 0.5J
Impact shaft Dia. 25mm
Striking edge radius R 3mm
Horizontally holding monment of pendulum 17.3N.m(12.7ft-lb)
Pendulum bob Dia. 108mm, 49.2mm
Distance between the center of bob and the center of hub 432mm
Adjustable range of base clamp 0~25mm(H), Angle: 0~45°
Dimension 63X40X105cm



If you are looking for more lab testing equipment, please feel free to contact .
