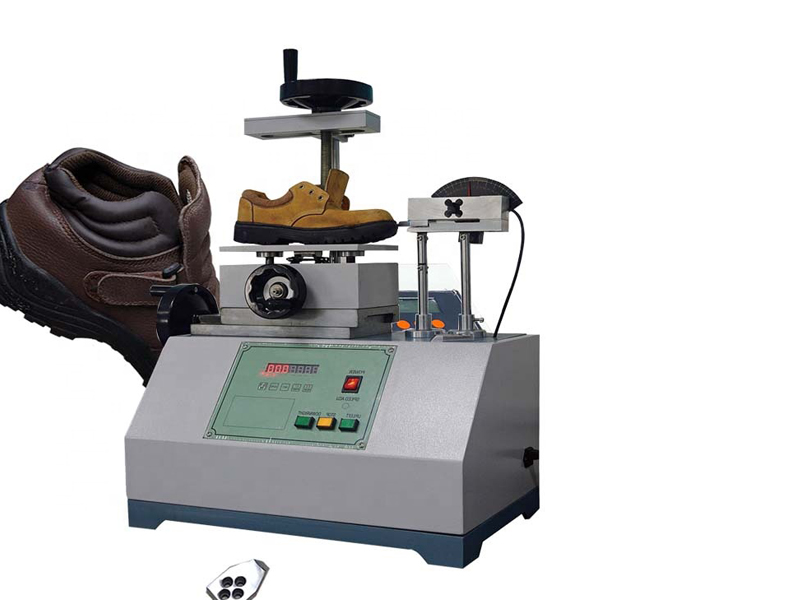

Footwear Peeling Strength Tester

Footwear Peeling Strength Tester is used to measure the force value to peel the sole and vamp under specified conditions.

Test Standards

GB/T3903.3 SATRA TM404

Parameters

Model AT-F3026
Force measuring device (gauge) For testing of toe adhesion: 0N ~ 450N
For testing of heel adhesion: 0N ~ 900N
Accuracy: 0.01N
Peeling cutter’s width 20±0.2mm, 10±0.2mm
Peeling cutter’s moving down speed 22±2mm/min
Space between fixed/pulling rod 50~70mm adjustable
Dial gauge 0.001~10mm
Elevating range 40mm
Display method LCD
Power 1Phase AC 220V±10% 50Hz
Dimension 60X40X85cm
Weight 45kg
Standard accessories 20±0.2mm peeling cutter  1pc
10±0.2mm peeling cutter  1pc
Shoe last  1pair
Power line  1pc

If you are looking for more lab testing equipment, please feel free to contact .
