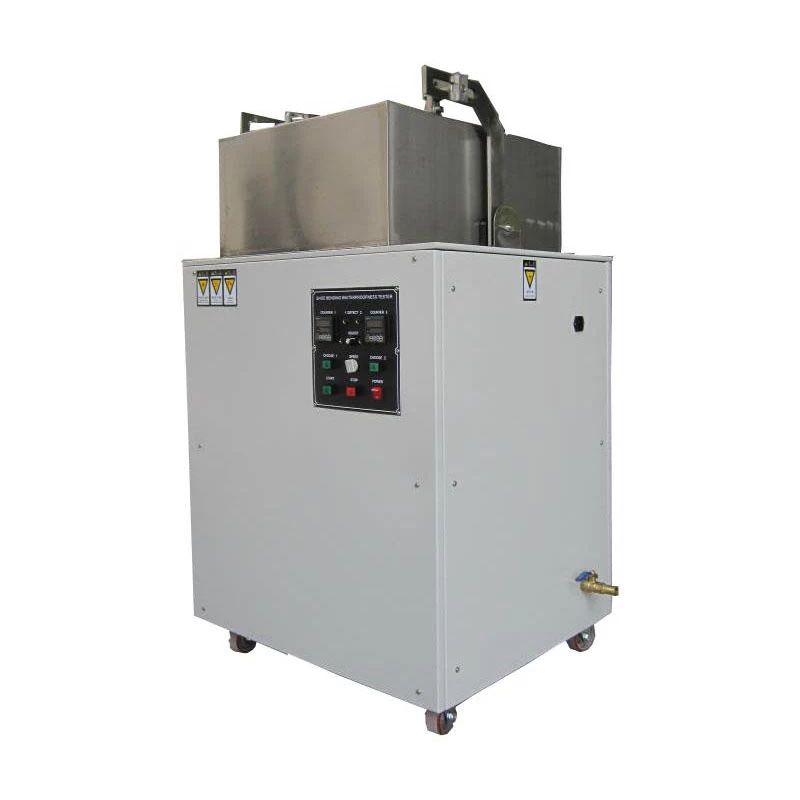

AF12 Footwear Water Penetration & Flexing Tester
Application Of Footwear Water Penetration & Flexing Tester
Footwear Water Penetration
& Flexing Tester is used to determine the resistance to water penetration
of the whole shoe during flexing.
Install
sample shoes on the testing machine and put a certain depth of water in the
tank to touch the shoes, then the posterior part shoe bending at certain angle
and frequency, simulate people walk in the water with the shoe, determine the
water permeability of the shoe.
Standards Of Footwear Water Penetration & Flexing Tester
SATRA
TM77, ISO20344
Key Specification Of Footwear Water Penetration & Flexing Tester
|
Model
|
AF12 Footwear Water
Penetration & Flexing Tester
|
|
Test position
|
2
|
|
Test range
|
Child and Adult shoes
|
|
Bending angle
|
0°～50°,
adjustable
|
|
Bending speed
|
0～60/80r.p.m,
adjustable
|
|
Counter
|
LCD, 0-9999
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
80×60×150cm
|
|
Weight
|
200kg
|
