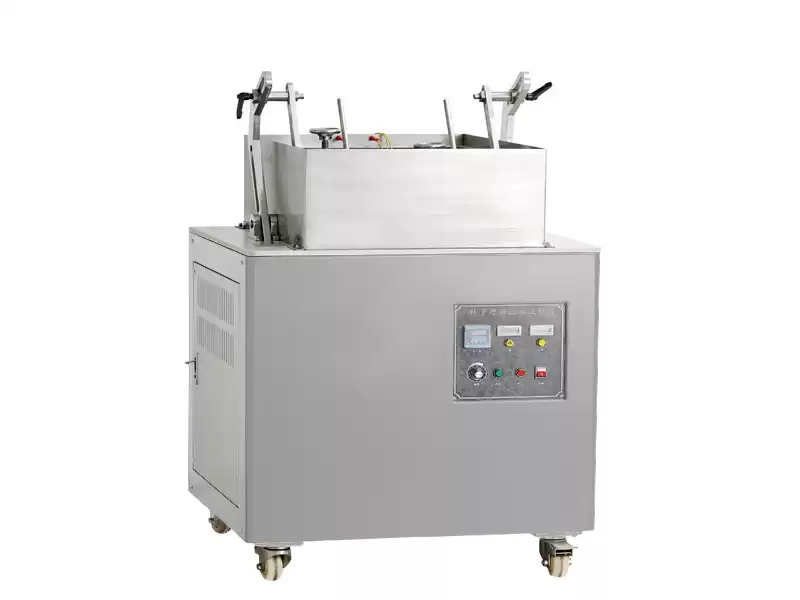

Footwear Water Resistance Flexing Tester

Footwear Water Resistance Flexing Tester

Footwear Water Resistance Flexing Tester is intended to determine the resistance to water penetration of completed shoe during flexing.

Test Standard

SATRA TM77

Parameter

Model AT-F3007
Test range Children shoe 12~adult shoe 13 (USA size)
Children shoe 4~13, Adult shoe1~12(UK size)
Test piece 2 pcs (monitoring water seepage independently)
Flexing speed 140cycles per minute or 0~150cpm adjustable
Flexing angle 10°15°20°25°30°35°40°45°50°
Counter/Timer LCD display, 0~999,999
Level of Water  Its base on the footwear type
Motor 1/2 HP with reducer
Dimension 65X83X129cm
Weight 205kg
Power 1 Phase, AC 220V +/- 10% 3A
