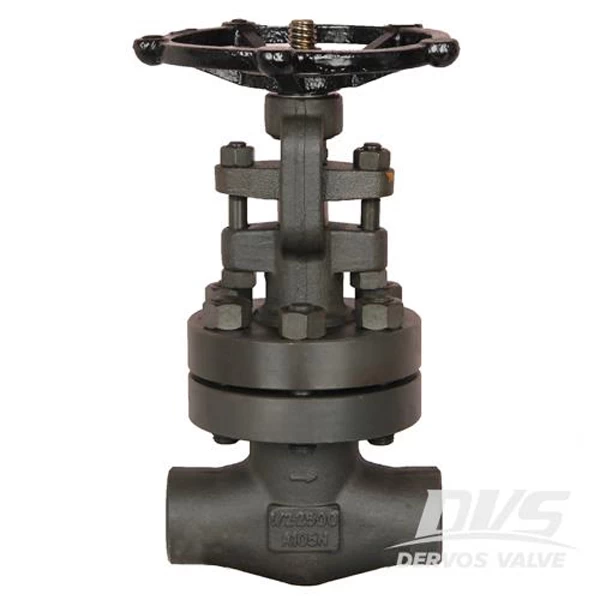

The 1 inch 2500 LB high pressure forged steel gate valve features in solid wedge, reduced port, bolted bonnet, handwheel, rising stem and female thread ( FNPT). The forged valves comply with API 602 and API 598.
Quick Detail
|
Type
|
Gate
Valve
|
|
Size
|
1''
|
|
Pressure
|
Class
2500
|
|
Construction
|
BB,
Rising Stem, OS&Y, Solid Wedge
|
|
Connection
|
Thread
Connection
|
|
Operation
|
Handwheel
Operated
|
|
Body Material
|
ASTM
A105
|
|
TrimMaterial
|
13CR+STL
|
|
Design
|
API 602
|
|
End to End
|
ASTM B16.10
|
|
Pressure & Temp
|
ASTM B16.34
|
|
Connection End
|
ASTM B1.20.1
|
|
Temperature Range
|
-29℃~+425℃
|
|
Medium
|
WOG
|
|
Origin
|
China
|
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Low Temperature Steel
Normal diameter: 1/2’’~4’’
End connection: BW, SW, Flange, Threaded
Pressure range: 150lbs~2500lbs (PN16~PN420)
Operation: Handwheel, Bare Stem, With Actuators
Working temperature: -46℃~ +425℃

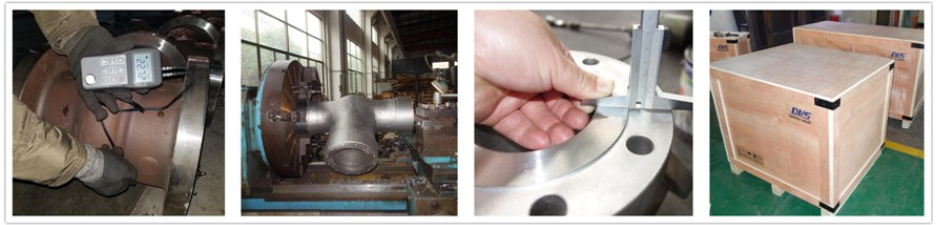

How do we control quality during the manufacturing process?

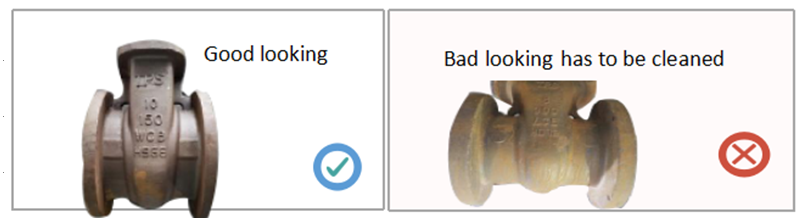

Casting Inspection:
Check the appearance, wall thickness, quantity, size and original material report etc. Must repair it meet MSS SP 55 before machining if unqualified.
Machining supervision:
Supervise the production process and find potential problems to avoid wrong production or wrong production design by randomly visiting the factory and checking the manufacturing process.
