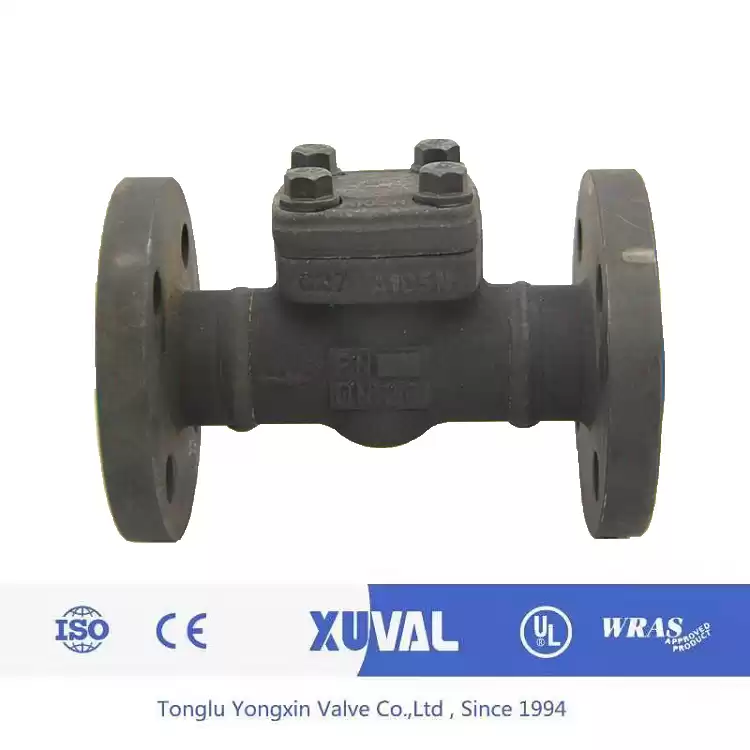

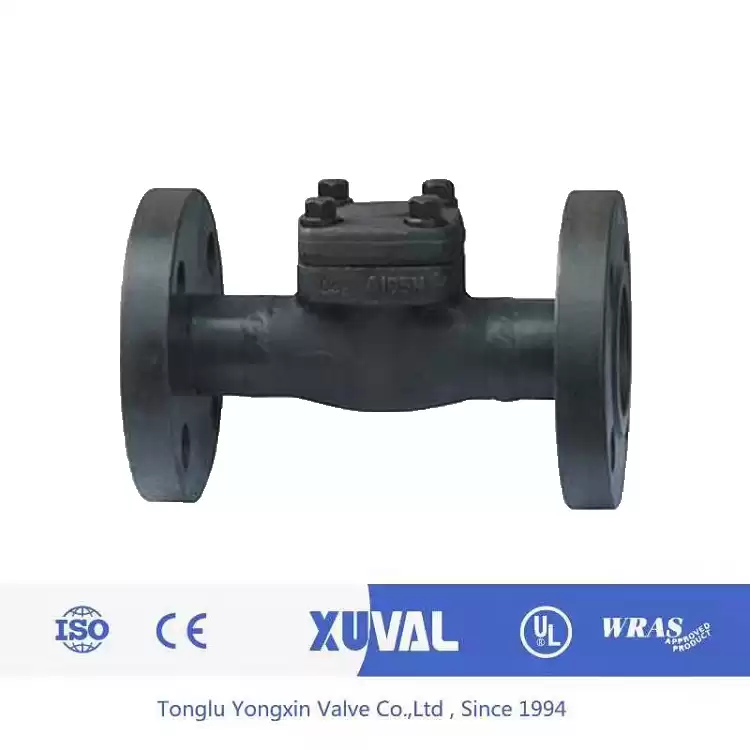

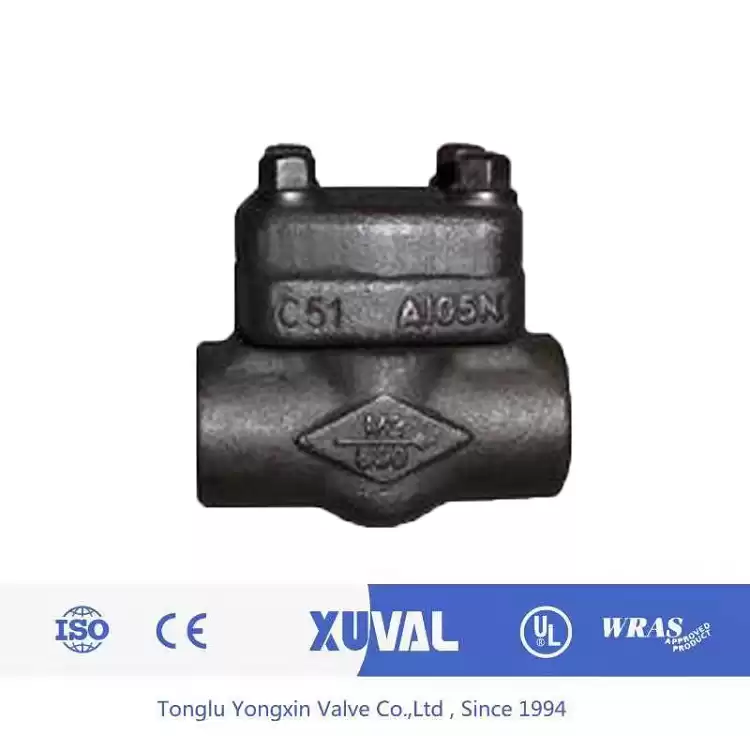

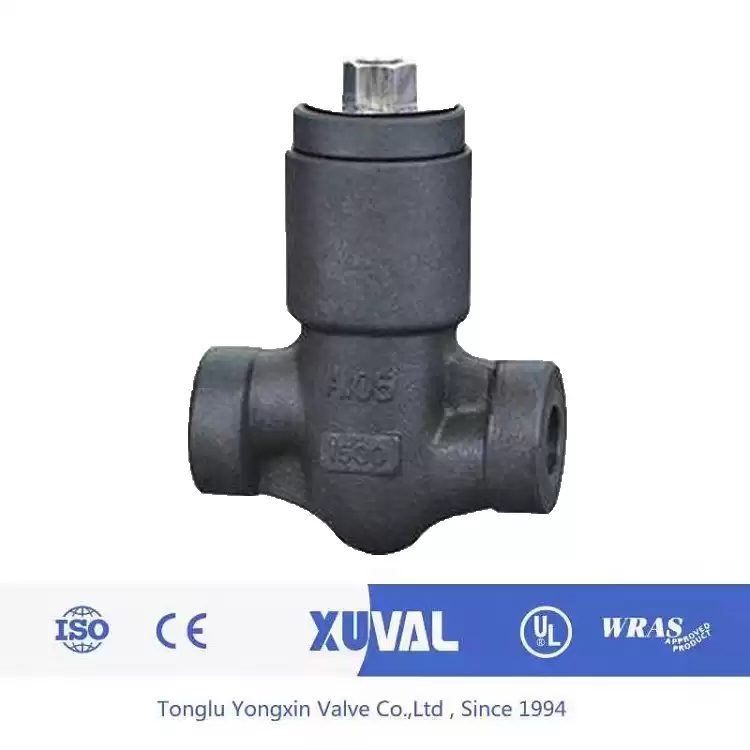

Forged steel Flanged check valve

Forged steel check valve is to rely on the flow of the medium itself and automatically open, close disc, used to prevent the medium backflow valve, also known as the check valve, check valve, reverse flow valve, and back pressure valve.



Forged steel check valve is to rely on the flow of the medium itself and automatically open, close disc, used to prevent the medium backflow valve, also known as the check valve, check valve, reverse flow valve, and back pressure valve.Check valve belongs to a kind of automatic valve, its main function is to prevent the backflow of media, prevent the reversal of pump and drive motor, as well as the release of container media.Check valves can also be used in piping where pressure may rise above system pressure to supply an auxiliary system.Check valves can be divided into swing check valves (rotating according to the center of gravity) and lifting check valves (moving along the axis).

The purpose of this type of valve is to allow the medium to flow in only one direction and to stop the flow in that direction.Normally the valve works automatically and the disc opens under pressure from a flow of fluid in one direction.Flow in the opposite direction, by the fluid pressure and disc self - coincidence disc on the seat, thereby cutting off the flow.

Among them internal thread check valve, butterfly check valve belongs to this type of valve, it includes swing check valve and lift check valve.Swing check valves have a medium hinged mechanism and a door-like disc that rests freely against an inclined seat surface.To ensure that the disc reaches the proper seat face each time, the disc is designed in a hinged mechanism so that the disc has enough swing space and true, full contact with the seat.Disc may be made entirely of metal, inlaid with leather, rubber, or with a synthetic cover, depending on performance requirements.

Swing check valves provide virtually unimpeded fluid pressure when fully open, so the pressure drop through the valve is relatively small.The disc of the lifting check valve is located on the sealing surface of the valve body.In addition to the free movement of the disc up and down, the rest of the valve is like a globe valve, where fluid pressure lifts the disc from the seat sealing face and media backflow causes the disc to fall back onto the seat and cut off flow.

Depending on the conditions of use, the disc may be of all-metal construction or in the form of a rubber pad or ring mounted on the disc holder.Like globe valves, the passage of fluid through the lift check valve is narrow, so the pressure drop through the lift check valve is larger than the swing check valve, and the flow of the swing check valve is less limited.

No. Part name
CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 420 A276 304 A276 F304(L) A276 F316(L)
3 Disc A276 410&430 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F3 A182 F304 A182 F304(L) A182 F316(L)
5 Gasket 316+Flexible graphite
316+PTFE
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 Bolt A193 B7 A193 B16 A193 B8 A193 B8M
8 Pin A276 420
A276 304
9 Packing gland A276 410
A182 F304(L) A182 F316(L)
10 Eyelet bolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland A105 A182 F11 A182 F304(L) A182 F316(L)
12 Nut A194 2H A194 4 A194 8 A194 8M
13 Stem nut A276 410
14 Lock nut A194 2H A194 4 A194 8 A194 8M
15 Nameplate SS
16 Handwheel A197
17 Lubrication gasket A473 431
18 Packing Flexible Graphite
PTFE
Applicable medium Water,Steam,Oil,etc
Water,Steam,Oil,etc
Nitric acid,acetic acid,etc
Applicable temperature
-29~425
-29~550
-29~180
Note:other materials required by the customer can also be used. The matching of sealing fabric is determined by the internal code specified by the customer. CS=carbon steel, AS=alloy steel, SS=Stainless steel

Size (mm) and Weight (kg)
NPS
1/2" 3/4" 1" 1 1/4" 1 1/2" 2"

L(RF)

L1(BW)

150LB
108 117 127 140 165 203
300LB
140 152 165 178 190 216
600LB
165 190 216 229 241 292
H
150LB~300LB
158 169 197 236 246 283
600LB
169 197 236 246 283 320
W
100 100 125 160 160 180
Weight
150LB
RF 4.5 5.2 8.2 11.5 12.5 20.3
BW 2.8 3.3 5.4 7.1 8.2 12.5
300LB
RF 4.8 6.2 9.3 14 15.5 23.4
BW 3.5 4.4 6.8 8.1 9.2 15.4
600LB
RF 5.9 7.4 10.4 16.2 17.5 28.3
BW 4.5 5.1 8.2 10.5 12.4 20.1
