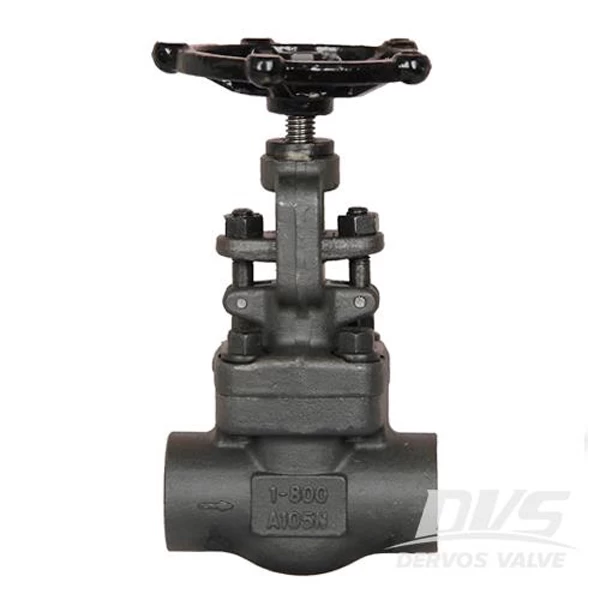

The 1 inch 800LB female threaded globe valve has plug disc, reduced port and manual handwheel operation. The valve is made of A105N body and trim 5 as per API 602.
Quick Detail
|
Type
|
Globe
Valve
|
|
Size
|
1''
|
|
Pressure
|
Class
800
|
|
Construction
|
Bolted
Bonnet, Reduced Port, Outside Scew & Yoke
|
|
ConnectionType
|
NPT
Female Thread
|
|
OperationType
|
Handwheel
Operated
|
|
Design Code
|
API
602
|
|
End to End
Dimension
|
ASME
B16.10
|
|
Connection
|
ASME
B1.20.1
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
Forged
Steel A105
|
|
TrimMaterial
|
13CR+Stellite
|
|
Temperature Range
|
-29β~+427β
|
|
Application
|
Water,
Oil, Gas
|
|
Origin
|
China
|
Product Range
1.Size up to 4 inch
2.Design pressure between 150LB to 2500LB
3.Connection: flange, socket weld, thread
4.Operation: handwheel, gearbox, bare stem, with actuators
5.Body material: carbon steel, stainless steel, alloy steel
6.Trim material: trim 1, 5, 8, 10, 12, 16 and ect.
7.Bolted bonnet, pressure sealed bonnet, welded bonnet, screwed bonnet
8.Reduced bore, full bore

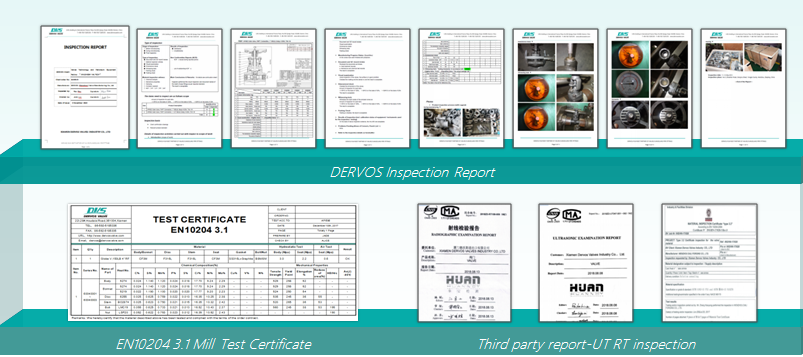

Inspection Reports
Along with each order, Dervos will provide inspection reports and material test reports free of charge after shipment. All these certificates will let you have a clear picture of inspection process and results. Plus, these reports can be used for traceability.
