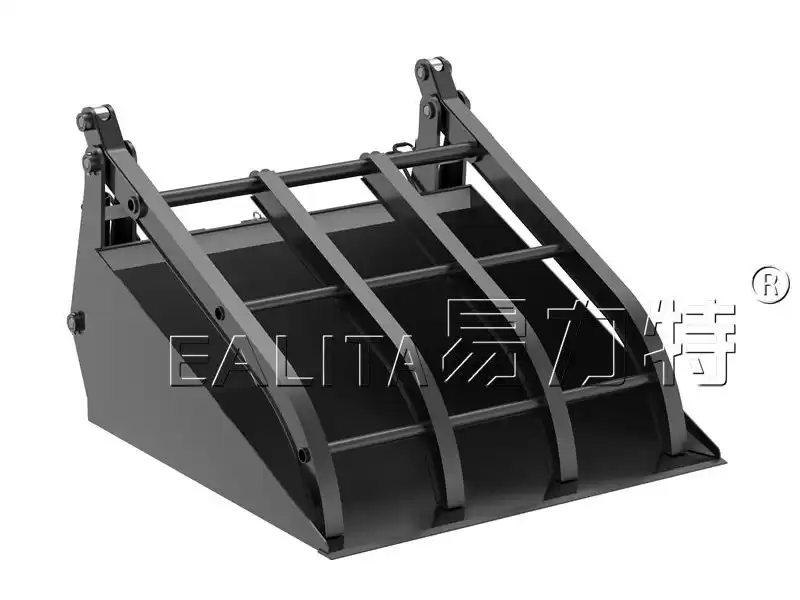

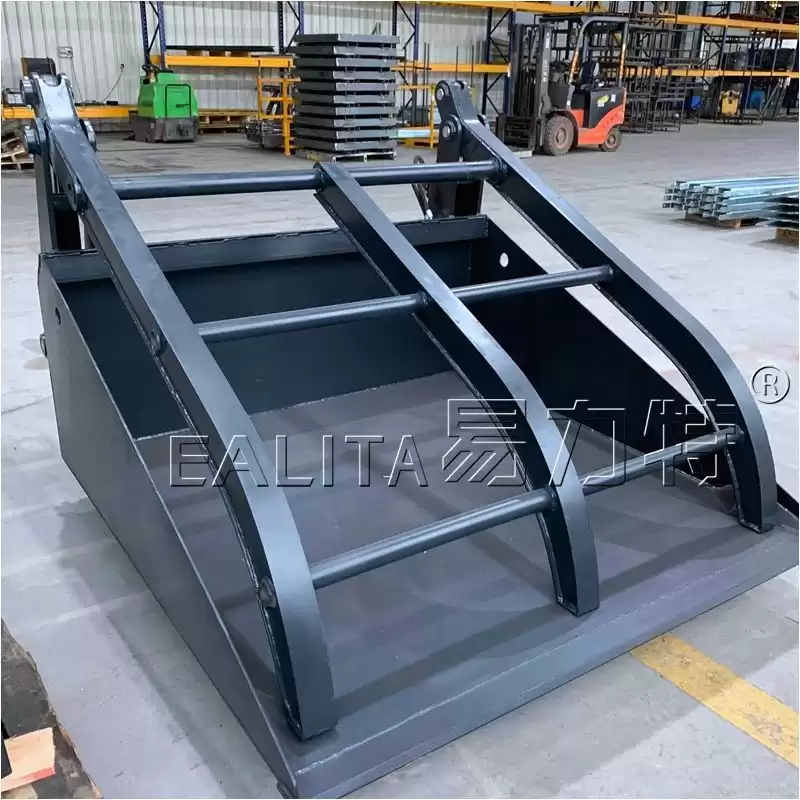

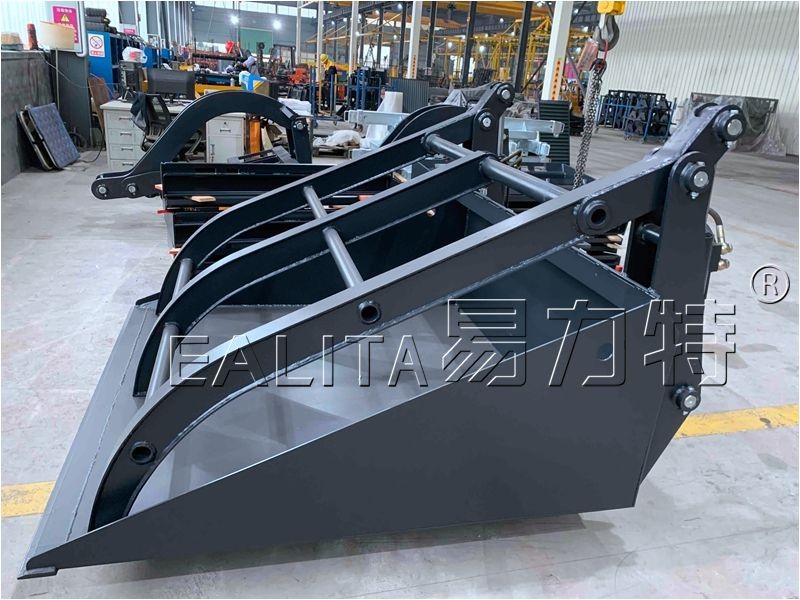

Made of high strength steel plate, fork slip on design with fixed bolt, easy installation. Slip the original fork into the forklift can be used quickly.
- It is made of four high-strength steel plates, which can press the cargo, ensuring that the cargo is not easy to fall in the process of transshipment.
- Please obtain the actual load capacity of the forklift / attachment from the forklift manufacturer.
- Requires an additional oil circuit for the forklift.
- Other sizes avaiable on request.
Specification
· Installation: Slip On
· No.of Claws: 4
· Claws Vertical Height: 2356mm
· Capacity: 3000kg
|
Type
|
Length
|
Width
|
Height
|
Weight
|
Suit Forklift
|
|
F-ZD30-1400
|
1500mm
|
1400mm
|
650mm
|
560kg
|
3-3.5t
|
|
F-ZD30-1600
|
1500mm
|
1600mm
|
650mm
|
637kg
|
3-3.5t
|
|
F-ZD30-1800
|
1500mm
|
1800mm
|
650mm
|
666kg
|
3-3.5t
|
