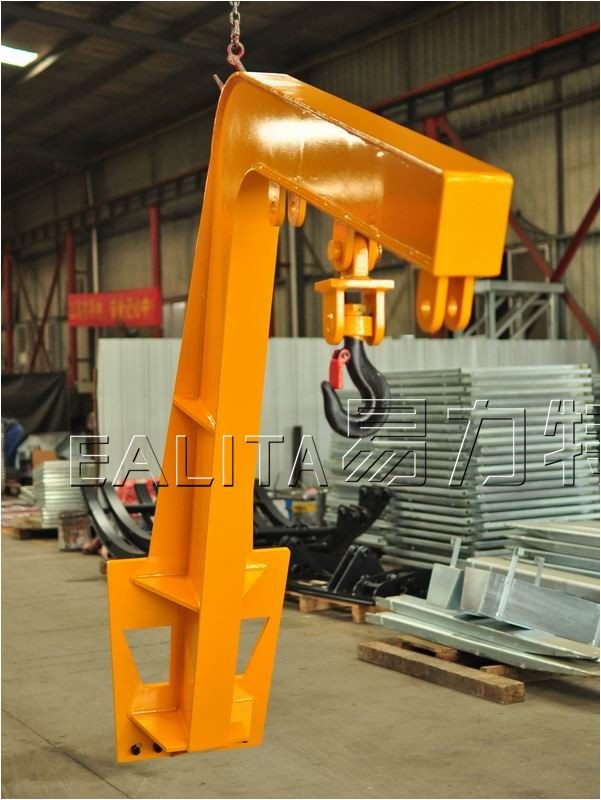

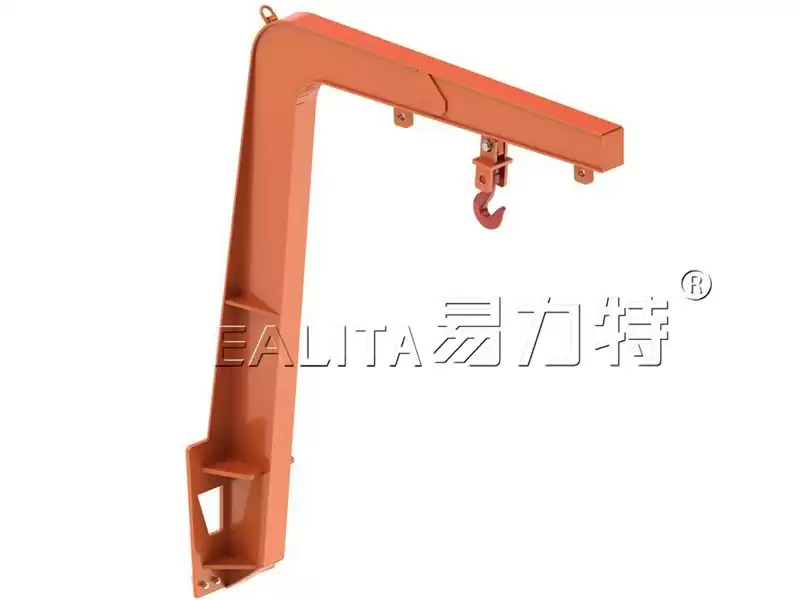

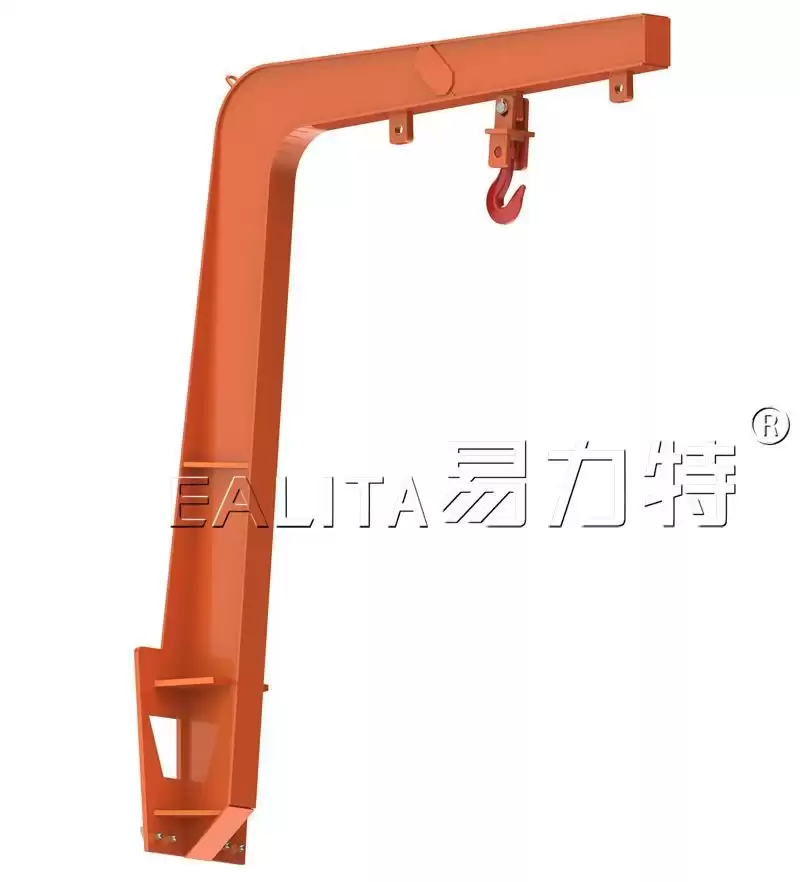

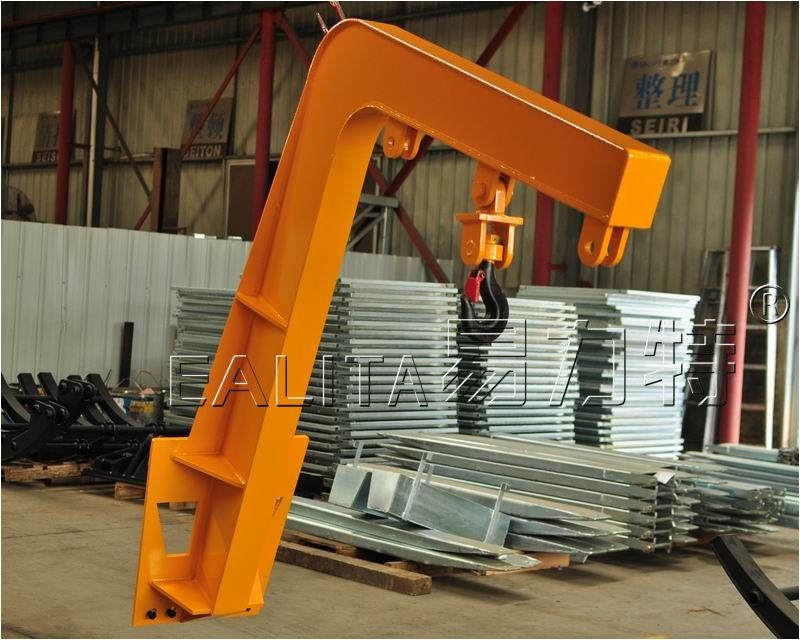

Type F-GNJ Carriage Mounted Jib is a heavy duty carriage mounted jib that offers height and manoeuvrability.

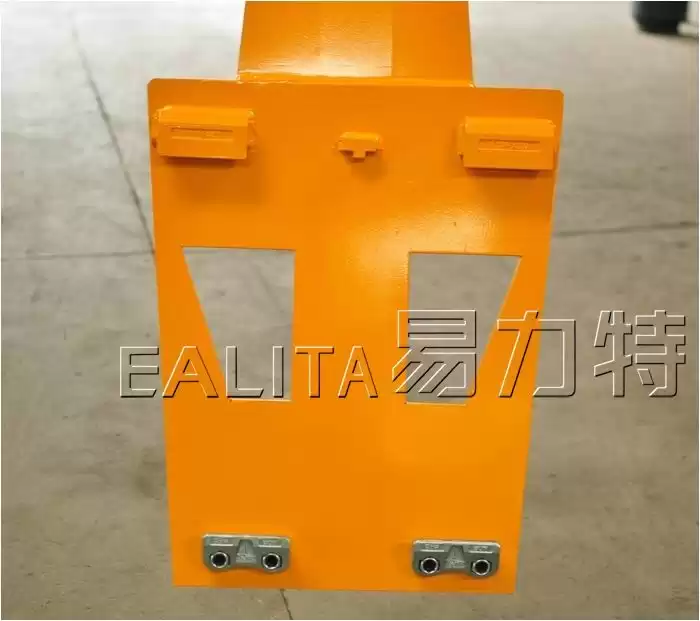

- This jib mounts to a standard forklift carriage class 3 or 4
- The three hook positions have been incorporated in its design
- Capacity from 2500kg to 7000kg
- Safe yellow paint finish.
|
Type |
Code | Mounting Class | Length(mm) | Height(mm) | Capacity(kg) | Weight(kg) |
| F-CNJ2A20H1.5xL1.5 | 03.01.04.0045 | II | 1500 | 1500 | 1500-2000 | 220 |
|
F-CNJ2A20H2.0xL1.5 |
03.01.04.0046 | II | 1500 | 2000 | 1500-2000 | 250 |
|
F-CNJ3A30H1.5xL1.5 |
03.01.04.0017 | III | 1500 | 1500 | 2500-3000 | 220 |
|
F-CNJ3A30H2.0xL1.5 |
03.01.04.0021 |
III | 1500 | 2000 | 2500-3000 | 250 |
|
F-GNJ3A40H1.5xL1.5 |
03.01.04.0038 | III | 1500 | 1500 | 3500-4000 | 260 |
|
F-GNJ3A40H2.0xL1.5 |
55.03.01.04.028 | III | 1500 | 2000 | 3500-4000 | 290 |
|
F-GNJ4A50H1.5xL1.5 |
03.01.04.0047 | IV | 1500 | 1500 | 4500-5000 | 420 |
|
F-GNJ4A50H2.0xL2.0 |
03.01.04.0048 | IV | 2000 | 2000 | 4500-5000 |
450 |
|
F-GNJ4A70H1.5xL1.5 |
03.01.04.0049 | IV | 1500 | 1500 | 5500-6000 |
470 |
|
F-GNJ4A70H2.0xL2.0 |
03.04.04.0040 | IV | 2000 | 2000 | 5500-6000 | 530 |
