Forklift mast guide roller bearings

Forklift Mast guide Roller Bearing is used in a very important metal parts, forklift truck work in the hair bearing play an irreplaceable role. Industrial handling vehicles are widely used in ports, railway stations, airports, freight yard, workshop, warehouses, distribution centers and distribution centers, and access to the cabin, carriages and containers for loading and unloadingpallets, handling operations



Forklift mast guide roller bearings

Forklift Mast Guide bearings belongs to forklift ball bearing,which normally seem in agricultural machinery or truck forklift machines .It also belongs to axle ball bearing type with metric and inch sizes .Mast Guide bearings are used for high radial and occaisonal thrust loads. They typically have a thick cross section on the outer race which performs as a wheel or tire. Several profiles are available to suit the application. They are mounted on the fork carriage and provide smooth action as the forks are raised or lowered.



Forklift Mast Guide bearings  Application :



Mast guide bearings are specifically designed to withstand the heavy radial loads required in Fork Lift Truck applications. Mast guide bearings have heavy section outer rings which serve as rollers, or guides for the carriage in the mast channels.

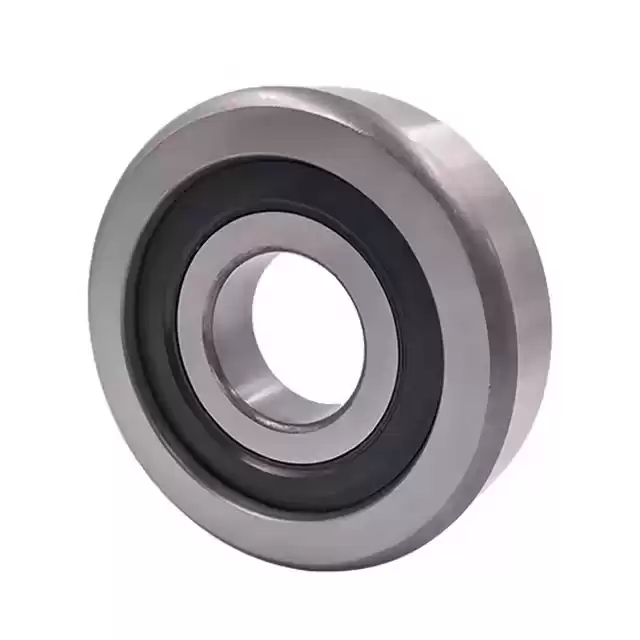

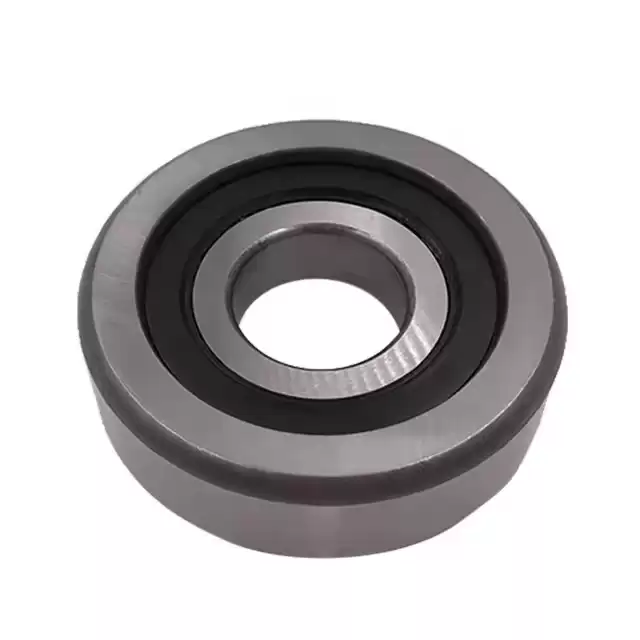

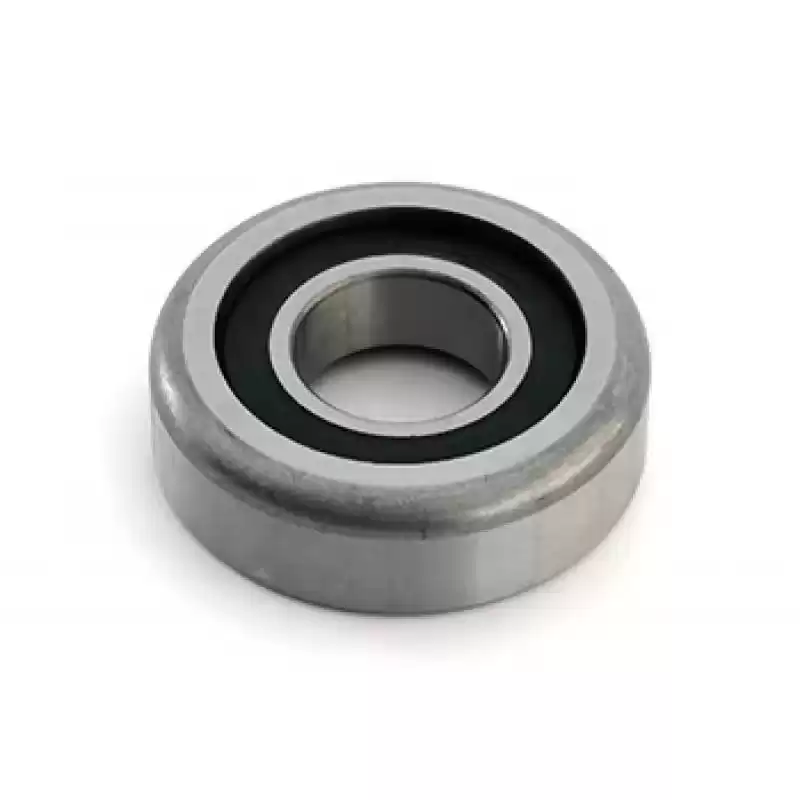

Photo:





Forklift mast guide roller bearing catalogue :

Bearings Model

ID(mm)

OD(mm)

B(mm)

180705C

25

70

23

180705D

25

78

22

180705K

25

80

22

180706K

30

91.5

24

180707K

35

102

25.5

180708K

40

109.7

32

180709K

45

119

29

10310RT

50

123

40

CG92310T

50

123

34

780310

50

130

40

10311T

55

151.5

45

80611K5T

55

149

45

10311TK

55

151.5

45

30311XT/30311MT

55

151.5

45

10220D

100

205

52

10724

120

245

66

80511Y/980811

55

121/119

34

980811NT

55

119.2

34

10811S

55

118.5

34

980811M

55

118.8

34

80511K2T

55

120

34

80511K1T

55

119.6

34

80511YET

55

119/117

34

Advantage of WISON Bearing:

  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
