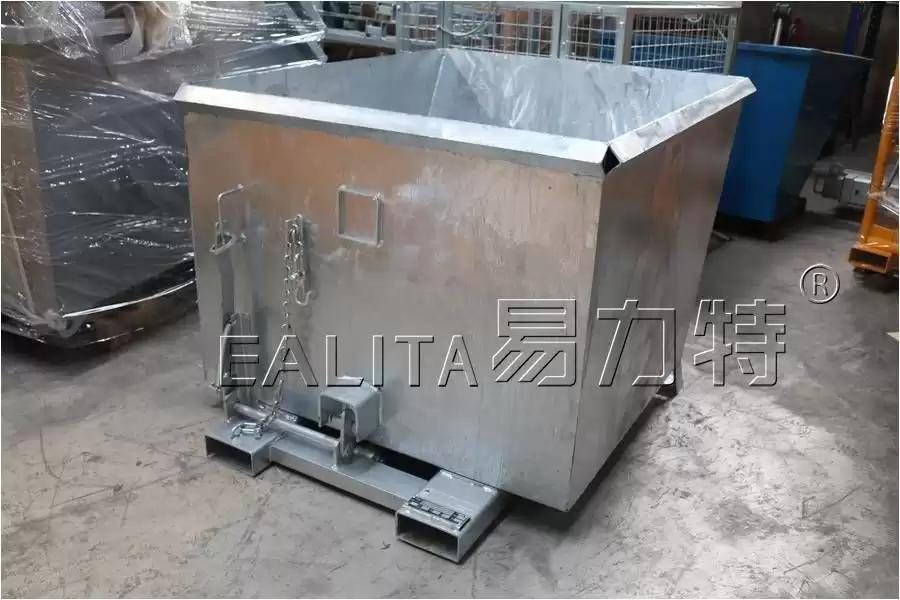

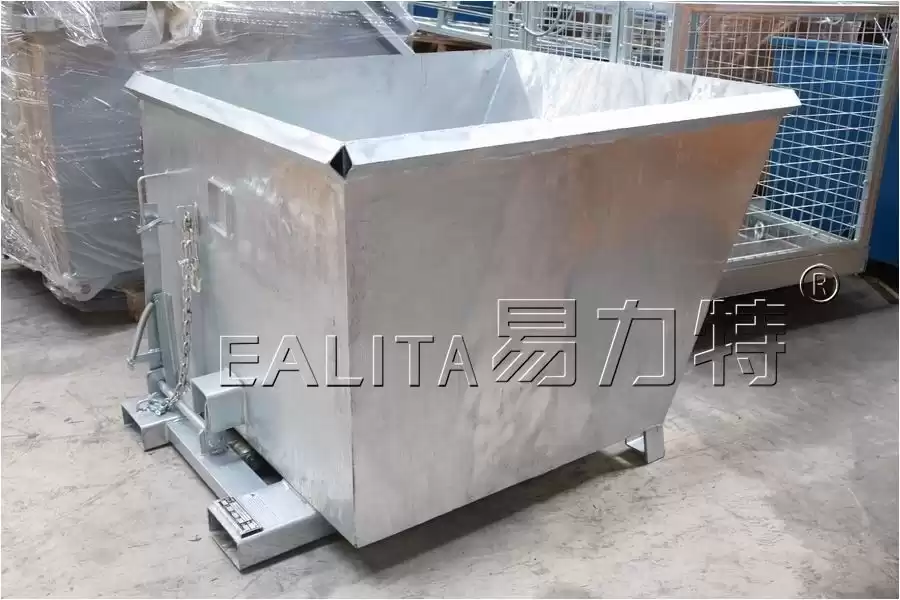

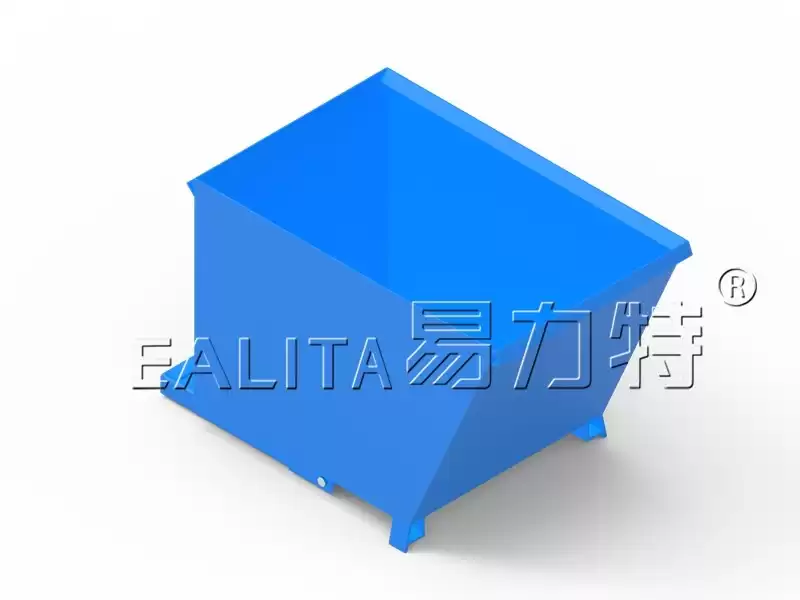

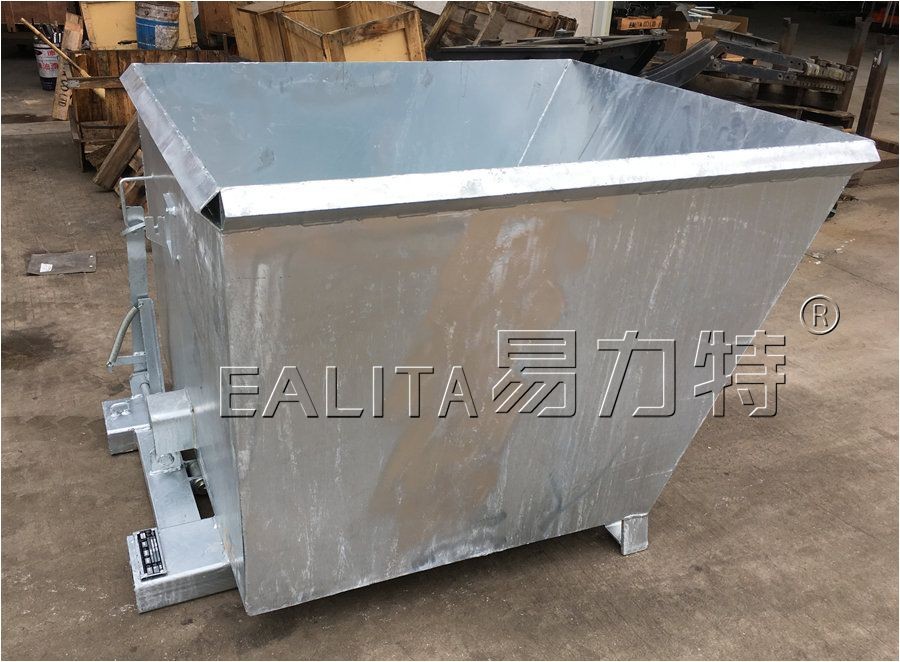

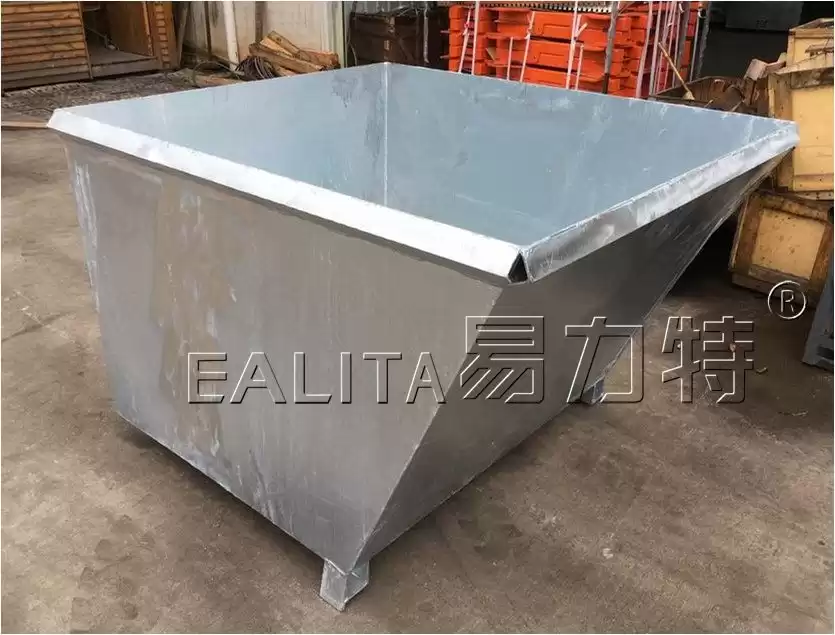

F-NTU heavy duty tip up bin is manufactured from 3mm plate and is fitted with fully reinforced edges.
- These bins are ideally suited to heavy waste including metal, timber and building site rubble.
- The release mechanism is activated by the forklift operator pulling the pull chord from the driver's seat.
- The custom built shock absorber prevents impact forces being transmitted to the forklift during emptying.
- All type F-NTU bins have a Safe Working Load of 1000kg and range in sizes from 0.7-2.0 cubic metre capacities.
- These bins are available in either enamel painted over primed steel or H.D. Galvanised finish.
Specifications
• Pocket size 165 x 65mm
• Pocket Centres – 635mm (NTU6 – 405mm)
• Safe Working Load 1000kg

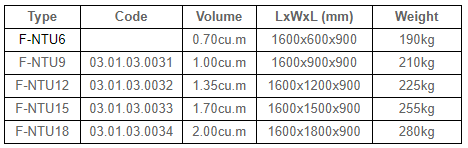

• Unit Weight – refer Table
• Volume Capacity – refer Table
• HCG 800mm
• VCG 400mm
