Applications:

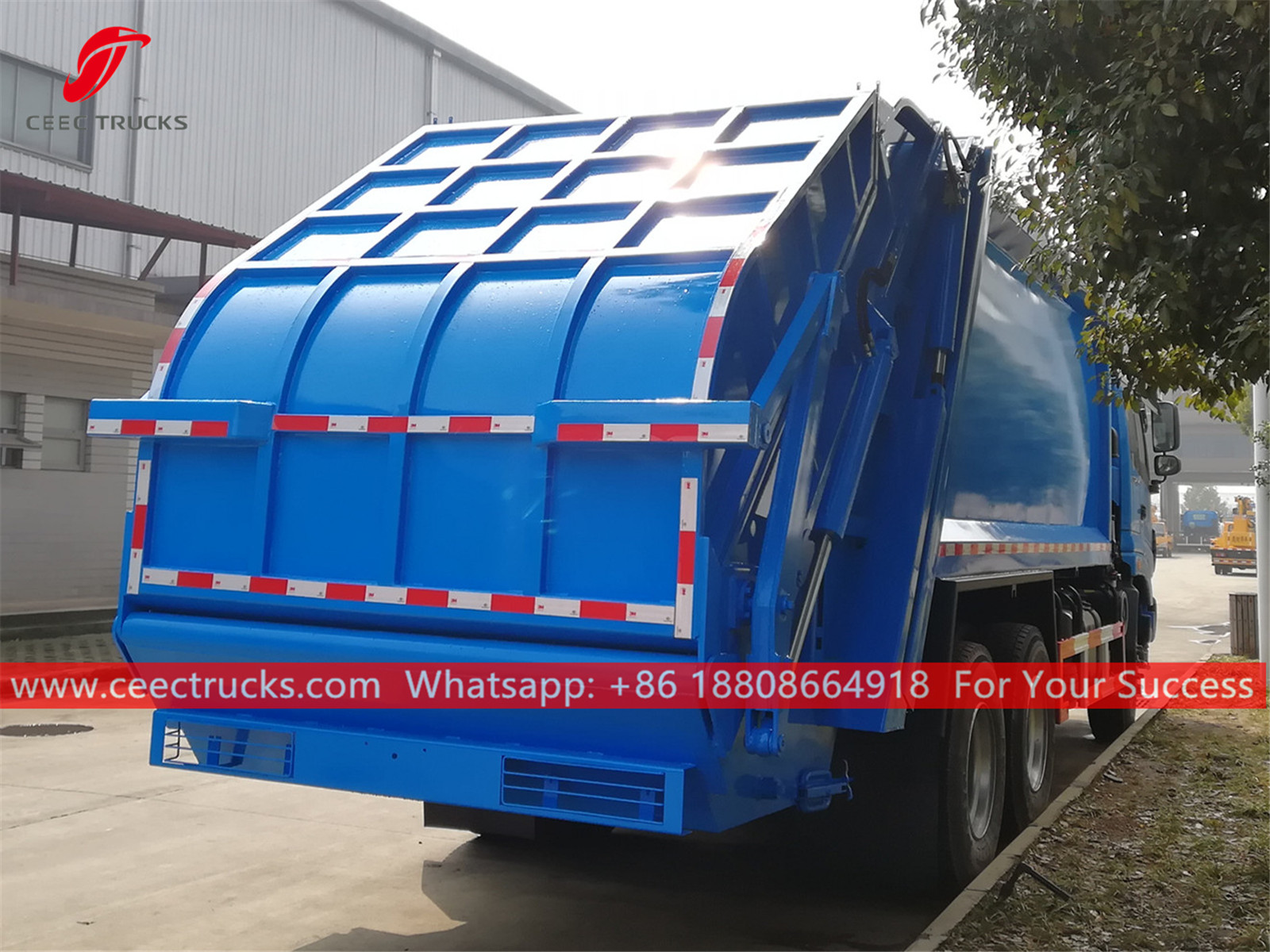

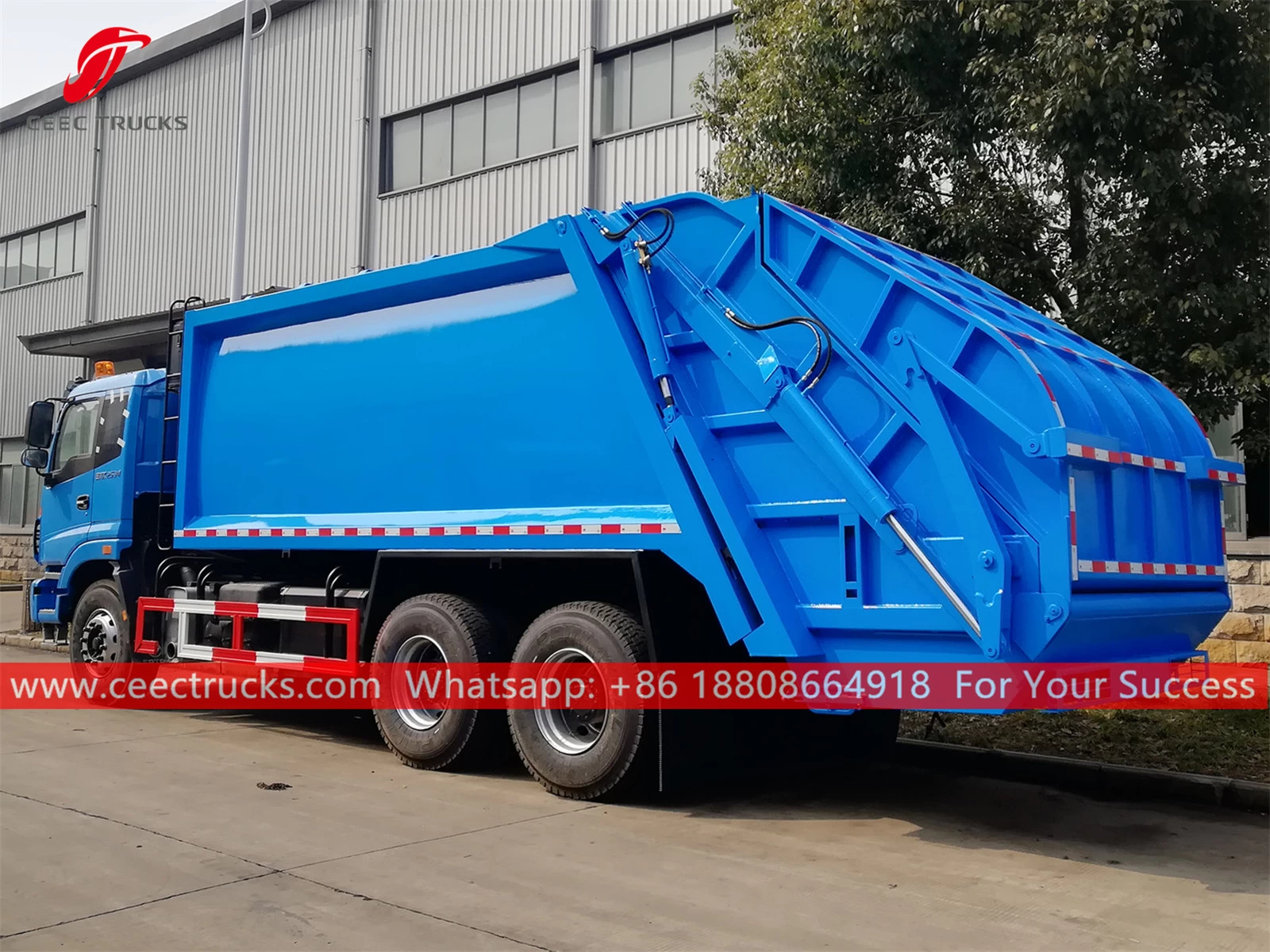

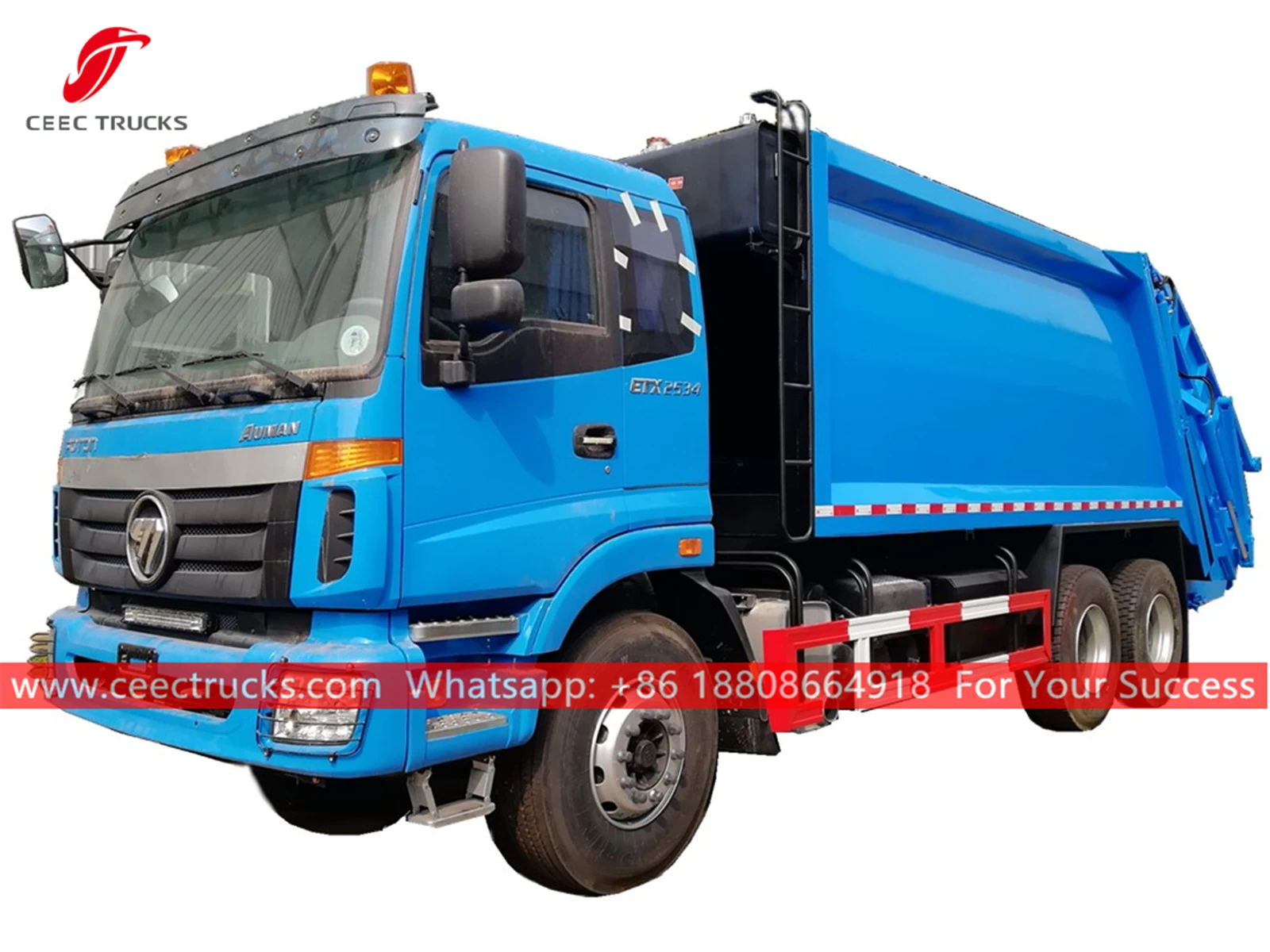

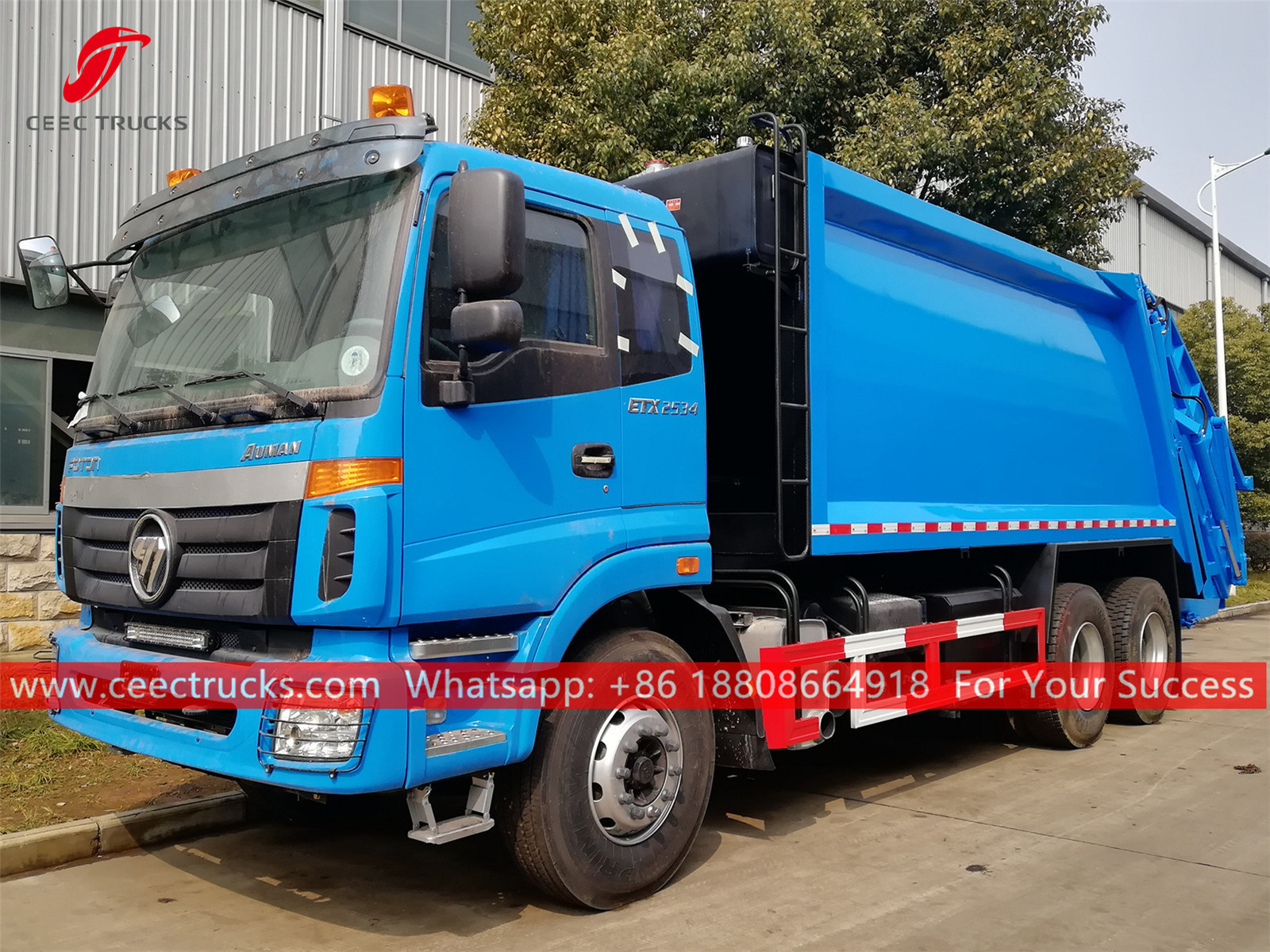

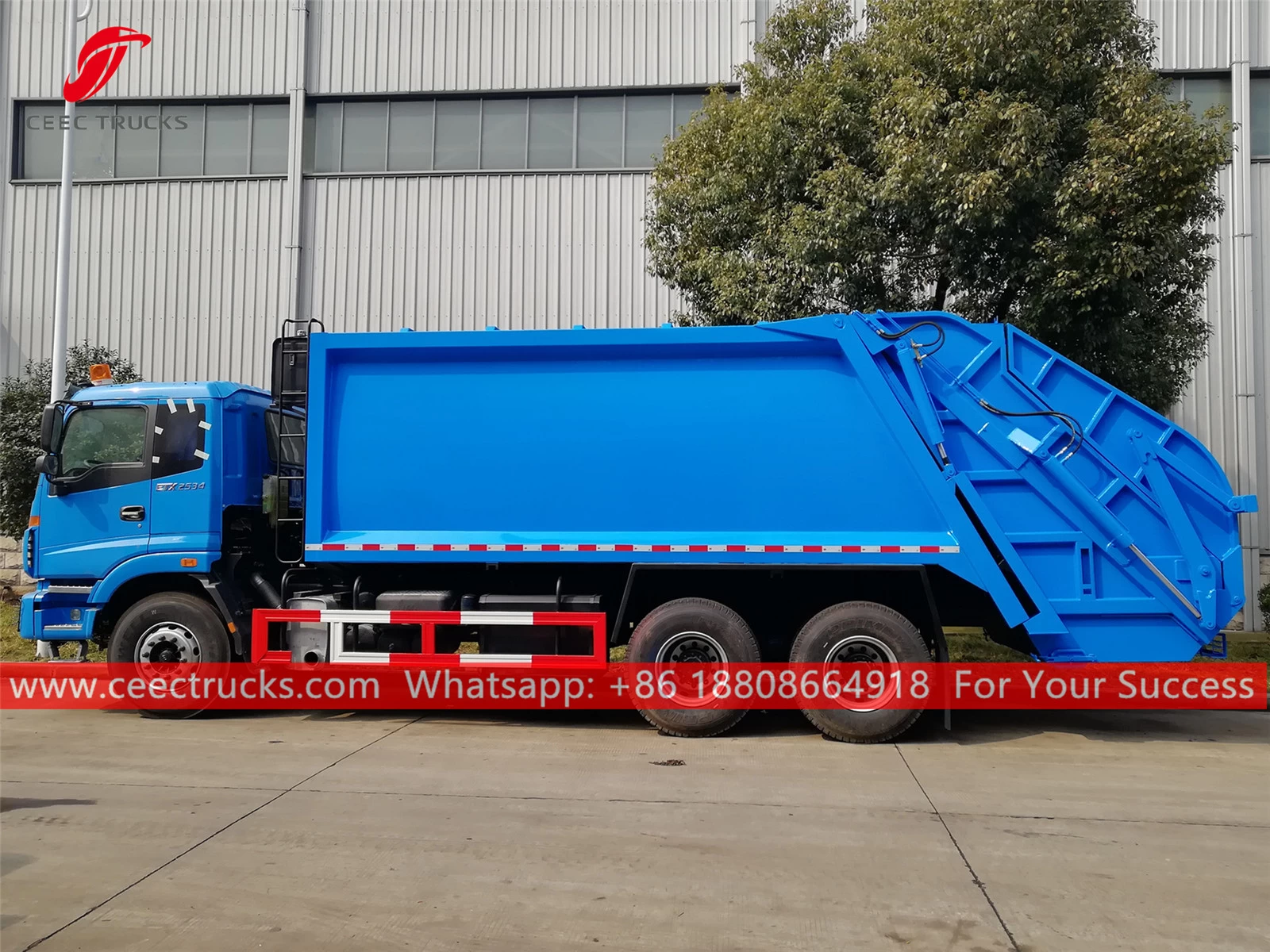

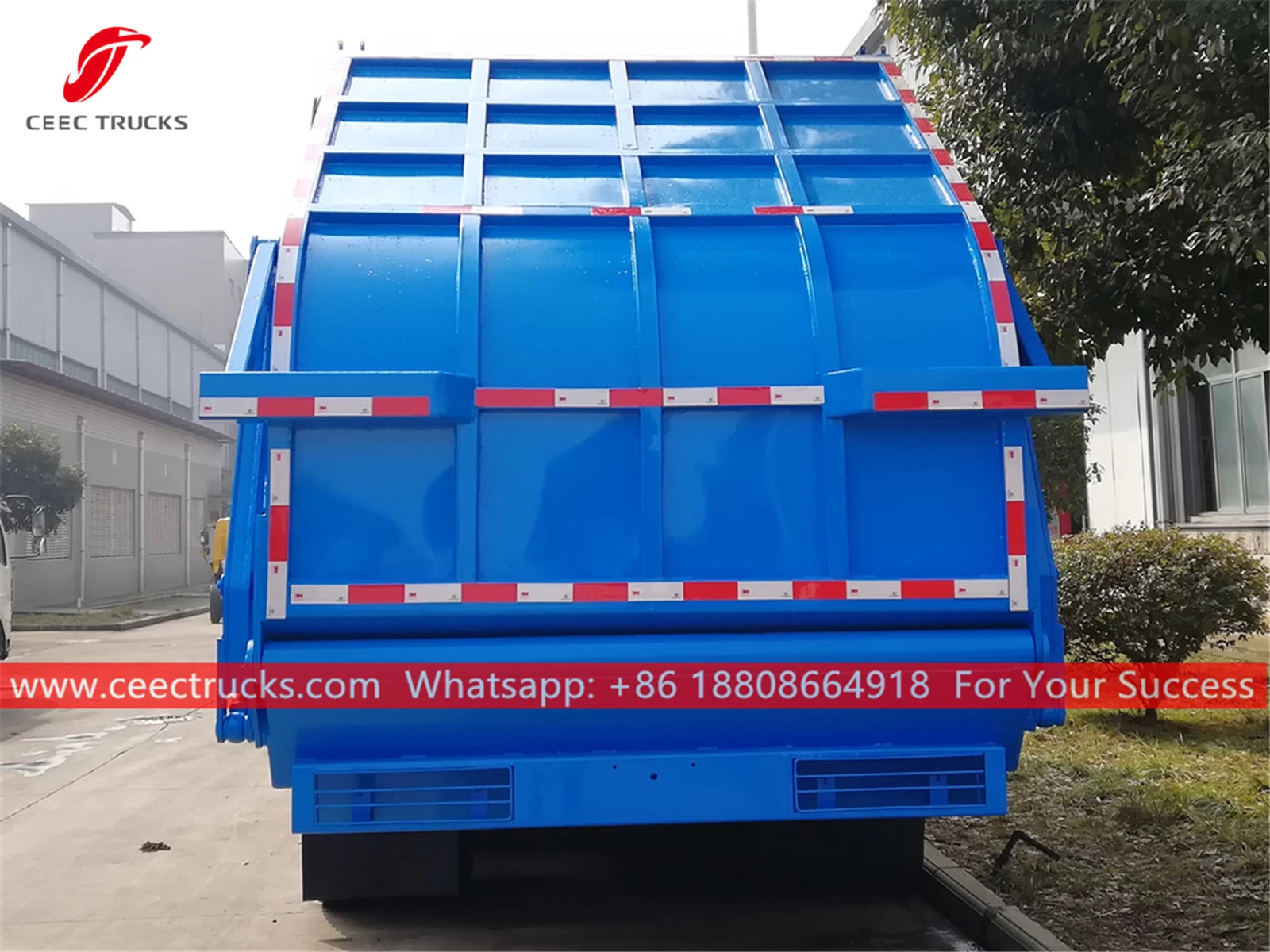

Compressed Garbage Truck FOTON (also called Hydraulic
pressing garbage truck, rear loader garbage truck, compactor garbage
truck, back loading garbage compression truck, waste collection vehicle, refuse compactor truck) is designed
for daily rubbish transport in such living areas as all kinds of
cities, large station, port and wharf, airport, and densely-populated
areas like industrial and mineral enterprises and military units.
CEEC TRUCKS compactor
garbage truck reduces back-and-forth transport times and prevents
rubbish and stinks from spreading and avoids second-time pollution
produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:

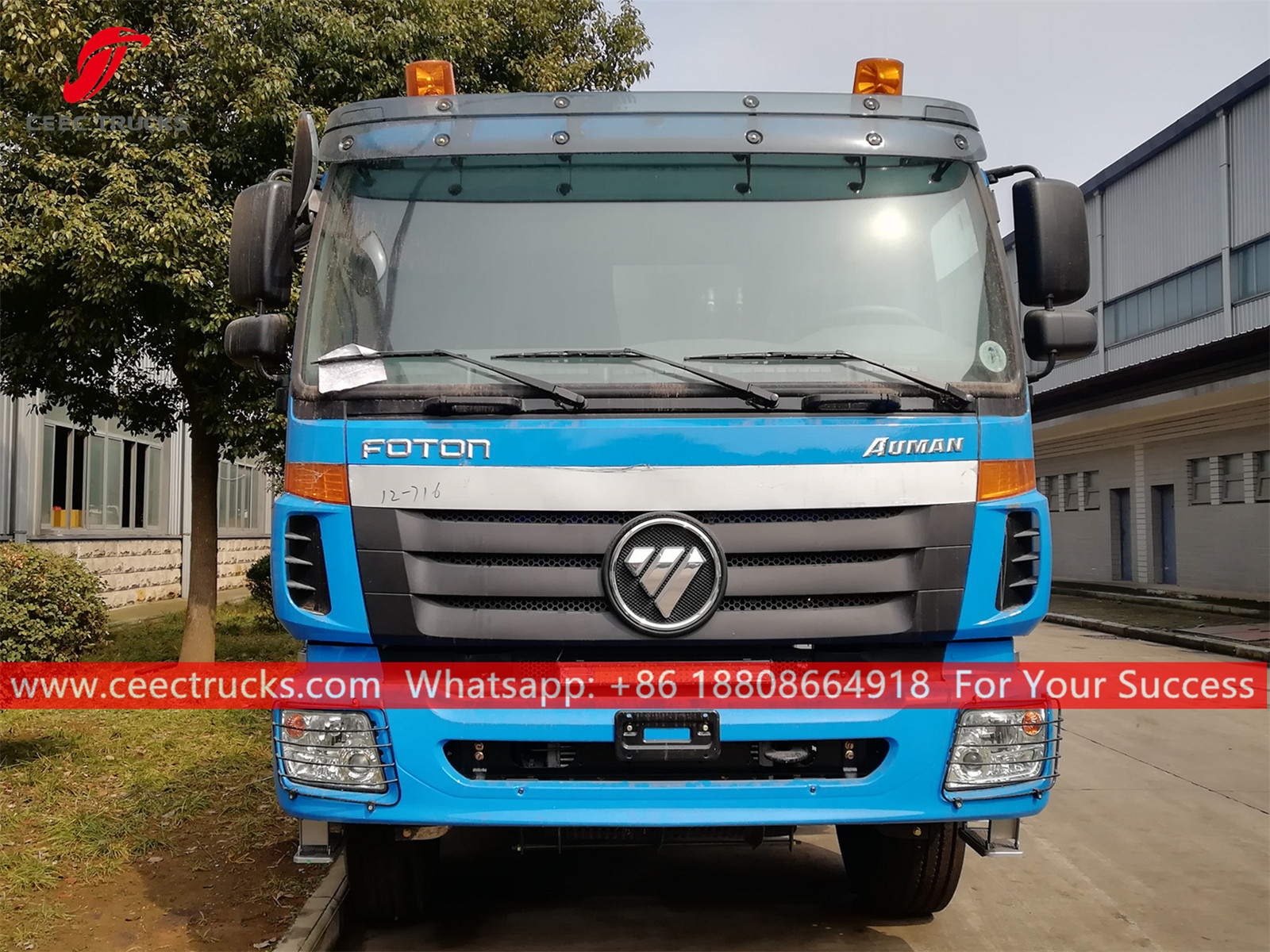

---- FOTON chassis, perfect performance
---- Quanchai diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

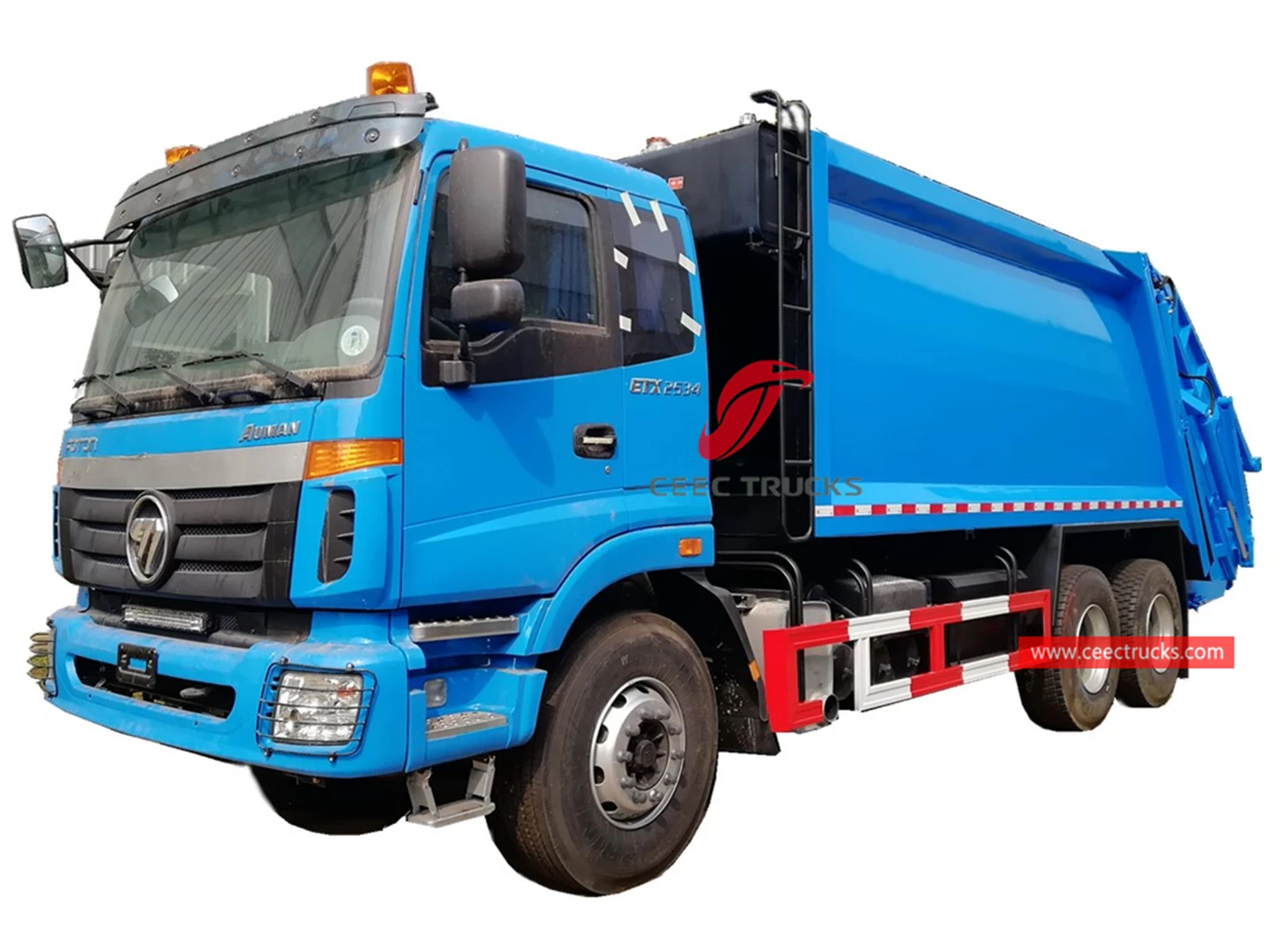

FOTON Refuse Compactor Truck (20 cbm)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
9722 * 2500 * 3200 mm
|
|
GVW / Kerb Weight
|
25,000kg / 9,840kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
336 HP (247 KW)
|
|
Displacement
|
9700 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
6X4 (left hand drive)
|
|
Transmission
|
FAST 9 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4300+1350 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
20 cbm
|
|
Fill Hopper capacity
|
0.8 cbm
|
|
Sewage tank
|
200 liters
|
|
Filling work cycly time
|
20~25 s
|
|
Discharge model
|
Horizontal Ejection
|
|

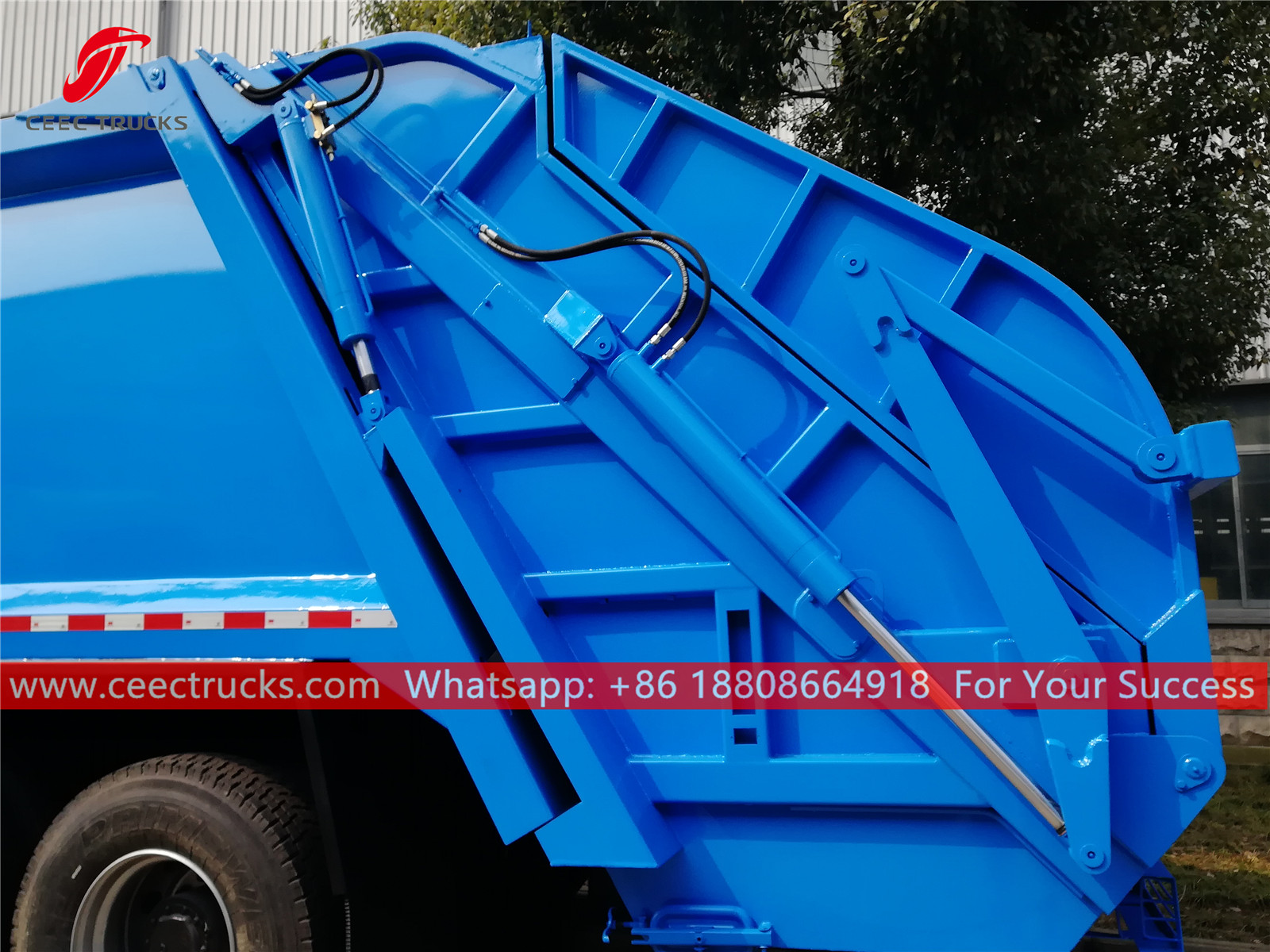

Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|
