Applications:

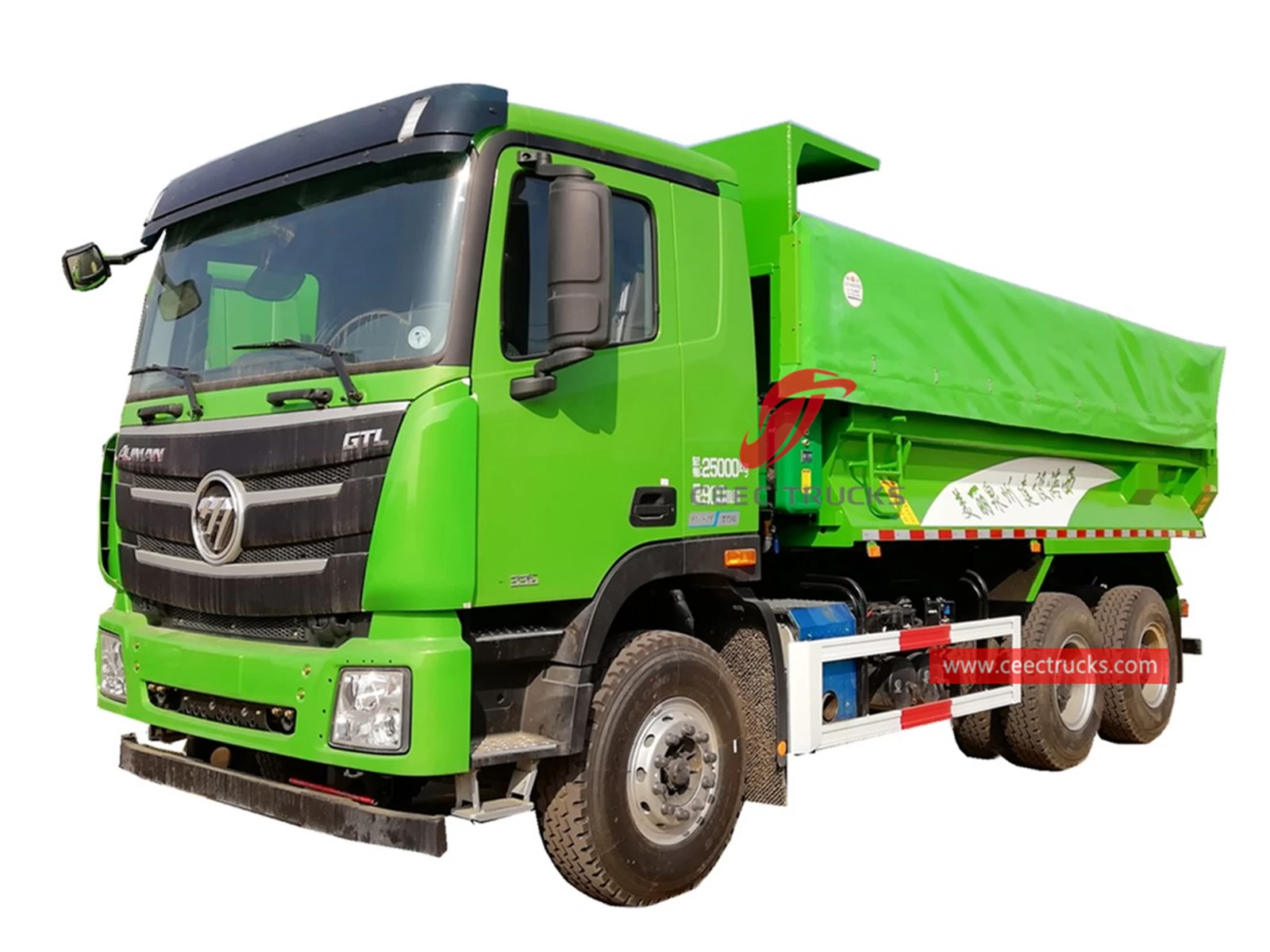

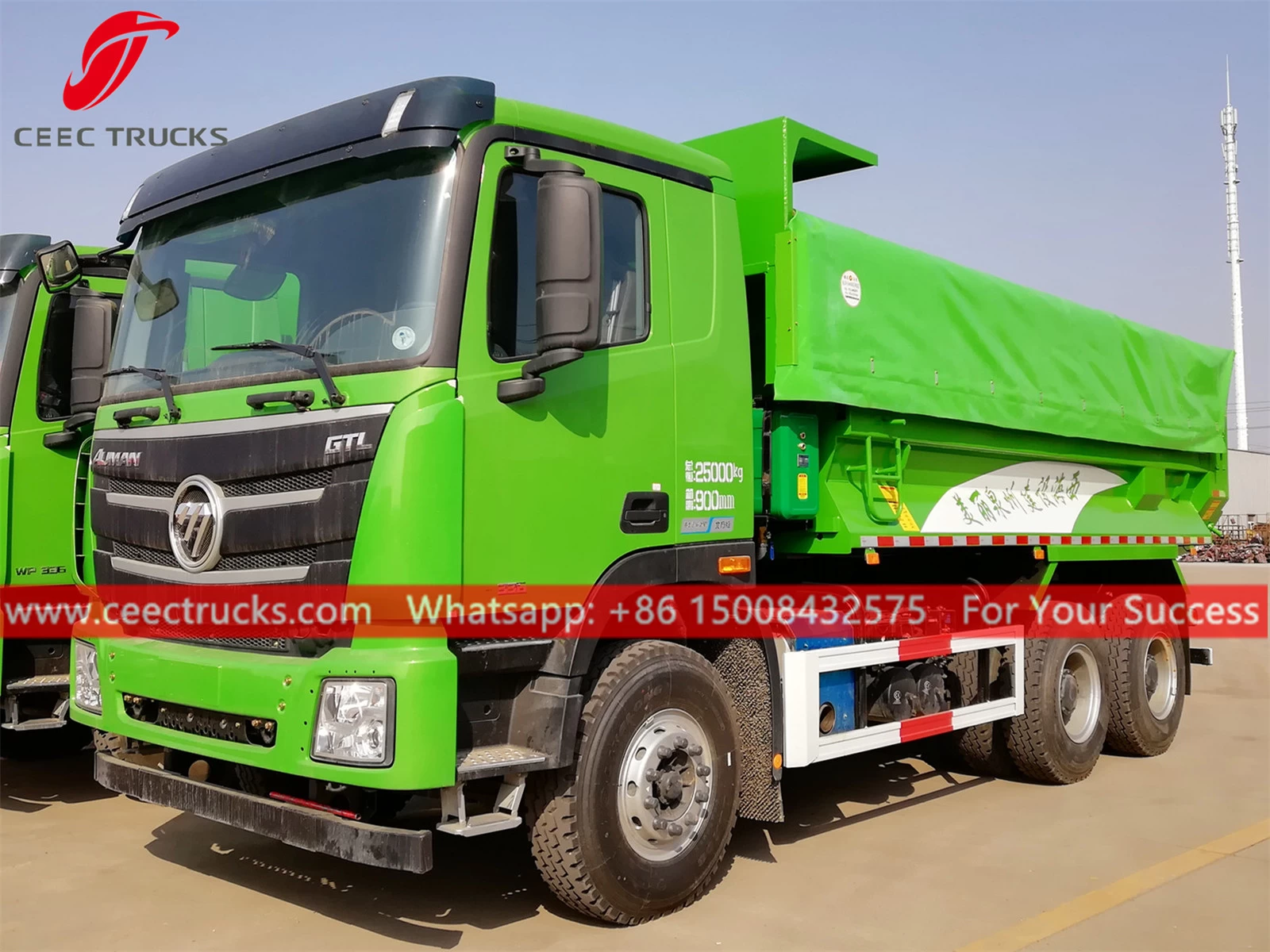

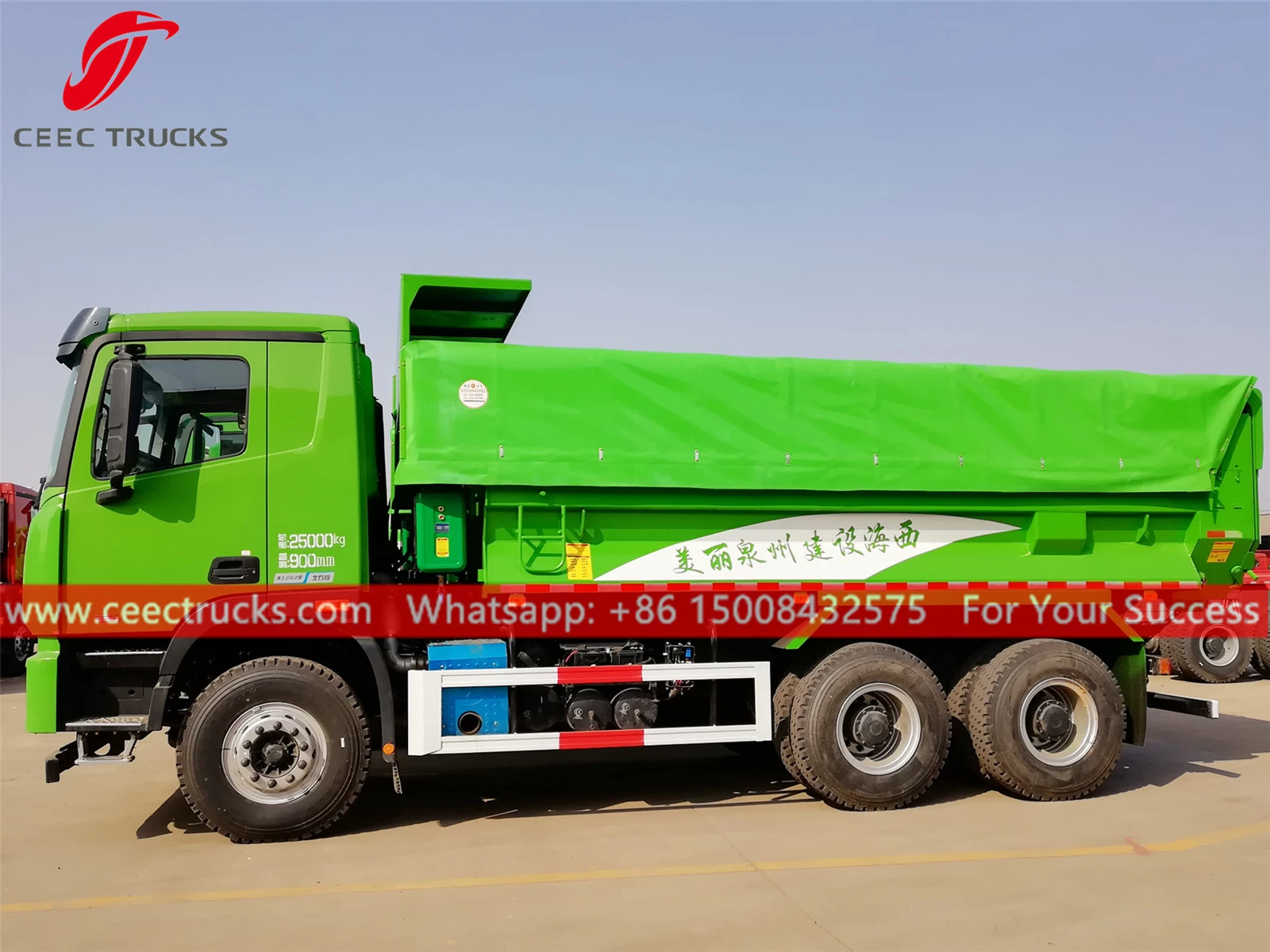

FOTON 6x4 Dumper truck (also called heavy
duty dump truck, tipper truck, 40tons
tipper trucks, Hyva front lifting dump truck,
dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.
CEEC TRUCKS dump
truck is manufactured using the cutting-edge technology and components

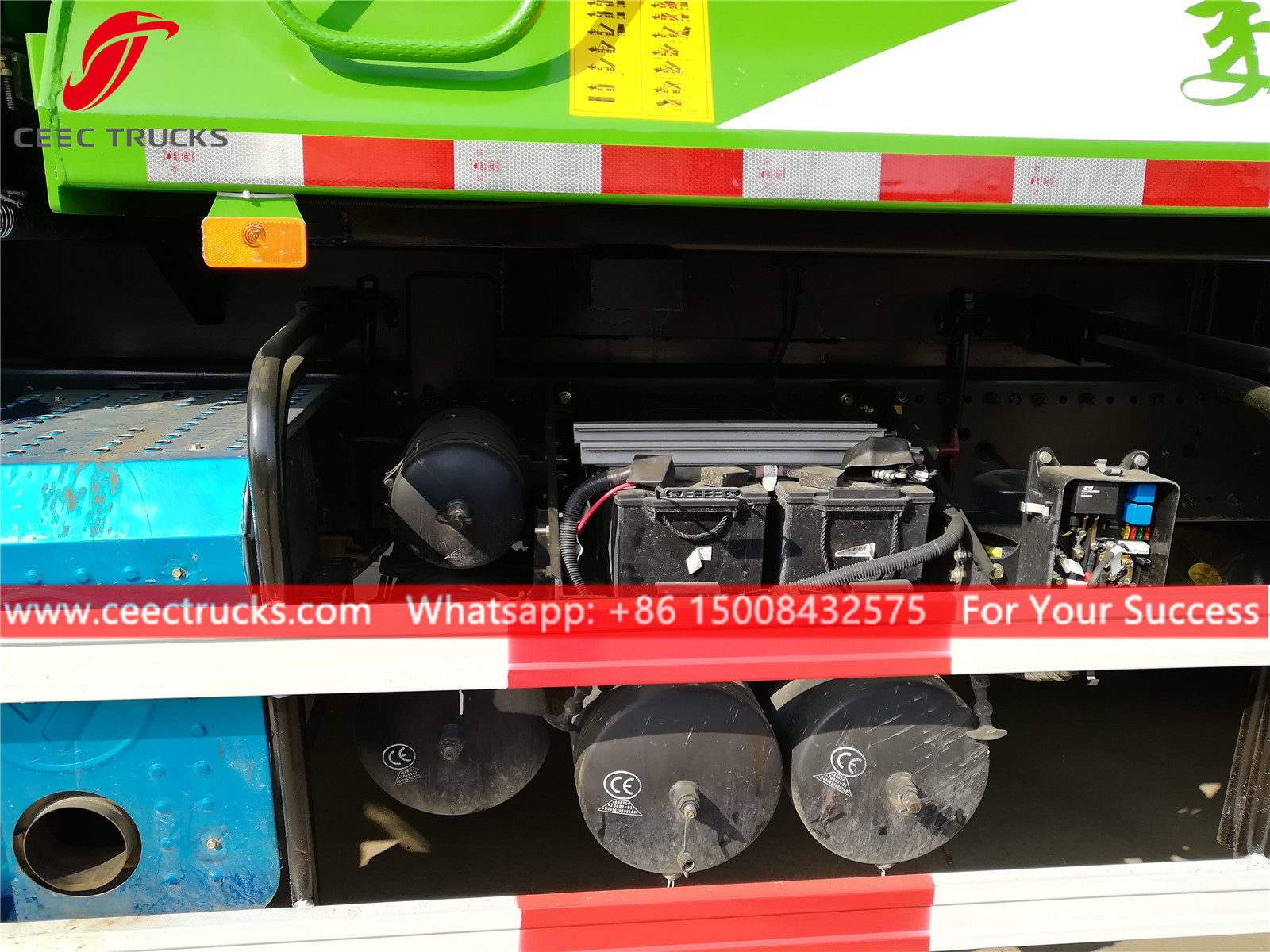

in the world such as WABCO double-cylinder air compressor, brake valve,
HYVA front hydraulic system, etc.
Key Features:
---- FOTON heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
FOTON 6*4 tipper truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
8590 * 2495 * 3580 mm
|
|
GVW / Kerb Weight
|
25,000kg / 12,110kg
|
|

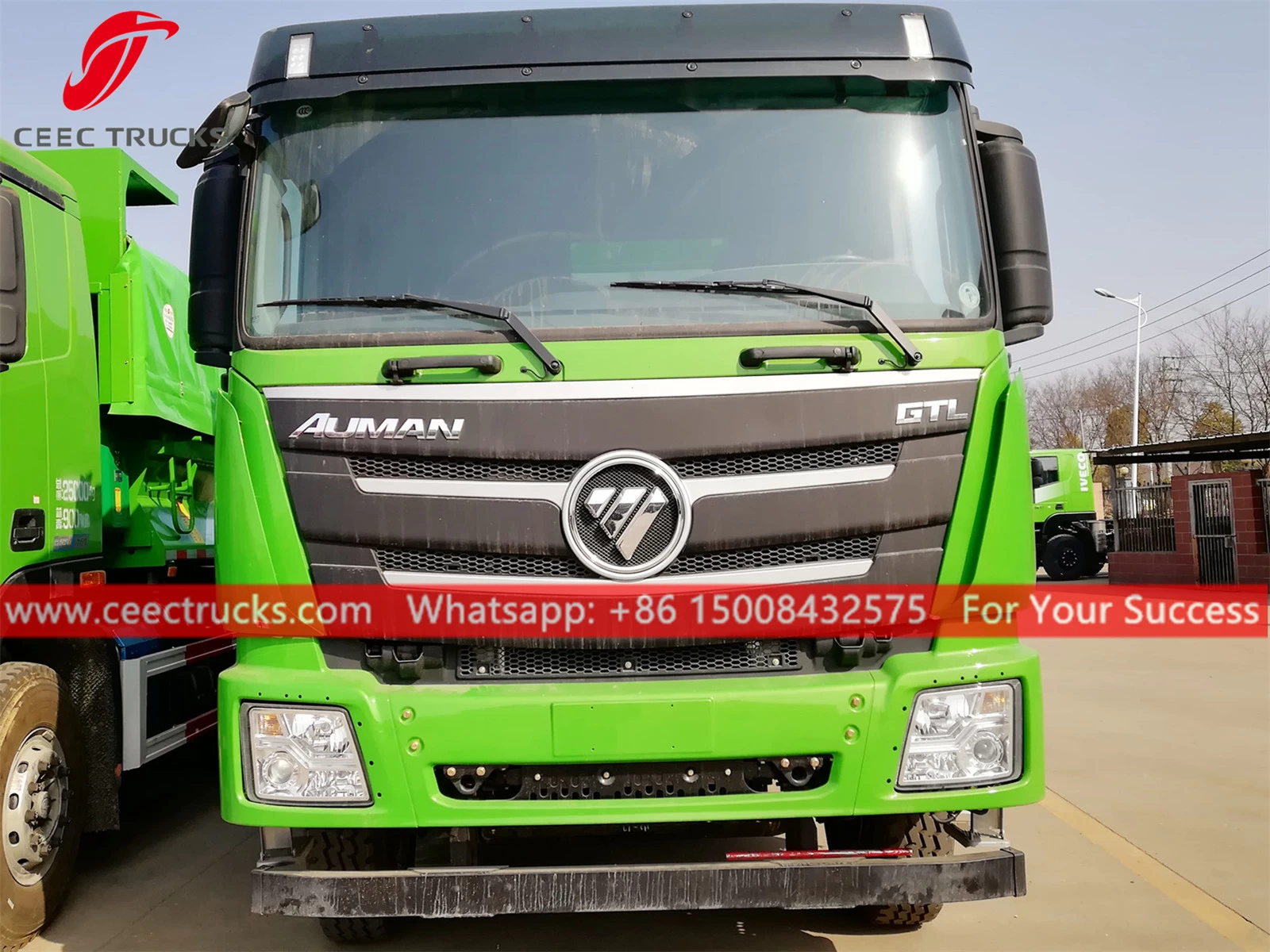

Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI diesel engine
|
|
Power
|
336 HP (247 KW)
|
|
Displacement
|
9726 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
6X4 (LHD or RHD)
|
|
Transmission
|
FAST 12 speed levers with 2
reverse
|
|
Wheelbase/No. of axle
|
3825+1350 mm / 4
|
|
Tire Specification
|
12.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
40 Tons
|
|

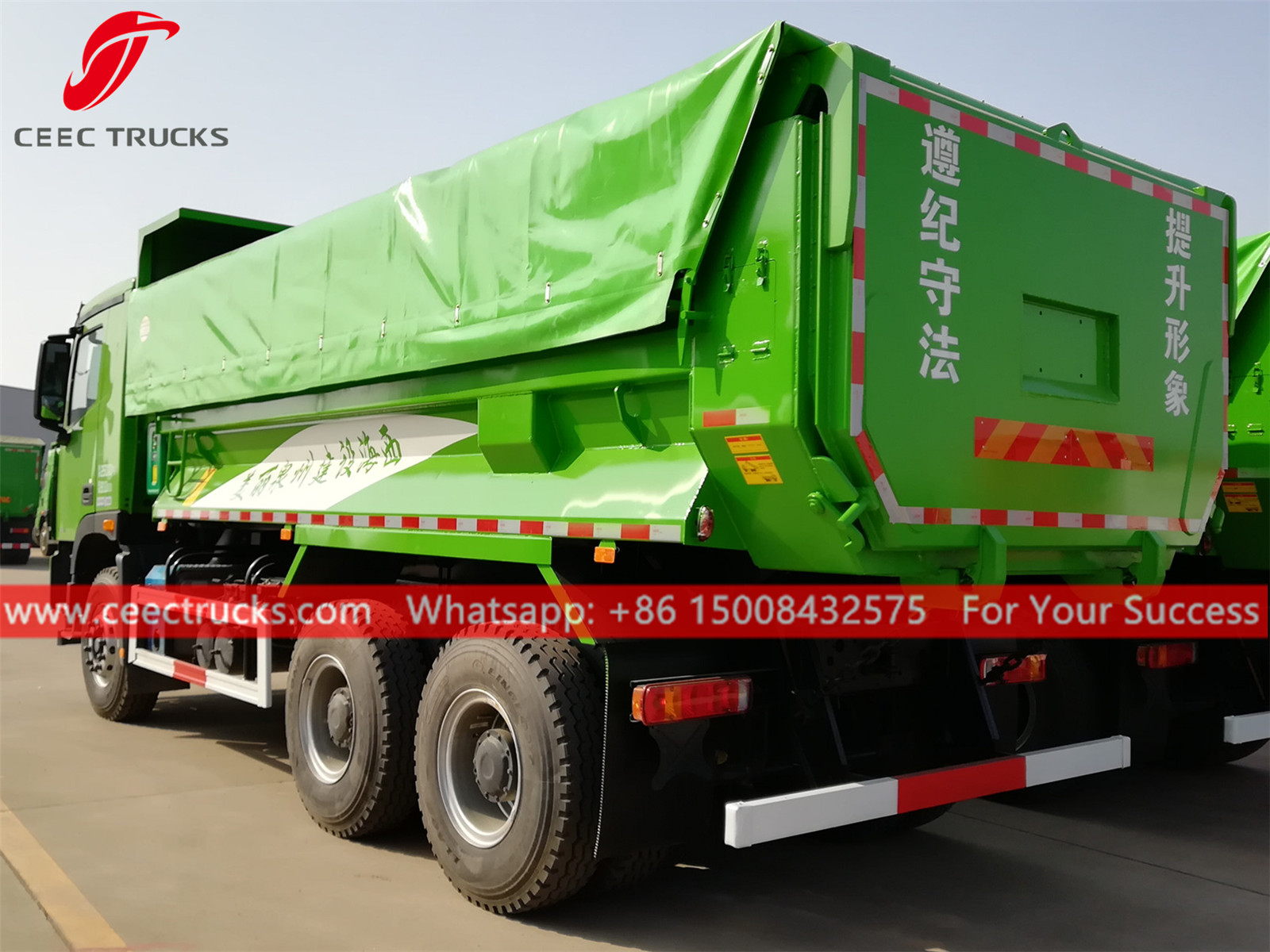

Cargo body
|
5600*2300*900
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|
Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|
Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
According to wish
|
|

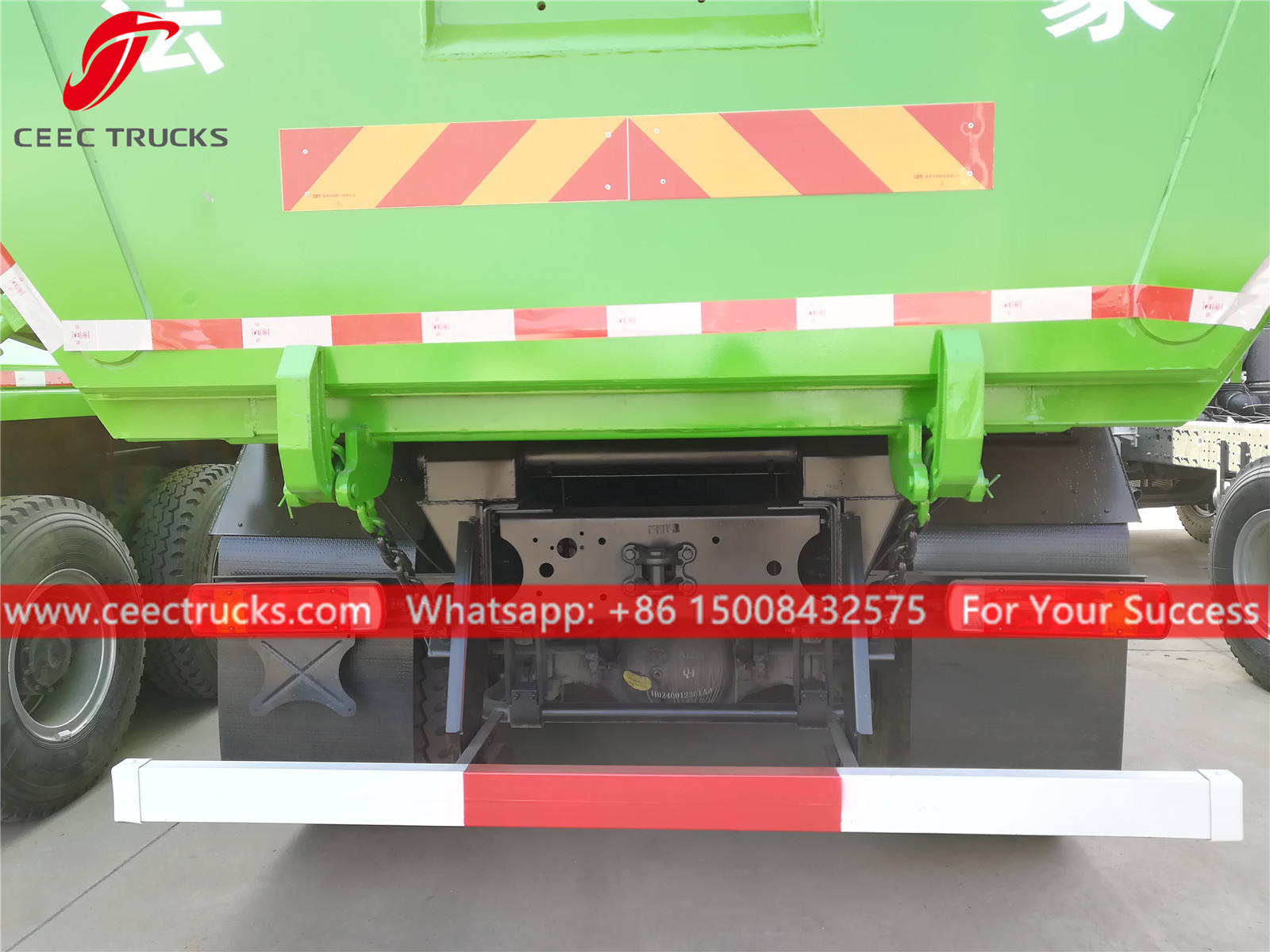

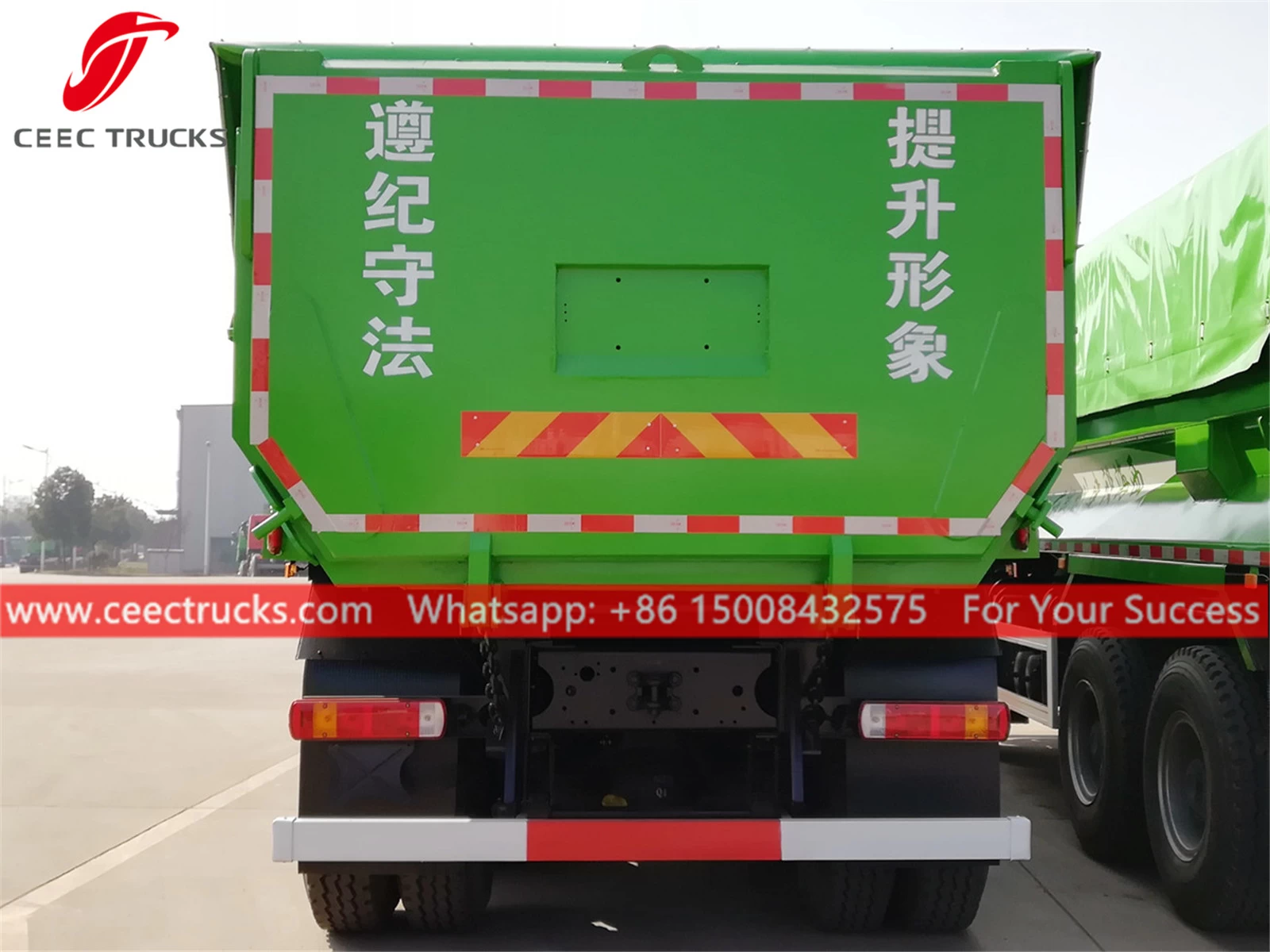

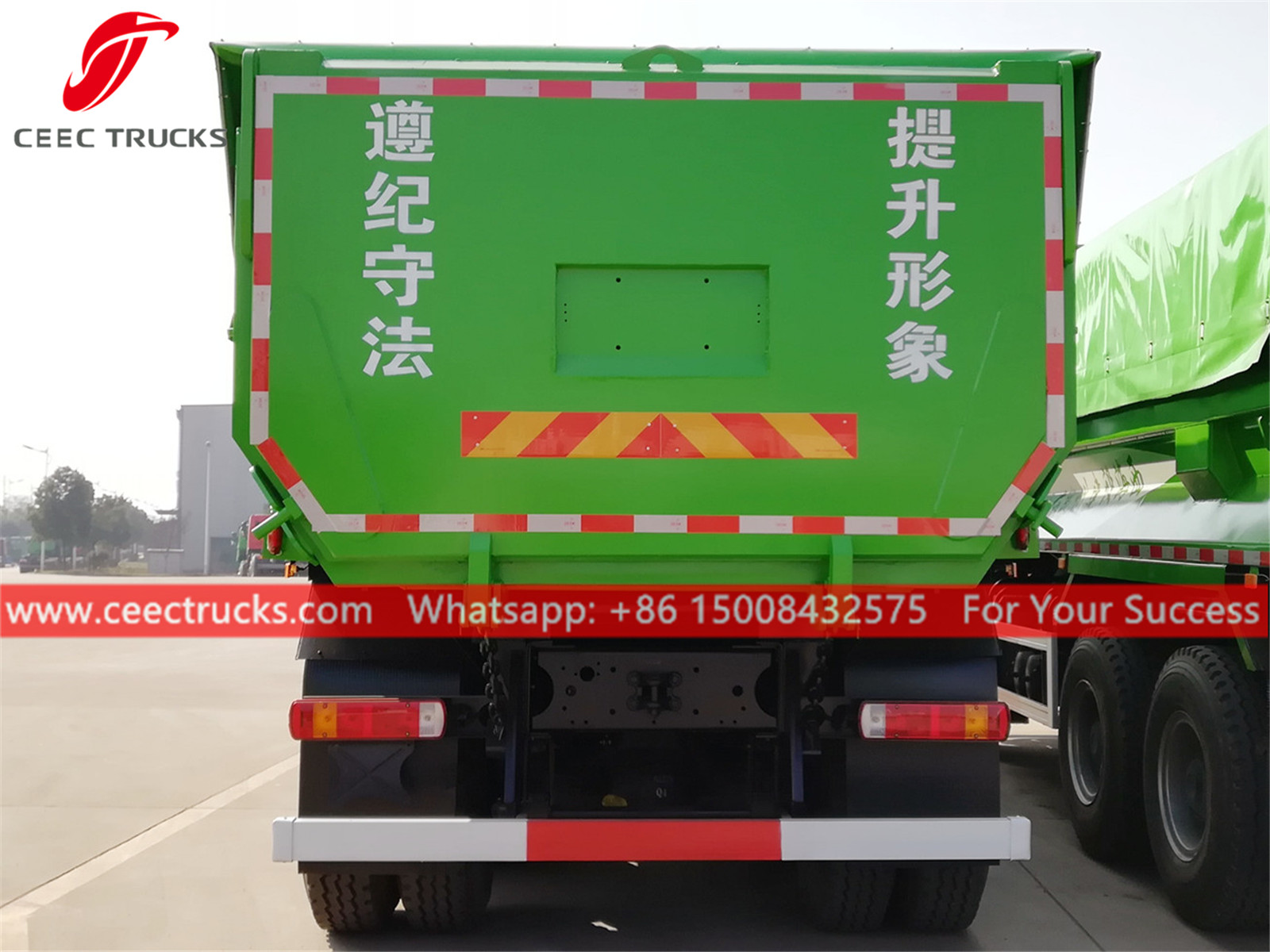

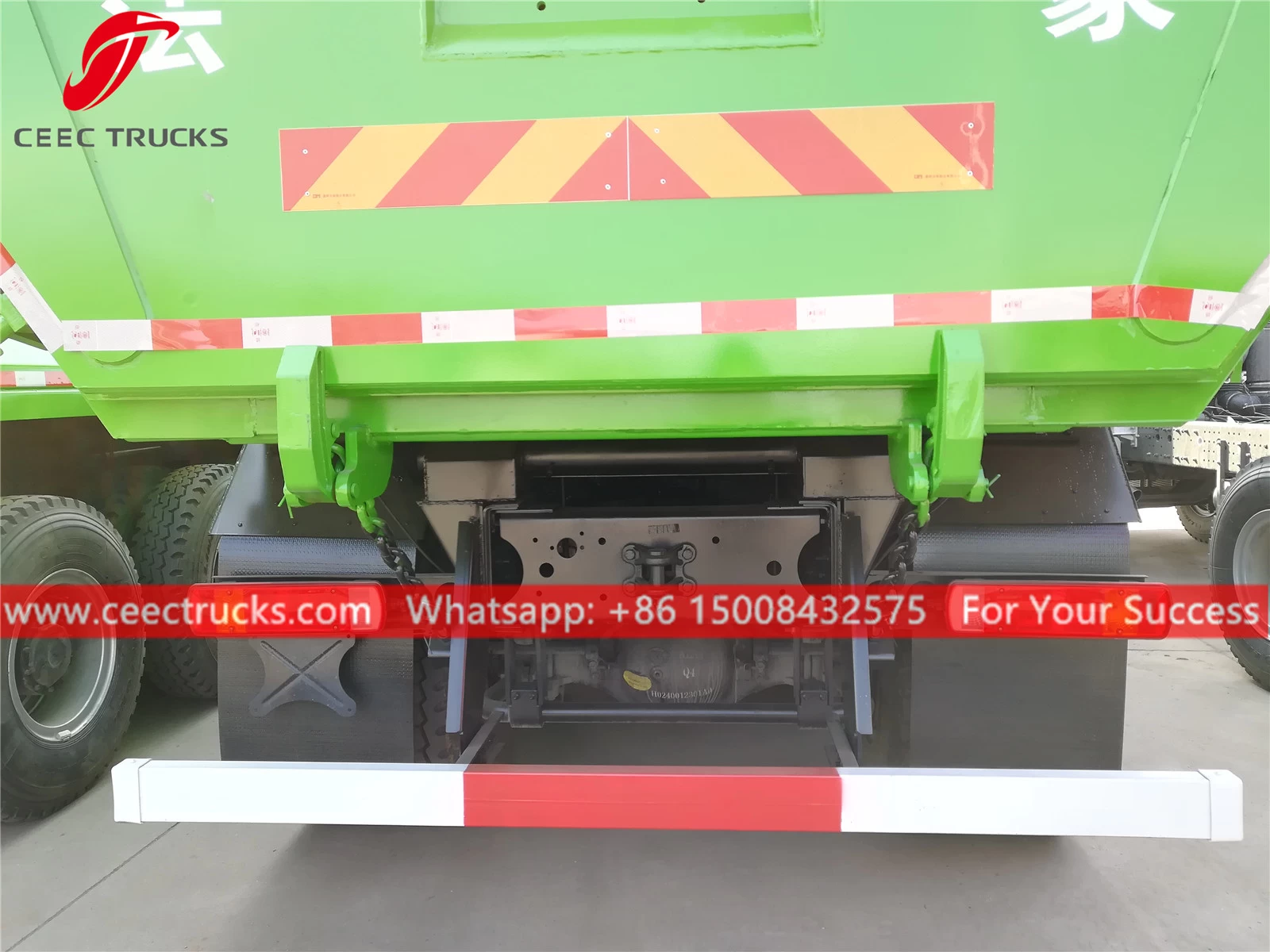

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

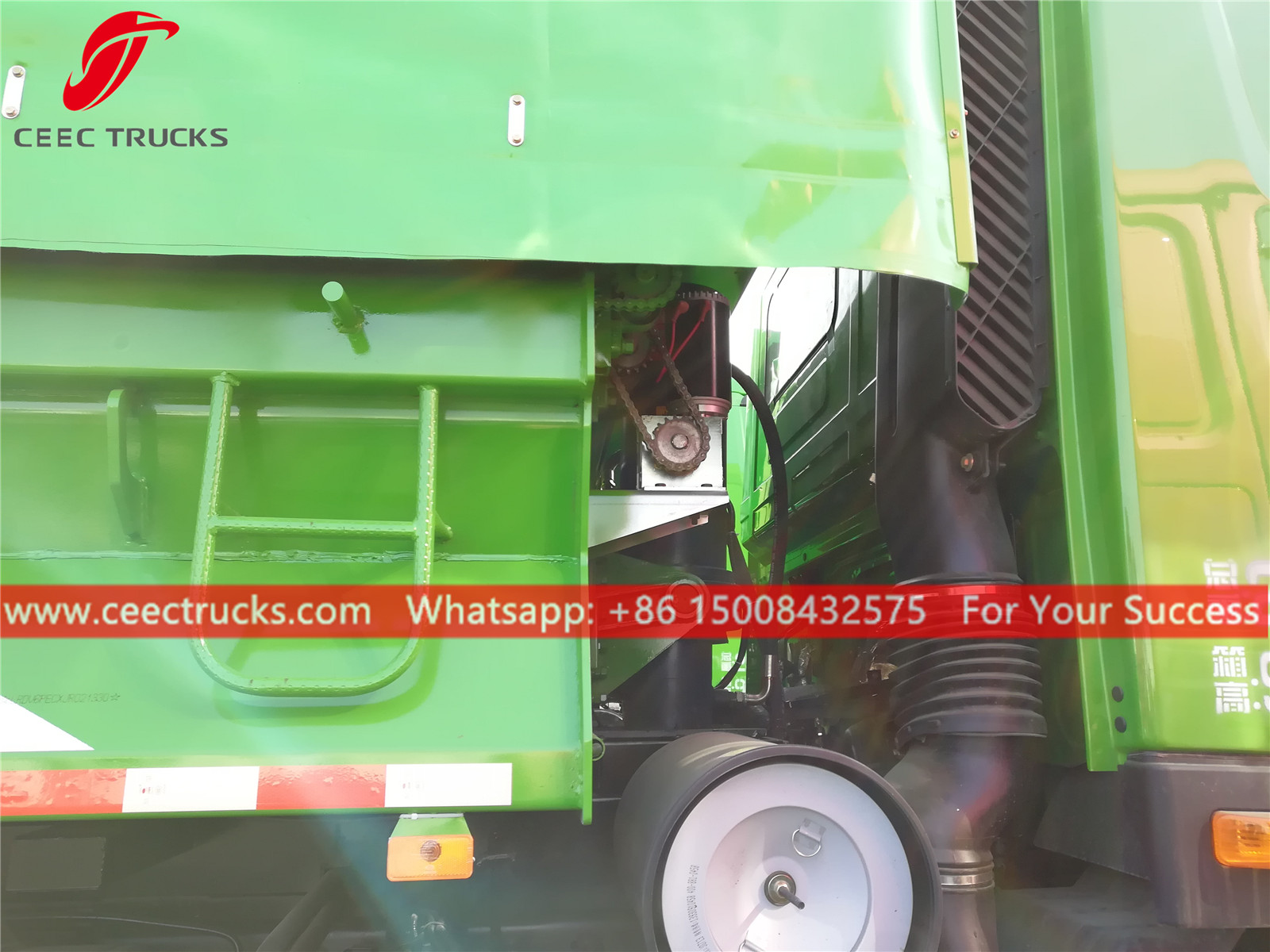

Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
