Applications:

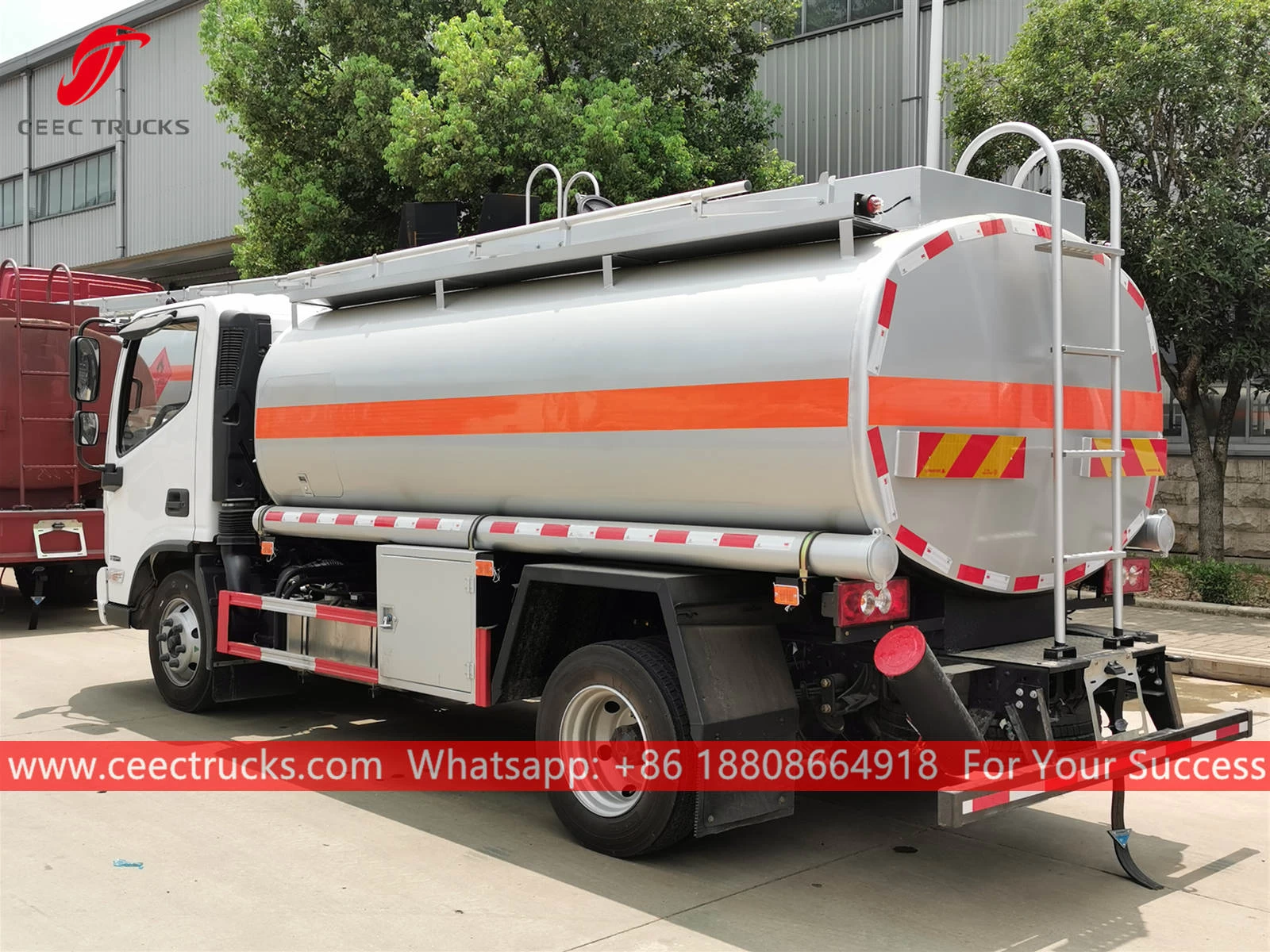

FOTON Fuel filling truck (also called FOTON Fuel bowser, oil filling truck manufacturer, 6-wheel diesel bowser vehicle, fuel delivery truck, Hot sale Diesel Delivery Truck, good quality petrol transportation truck, fuel tanker truck with bowser) is used to transport oil, diesel, gasoline, kerosene, etc.
CEEC TRUCKS fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
The fuel truck can be equipped with oil pump and refueling machine, all for easy operation.
Key Features:
---- FOTON chassis, perfect performance
---- CUMMINS engine option, super powerful, no overhaul within 100,000 km.
---- Fuel Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Fuel pump super powerful, with pump in and pump out function.
Specifications:
|

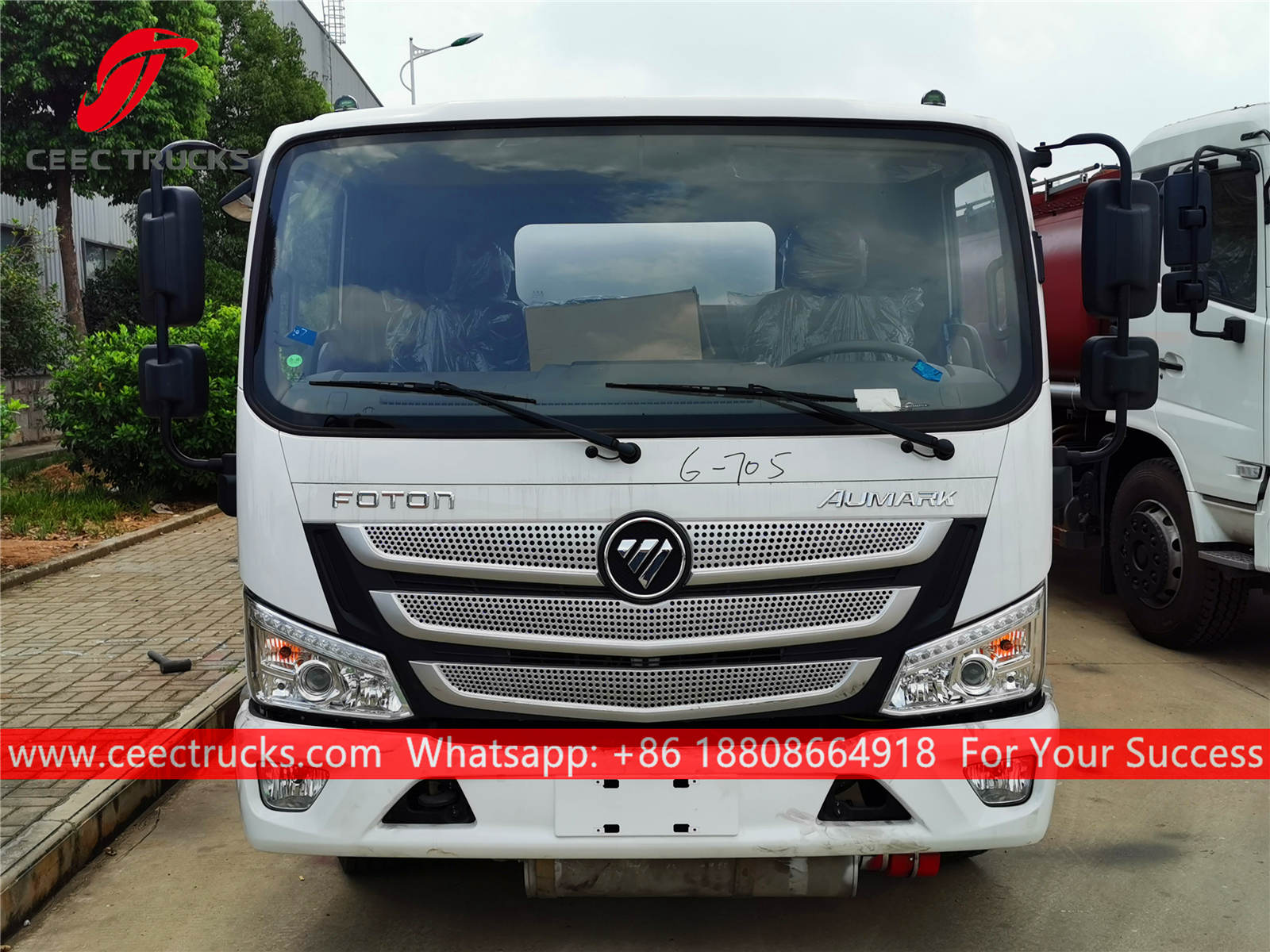

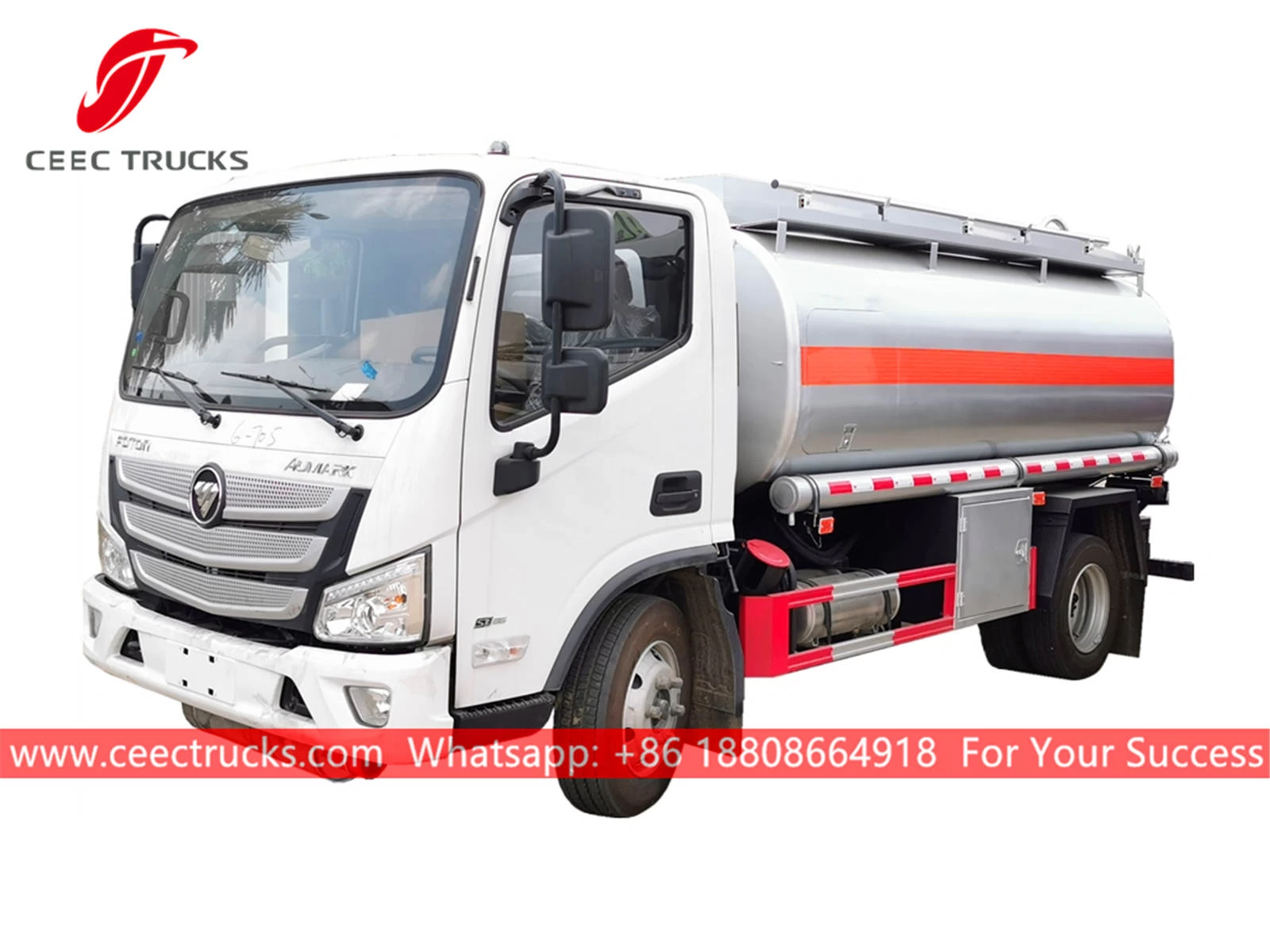

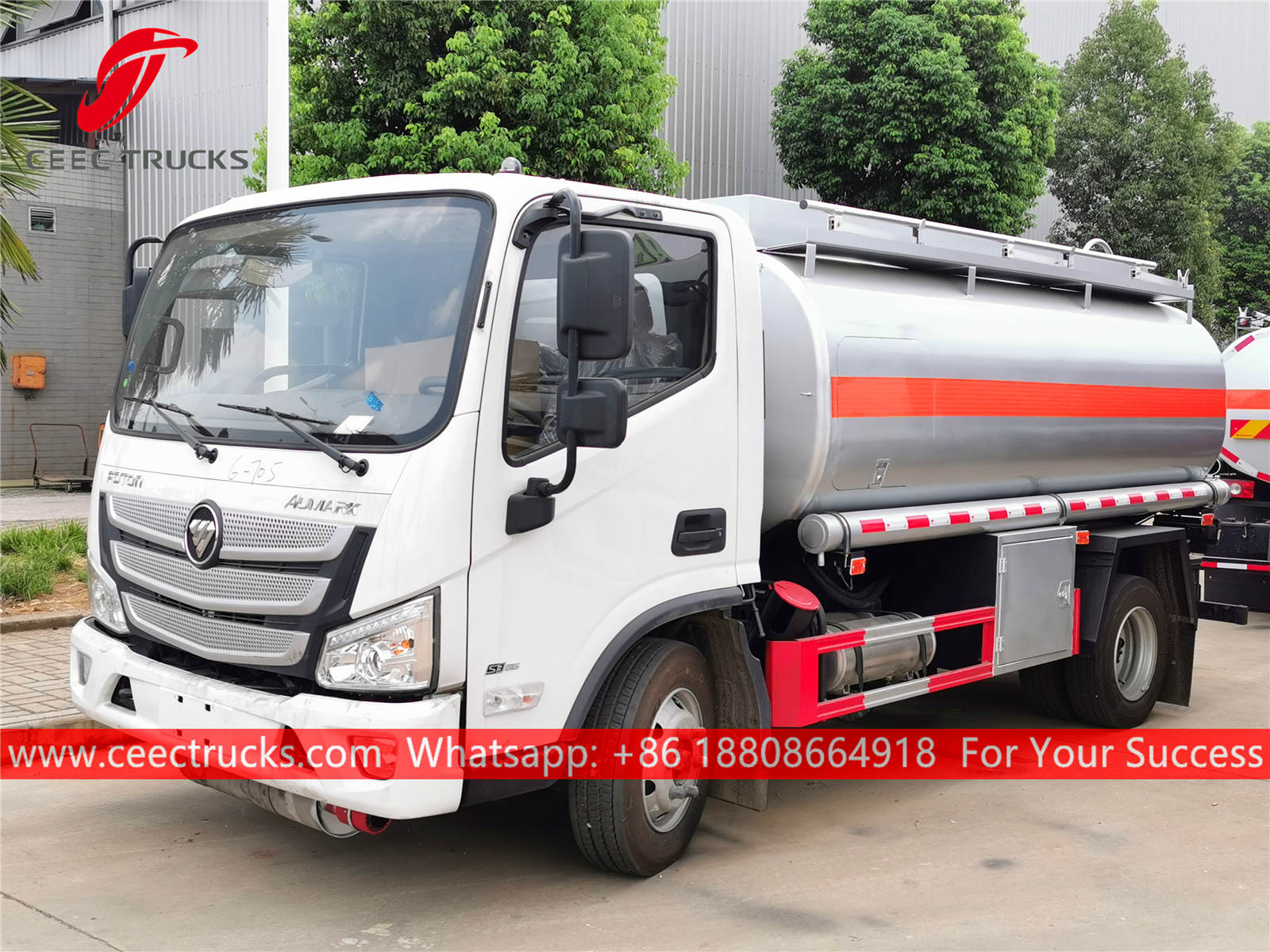

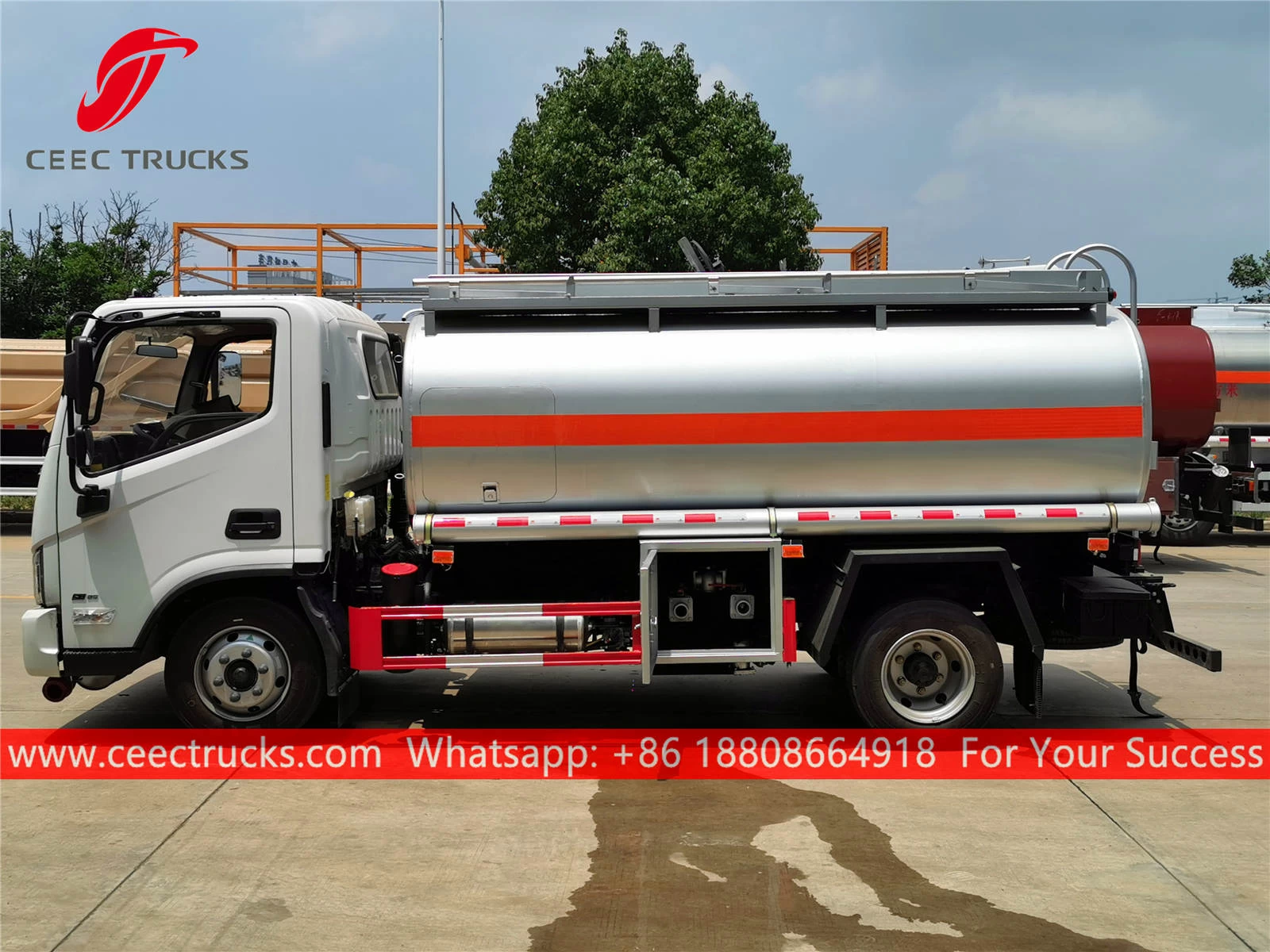

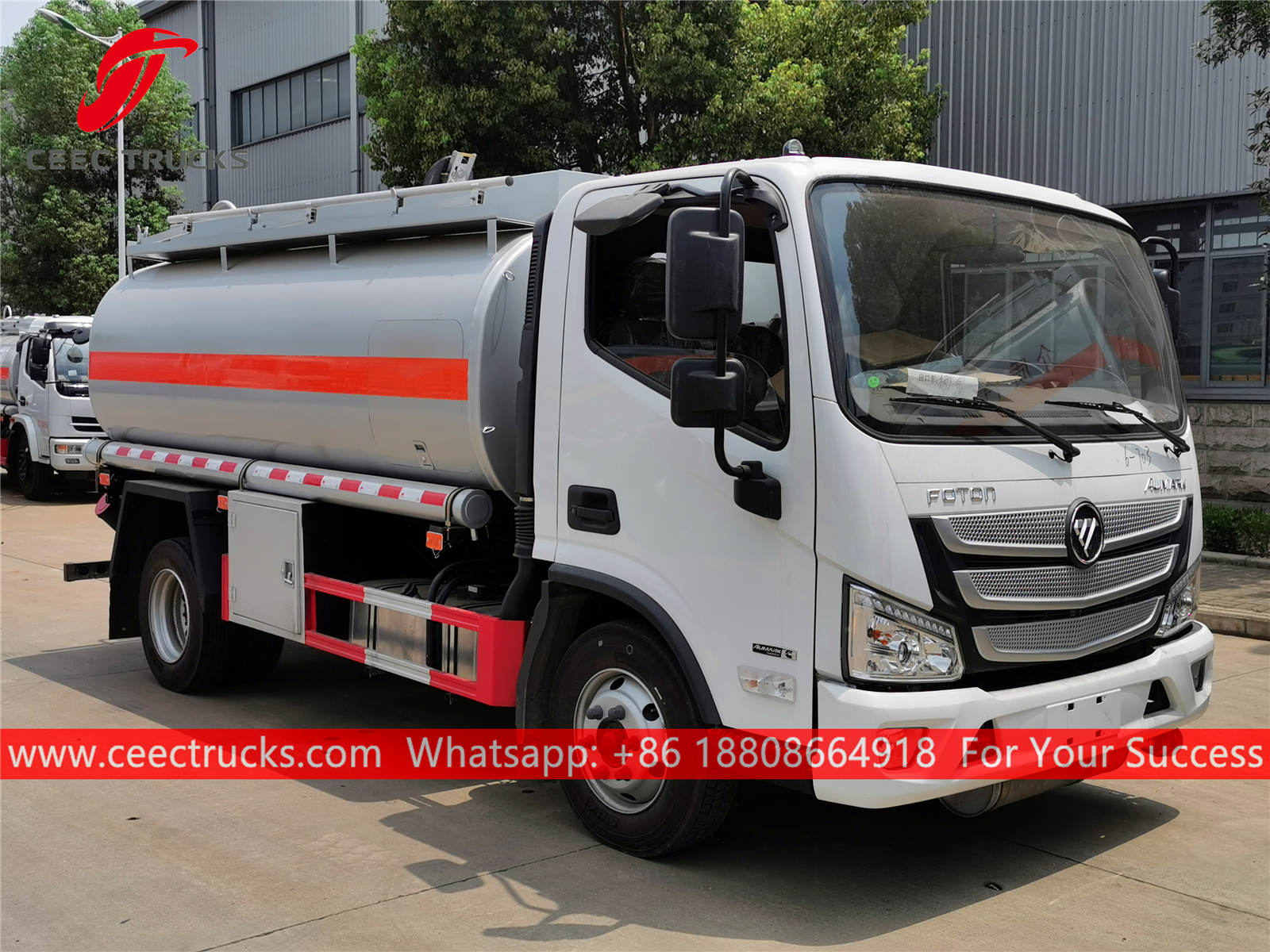

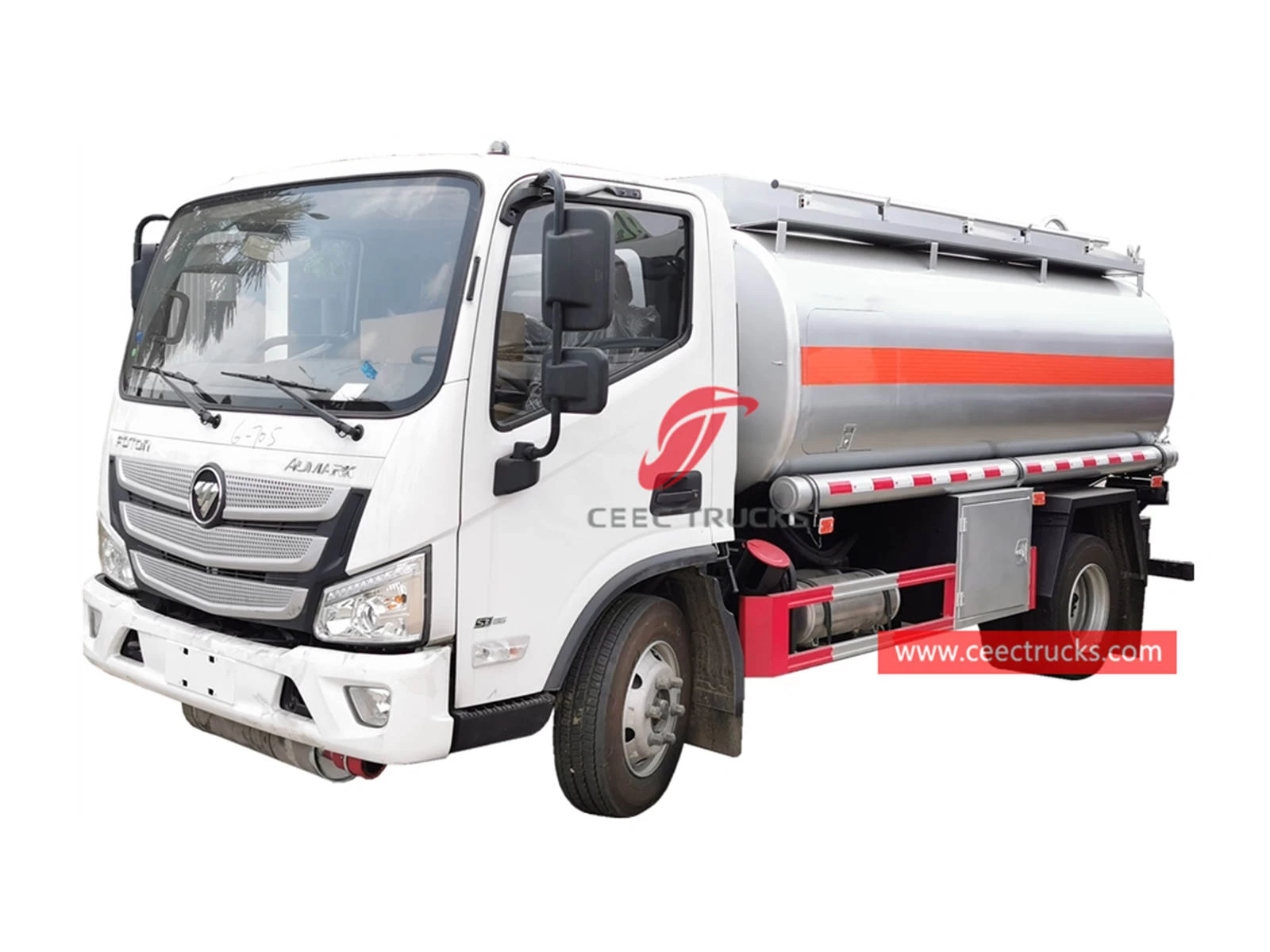

FOTON Fuel Tank Truck (8CBM)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
6990 * 2200 * 2850 mm
|
|
GVW / Kerb Weight
|
11,995kg / 5,465kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CUMMINS
|
|
Power
|
156 HP (115 KW)
|
|
Displacement
|
3760 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3800 mm / 2
|
|
Tire Specification
|
8.25-20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
80 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
8,000 Litres
|
|
Tanker Material
|
Carbon Steel
|
|
Pump
|
Fuel pump equipped for overhead delivery
|
|
Suction head
|
6 m
|
|
Hose
|
High quality, wire strengthened hose,
with cooper wire, anti-static
|
|

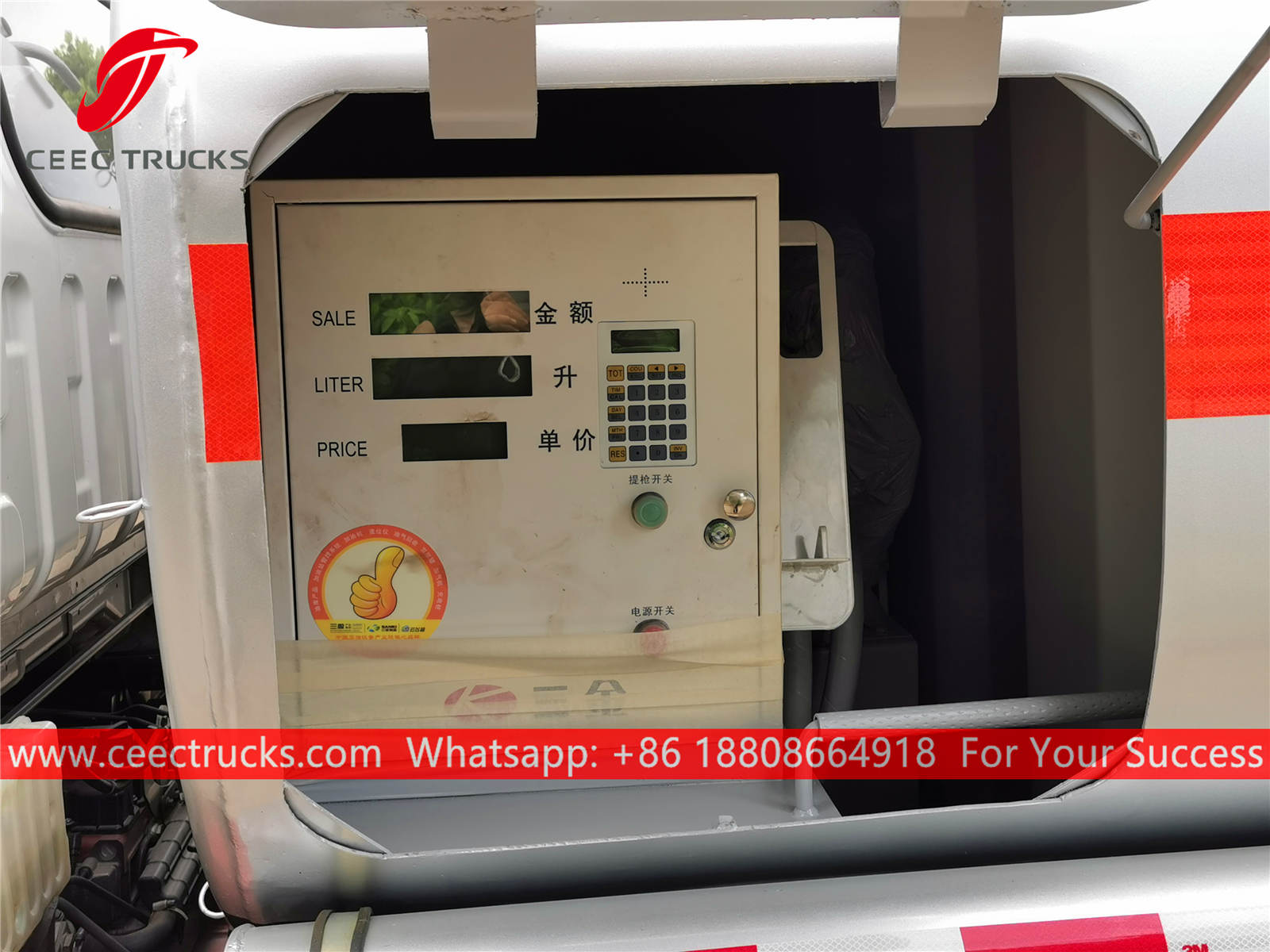

Refueling Machine
|
Equipped based on customer requirement
|
|
Control panel
|
English or Your language
|
|
All

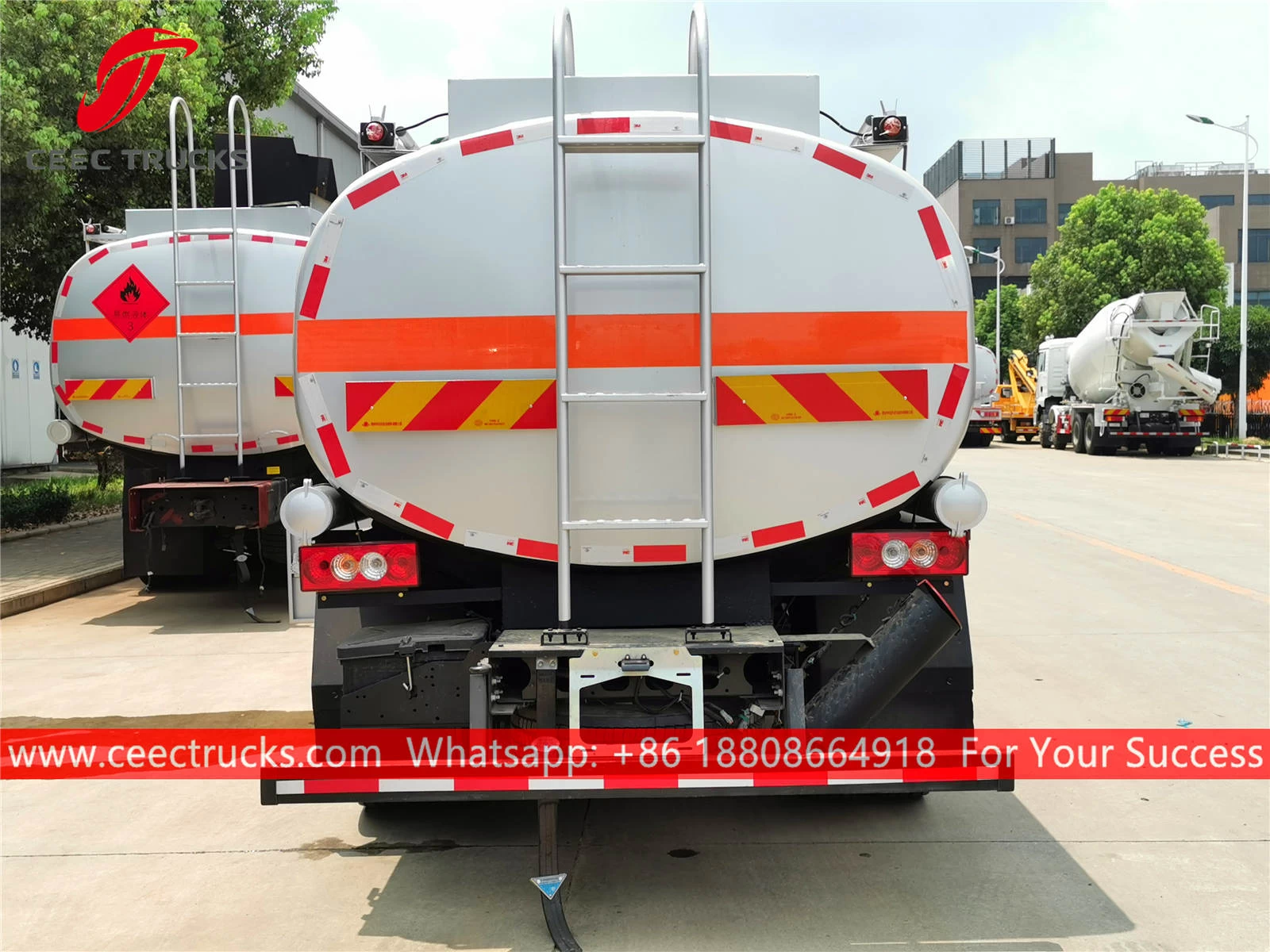

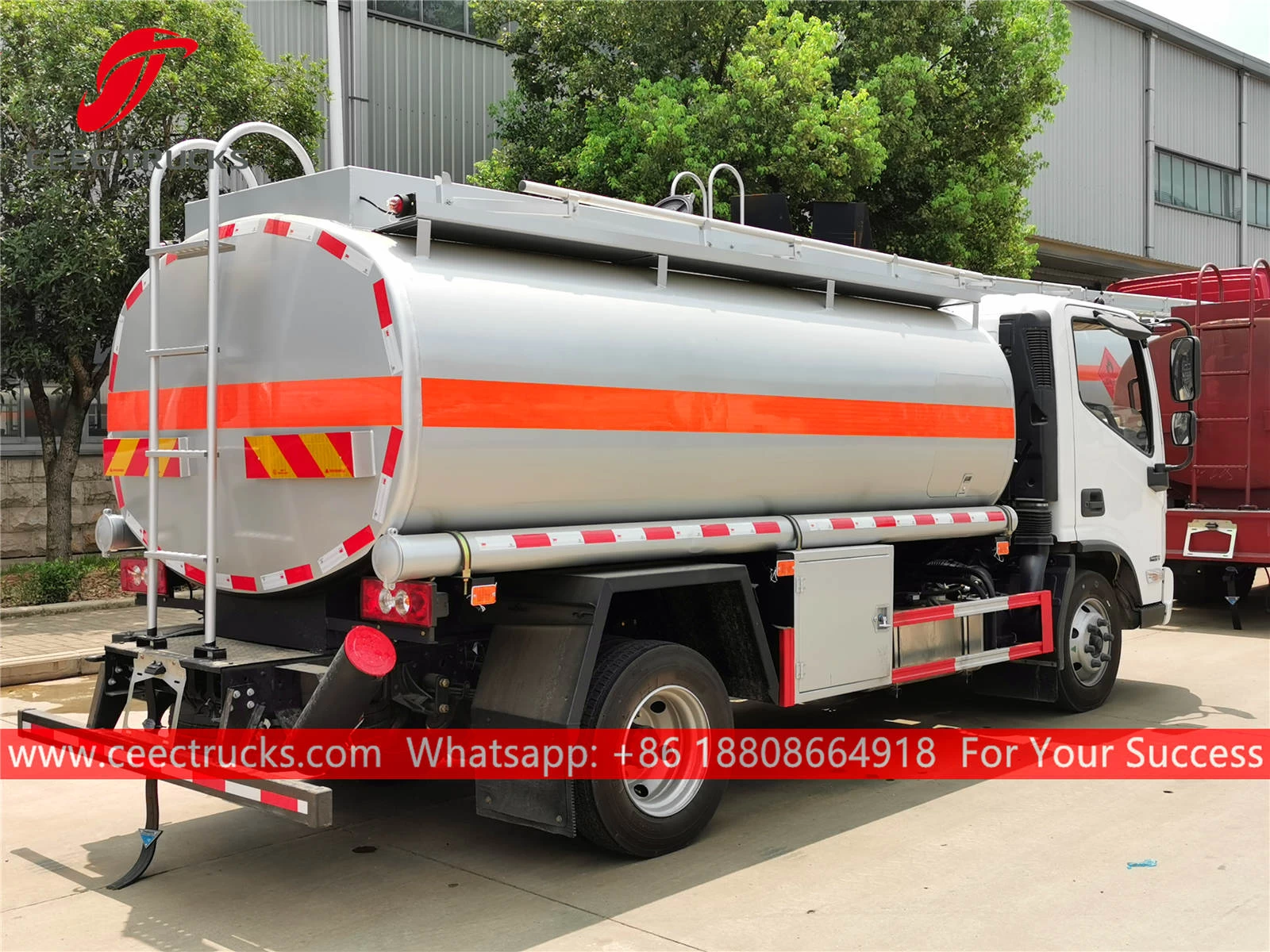

standard accessories: manhole, ladder, anti-static belt, anti-slip
walkway, handrail, fire extinguisher, inlet, discharge, reflective
stickers...
|
|
Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|
