Applications:

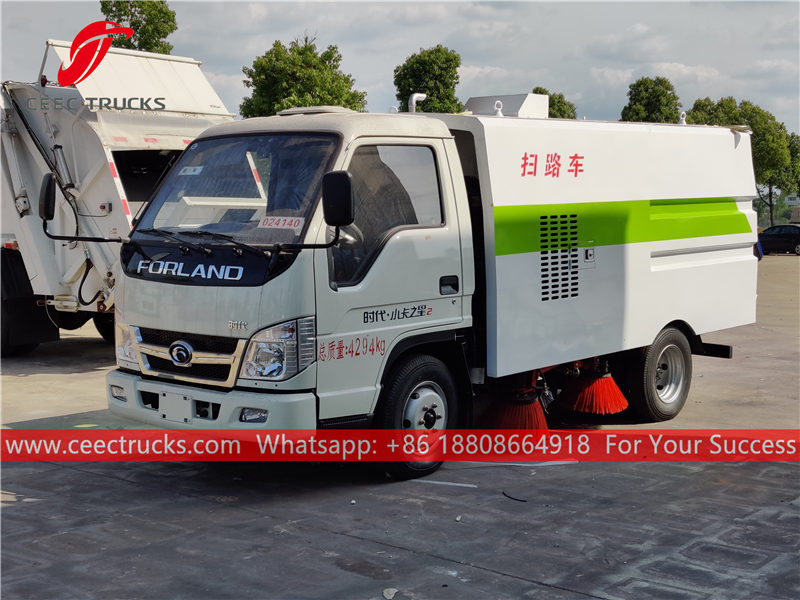

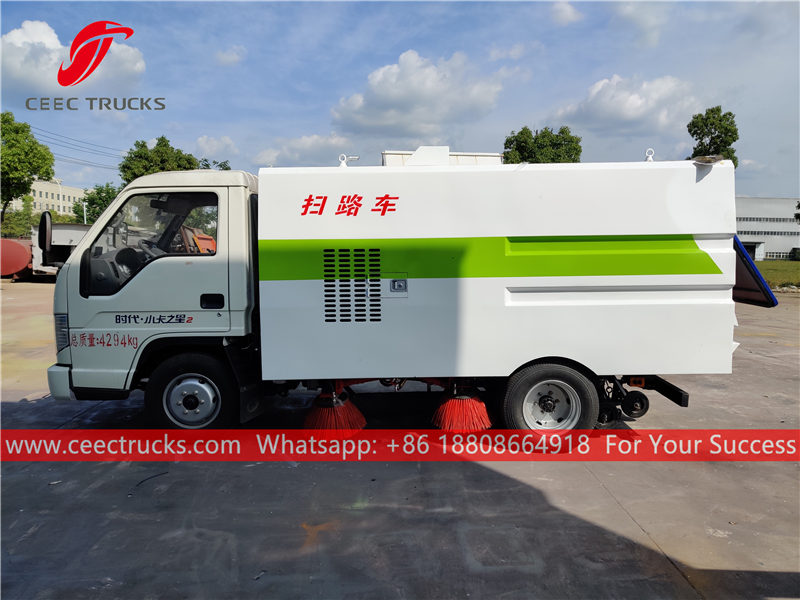

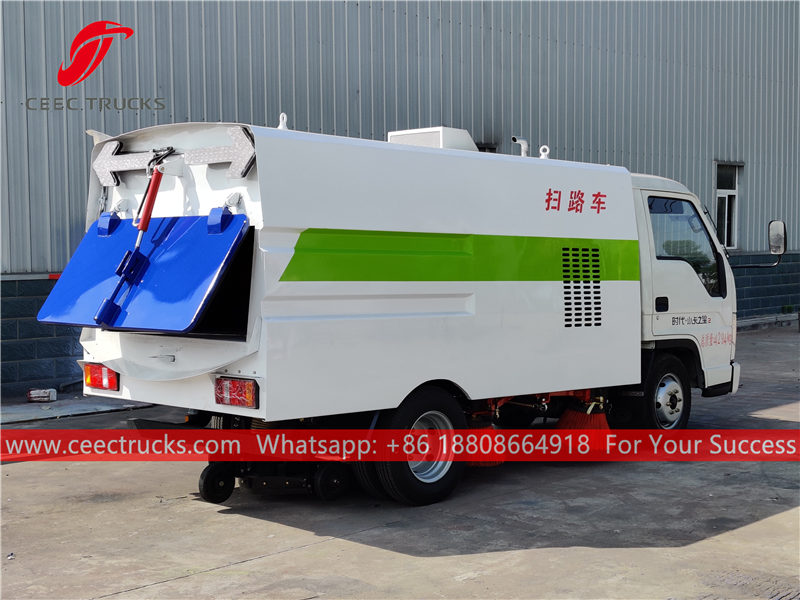

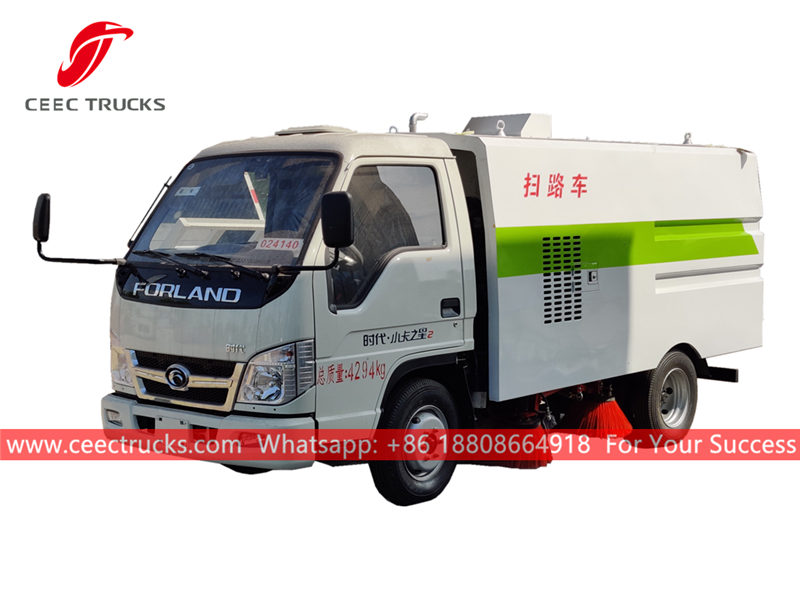

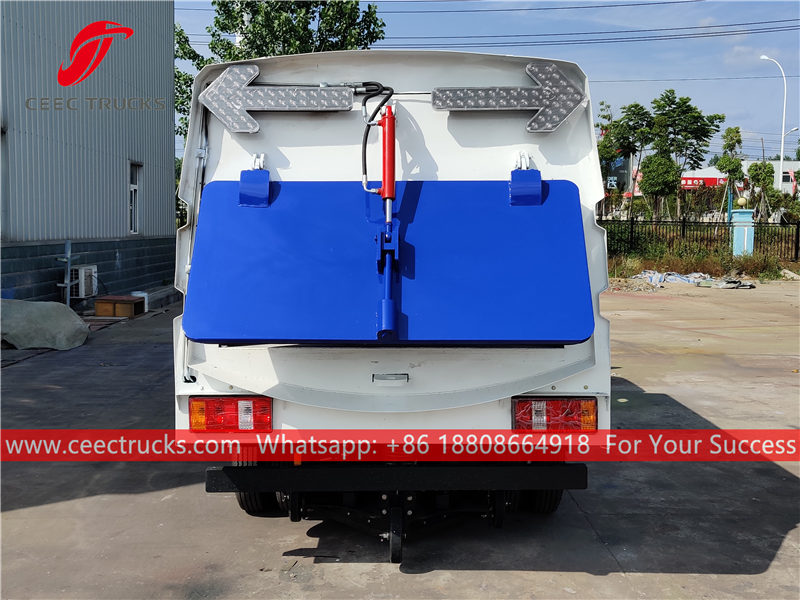

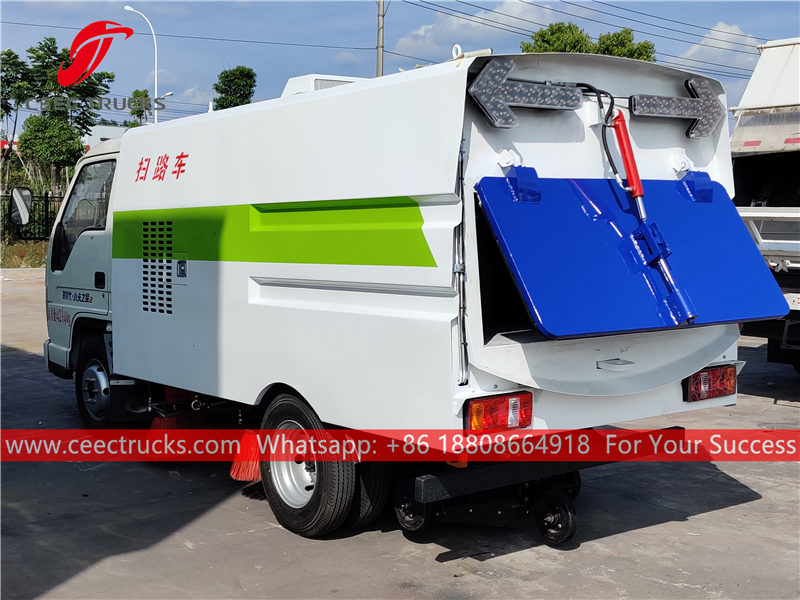

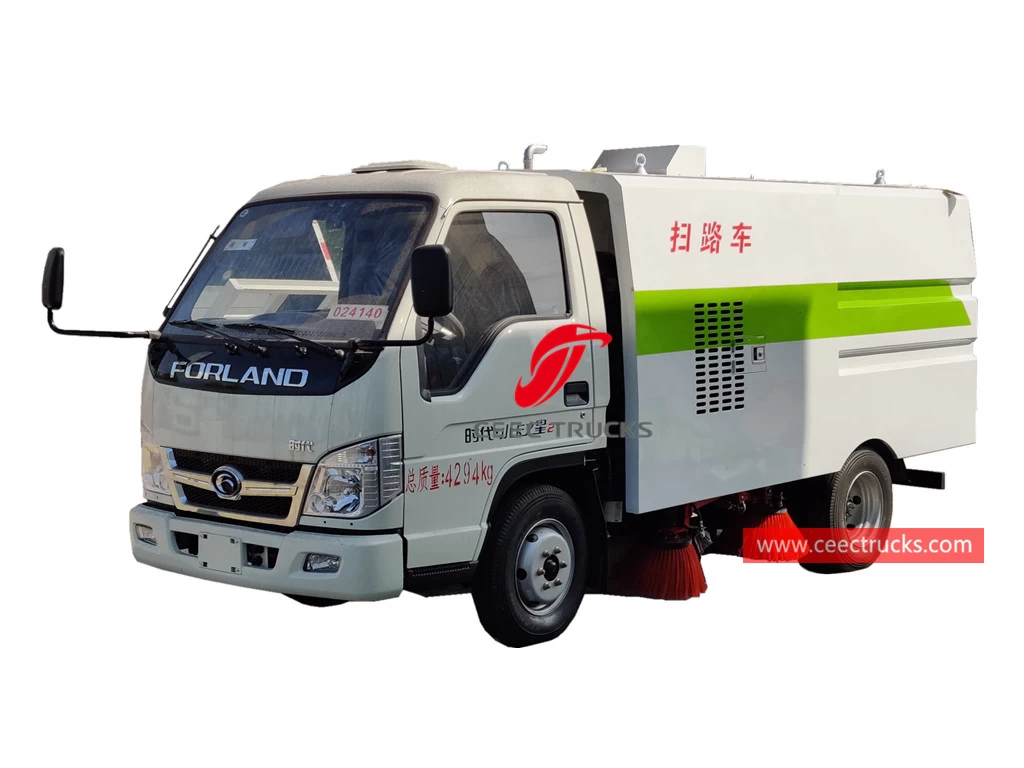

Steet sweeping truck FOTON (also called road cleaning truck, highway sweeper, sweeper trucks, FOTON truck mounted sweeper, parking lot sweeper, road sweeper trucks manufacturer) is designed
for daily sweeping in community, city, highway, construction site,
overhead roads, bridges, squares, airports as well as docks with asphalt
concrete and cement concrete road surface.
CEEC TRUCKS road sweeper truck use whole stainless steel material tanker, Original
Italy or America motor for easy operation, ISUZU or JMC auxiliary
engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- FOTON chassis, perfect performance
---- QUANCHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 3 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
FOTON road sweeper (3.5 cbm)
|
General
|
Vehicle Brand
|
CEEC
|
Chassis Brand
|
FOTON
|
Overall Dimension
|
5300 * 1775 * 2250 mm
|
GVW / Kerb Weight
|
4,294kg / 3,550kg
|

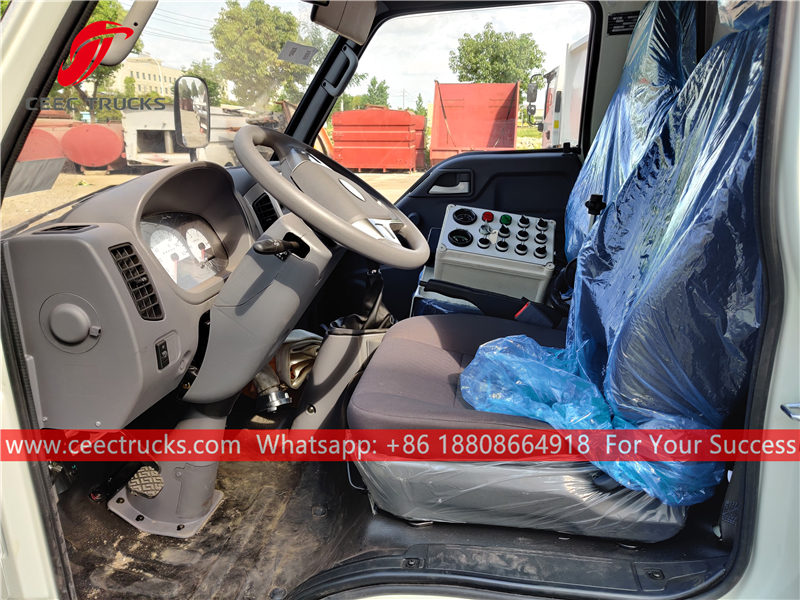

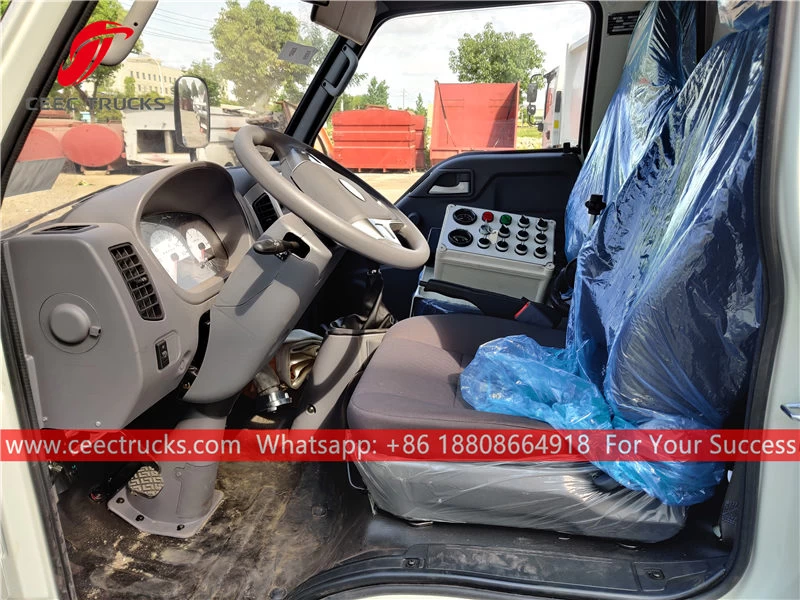

Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
QUANCHAI
|
Power
|
68 HP(50KW)
|
Displacement
|
1809 ml
|
Emission Standard
|
Euro 4
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
2600 mm / 2
|
Tire Specification
|
6.00R15
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
85 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Body capacity
|
3 cbm dust tank & 0.5 cbm water tank
|
Tanker material
|
Stainless steel
|
Sweeping capacity
|
42,000 m2/h
|
Sweeping speed
|
3-15 km/h
|
Max. sweeping width
|
2500 mm
|

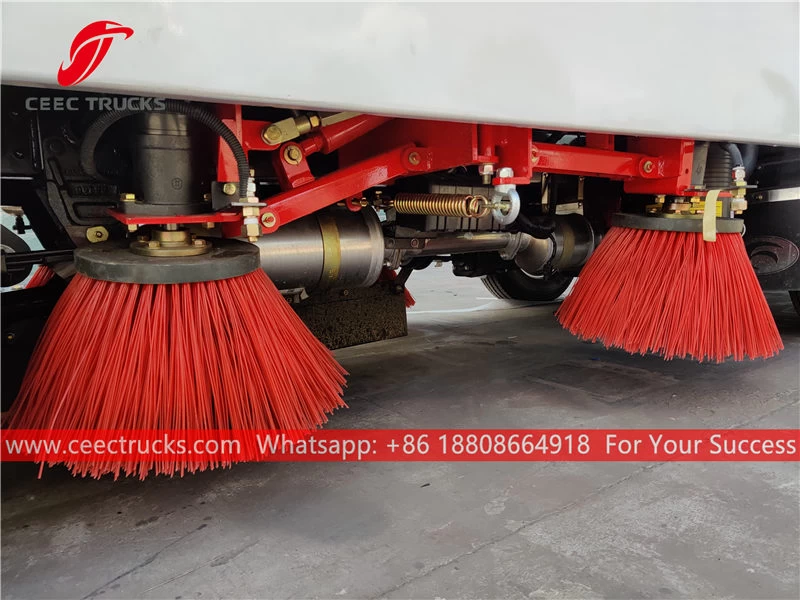

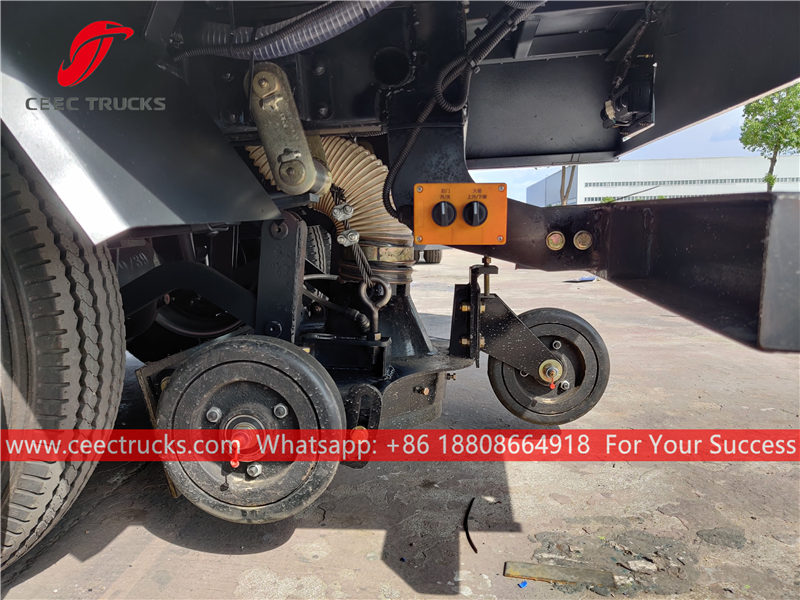

Brooms
|
2 set at each side, at diameter 800 mm
|
Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.
** Air blower can be of stainless steel
|
(Professional Street sweeper manufacturer in China)
Key words: Truck Mounted Sweeper, Street Sweeper truck, Parking lot sweeper
