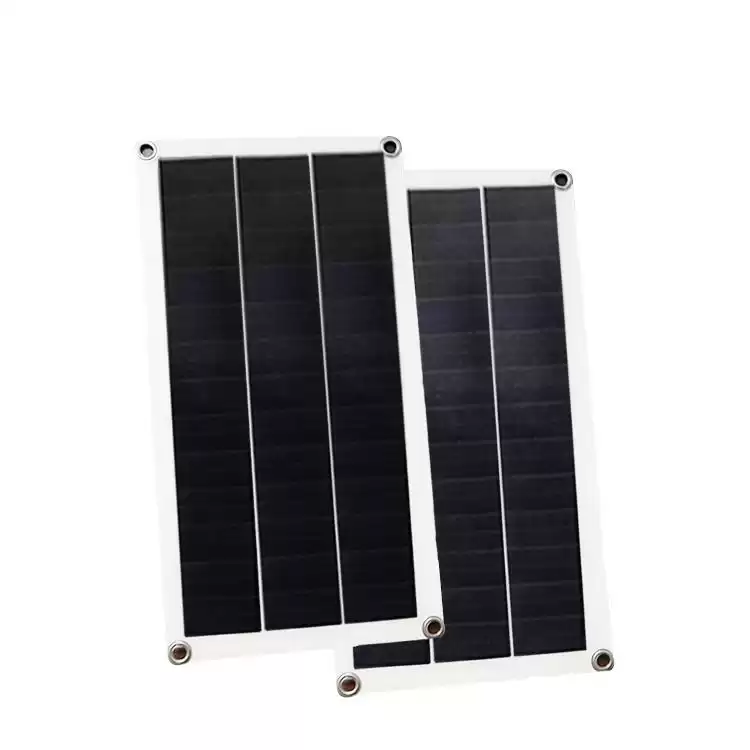

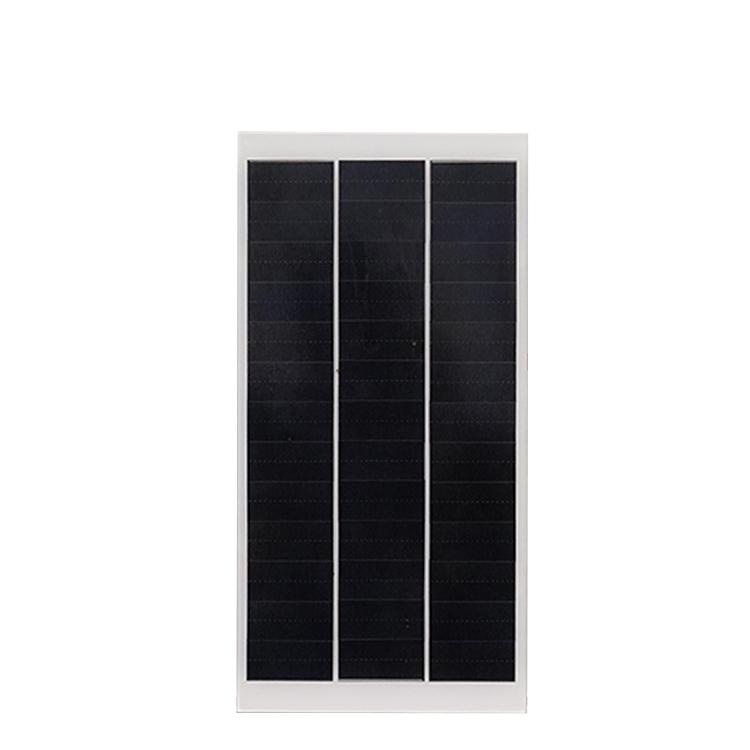

10W Shingled Overlap Solar Module Flexible Solar Panel with USB Connector
Product Details
|
|
|

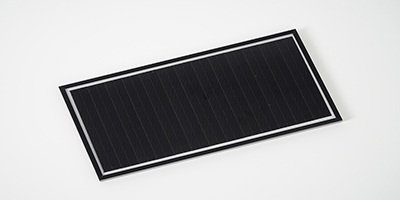

Beautiful appearance
|

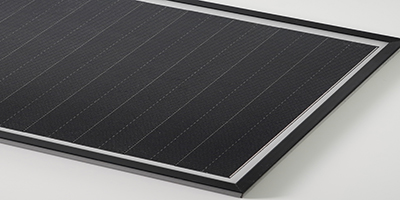

Innovative structure technology
|
|
|
|

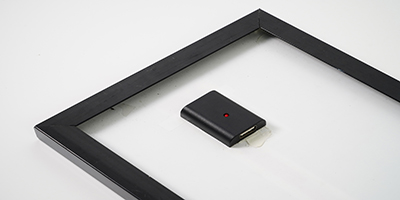

IP68 Junction box
|

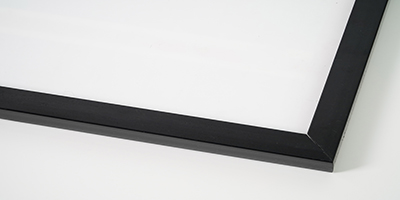

Black frame
|

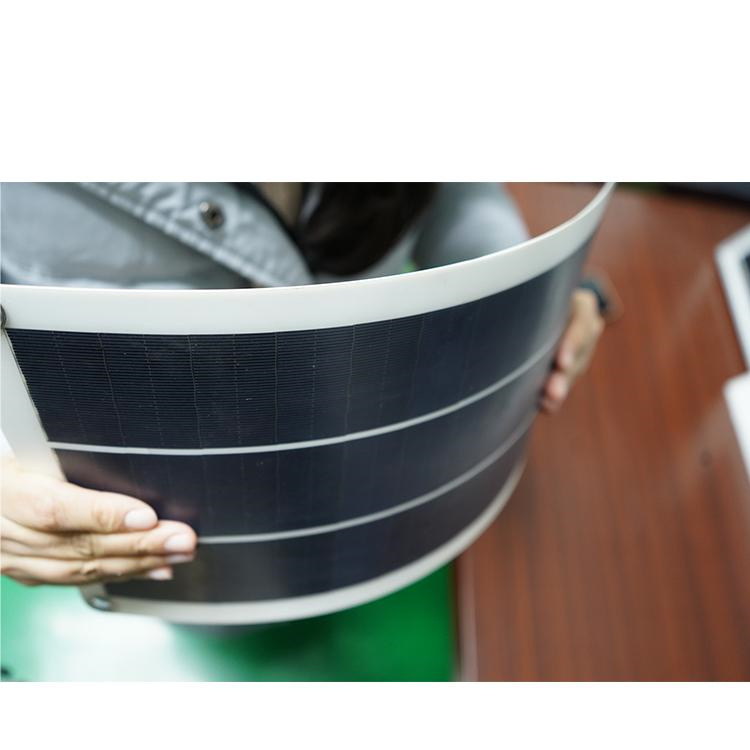

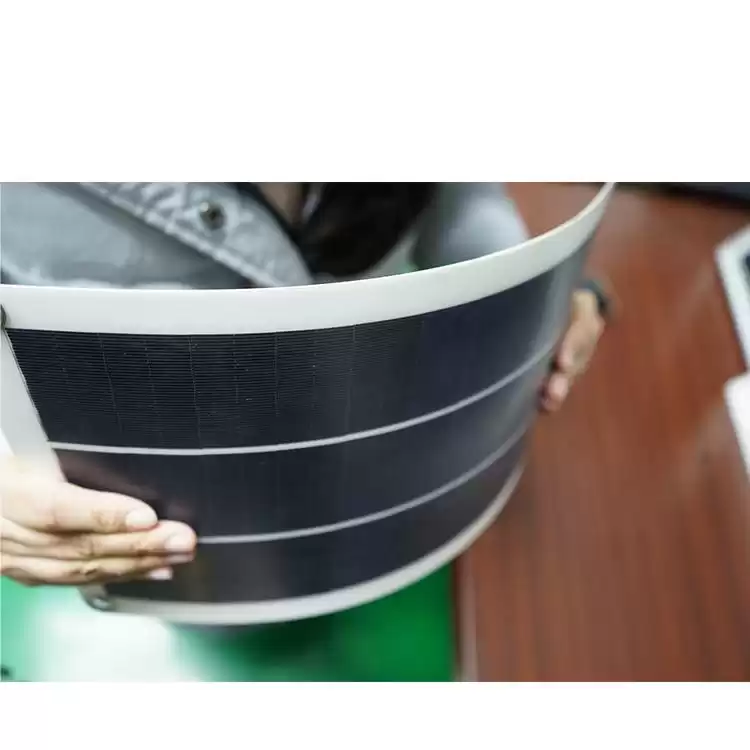

Flexible solar panels gathers many advantages, without glass, its weight is 70% lighter than conventional glass modules.
Plus, installed by "Quick-bonding", flexible panels requiries no penetration, and reduce mounting brackets as well.
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon
|
|
NO. of Cells
|
12(12*1)
|
|
Dimensions
|
180*340*17mm
|
|
Weight
|
0.35kg
|
|
Junction Box
|
IP67 rated
|
|
Front Glass
|
AR coating tempered glass, 3.2mm
|
|
Frame
|
Anodized aluminum profile
|
|
Output Cables
|
4.0mm²,900mm（Be customized by customers）
|
|
Connectors
|
MC4 or Customized
|
|
ELECTRICAL PARAMETERS
|
|
Rated Maximum Power (Pmax) [Wp]
|
10
|
|
Open Circuit Voltage (Voc) [V]
|
7.2
|
|
Short Circuit Current (Isc) [A]
|
1.84
|
|
Maximum Power Voltage (Vmp) [V]
|
5.8V
|
|
Maximum Power Current (Imp) [A]
|
1.73A
|
|
Module Efficiency [%]
|
22%
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
DC 1500 /1000 (IEC)
|
|
Maximum Series Fuse Rating
|
20
|
|
Application Class
|
Class A
|

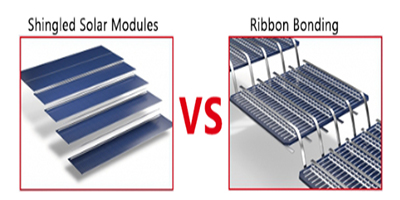

Difference
|
|
|
Different welding methods
|
When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.
|

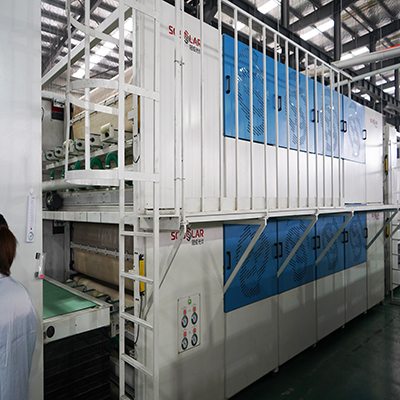

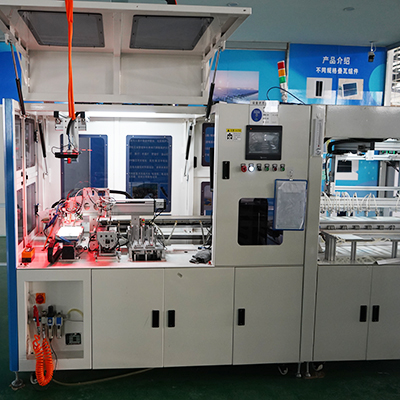

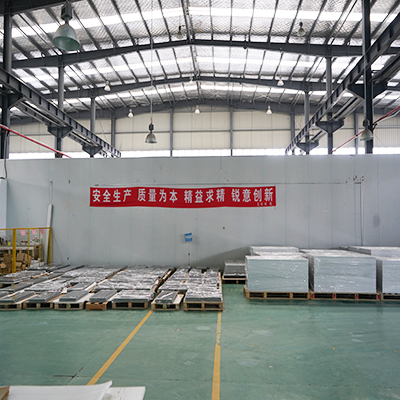

Factory Production

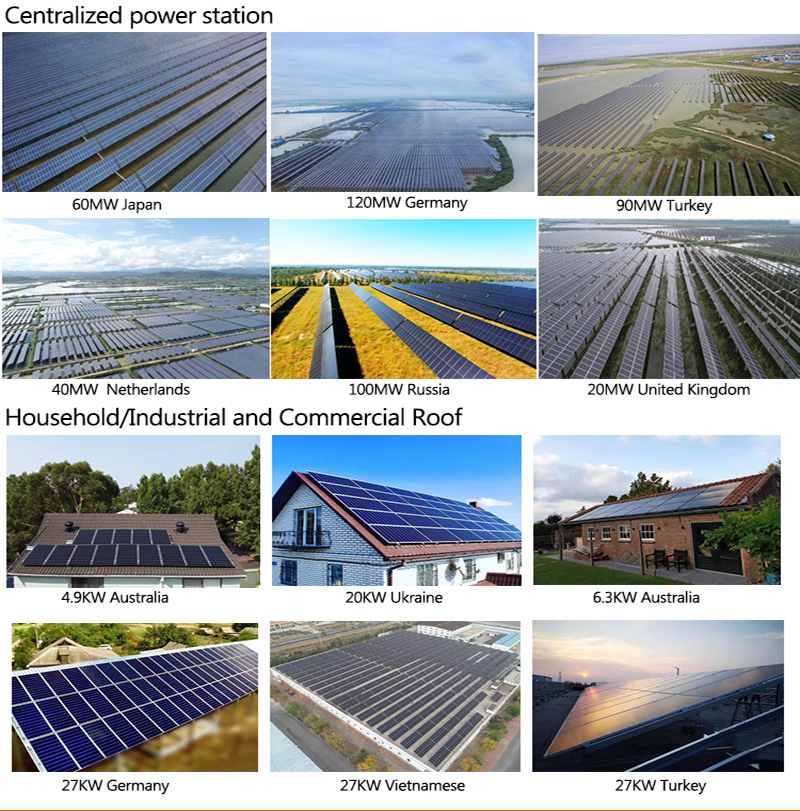

Projects
FAQ
Q1: How do you pack the products?
A1: We packed the solar panels by carton first, and then load in pallet. Stong and firm package will protect it safely after long-term sea shipment.
Q2：What's the trade term do you accept?
A2: We could accept FOB, CFR, CIF, DDU.
Q3: How do I pay?
A3: Both TT and LC are acceptable. TT will be more appreciated, 30% TT deposit before production, and 70% balanced before shipment.
Q4: What certificate do you offer?
A4: CE, IEC, CEC, ISO, INMETRO are available, if your country need other certificate, just feel free to let me know, we will support to apply for the relevant certificate for you.
Q5: What types of solar panel do you supply?
A5: There are mono-crystalline, poly-crystalline, bifacial dual glass, flexible, shingled type available for your choose.
