FOTOVO 20KW Technical Support Hybrid Solar Inverter

It is widely used in remote mountainous areas,no power areas,island,as well as communication,transportation,energy storage systems and so on.

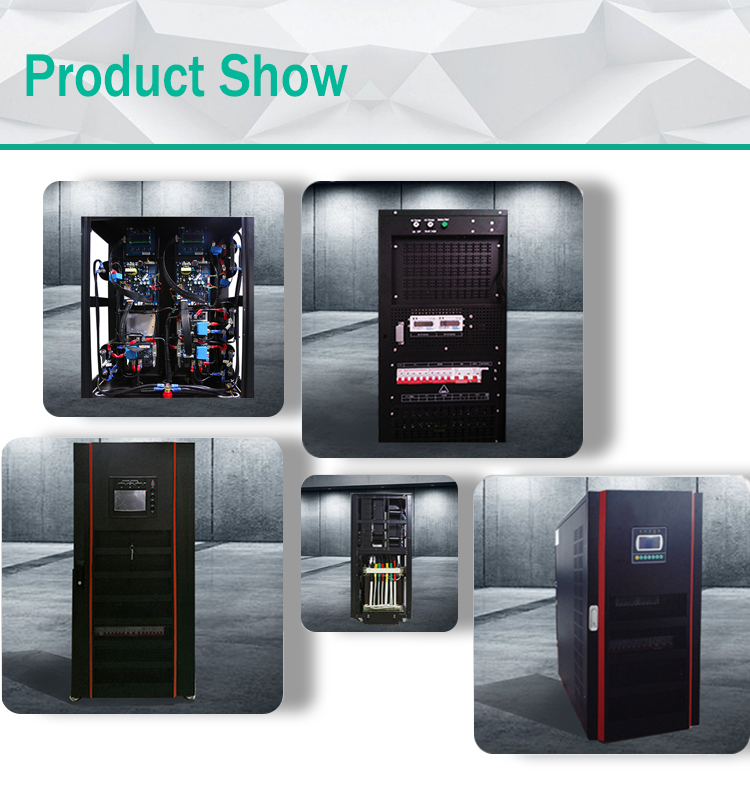

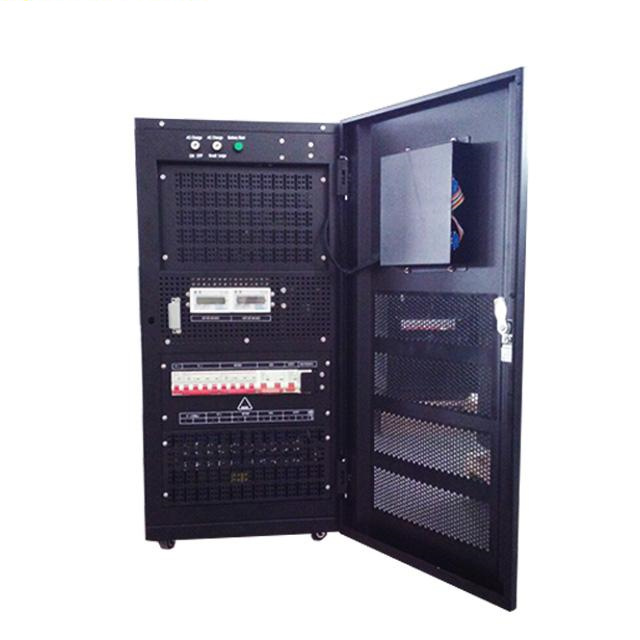

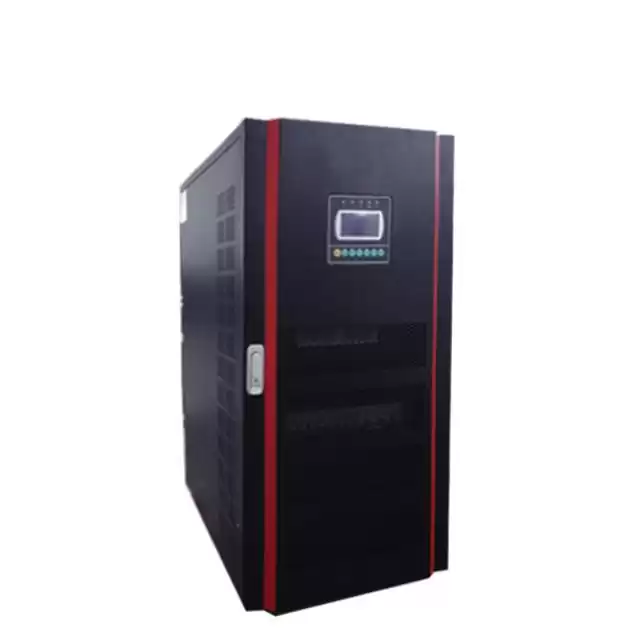

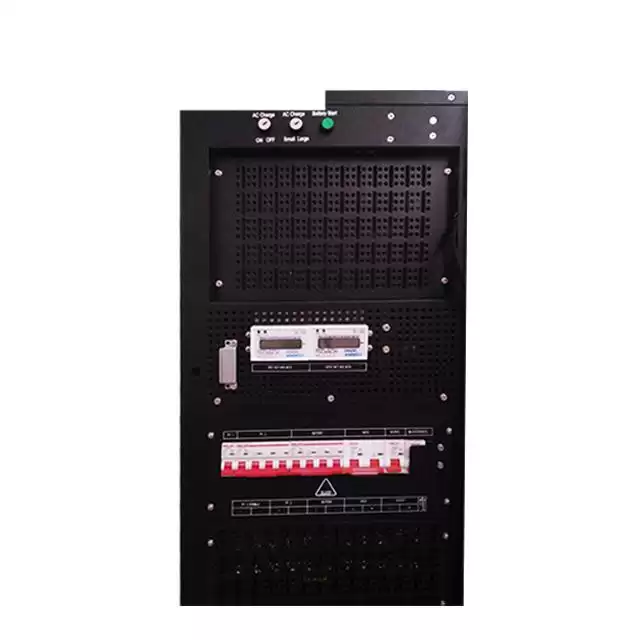

FOTOVO Three Phases 20kw Hybrid Solar Inverter

On-line working mode,high-speed stacic switch switch switching.
Adopting multi-mode design,meeting the needs of different system power supply.
Using multi-feed type converter circuit structure,the energy of solar energy,power supply and battery can be distributed freely.
Suitable for wide range input of mains power,the input rectifier circuit adopts bidirectional converter .The power can be fed into the rectifier to supply power to the inverter,or the residual energy of the solar energy can be fed back to the grid.

Technical Details

Model	FTV-20KW
Rated output capacity	20KW
Main functional unit	Solar MPPT controller,Mains double rectifier,Inverter double converter,Battery double converter
Isolation type	Non-isolated high frequency
Type of double conversion converter	IGBT Three level converter
Solar
Maximum input capacity	10kwx2
Rated operating voltage	500v
Maximum input voltage	800v
MPPT range	400-800v
Maximum input current	25Ax2
Input line	2 input lines
Grid(converter)
Rated operating voltage	220/380Vac
Rated operating frequency	50/60hz
Input voltage range	±25%。-40%
Input frequency range	±10%
Maximum input power capacity	30KW
Maximum output	20KW
Output(inverter)
Rated operating voltage	220/380Vac
Battery
Rated voltage	240V(192V-288VCan be adjucted)

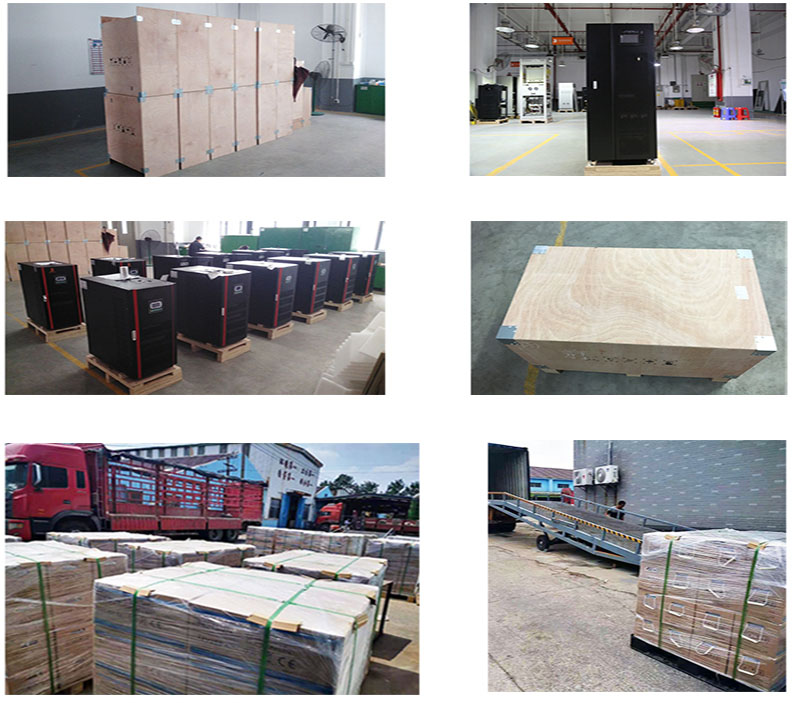

Packing&Delivery
