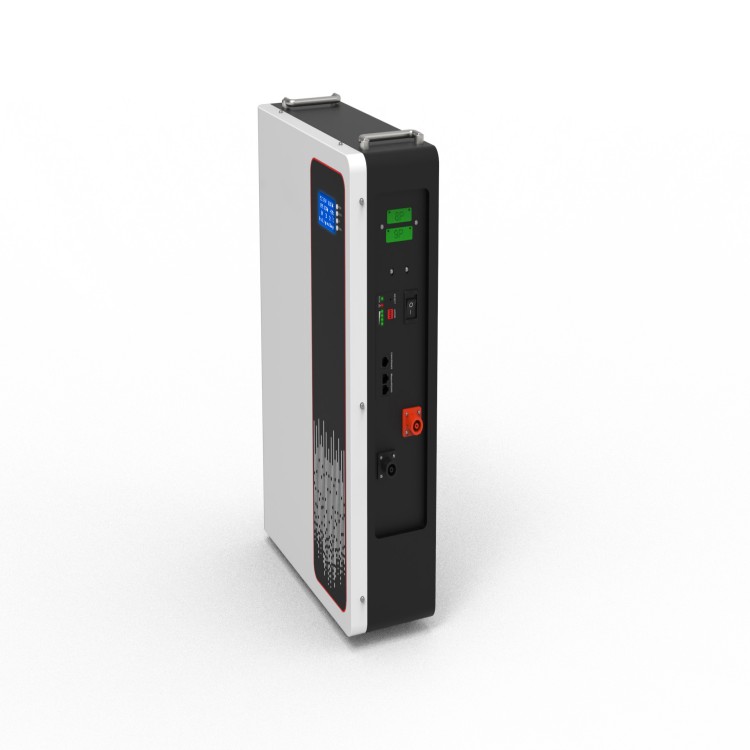

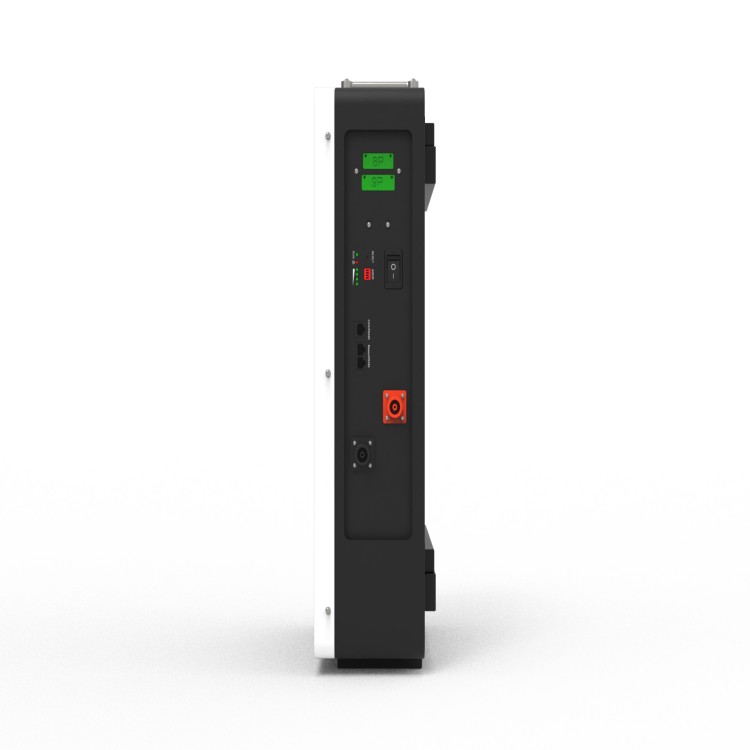

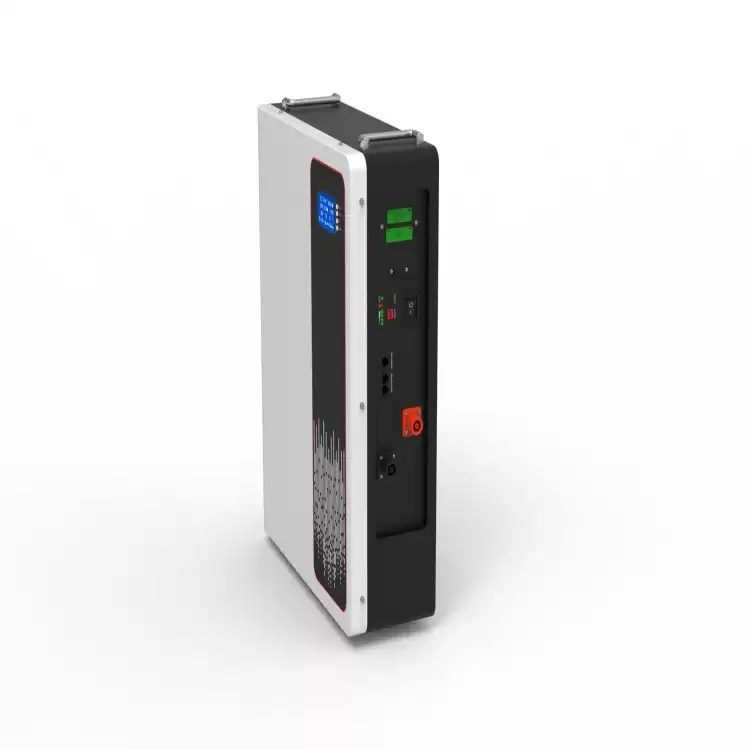

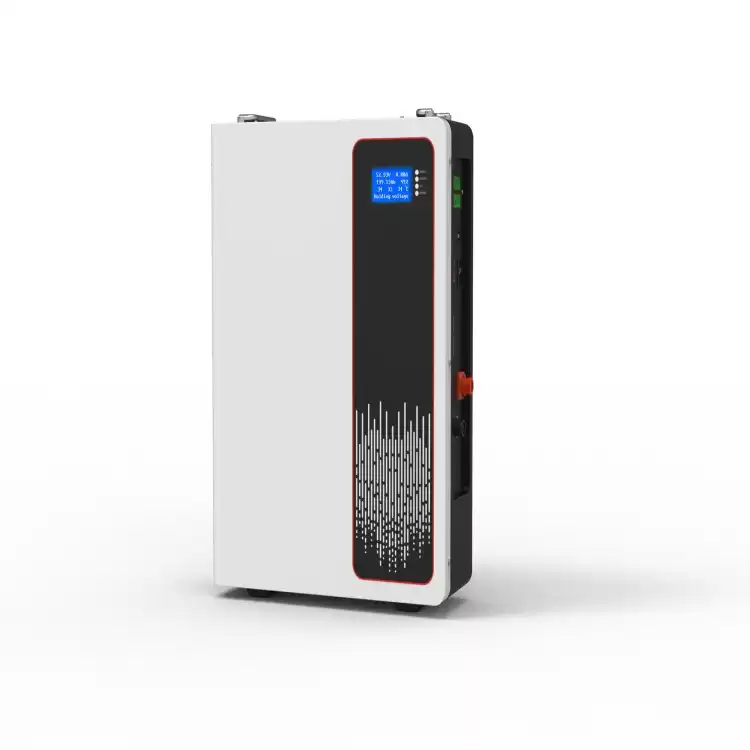

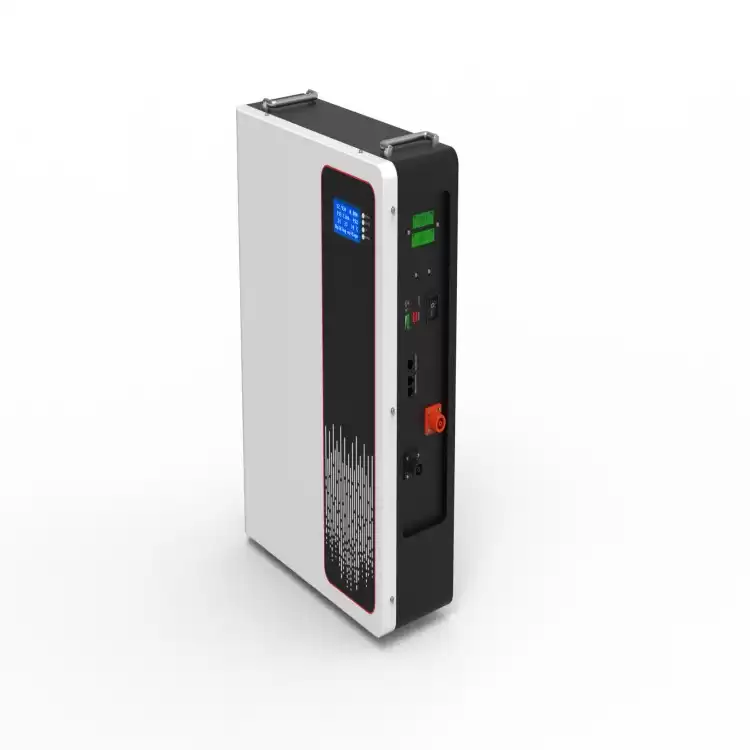

FOTOVO 48V100AH High Quality EU/US Power Wall Lithium Battery Pack 51.2V with 6000 Cycles

FOTOVO Selling Wall Stand Lithium Battery Pack 5KWH 10KWH With 6000 Cycles CATL

Cells SK-51.2V200Ah Power Wall Design

This product main feature of this product is top brand cells such as CATL/BAK , grade A+ quality, Cells cycle times 6000 cycles, 5 years warranty, 10+ years life design. Optional for cells brand (BAK/CATL) and IP Level (IP20/65), High density, small size and weight, Power wall design, space saving design. Big charge and discharge current up to 100Ah, suitable for solar storage system, LCD display with communication port(CAN/RS485/RS232), smart BMS can communicate with Different Brand of Hybrid Solar Inverter like: Deye, Growatt, Voltronic, Goodwe, SMA, etc.


  • CertificateCE,ROHS
  • Warranty3

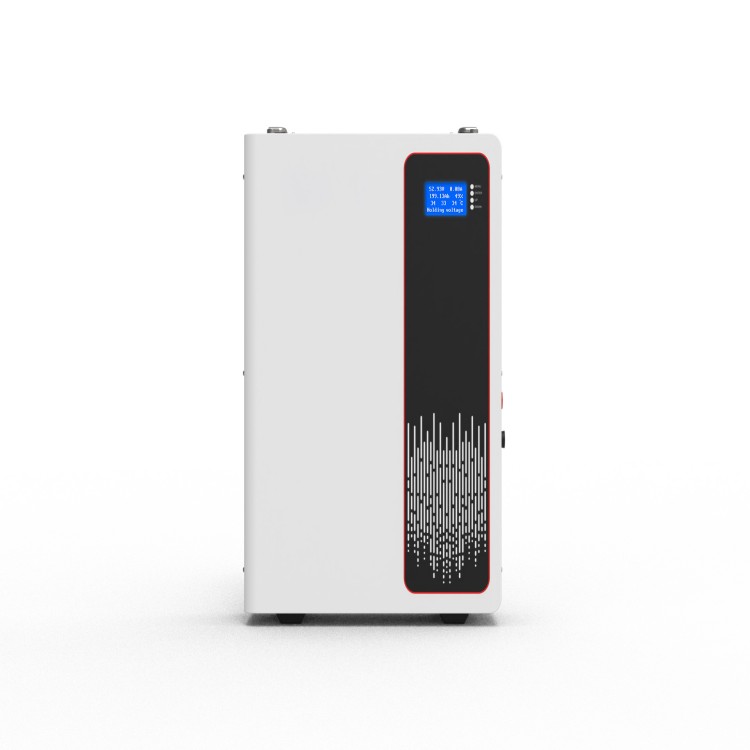

FOTOVO High Quality EU/US Power Wall Lithium Battery Pack 51.2V with 6000 Cycles

Product Advantages

1. Large Capacity
2. LiFePO4 Lithium Battery, no memory
3.Beautiful and industrial design
4.LCD display with communication port(CAN/RS485/RS232) .
5.All around protection
6.Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter





Product Parameters


MODEL
SPECIFICATION
Batery Type
Li-Wall-l
51.2V100AH
Li-Wall-II
51.2V100AH
Li-Wall-lll
51.2V100AH
Li-Wall-1
51.2V200AH
Li-Wall-l1
51.2V200AH
Li-Wall-Bli
51.2V200AH
LiFePO4
LiFePO4
LiFePO4
LFePO4
LiFePO4
LiFePO4
Normal Battery Model
51.2V100AH
51.2V100AH
51.2V100AH
51.2V200AH
51.2V200AH
51.2V200AH
Normal Capacity(25C,0.2C)
5120Wh
5120Wh
5120Wh
10240Wh
10240Wh
10240Wh
Voltage window(Vdc)
44.8~58.4V
44.8~58.4V
44.8~58.4V
44.8~58.4V
44.8~58.4V
44.8~58.4V
Folat Charge Volage(Vdc)
55.2V
55.2V
55.2V
55.2V
55.2V
55.2V
Max.continue discharge current
100A
100A
100A
100A
100A
100A
Max.pulse discharge current
150A 1Sec.
150A 1Sec.
150A 1Sec.
150A1Sec
150A 1Sec.
150A1Sec
Max.continue charge current
50A
50A
50A
100A
100A
100A
Cels Brand
CATL
CATL
BAK
CATL
CATL
BAK
IP degree
IP 20
IP 65
IP65
IP 20
P 65
IP65
Cyde lfe(+25C 0.2C 100%dod)
>6000 Cycles
Terminal
M8
Stor age temperature
OC~30C
Storage duration
6 months at 25C
Safety standard
UN38.3.MSDS.CE
Communication function
PROTECTION
RS485/CAN(Communication protocol supported inverter brand Deye,Growatt,
Volironic,GOODWE,VICTRON,PYLONTEC,SMA,SOFAR
Prote ction
AMBIENT
Overcharge prote ction,Overdischarge protection.Overcurrent protection.
Shortcircuit prote ction.Overtemperature prote ction
Working Temper ature
-10C~+50C
Humidity
0-95%(no condensation)
Sea Level(m)
≤1500
DIMENSION
LxWH(products size)mm
786"455*181
849*502*183
705*498*183
1021*605*190
1072*625*192
1021*612*192
LxWH(package size)mm
851*537*245
901567”245
734*550*233
1145*715*365
1145*715*365
1094*728*365
Weight(NW Kg)
56kg
58.0kg
50.0kgs
109.0Kg
11.0g
101.0Kg
Weight(GW Kg)
6kg
63.0kg
52.0kg
135.0Kg
140.0Kg
127.0Kg
Certifications

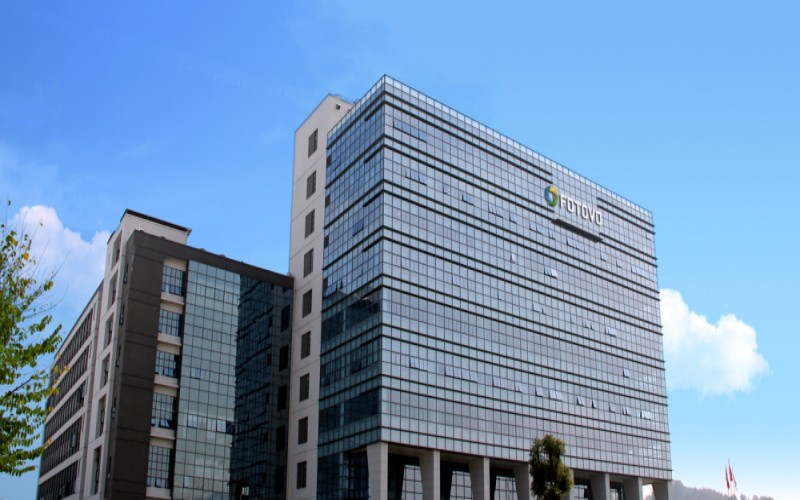

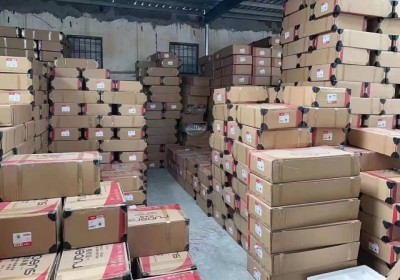

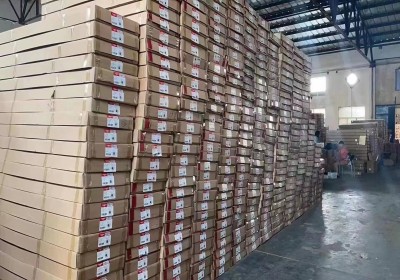

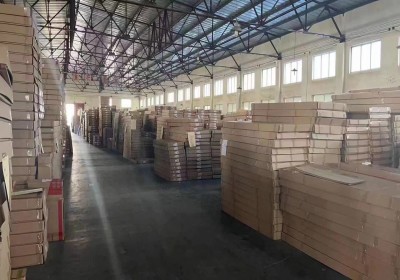

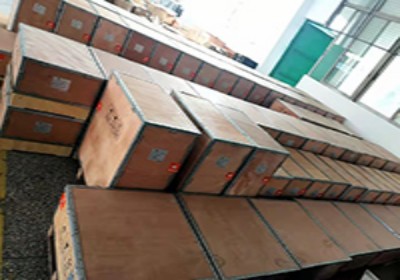

 Factory and Packing




FAQ

1 How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity? A:20 pieces

3. Can you introduce your company?

A:l am very honored. l will send you the company's introduction document later to give you a more comprehensive and direct introduction to our company's information.

4. What are the advantages of your company?

A:Adequate inventory and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
