FOTOVO 635-670W Bifacial Dual Glass Shingled Solar Panel With Monocrystalline

Dual glass shingled solar module has higher power generation efficiency and lower attenuation rate. Shingled solar module with no welding crack, low operating temperature, high compressive strength is safe and reliable.



  • Warranty30 years linear warranty
  • CertificateTUV, CE, IEC

FOTOVO Monocrystalline Bifacial Dual Glass Shingled Solar Panel

Product Features

1.With innovative structure, low-temperature adhesive,and high-density layout.

2.Beautiful appearance, even layout, more scientific and technological aesthetic.

3.Safe and reliable: no welding crack, low operating temperature and high compressive strength.

4.Super-high“Screen ratio”to reduce system cost.

5.The low heat spot effect: prolong the life of components and reduce the generation loss.

6.All-parallel arrangement brings high effective generation hours to reduce the power loss caused by the shading.

7.Green environmental protection: adhere to the green concept, non-fluoride low lead.

Product Specification

Mechnical Parameters
Solar Cells Monocrystalline
Glass
Dual glass, 2.0mm toughened glass
No. of Cells
414pcs(69*6)
Dimensions
2384x1303x35mm
Weight 39.0kg
Junction Box IP68,Split type,diodes
Frame Anodized aluminum alloy
Output Cable
4mm2
Electrical Parameters STC
Maximum Power-Pm [W] 650 655 660 665 670
Maximum Powerpoint Voltage-Vm [V] 38.8 38.8 38.9 39.0 39.1
Maximum Powerpoint Current-Im [A]
16.77 16.86 16.95 17.05 17.14
Open-Circuit Voltage-Voc [V]
46.7 46.8 46.9 47.0 47.1
Short-Circuit Current-Isc [A]
17.84 17.94 18.04 18.14 18.23
Module Efficiency-η [%] 20.9% 21.2% 21.2% 21.4% 21.6%
Electrical Parameters NMOT
Maximum Power-Pm [W]
489 493 497 501 504
Maximum Powerpoint Voltage-Vm [V]
37.0 37.0 37.1
37.2 37.3
Maximum Powerpoint Current-Im [A]
13.25 13.32 13.39 13.46 13.54
Open-Circuit Voltage-Voc [V]
44.4
44.5 44.7 44.8 44.9
Short-Circuit Current-Isc [A]
14.37 14.45 14.53 14.61 14.69
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage[V] 1500(DC)
Maximum Series Fuse Rating 30A
Static Load [Pa] B2400/F5400 Pa
The performance to withstand hail

Maximum diameter:25mm

Impact velocity:25m/s

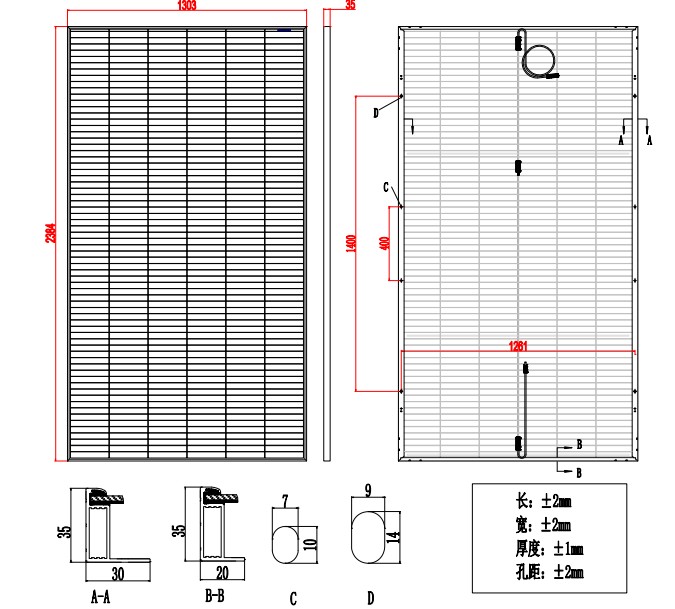

Product Drawing

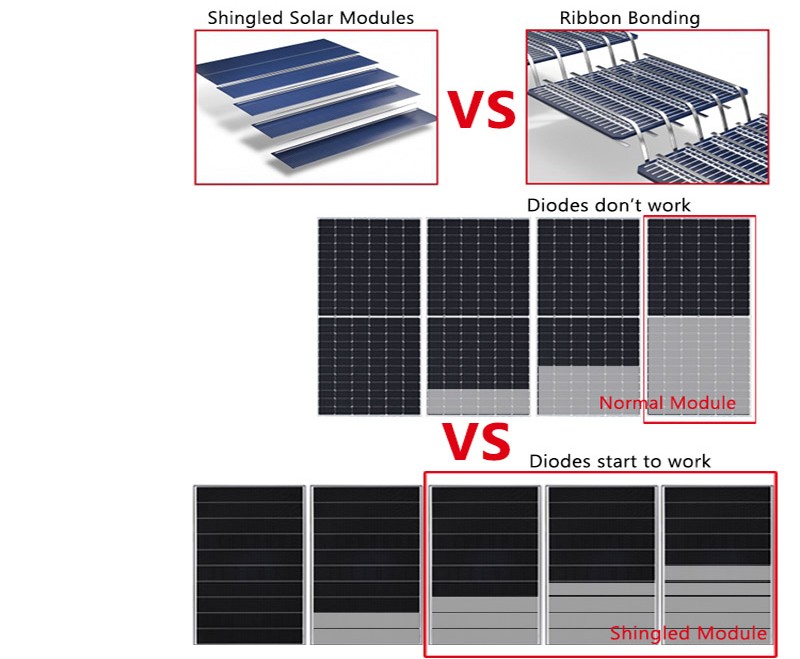

Difference

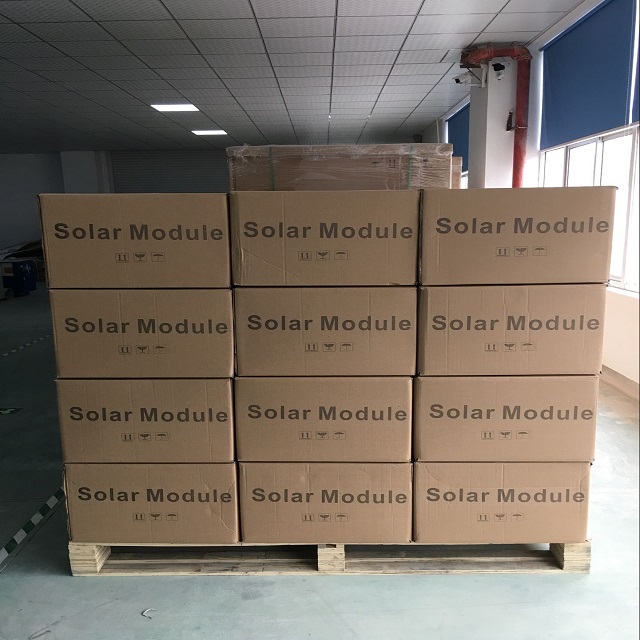

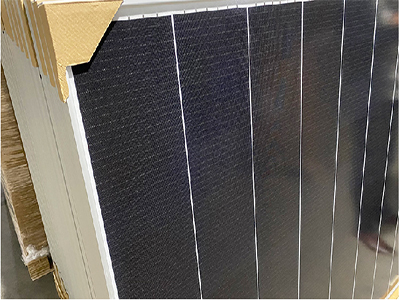

Package

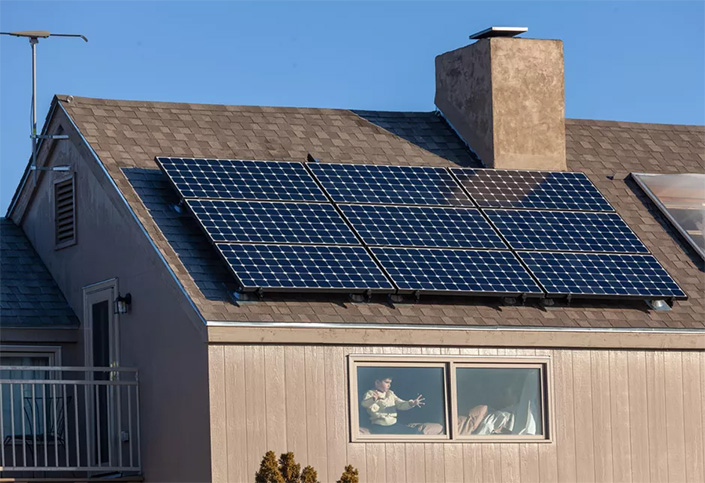

Project



FAQ

Q1: Can I get samples before order?

A1: Sure, we would like to offer samples for your evaluating the quality first.


Q2: What about the lead time?

A2: Sample needs 10 days, mass production needs 2-3weeks.


Q3: What’s the warranty?

A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.


Q4: How can I pay the solar panels ?

A4: We could accept payment by T/T, Paypal, West union etc.


Q5: How can I contact you?

A5: Pls feel free to leave a message on our website, any question will be answered asap.
