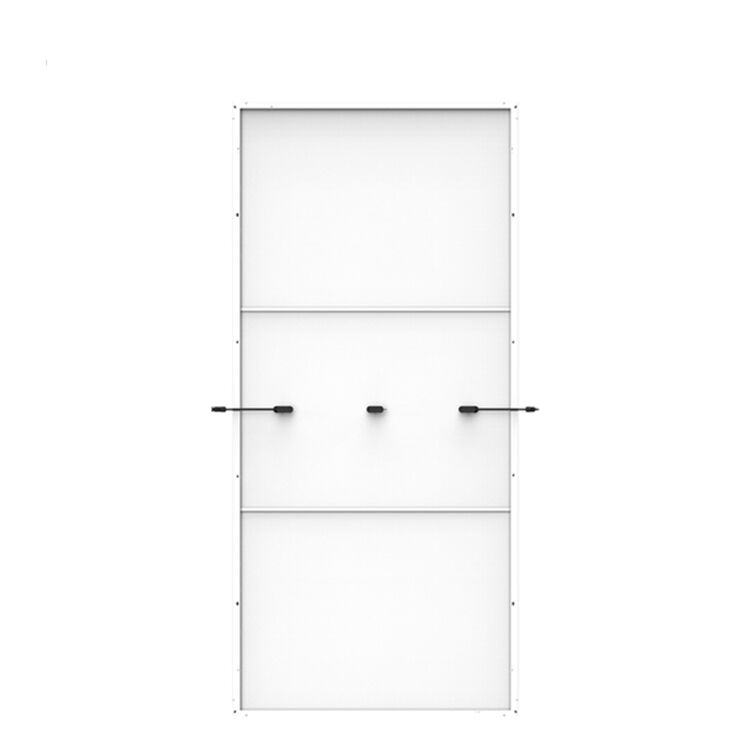

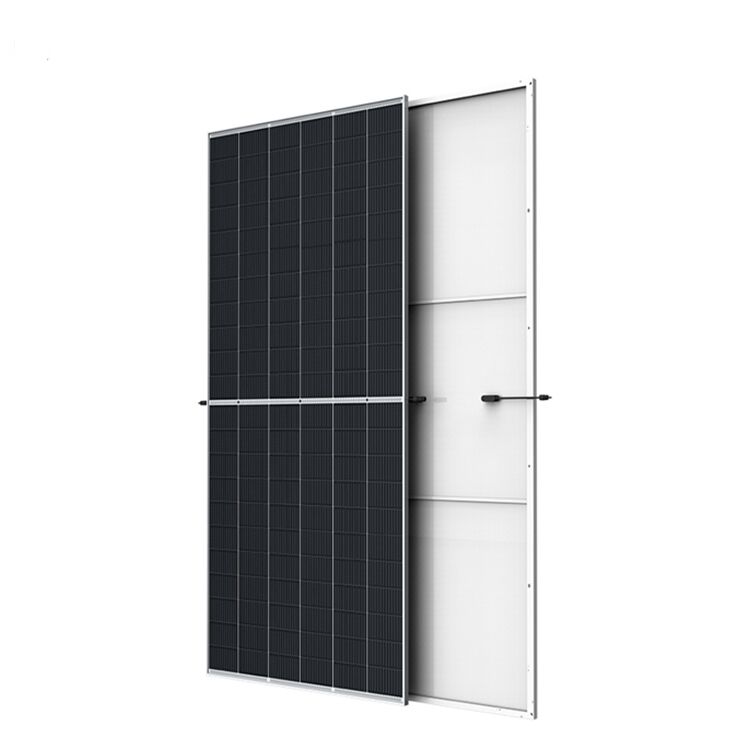

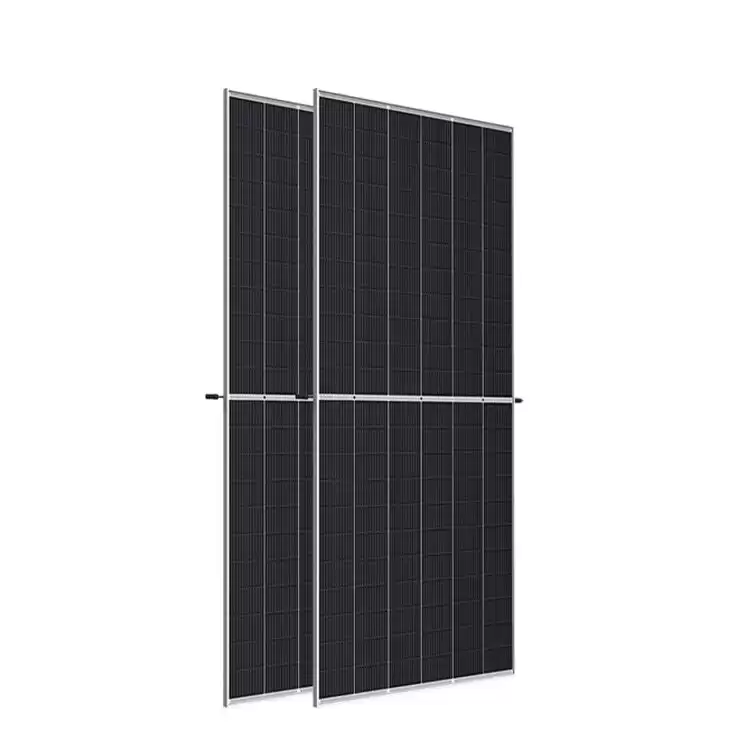

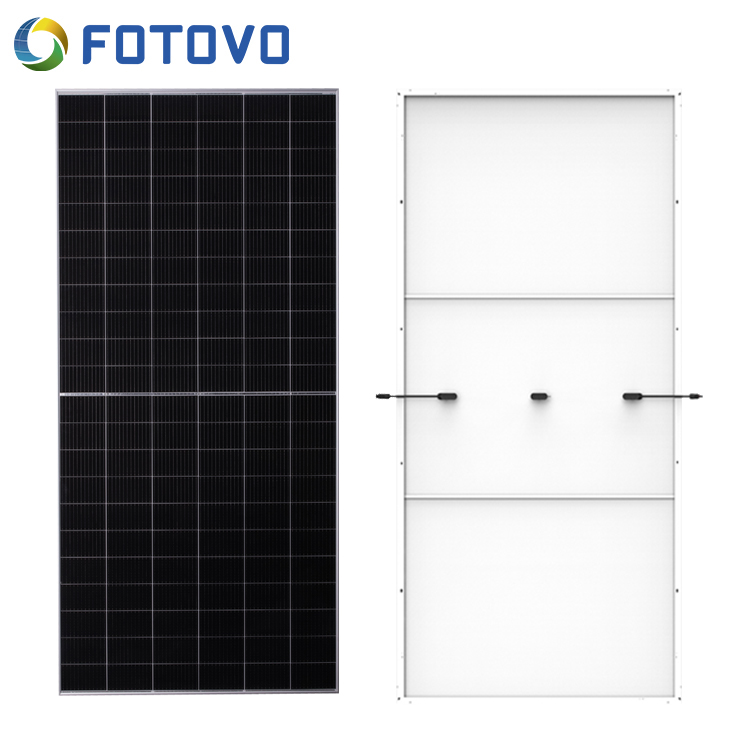

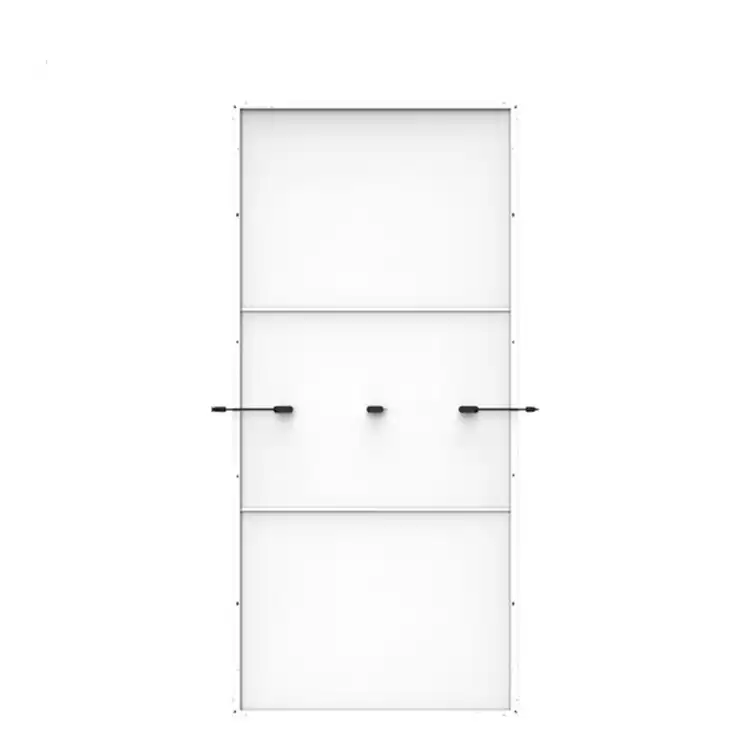

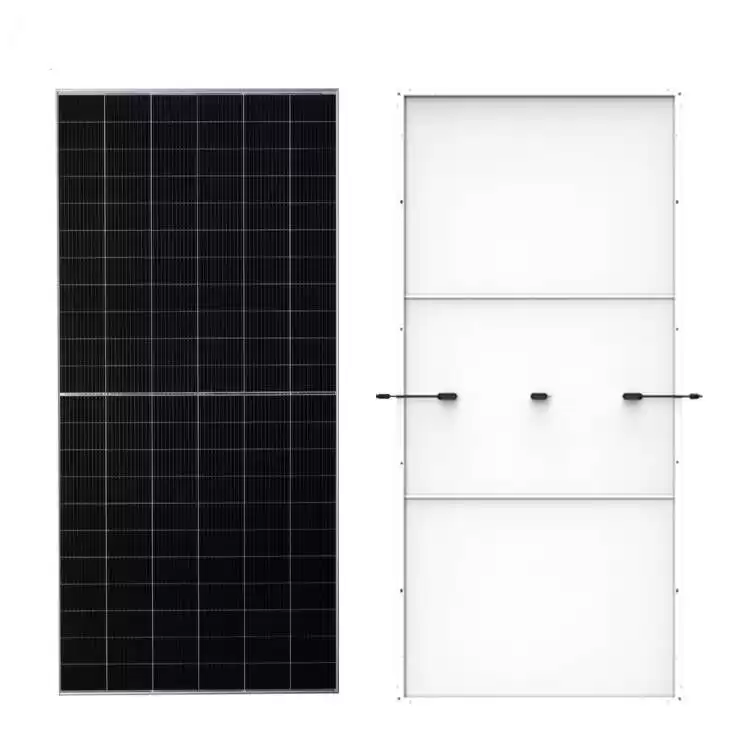

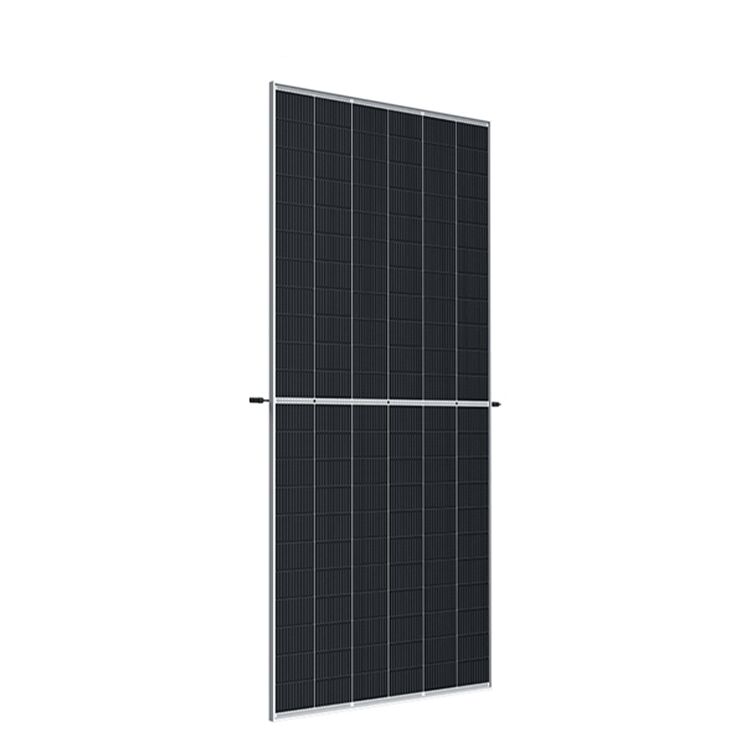

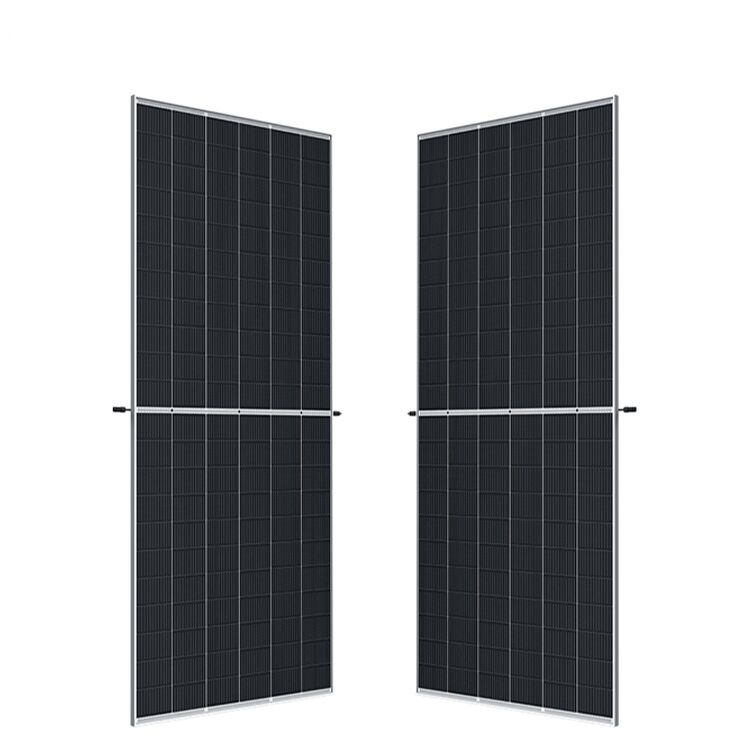

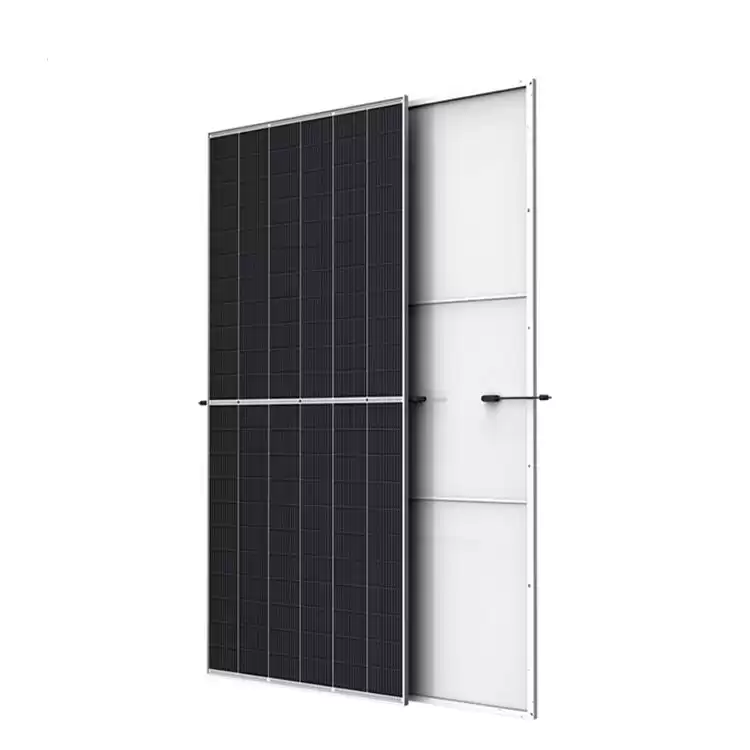

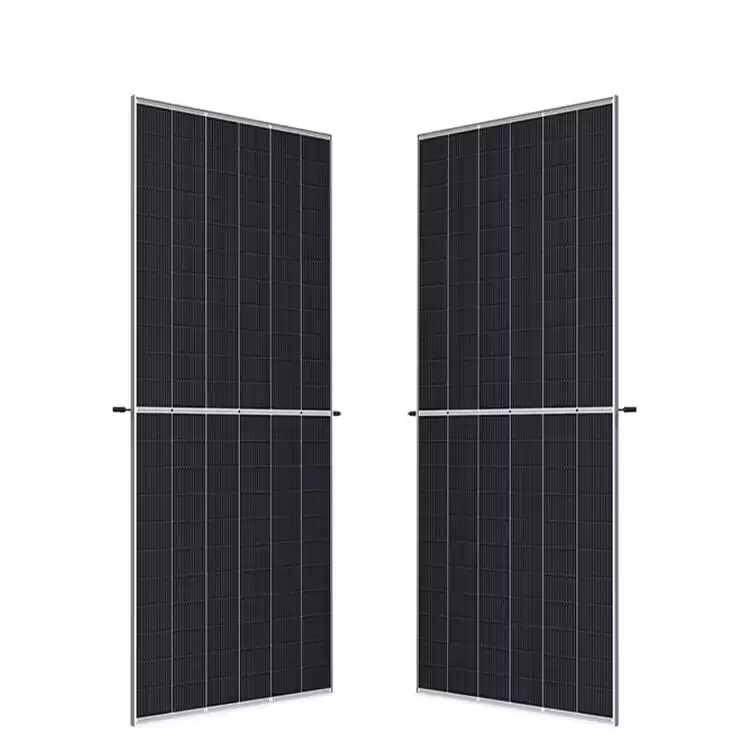

FOTOVO 650W HJT 12BB Monocrystalline Half-Cut Module
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module,whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon
|
Specification
|
Mono 210x105mm
|
|
No. of Cells
|
132pcs(6x22)
|
|
Dimensions
|
2384x1303x35mm
|
|
Weight
|
33.7kg
|
|
Junction Box
|
IP68, 3 diodes
|
|
Frame
|
Anodized aluminum alloy
|
|
Output Cable
|
4.0mm2
, 300mm
|
Electrical Parameters STC
|
|
Maximum Power (Pmax) [W]
|
650
|
655
|
660
|
665
|
670
|
|
Maximum Power Voltage (Vmp) [V]
|
37.91
|
38.11
|
38.29
|
38.49
|
38.69
|
Maximum Power Current (Imp) [A]
|
17.15
|
17.19
|
17.24
|
17.28
|
17.32
|
Open Circuit Voltage (Voc) [V]
|
45.00
|
45.21
|
45.39
|
45.59
|
45.79
|
Short Circuit Current (Isc) [A]
|
18.38
|
18.44
|
18.47
|
18.51
|
18.55
|
|
Module Efficiency [%]
|
20.93%
|
21.09%
|
21.25%
|
21.41%
|
21.57%
|
Electrical Parameters NMOT
|
Maximum Power (Pmax) [W]
|
483
|
487
|
491
|
494
|
499
|
Maximum Power Voltage (Vmp) [V]
|
34.67
|
34.83
|
35.01
|
35.19
|
35.26
|
Maximum Power Current (Imp) [A]
|
13.94
|
13.99
|
14.02
|
14.05
|
14.16
|
Open Circuit Voltage (Voc) [V]
|
41.83
|
42.02
|
42.19
|
42.37
|
42.58
|
Short Circuit Current (Isc) [A]
|
14.85
|
14.89
|
14.92
|
14.95
|
14.98
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage[V]
|
1000 (DC)/1500(DC)
|
|
Maximum Series Fuse Rating
|
30A
|
|
Application Class
|
Class C
|
|
Maximum Surface Load Capacity[Pa]
|
2400/5400 Pa
|
Product Details
HJT is considered one of the top cell technologies with highest bifaciality. Higher bifaciality allows more energy yield on the back.Generally, it enables 5%-30% energy gain on the back, depending on the factors such as ground reflection, region type etc.

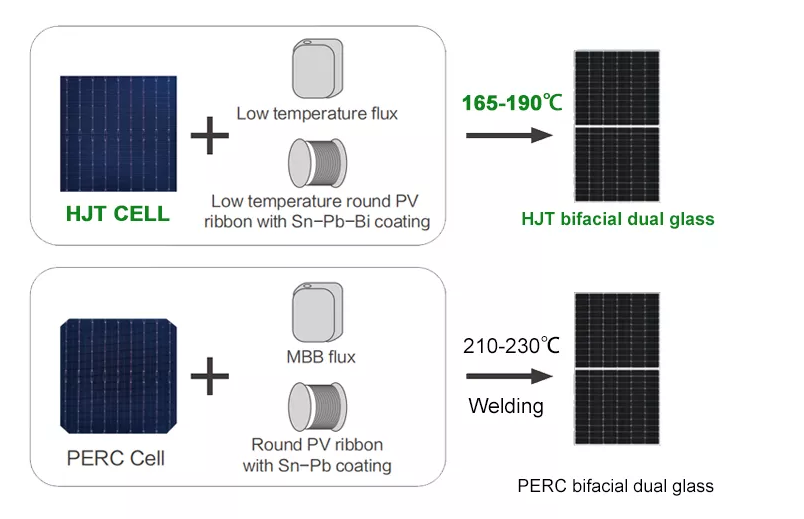

HJT modules adopt the production technology of low-temperature ribbon and low temperature flux, bring much lower damage for the cells, granting reliability and performance comparable to that of PERC.
Package

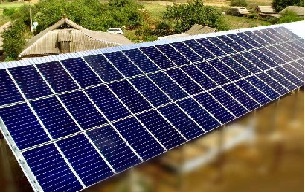

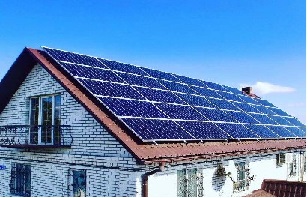

Projects
|

|
|
15kw on-grid solar system in US
|

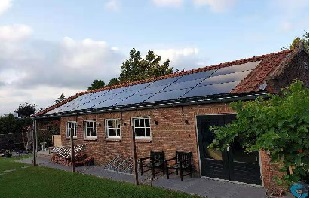

8kw off-grid solar system in Netherlands 20 kw in UK
|
FAQ
Q1: Can I get samples before order?
A1: Sure, we would like to offer samples for your evaluating the quality first.
Q2: What about the lead time?
A2: Sample needs 10 days, mass production needs 2-3weeks.
Q3: What’s the warranty?
A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.
Q4: How can I pay the solar panels ?
A4: We could accept payment by T/T, Paypal, West union etc.
Q5: How can I contact you?
A5: Pls feel free to leave a message on our website, any question will be answered asap.
