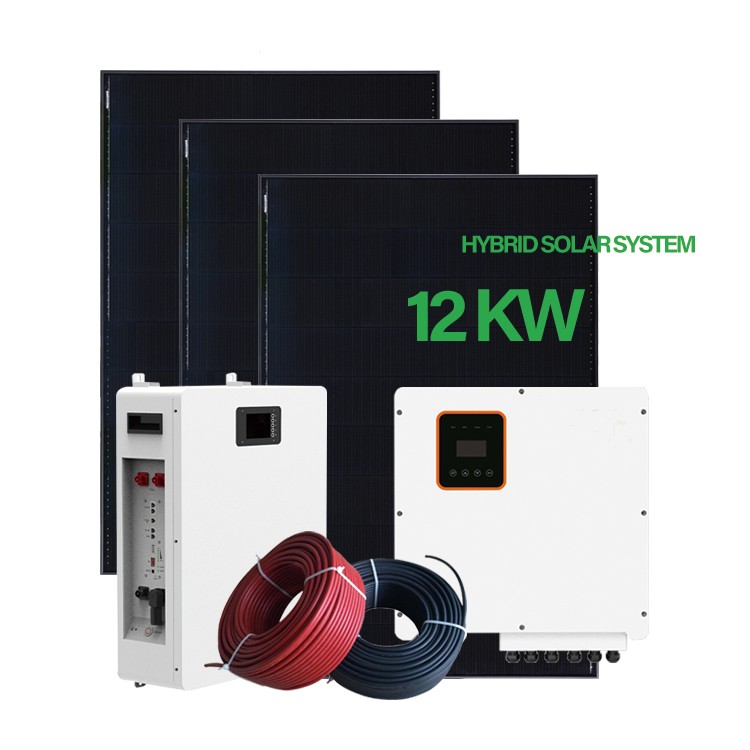

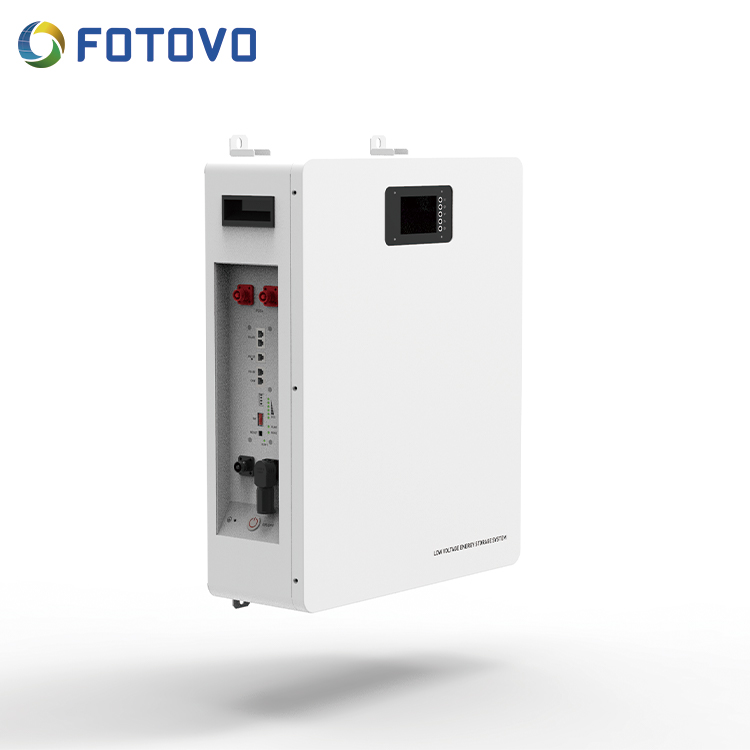

FOTOVO 8-12KW Hybrid Solar Power System Three phase ESS hybrid inverter for house use

Three phase ESS hybrid inverter is compatible with lead-acid and lithium-ion batteries. Support full power discharge, automatic management of battery charge and discharge.Hybrid system can increase revenue, promote energy saving, save eletricity bill for users, reduce the internal temperature and etc.


  • Warranty10 YEARS
  • Certificate UL,TUV,CE,IEC

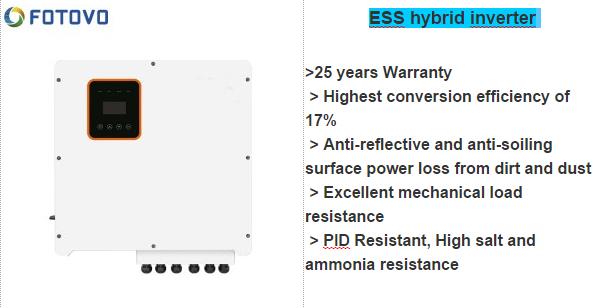

FOTOVO Hybrid Solar System Three phase ESS hybrid inverter for house use

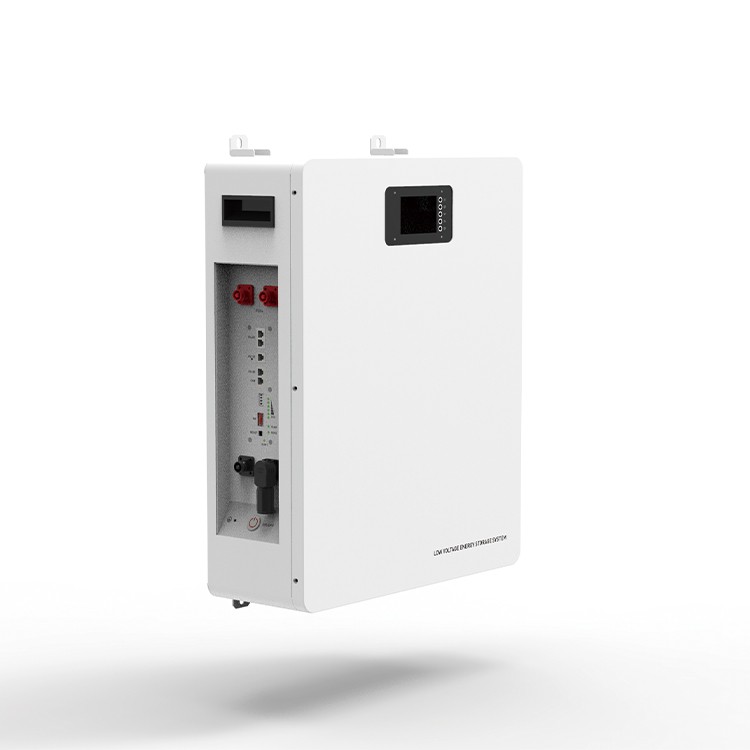

  • Compatible with lithium-ion batteries or lead-acid batteries.
  • Battery reverse connection protection,anti-power control function
  • Support diesel generator input source.
  • Input power source priority can be set by users.
  • IP65 protection, low noise < 35dB.
  • Support full power discharge, automatic management of battery charge and discharge.
  • Family intelligent energy management.
  • Power dispatching and demand response management.
  • Distributed virtual power plant.

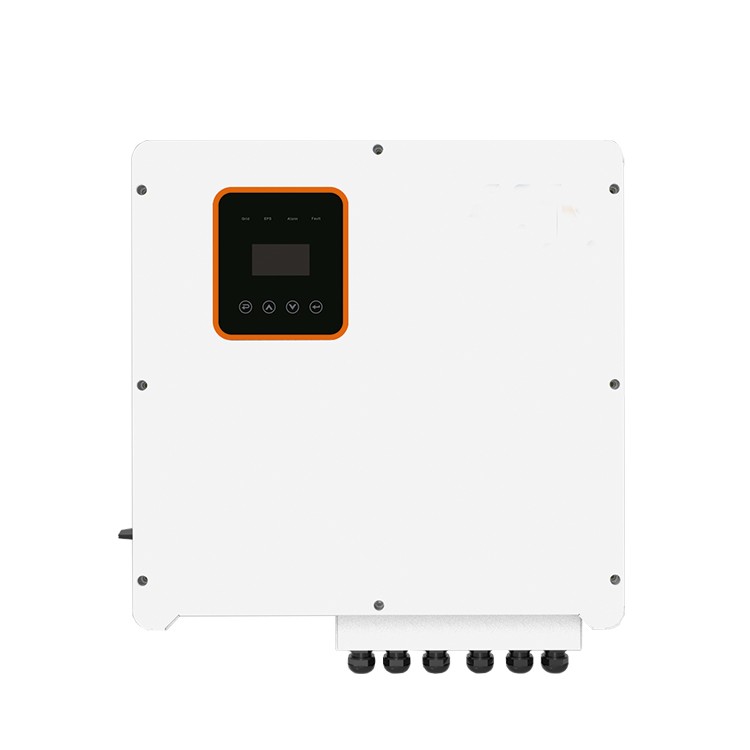

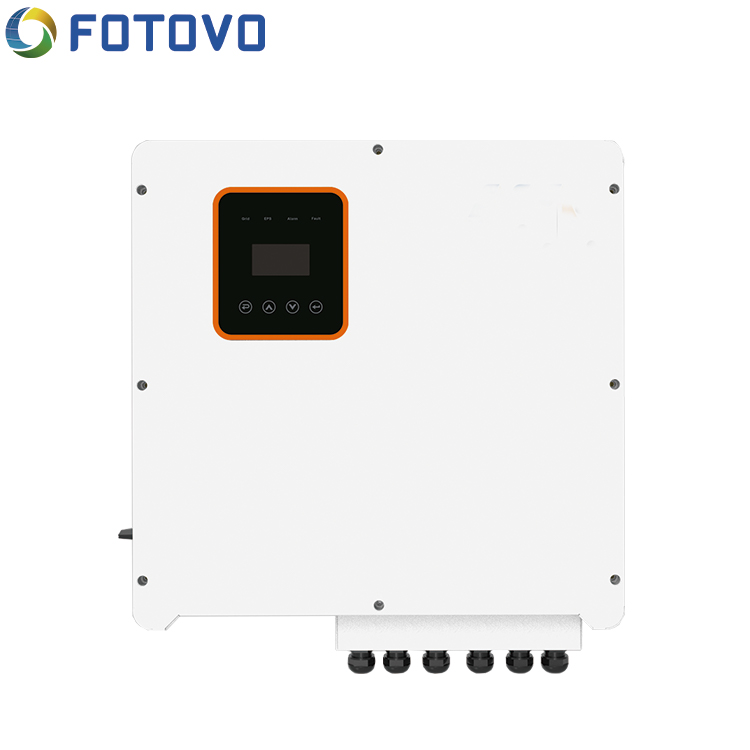

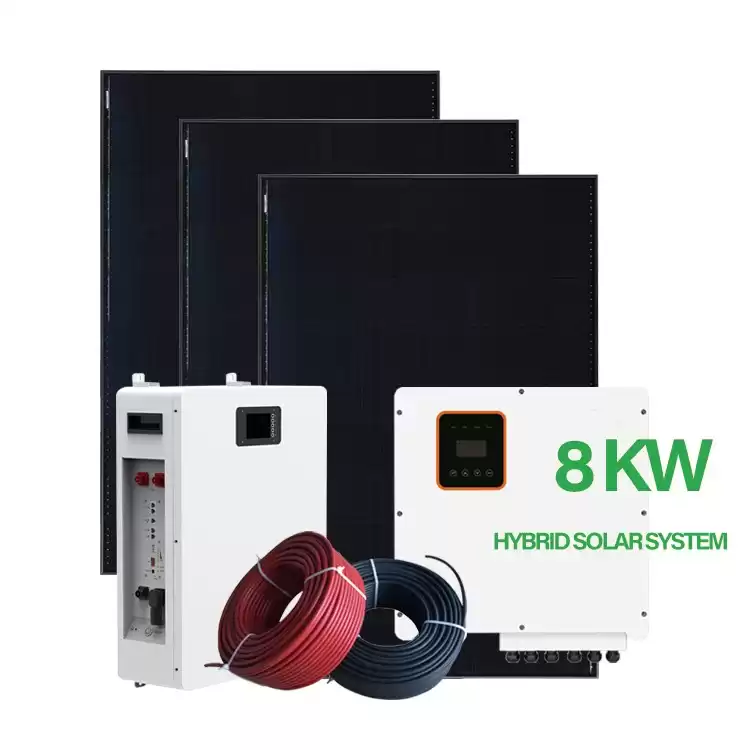

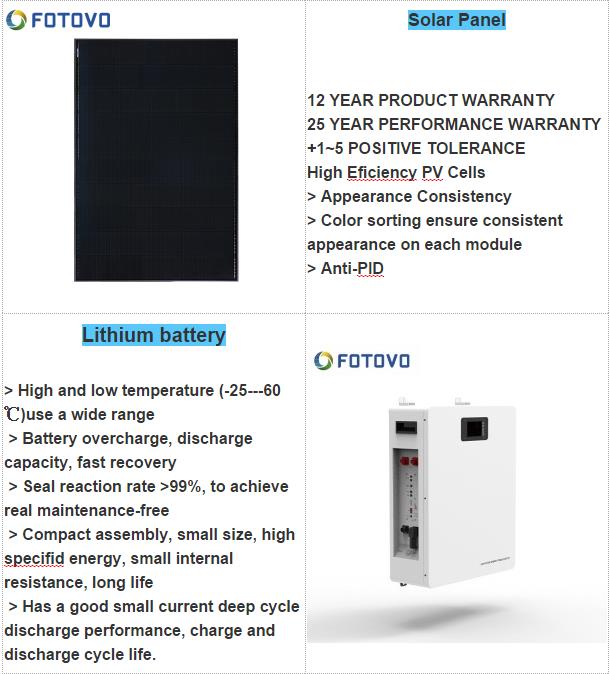

Details Images


Technical Details



Product parameters

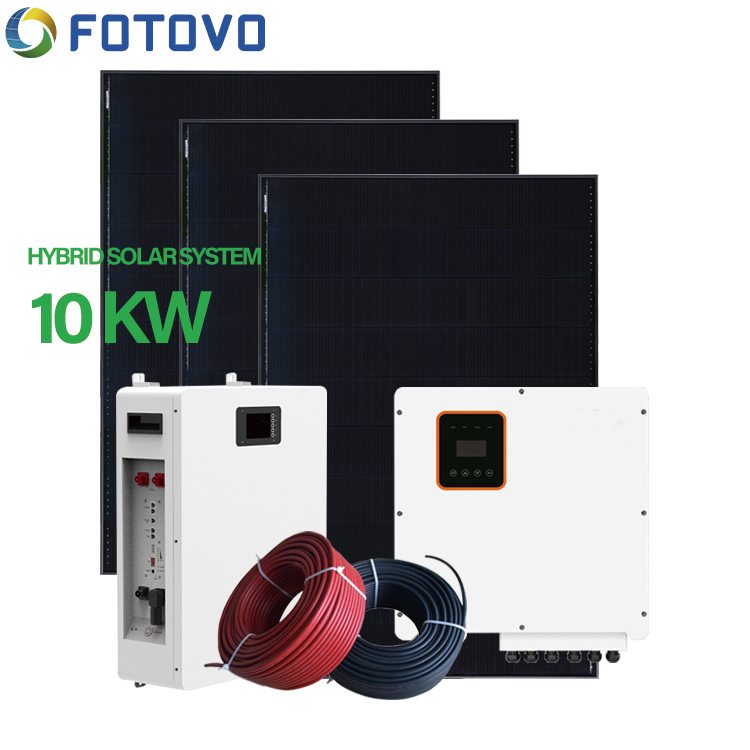

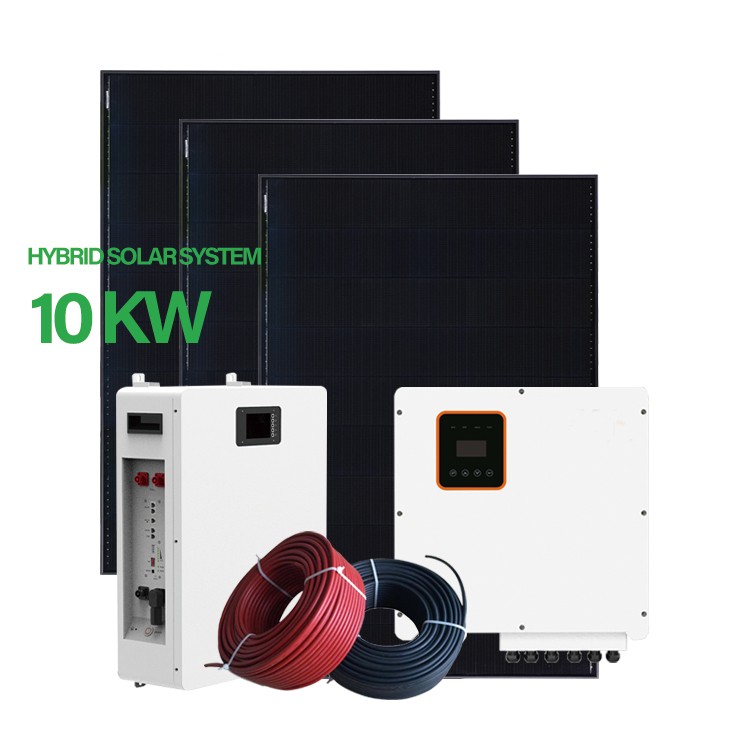

10kw Hybrid Solar Power System
Item Model Description Quantity
1 Solar Panel

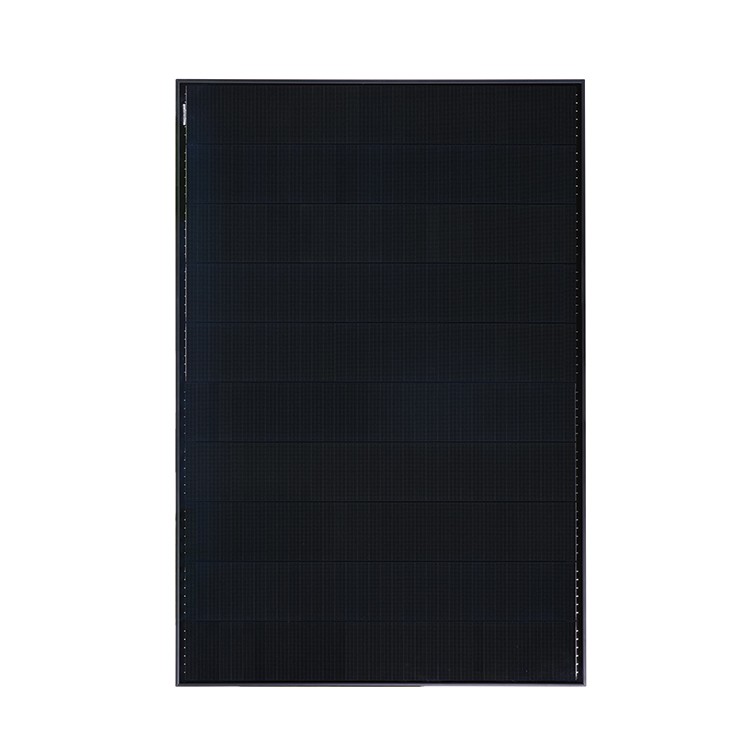

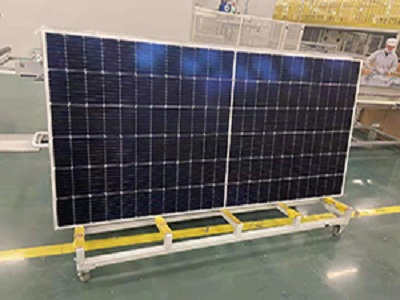

450W half-cell mono solar panel2

3pcs
2 DC Combiner Box
6 inputs 2 outputs(can be customized) 2pcs
3 Hybrid Inverter 10kw standard 2pcs
4 Mounting Supporrt Pitched / flat roof, ground 2pcs
5 PV Cable 10mm² PV cable 200m(can be customized)
6 Connector      Solar connector 20pairs


Product type 8kw
10kw
12kw
Max. Input Power
10.4kw
13kw
15.6kw
Max. Input Voltage
1000V
MPPT Voltage Range
180V ~ 850V
Max.input current of single MPPT(A)
12.5A
Max. Output Current
12.7A
15.9A
19.1A
Rated output voltage(V)
400V
Rated Output Power
8.8KW
11kW
13.2KW
Power Factor
0.8lagging-0.8leading
THDi
< 3% (at rated power)
Max. Efficiency
97.9%
98.2%
98.2%
MPPT Efficiency
99.50%
Dimensions (W x H x D)
530 x 200x 600mm
Weight
29kg
Operating Temperature Range
-25° C ~ +60° C
Cooling Method
 Natural
Protection Degree
IP65
NoIse
<35dB
Max. Operating Altitude
2,000m (>2,000 Derating)
Relative Humidity
0 ~95%(non-condensing)
Self-consumption
<3W

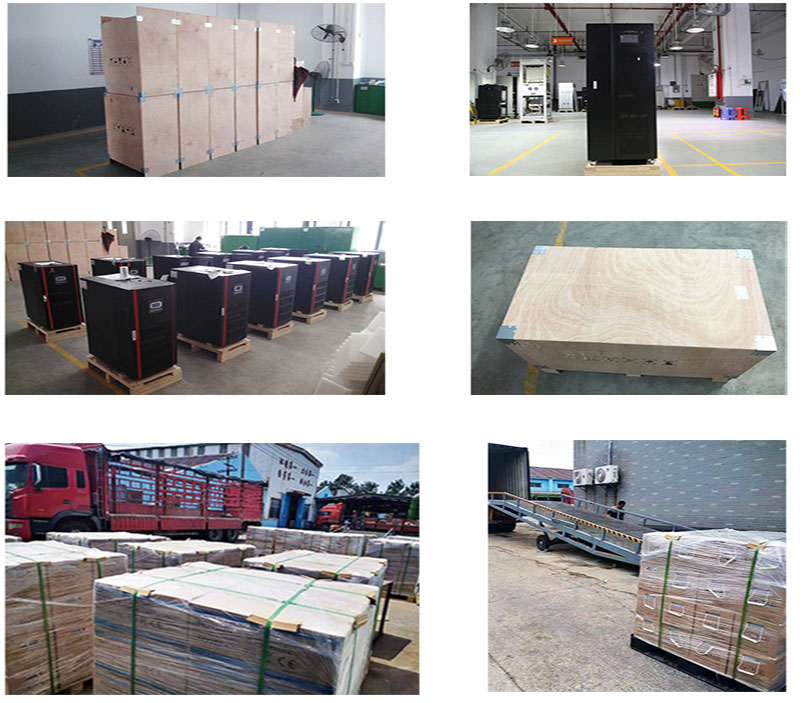

Packing&Delivery

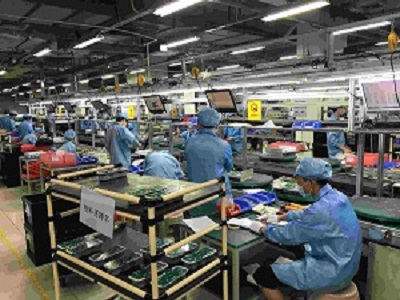

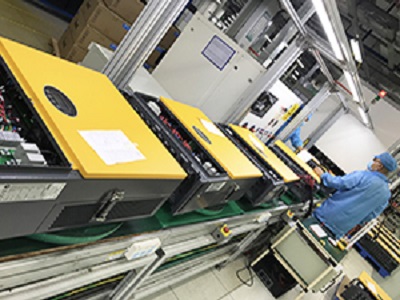

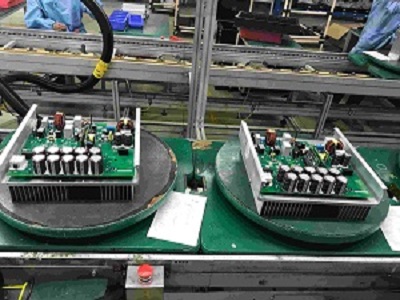

Factory

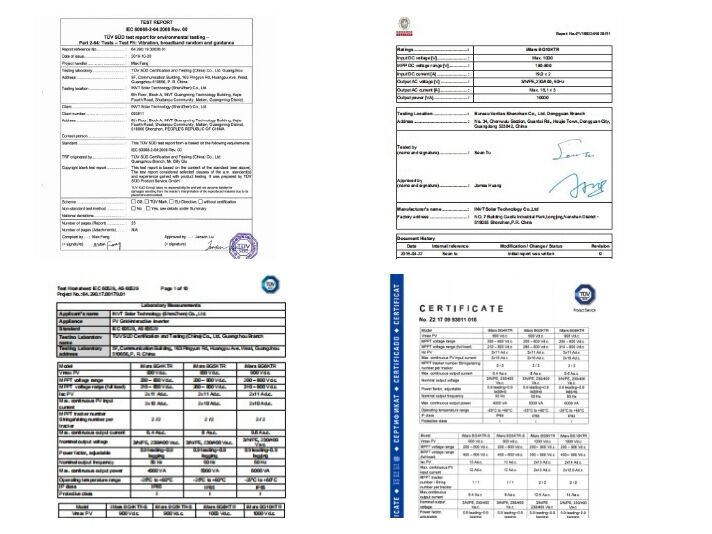

Certicification


FAQ

1. What about the quality of the mounting support?
A: The quality requirements for solar modules and grid-connected inverter support systems: 10 years without rusting, 20 years without degradation of steel, and 25 years still with some structural stability.

2.Are your Hybrid solar system certifications complete?

A:Sure,We have exported hybrid systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia.  The certification is very complete .

3. What if the power generation system shows abnormal power output?

A: 1. whether the module is over-matched 2. whether the module is shaded 3. whether the module is abnormal 4. whether the module orientation and inverter working mode 5. whether the grid connection distance is appropriate.

4.The advantages of home photovoltaic system?

A: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income; zero pollution; Low maintenance costs.

5.How do your company deal with the problem on quality?

A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
